Side Dump Semi Tipper Trailers Dropside 3 Axles Sidewall Cargo Lorry Semi Truck Trailers
Van-type side dump drop-side trailer, 60 tonne payload, heavy mechanical suspension and 16 tires.
View Specification
7 models available
Sidewall and Drop Side Cargo Semi Trailers
Drop side and fixed sidewall cargo trailers from 600mm to 2850mm side height, with 50 to 60 tonne payloads and optional side tipping.
General cargo work punishes the wrong body. Walls too high and the forklift cannot reach in; walls too low and the load spills; no walls at all and every trip needs sheeting and strapping labour.
Models
All 7 Side Wall Truck Trailer Models
Every model in this family, with full specifications taken from the manufacturer data sheet.

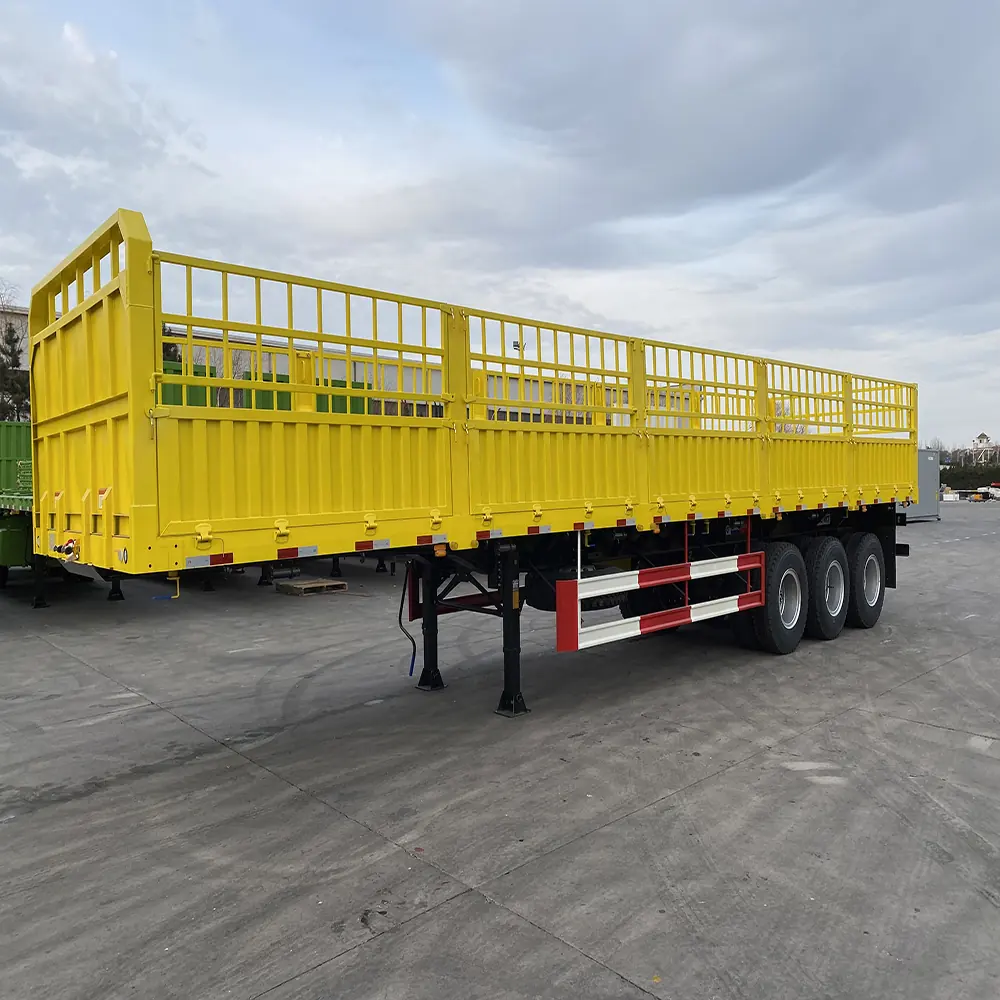

Cargo Trailer with Side Wall Semi-trailer 40ft Drop side Sidewall Cargo Lorry Semi Truck Trailers
40ft sidewall cargo trailer, 12500*2500*1550mm, 60T payload with 600 or 800mm side wall height.
View Specification

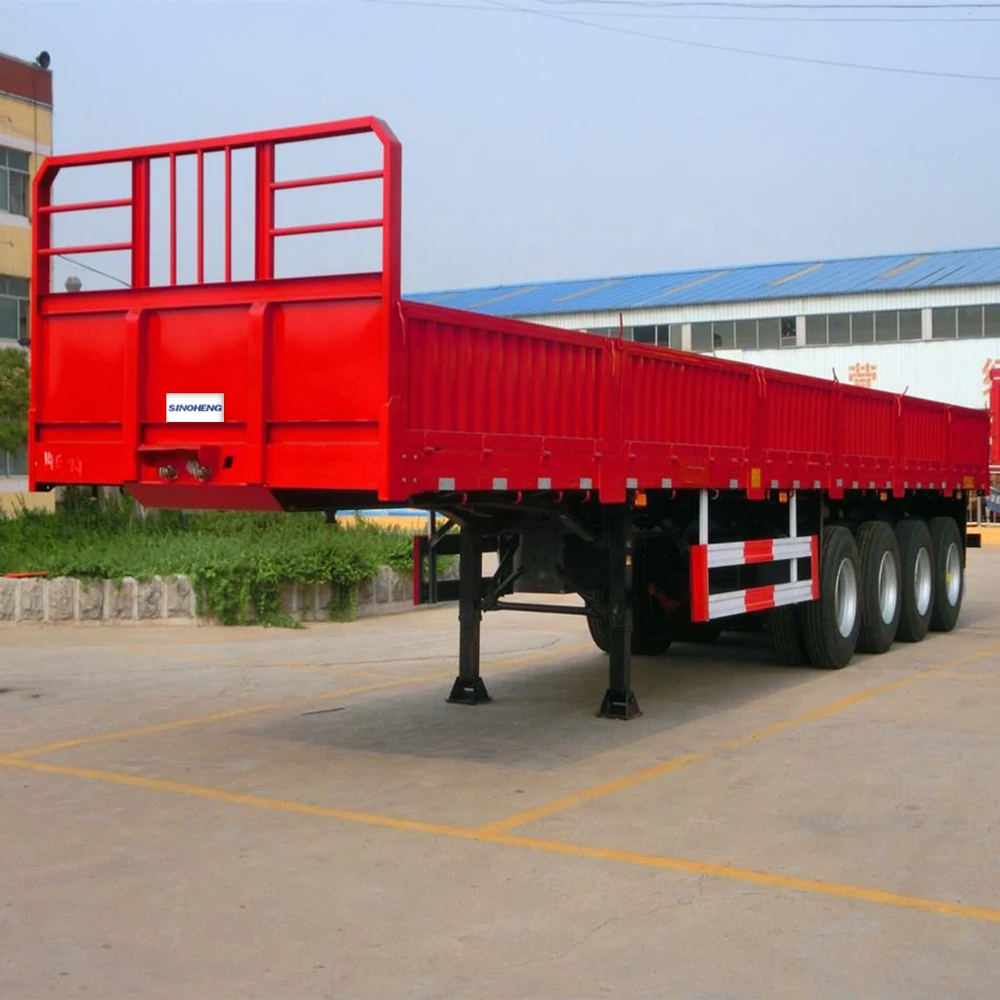

Side Wall Semi-trailer with 3 Axles 40 Feet Truck
40 foot three-axle sidewall trailer, 13000x2500x2850mm, 50T capacity with 24V LED lighting.
View Specification

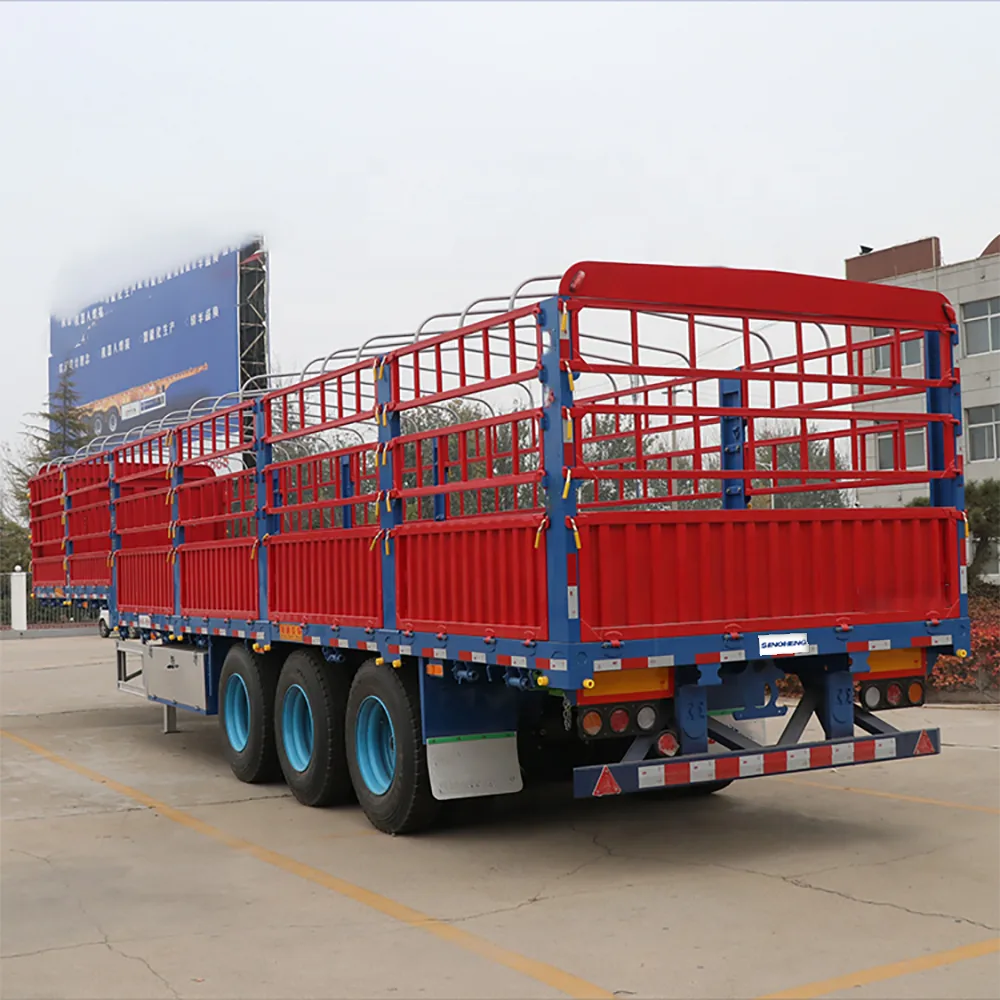

Flatbed Container Side Wall Cargo 3 axle Semi-trailer China Factory
Flatbed sidewall trailer with container locking, 13000x2500x2850mm and 50T capacity.
View Specification

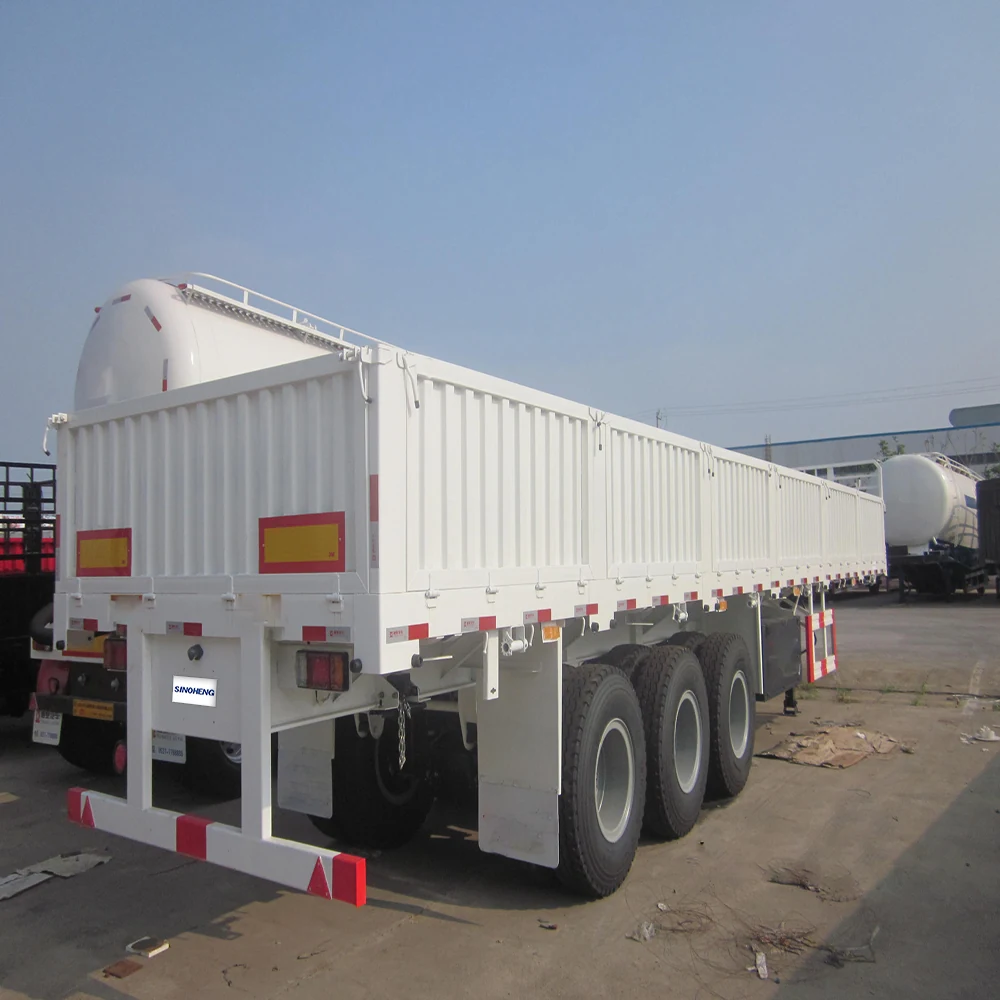

Flatdeck Interlink Tandem Trailers Dropside Sidewall Cargo Lorry Semi Truck Semi-trailer China Factory
Flatdeck interlink tandem drop-side trailer set, 13000x2500x2850mm, 50T on 13T FUWA axles.
View Specification

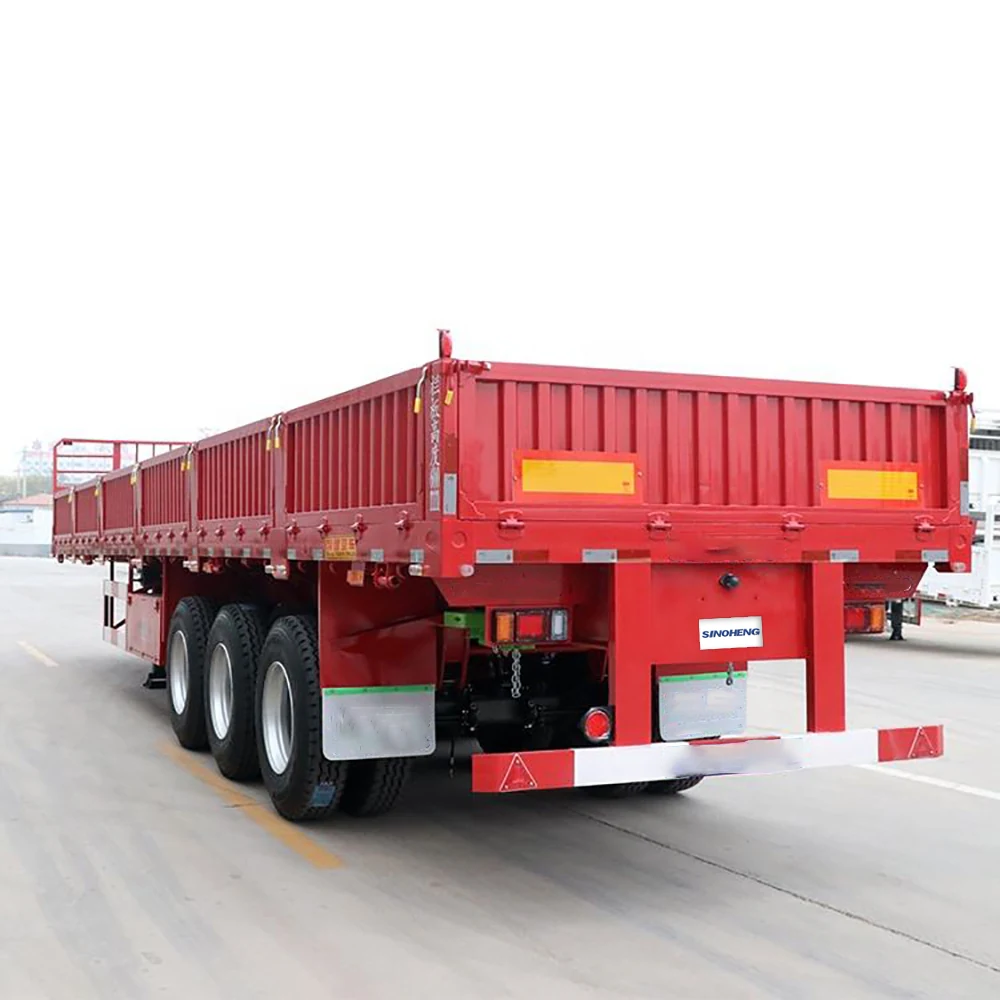

Cargo Trailer Hydraulic Cylinder Side Tipper Truck 13M Drop Side Dump Semi-Trailer
13 metre drop side dump trailer with hydraulic side tipping and 50T capacity.
View Specification

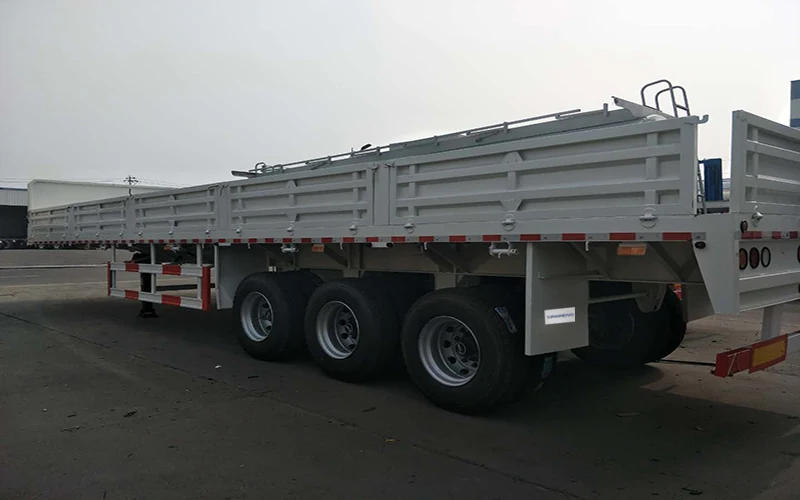

Three Axles Cargo Semi-trailer for Transporting Bag Cement Bulk Goods on Sale
Three-axle cargo trailer for bagged cement and bulk goods, 33500kg payload at 6500kg tare.
View SpecificationWho It Is For
Operators This Family Suits
- Building material distributors
- Steel stockholders and pipe suppliers loading by forklift
- Hauliers with mixed bulk and palletised contracts
- Agricultural and bagged goods transporters
Problems It Solves
What Goes Wrong Without It
- Fixed-wall bodies force loading from the rear only, which is slow with a forklift
- Loads slide and fall from an unfenced flat deck
- Dedicated tippers sit idle when the contract is palletised freight
- Light suspension fails under repeated side loading
Why This Family
Core Advantages
Side wall heights from 600mm and 800mm up to a 2850mm overall body
Drop side panels for forklift loading from either side
Hydraulic side tipping available on the same chassis for bulk work
Heavy duty 90mm x 13mm x 10-piece spring packs on FUWA 13T axles
24V LED lighting with 7-way receptacles as standard on the range
Application
Where These Trailers Work
- Building material and block delivery to construction sites
- Bagged cement, fertiliser and feed transport
- Steel and pipe haulage with side loading
- Road construction material placement along a carriageway
- Interlink tandem operation where combinations are permitted
Industries
Industries Using This Family
Construction and Infrastructure
Construction transport is a scheduling problem. Material has to arrive where the crew is working, plant has to move between packages without…
Cement and Concrete
Cement logistics live or die on discharge time. A batching plant with a queue of tankers waiting to blow off is a batching plant not produci…
Agriculture and Livestock
Agricultural freight needs containment and airflow at the same time. Sacked produce and baled feed slide off a flat deck, but an enclosed bo…
Related
Other Trailer Families
Dump Trailer Truck
Rear, side and U-shape tipping bodies, 2 to 6 axles, 30 to 80 tonnes
Low Bed Truck Trailer
Deck heights 700-1100mm, ramp angles 13-35 degrees, up to 120 tonnes
Oil Tank Trailer Truck
30 to 60 cubic metres, aluminium alloy from 6600kg tare, heated asphalt builds
LPG/LNG Tank Trailer Truck
Q370R pressure vessels and vacuum-insulated cryogenic tanks to -196 degrees
FAQ
Side Wall Truck Trailer Questions
What Side Wall Height Should I Choose
600mm where forklifts need to reach into the deck, 800mm for deeper loose loads, and the taller 2850mm body for bulky low-density freight that cubes out before it reaches weight.
Can the Trailer Also Tip
Yes, on the side tipping builds. That lets one trailer carry palletised freight behind closed sides and discharge bulk along a road edge.
Drop Sides or Fixed Walls
Drop sides load by forklift from either side. Fixed walls are stronger for loose bulk but force rear-only loading.
What Is an Interlink Tandem
A combination where a second trailer couples behind the first, so one tractor and one driver move two decks. It is standard practice in markets that permit it. Tell us your country and we will confirm what is legal.
Is ABS Fitted
Not on the standard builds in this family, but it can be added on request and several markets now require it.
Configure Your Side Wall Truck Trailer
Tell us the country of use, cargo, load weight and axle limits and we will confirm the configuration and quote.
