Low Flatbed Semi-trailer LHL9375TDP Direct Sale from Chinese Factories
LHL9375TDP short-deck lowbed, 11000 or 10500mm, 37000kg gross and four wheelbase settings.
Overview
What This Trailer Is Built For

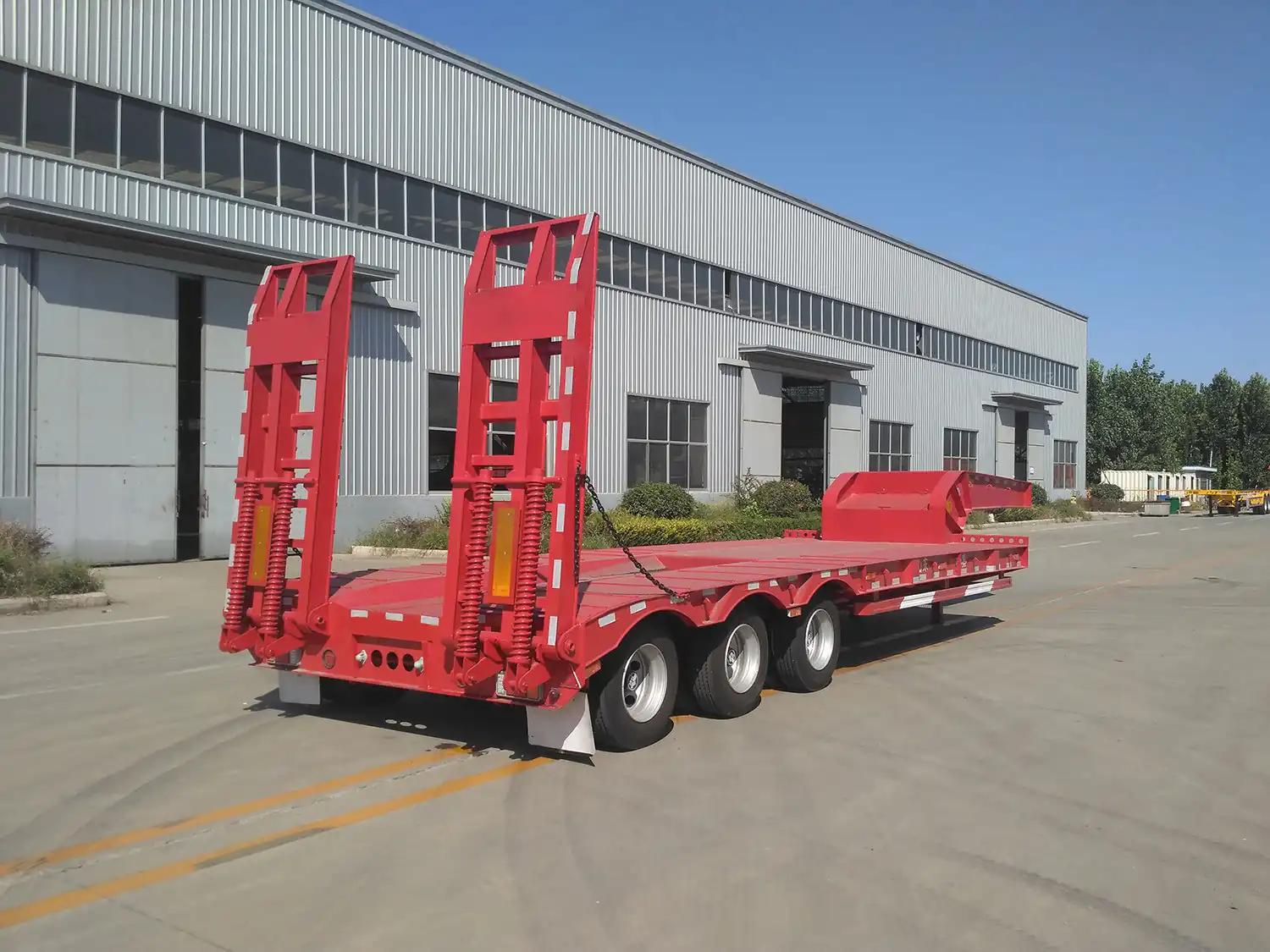

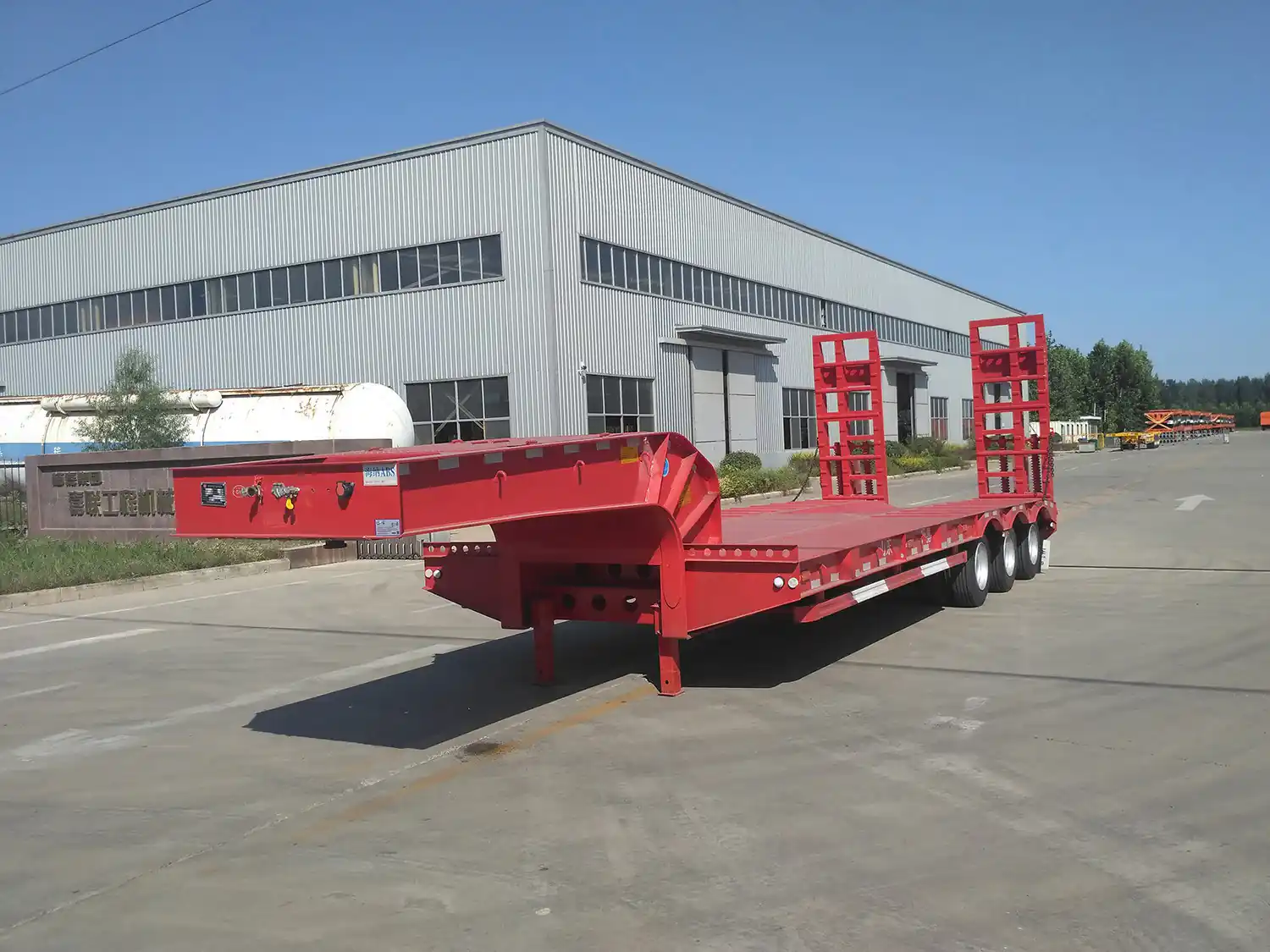

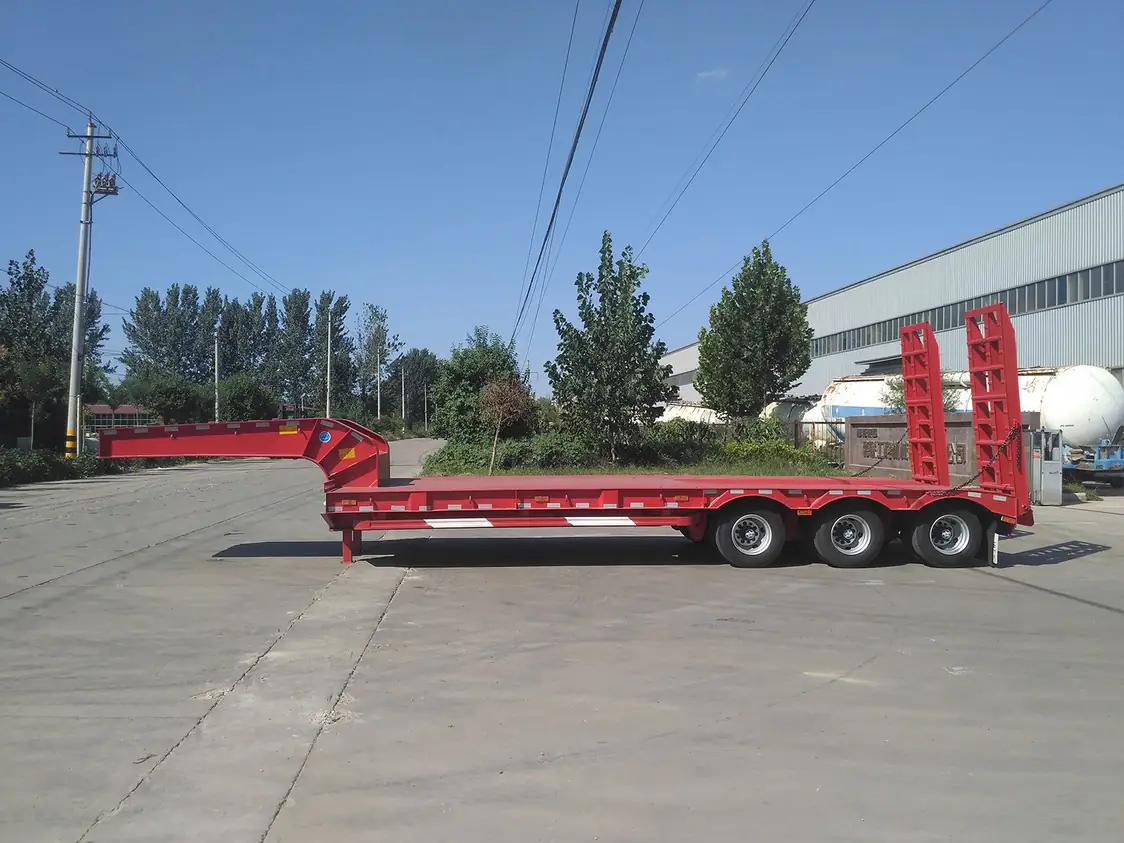

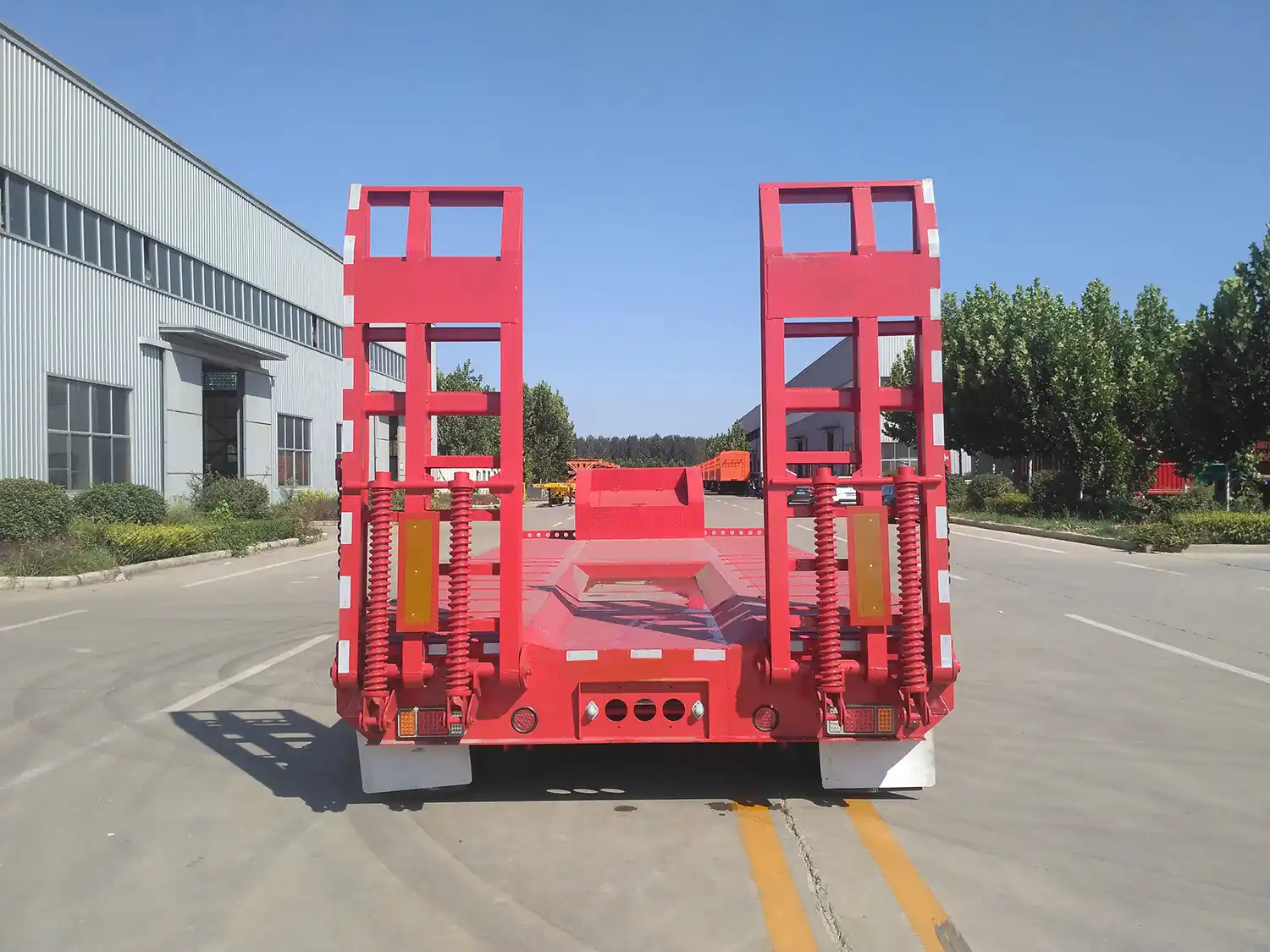

The LHL9375TDP is the short-deck member of the lowbed range, built at 11000mm or 10500mm on a 3000mm width and rated at 37000kg total weight with 21000kg over three axles. Four wheelbase settings are available, from 7300+1170+1170mm down to 6680+1170+1170mm, so the axle group can be positioned to keep the kingpin load correct on a shorter deck. Approach and departure angles are 32 and 28 degrees. It is built for compact tracked plant and for operators who work in tight yards where a 13m lowbed cannot turn.
Key Benefits
What You Get
- 11000mm and 10500mm decks turn inside yards and site accesses that a 13m lowbed cannot enter
- Four wheelbase options let the axle group be set for correct kingpin loading on a short deck
- 32 degree approach and 28 degree departure angle clear low-slung tracked machines at both ends
- 21000kg three-axle load within a 37000kg gross keeps the unit useful for mid-size plant
- Two tire families, 8.25R20 14PR and 235/75R17.5 16PR, keep replacements available locally
Problems Solved
What It Fixes
- Long lowbeds cannot negotiate tight city accesses and yard gates
- A short deck with the wrong wheelbase overloads the kingpin
- Low-clearance machines ground out on trailers with shallow angles
- Specialist tire sizes are hard to source for short-deck trailers
Who It Is For
Operators Who Buy This Model
- Urban civil contractors working in restricted access sites
- Compact plant hire fleets
- Municipal and utility maintenance operations
- Dealers delivering mid-size machines in built-up areas
Application Scenarios
Where It Works
- Moving compact excavators, skid steers and rollers between urban sites
- Plant delivery into confined city construction accesses
- Municipal and utility contractor equipment transport
- Short-haul machine moves where manoeuvrability beats deck length
Technical Features
Build Specification
- Low-bed semi-trailer, total weight 37000kg
- Length x width x height 11000 or 10500 x 3000 x 1750, 3100, 3300 or 3500mm
- Wheelbase 7300+1170+1170, 6800+1170+1170, 7180+1170+1170 or 6680+1170+1170mm
- Axle load 21000kg over three axles, rear suspension 930mm or 1050mm
- Approach angle 32 degrees, departure angle 28 degrees
- 12 tires in 8.25R20 14PR or 235/75R17.5 16PR
- Rear wheel base 2180, 2250, 2330 or 2400mm, spring pieces 4/4/4 or 8/8/8
Specifications
Manufacturer Data Sheet
| Type | Low-bed semi-trailer |
|---|---|
| Dimensions L x W x H | 11000,10500x3000x1750,3100,3300,3500 |
| Total Weight | 37000 |
| Approach / Departure Angle | 32,-/28 |
| Front/Rear Suspension | 930,-/1050 |
| Wheelbase | 7300+1170+1170,6800+1170+1170,7180+1170+1170,6680+1170+1170 |
| Axle Load | 21000(three axes) |
| Number of Spring Pieces | 4/4/4,-/8/8/8 |
| Number of Tires | 12 |
| Tire Specifications | 8.25R20 14PR,235/75R17.5 16PR |
| Rear Wheel Base | 2180/2180/2180,2250/2250/2250,2330/2330/2330,2400/2400/2400 |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Wheelbase position checked against the deck length on the order drawing
- Main beam weld inspection before deck fitting
- Approach and departure angle verified on the finished trailer
- Axle alignment and brake test before dispatch
Customization
What You Can Change
- Deck length 11000mm or 10500mm
- Wheelbase selected from four settings to suit your load position
- Overall height 1750, 3100, 3300 or 3500mm
- Tire size 8.25R20 14PR or 235/75R17.5 16PR
- Spring pack 4-leaf or 8-leaf per axle
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LHL9382TDP long-deck lowbed | The 9375 is far easier to manoeuvre in tight access; the 9382 carries machines that will not fit an 11m deck. |
| Tag-along plant trailer | A semi-trailer lowbed carries far more weight and detaches from the tractor; a tag-along is limited to light plant. |
| Flatbed semi-trailer | The lowbed deck sits lower for tall machines; the flatbed suits containers and long steel. |
Use Guide
Operating This Trailer
- Position the machine so its centre of gravity sits ahead of the axle group
- Confirm the wheelbase setting matches the load you carry most often
- Do not load the gooseneck section
- Check ramp angle clearance for low-slung machines before driving on
- Inspect spring packs and hangers after rough-ground loading
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationKnowledge
Related Guides
Maintenance Tips for Flatbed and Low Flat Trailers
Turbocharger care, fluid quality and service intervals for the tractor and trailer combinations used to move excavators, loaders and forklifts.
FAQ
Questions About This Model
How Long Is the Deck
11000mm or 10500mm on a 3000mm width. It is the short-deck model in the range, chosen where site access is tight.
Why Are There Four Wheelbase Options
A short deck changes where the load sits relative to the axles. Selecting the right wheelbase keeps the kingpin load correct and stops the tractor being overloaded.
What Total Weight Is It Rated For
37000kg total weight with 21000kg carried across the three axles.
What Are the Approach and Departure Angles
32 degrees approach and 28 degrees departure, which clears most compact tracked machines at both ends of the deck.
Which Tires Are Fitted
Twelve tires in 8.25R20 14PR or 235/75R17.5 16PR. Choose the size your local suppliers carry.
Can I Carry Cargo on the Gooseneck
No. The gooseneck is not rated for cargo, and loading it shifts weight off the axles onto the tractor.
What Is the Lead Time
Around 10 days for a stock unit and about 45 days for a customized build.
