Low Bed/Low Flatbed Semi-trailer China Factory Supplier for Sale

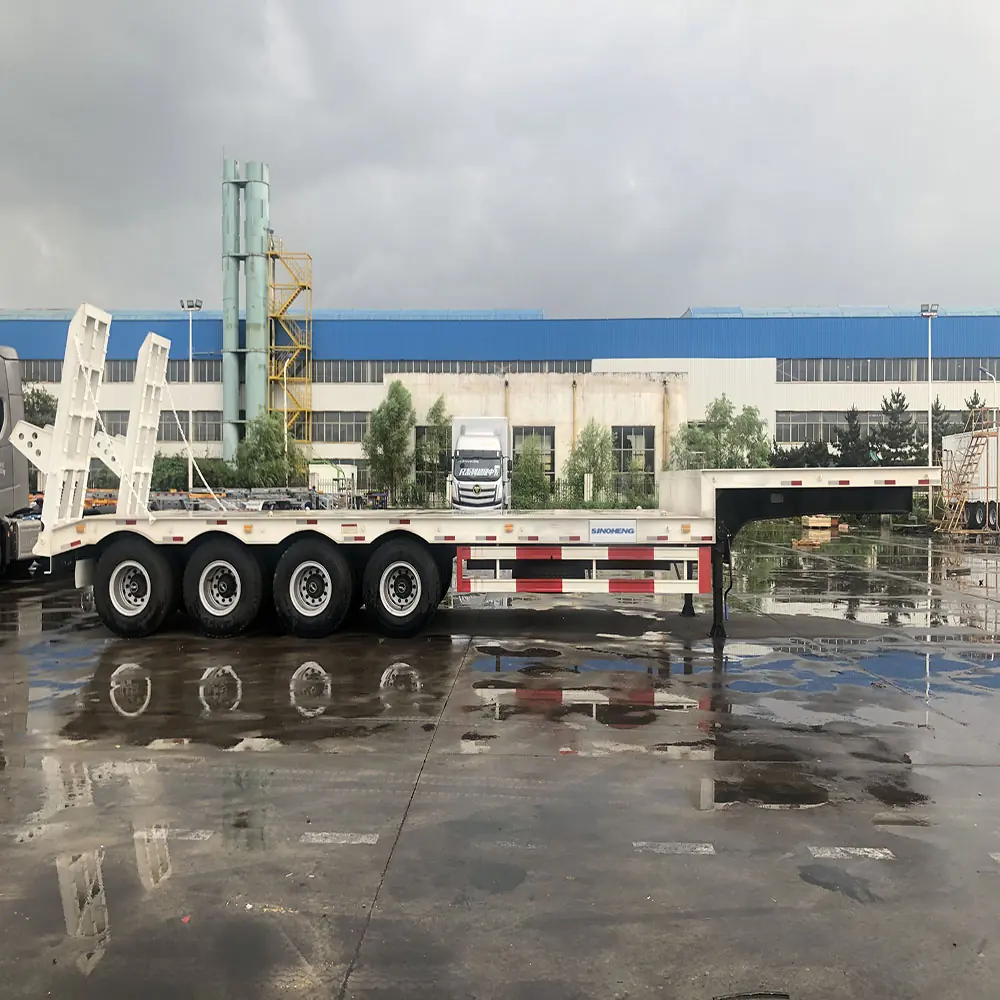

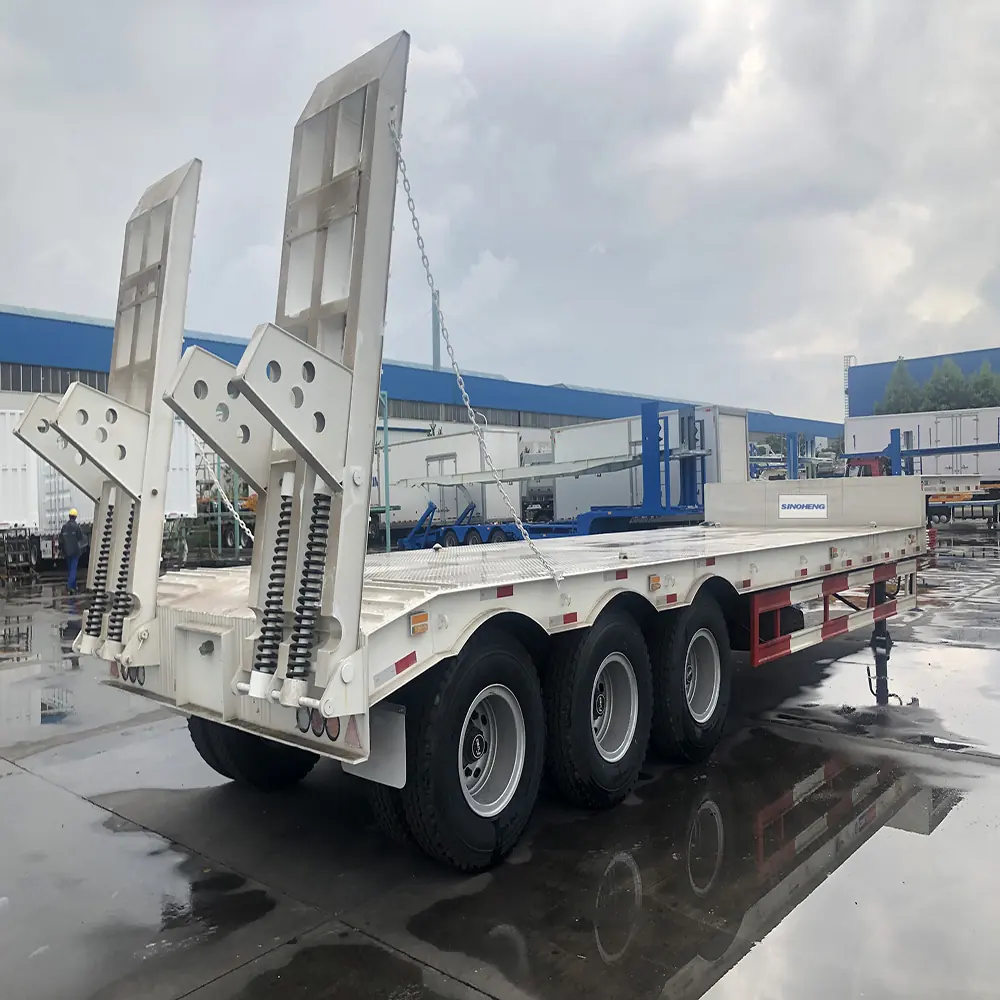

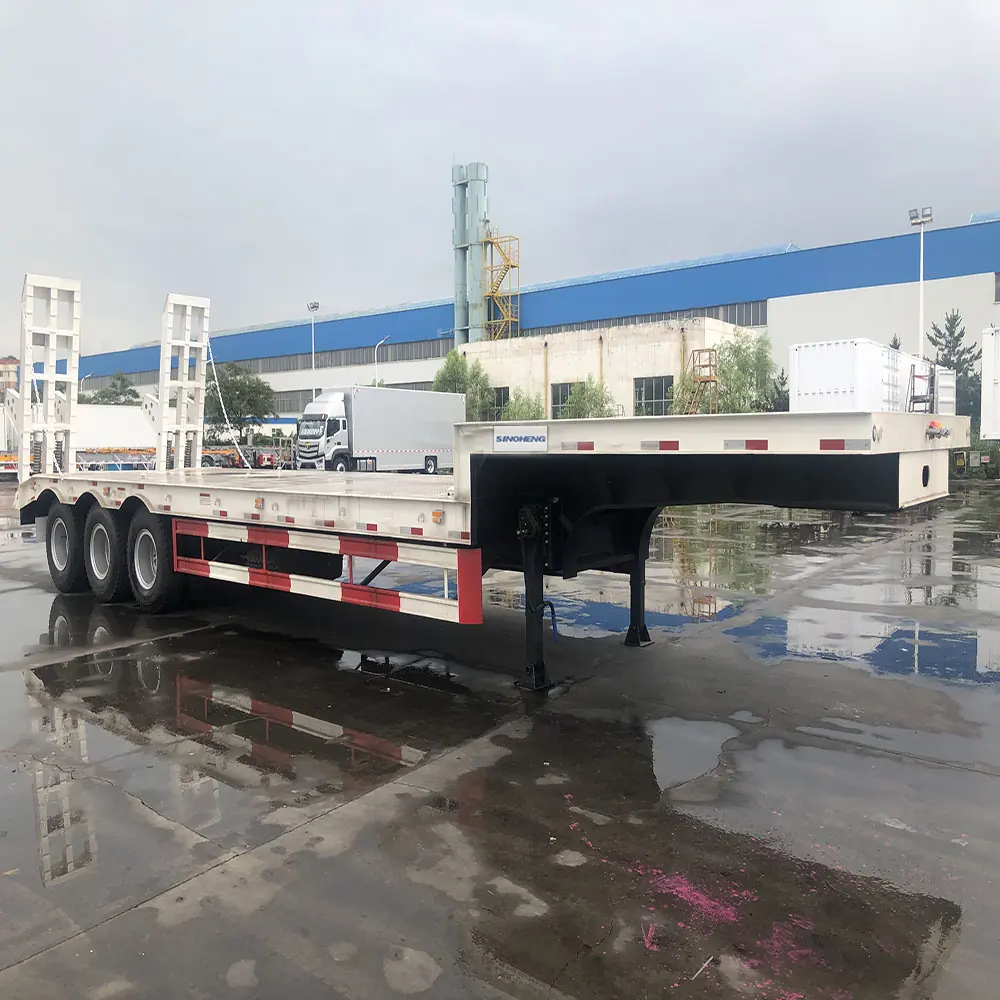

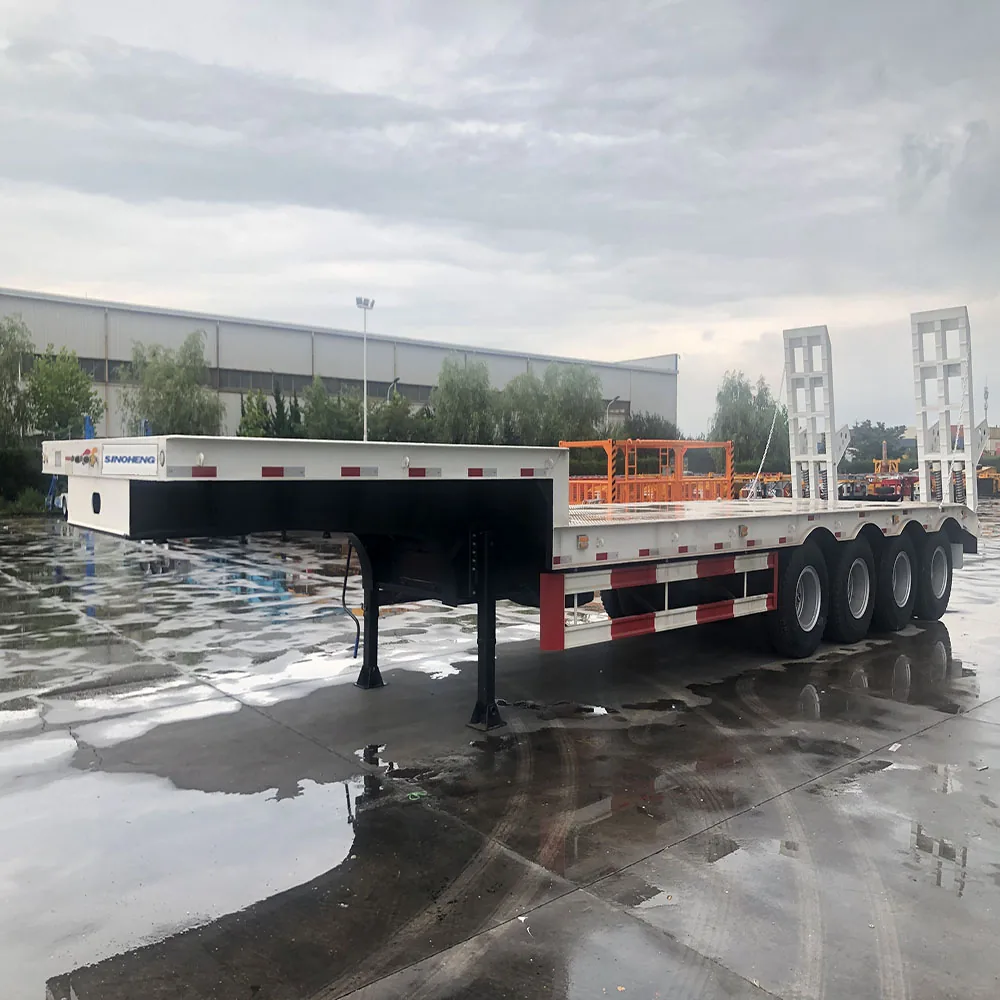

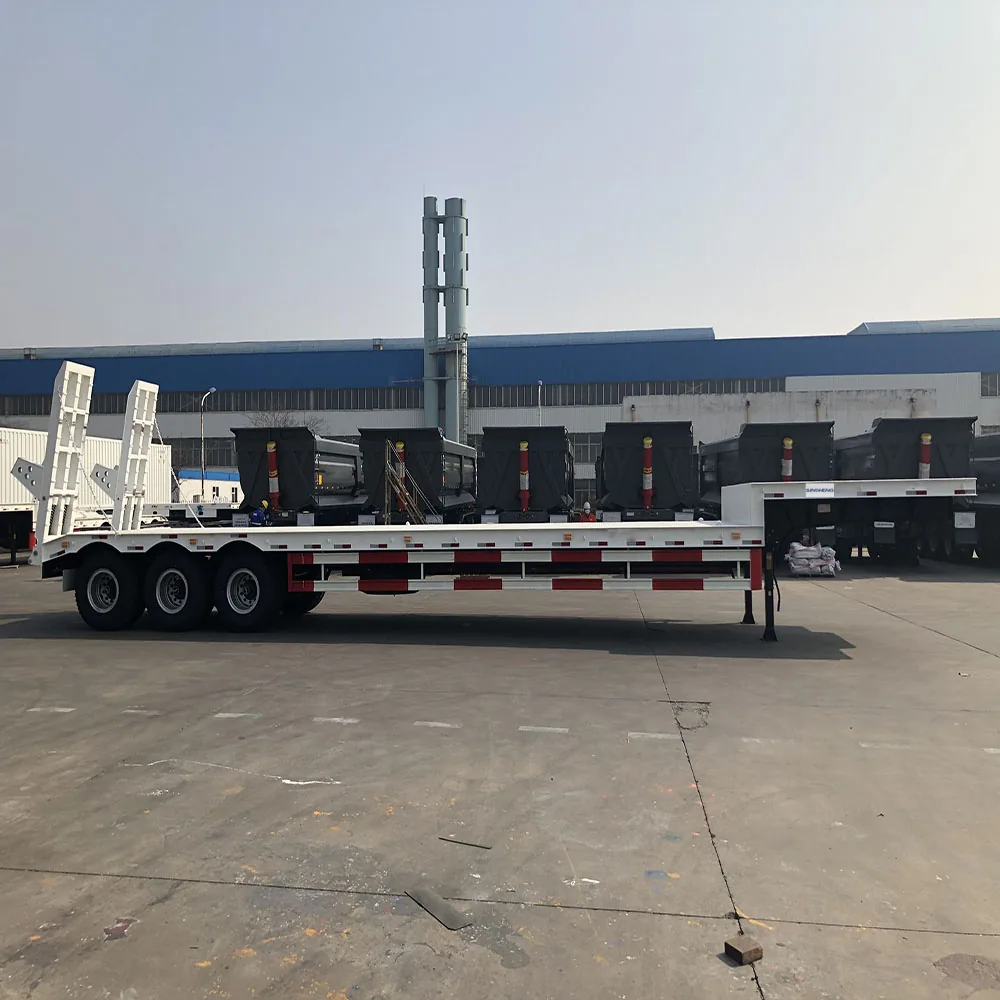

Low bed trailer at 13000*3000*1100mm carrying 60000kg on only a 7000kg tare.
Overview
What This Trailer Is Built For
A low bed trailer at 13000mm x 3000mm with a 1100mm deck height, carrying 60000kg payload on a 7000kg tare, all plus or minus 5 percent. A 60 tonne rating on a 7 tonne trailer is a very high payload-to-weight ratio for a lowbed, and it is achieved through the frame design rather than by underbuilding: reasonable structural design, a low centre of gravity and preferred materials, verified on the factory test equipment before dispatch. Axles are 13T in 3 or 4 pieces from BPW, FUWA, Yonglitai, Huajin or another Chinese brand on mechanical suspension, with 12 rims at 9.00-22.5, one spare wheel bracket and optional ABS.
Key Benefits
What You Get
- 60000kg payload on a 7000kg tare, a very high ratio for a low bed trailer
- 1100mm deck height with a low centre of gravity for stable heavy plant carriage
- Axle count selectable at 3 or 4 with five brand options
- Can be configured to load 40, 45 or 48 foot containers as well as plant
- Mechanical suspension repairs at any roadside workshop
Problems Solved
What It Fixes
- Heavy lowbeds waste several tonnes of the gross rating on the trailer
- Standard three-axle lowbeds cap payload well below 60 tonnes
- Separate container and plant trailers tie up capital
- Complex suspension fails without local service support
Who It Is For
Operators Who Buy This Model
- Heavy haulage operators at 60 tonnes
- Mining and quarry plant contractors
- Operators carrying both plant and containers
- Fleets where payload-to-tare ratio drives the economics
Application Scenarios
Where It Works
- Heavy plant and machinery transport at 60 tonnes
- Mining equipment relocation
- Container carriage on a low deck
- Industrial module and transformer movement
Technical Features
Build Specification
- Low bed semi-trailer, 13000*3000*1100mm
- Tare weight 7000kg, payload 60000kg, both plus or minus 5 percent
- Axles 13T, 3 or 4 pieces, BPW, FUWA, Yonglitai, Huajin or other Chinese brand
- Mechanical suspension, rims 9.00-22.5, 12 units
- Spare wheel bracket 1 piece, ABS optional
- Configurable to load 40, 45 or 48 foot containers
- Low centre of gravity design verified on factory test equipment
Specifications
Manufacturer Data Sheet
| Type | Low-bed semi-trailer Parameter |
|---|---|
| Dimensions L x W x H | 13000*3000*1100mm( |
| Tare Weight | (kg) 7,000 kg(±5%) |
| Payload | (kg) 60,000 kg(±5%) |
| Rim | 9.00-22.5 12Units Configuration |
| Axle | 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin or other china brand |
| Suspension | Mechanical |
| Spare Wheel Bracket | 1 pieces |
| ABS | Optional upon choice |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Main beam weld inspection along the full deck
- Loaded deflection test at the rated payload
- Axle alignment checked as a set
- Finished trailer verified on factory test equipment before dispatch
Customization
What You Can Change
- Axle count 3 or 4 at 13T
- Axle brand chosen from five options
- Container locking for 40, 45 or 48 foot boxes
- ABS anti-lock braking fitted on request
- Deck length, width and tonnage adjusted at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LHL series three-axle lowbed | This build carries 60 tonnes against a 21000kg axle load on the LHL series, at a lower tare. |
| Four-axle heavy lowbed | Choosing 4 axles here gets the same axle spread with a lighter base trailer; a dedicated four-axle build carries more concentrated loads. |
| Flatbed semi-trailer | The 1100mm deck keeps tall machines under height limits; a flatbed sits higher but weighs less. |
Use Guide
Operating This Trailer
- Confirm loaded height against route clearance before departure
- Distribute machine weight over the axle group
- Specify 4 axles where per-axle limits are enforced
- Check the spare wheel before long runs
- Inspect the main beam for deflection after very heavy loads
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationFAQ
Questions About This Model
What Payload Can It Carry
60000kg on a 7000kg tare, both plus or minus 5 percent. Confirm your local axle and gross limits, which usually set the legal figure.
What Is the Deck Height
1100mm, on a 13000mm x 3000mm deck.
How Many Axles Can I Specify
3 or 4 at 13T each, in BPW, FUWA, Yonglitai, Huajin or another Chinese brand.
Can It Carry Containers
Yes. It can be configured to load 40, 45 or 48 foot boxes as well as plant.
Is ABS Available
Yes, ABS is optional on this model.
How Is a 60 Tonne Rating Achieved at 7 Tonne Tare
Through the frame design and material selection rather than by cutting section. Every finished trailer is checked on our test equipment before dispatch.
How Long Is the Lead Time
About 10 days from stock where a unit is available, or around 45 days for a customized build.
Get A Price For The Low Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
