Low Bed/Flatbed 4 Axles Semi Trailer For China Heavy Machinery
Four-axle lowbed, 15000x2800x1600mm, 40-60T capacity with 10-leaf springs and 13T or 16T axles.
Overview
What This Trailer Is Built For

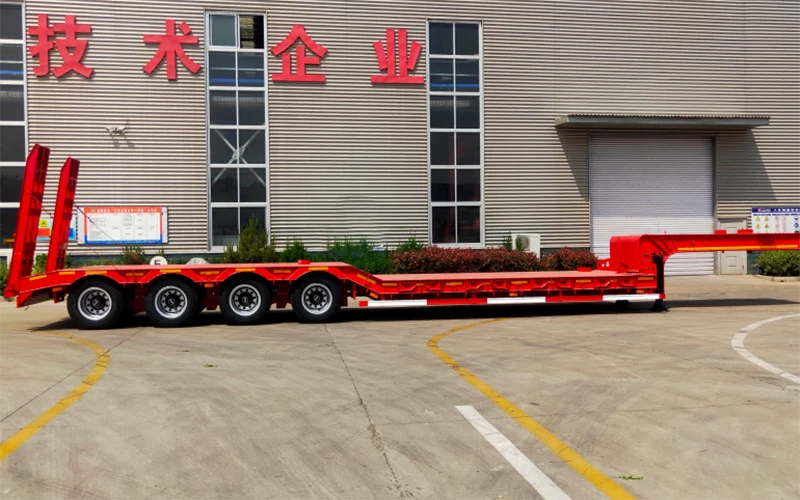

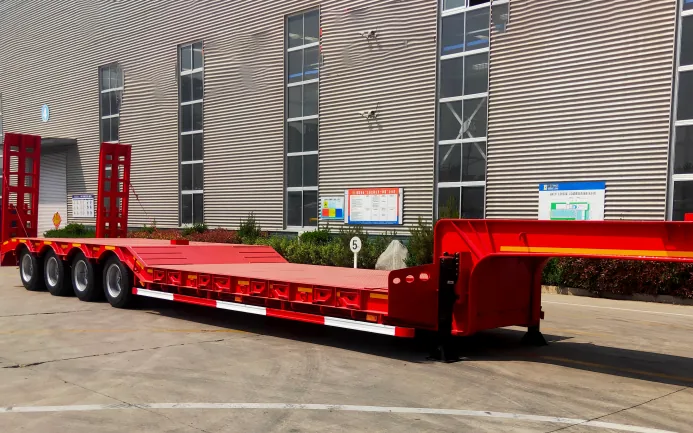

A four-axle lowbed for heavy machinery, 15000x2800x1600mm at 10000kg tare and 40 to 60 tonne loading capacity. Axles are available at 13T or 16T weight load with 10/10/10 steel spring packs per axle, on common mechanical suspension with 8.25R20 Triangle or Double Cone tires. Wheelbase settings are 5980+1300mm, 6680mm and 6260+1310+1310mm, kingpin is a JOST 2.0 or 3.5 inch traction pin, support legs are 28 tonne Tongyada or JOST brand, and ABS is optional. The fourth axle is what lets it take a 60 tonne machine where a three-axle unit would be over its axle limit.
Key Benefits
What You Get
- Four axles carry 40 to 60 tonnes where a three-axle lowbed would exceed its axle rating
- 16T axle option gives extra margin for concentrated machine loads
- 10-leaf spring packs per axle survive loaded running on unsealed site roads
- 15000mm deck length takes long tracked machines without overhang
- JOST kingpin and 28 tonne support legs are specified rather than left to the cheapest supplier
Problems Solved
What It Fixes
- Three-axle lowbeds run out of axle capacity before they run out of deck
- Light spring packs fail under concentrated machine loads on rough roads
- Short decks force long machines to overhang the rear
- Unspecified kingpins and landing legs fail under heavy loads
Who It Is For
Operators Who Buy This Model
- Heavy haulage operators carrying 40-60 tonne machines
- Mining contractors relocating plant
- Crane hire companies moving their own machines
- Plant dealers delivering large equipment
Application Scenarios
Where It Works
- Excavator and dozer transport at the heavy end of the range
- Crane and drilling rig relocation
- Mining equipment moves on site haul roads
- Industrial plant and transformer transport
Technical Features
Build Specification
- Dimensions 15000x2800x1600mm, tare weight 10000kg
- Loading capacity 40T to 60T
- Axle weight load 13T or 16T, steel spring 10/10/10 pieces per axle
- Wheelbase 5980+1300mm, 6680mm or 6260+1310+1310mm
- Common mechanical suspension, 8.25R20 Triangle or Double Cone tires, rim 6.5-20
- Kingpin JOST 2.0 or 3.5 inch traction pin
- Support legs 28 tonne Tongyada or JOST brand, ABS optional
Specifications
Manufacturer Data Sheet
| Tare Weight | 10000kg |
|---|---|
| Loading Capacity | 40Tâ60T |
| Axle | Weight Load 13T/16T |
| Suspension | Common mechanical Wheel 8.25r20Triangle or Double Cone Brand |
| King Pin | JOST 2.0â or 3.5â traction pin |
| Dimensions | (LxWxH) 15000x2800x1600mm Support legs 28Tons (Tongyada Brand)/Jost |
| Rim | 6.5-20 |
| Wheelbase | 5980+1300/6680/6260+1310+1310mm, Steel Spring 10/10/10 pieces per axles |
| ABS | optional |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Four-axle alignment checked as a set
- Spring pack assembly and torque verified per axle
- Deck and main beam weld inspection under load points
- Brake balance and ABS function test where fitted
Customization
What You Can Change
- Axle weight load 13T or 16T
- Wheelbase selected from three settings
- Tire brand Triangle or Double Cone
- Kingpin 2.0 or 3.5 inch JOST
- Support leg brand Tongyada or JOST, ABS fitted on request
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Three-axle lowbed | The fourth axle adds legal capacity for 50-60 tonne machines; three axles are enough and cheaper up to around 40 tonnes. |
| Three-line six-axle lowbed | Four axles at 13-16T each carry concentrated loads; the six-axle layout spreads load for the strictest per-axle limits. |
| Hydraulic detachable gooseneck lowbed | This fixed-gooseneck unit is simpler and cheaper to maintain; a detachable gooseneck allows drive-on front loading. |
Use Guide
Operating This Trailer
- Match the axle rating to the heaviest machine you move, not the average
- Position the machine over the axle group, not the rear overhang
- Check spring bolt torque after the first loaded trip
- Use the 28 tonne support legs only on firm, level ground
- Inspect the kingpin plate and mounting bolts at every service
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationKnowledge
Related Guides
Maintenance Tips for Flatbed and Low Flat Trailers
Turbocharger care, fluid quality and service intervals for the tractor and trailer combinations used to move excavators, loaders and forklifts.
FAQ
Questions About This Model
What Loading Capacity Does It Have
40 to 60 tonnes depending on the axle rating you specify. Tell us your heaviest machine and we will confirm the axle and spring package.
What Axle Ratings Are Available
13T or 16T weight load, with 10/10/10 steel spring packs per axle.
How Long Is the Deck
15000mm on a 2800mm width, which takes most long tracked machines without rear overhang.
What Kingpin Is Fitted
A JOST traction pin in either 2.0 or 3.5 inch. Confirm which size your tractor fifth wheel takes.
Is ABS Available
Yes, ABS is optional on this model. Many markets now require it on heavy haulage trailers.
What Landing Legs Does It Use
28 tonne support legs in Tongyada or JOST brand. Both are rated for the loaded trailer when uncoupled.
How Long Does It Take to Build
Around 45 days for a customized four-axle lowbed, with the exact schedule confirmed when drawings are signed.
