Customizable Low Flat/Low-Bed Semi-Trailer LHL9370TDP for Sale
LHL9370TDP at 35000kg gross with a 10-leaf spring option and 850 or 980mm deck height.
Overview
What This Trailer Is Built For

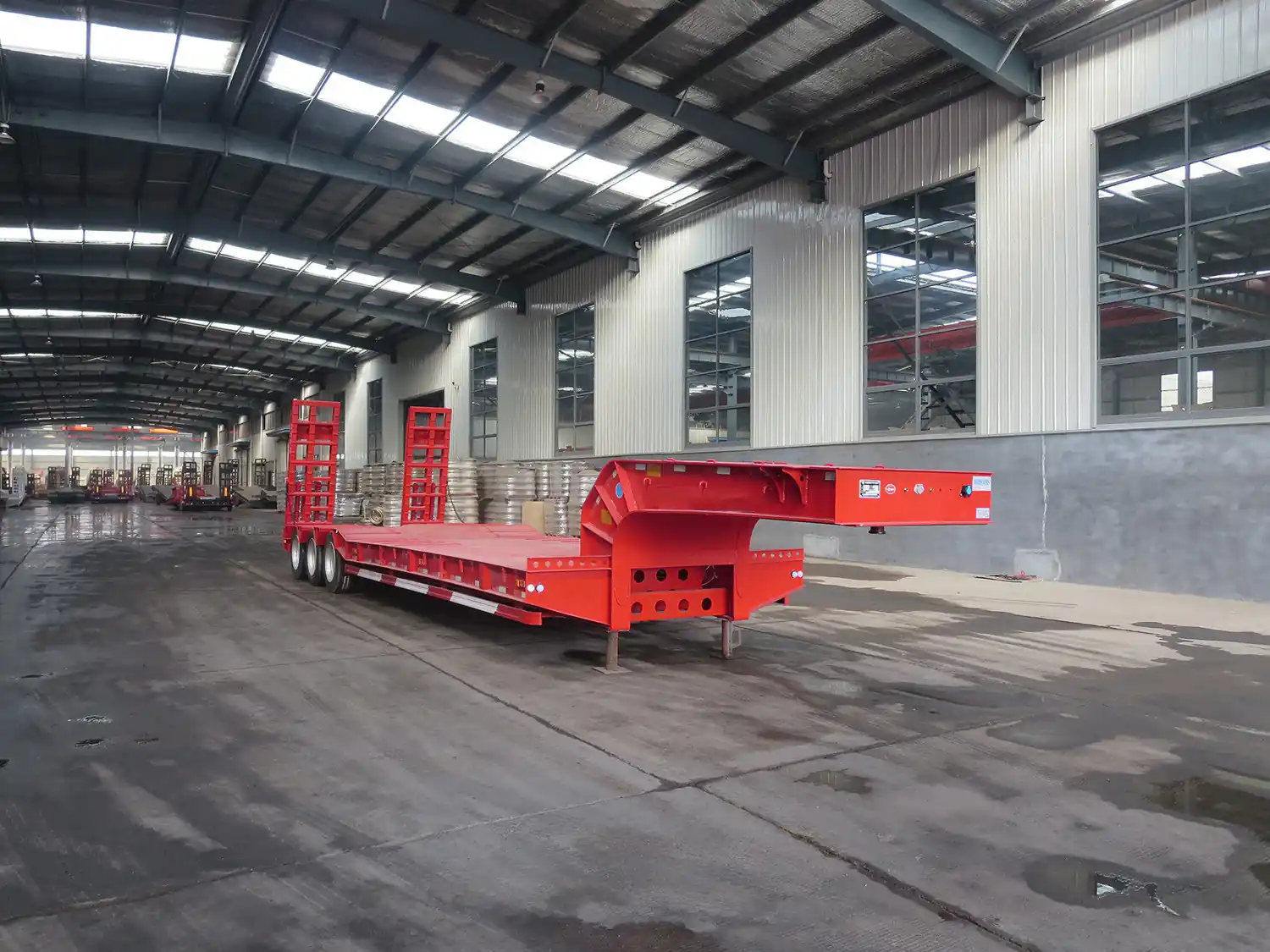

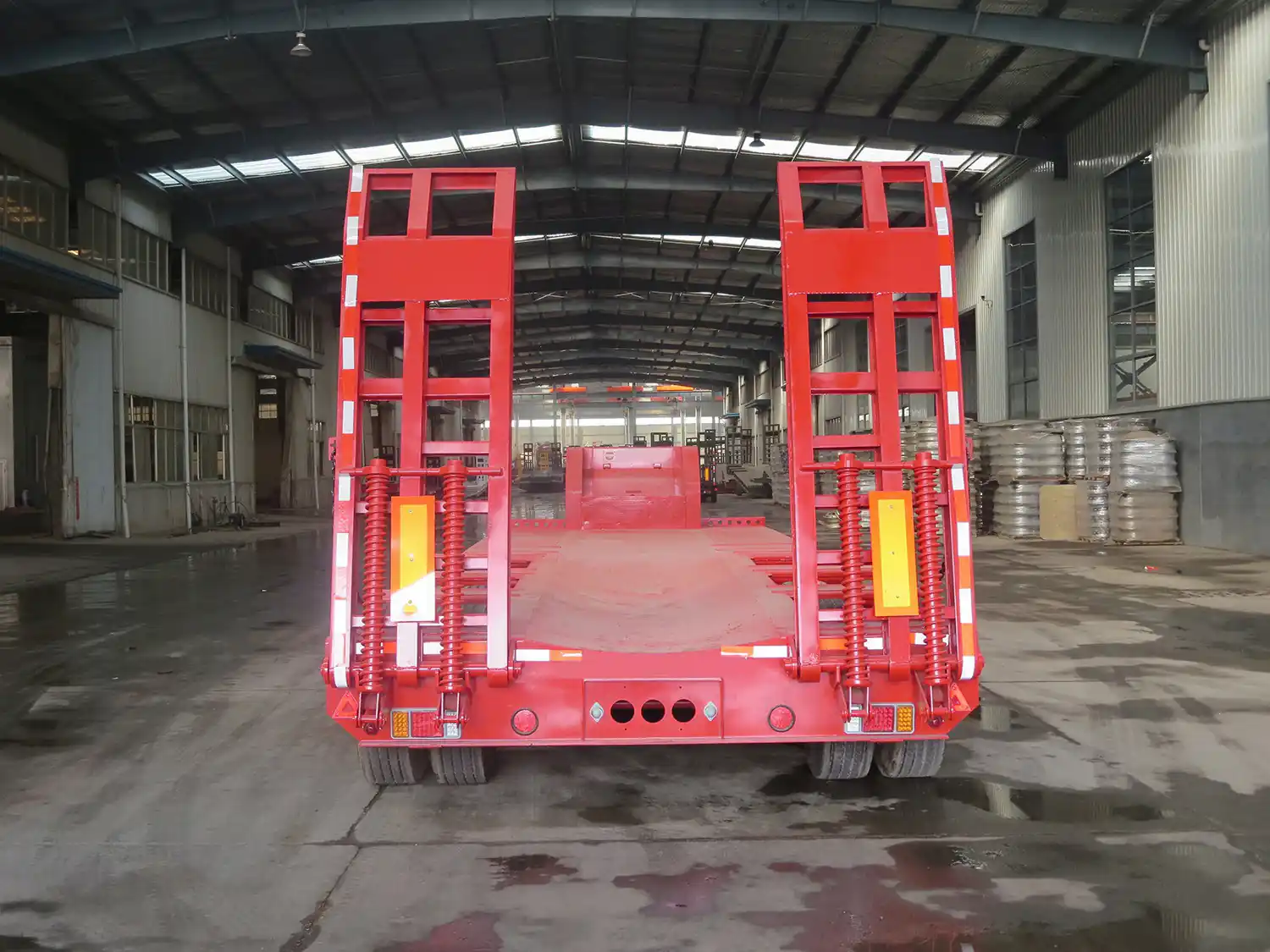

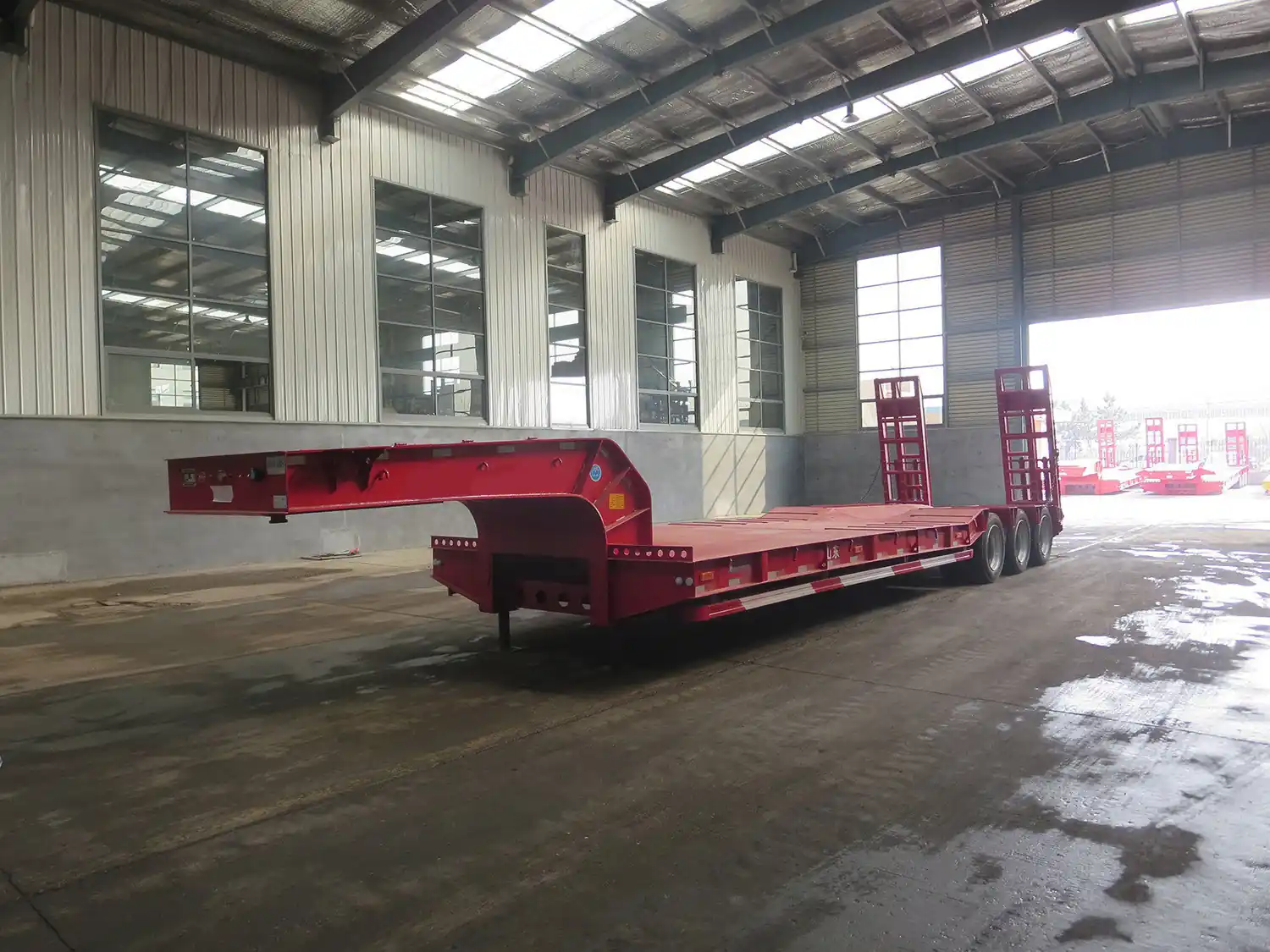

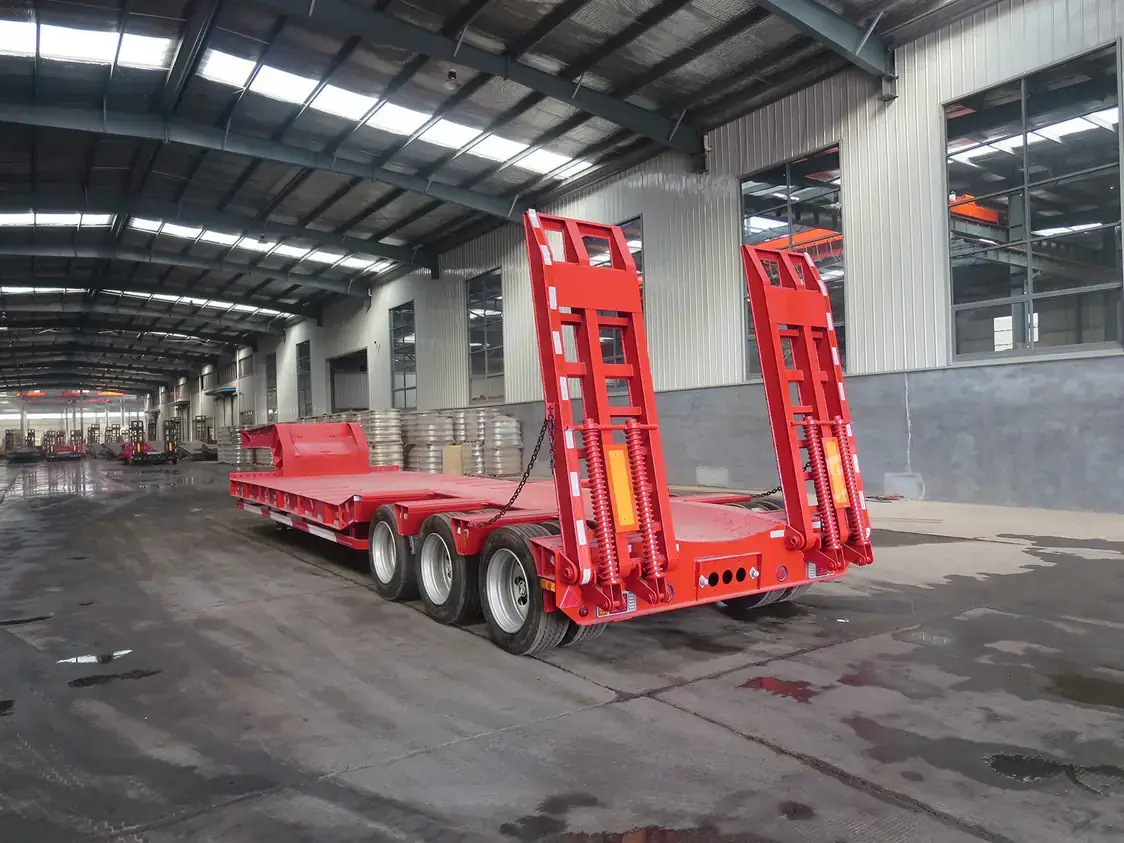

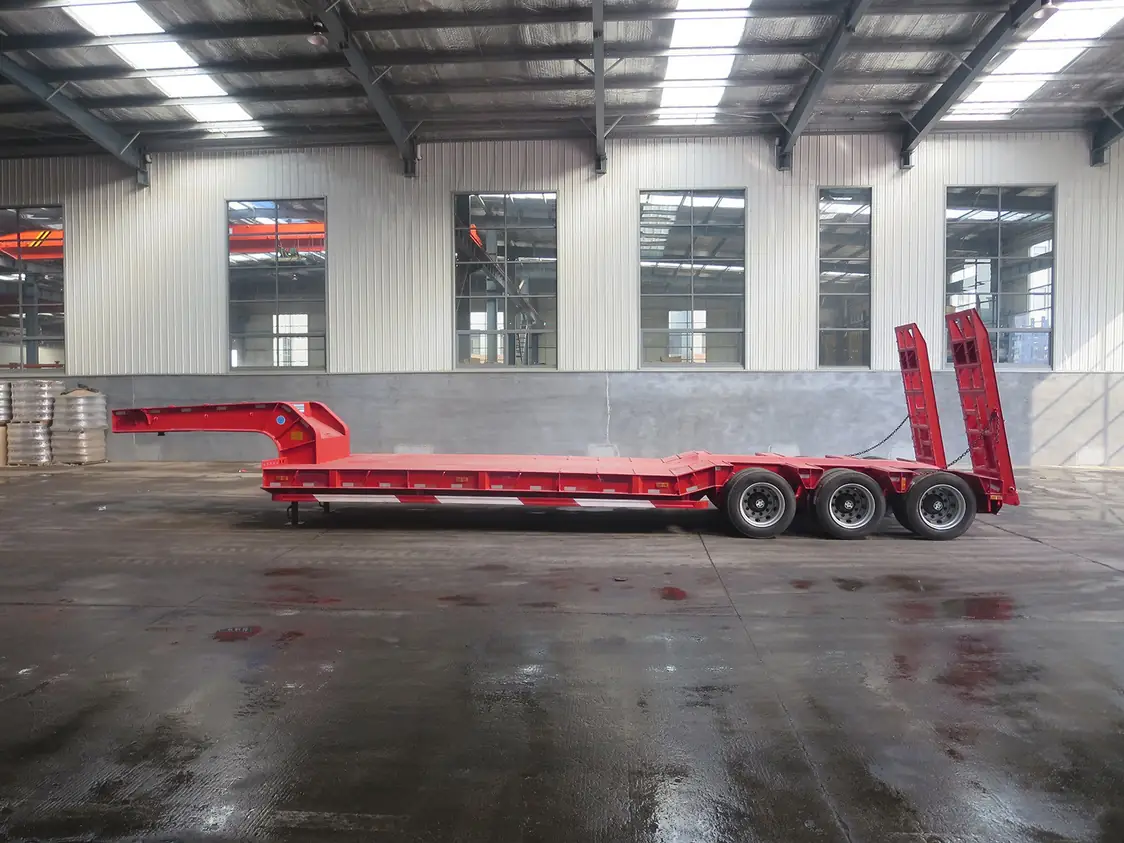

The LHL9370TDP is a 12990mm or 12500mm lowbed rated at 35000kg total weight with 21000kg over three axles, on an 8600+1170+1170mm wheelbase and a 30 degree approach and departure angle. It is the model in the range that offers a 10-leaf spring pack in addition to the usual 4 and 8-leaf options, which suits operators running loaded on rough unsealed roads. Deck height is 850mm or 980mm, the rear structure sits 500mm above ground, reflective signage is fitted to the sides and rear, and the ladder can be left off for a 1750mm total height.
Key Benefits
What You Get
- 10-leaf spring pack option carries shock loading on rough roads that a 4-leaf pack would not survive
- Three tire families including 8.25R16LT 16PR give flexibility on deck height and local supply
- 500mm rear structure ground height gives more clearance on steep site accesses than a 400mm rear
- 30 degree approach and departure angle loads most tracked plant without ramp packing
- Reflective signage already fitted to the sides and rear
Problems Solved
What It Fixes
- Light spring packs break on corrugated and potholed roads
- Low rear structures ground out on steep site ramps
- Limited tire options leave the deck height stuck at the wrong figure
- Trailers delivered without markings need retrofitting before inspection
Who It Is For
Operators Who Buy This Model
- Operators running loaded on rough unsealed roads
- Mining and quarry contractors moving their own plant
- Fleets that keep breaking spring packs on lighter builds
- Buyers working within a 35000kg gross limit
Application Scenarios
Where It Works
- Plant transport on unsealed rural and mine access roads
- Sites with steep ramps and broken approach surfaces
- Operations where suspension failures are the main downtime cause
- Mid-weight machine moves under a 35000kg gross limit
Technical Features
Build Specification
- Low-bed semi-trailer, total weight 35000kg
- Length x width x height 12990 or 12500 x 3000 x 1750, 2900 or 3100mm
- Wheelbase 8600+1170+1170mm, rear suspension 1050mm
- Axle load 21000kg over three axles, approach and departure angle 30 degrees
- Spring pieces 4/4/4, 8/8/8 or 10/10/10
- 12 tires in 8.25R20 12PR, 8.25R16LT 16PR or 235/75R17.5 16PR
- Deck height 850mm or 980mm, rear structure ground height 500mm
Specifications
Manufacturer Data Sheet
| Type | Low-bed semi-trailer |
|---|---|
| Dimensions L x W x H | 12990,12500x3000x3100,2900,1750 |
| Total Weight | 35000 |
| Approach / Departure Angle | 30 |
| Front/Rear Suspension | 1050 |
| Wheelbase | 8600+1170+1170 |
| Axle Load | 21000(three axes) |
| Number of Spring Pieces | 4/4/4,-/8/8/8,-/10/10/10 |
| Number of Tires | 12 |
| Tire Specifications | 8.25R20 12PR,8.25R16LT 16PR,235/75R17.5 16PR |
| Rear Wheel Base | 2330/2330/2330,2250/2250/2250,2180/2180/2180 |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Spring pack assembly and bolt torque checked per axle
- Deck height and rear structure clearance measured on the finished unit
- Reflective signage placement verified
- Axle alignment and brake test
Customization
What You Can Change
- Spring pack 4, 8 or 10 leaves per axle
- Deck length 12990mm or 12500mm
- Deck height 850mm or 980mm
- Ladder fitted or omitted for a 1750mm total height
- Rear spring power ladder with single or double spring
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| 4-leaf spring lowbed | The 10-leaf option survives corrugated and potholed roads that break lighter packs, at the cost of a firmer unladen ride. |
| Air suspension lowbed | Leaf springs can be repaired at any roadside workshop; air suspension gives a better ride but needs parts and diagnosis. |
| LHL9372TDP | The 9370 is built around rough-road durability at 35000kg; the 9372 carries 37000kg with ABS and bolted side protection. |
Use Guide
Operating This Trailer
- Specify the 10-leaf pack if more than half your running is on unsealed roads
- Check spring bolt torque after the first loaded trip
- Keep the gooseneck free of cargo
- Inspect the rear structure for strike damage after steep ramp use
- Match tire choice to the deck height you need
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationKnowledge
Related Guides
How Much Does a Semi Trailer From China Cost
How trailer pricing actually works, what moves the number, and reference FOB prices for a range of SINOHENG models.
Why Truck Tires Wear Abnormally and How to Stop It
Suspension design, dynamic tire alignment and S-road testing: the three production-stage measures that determine whether your tires wear evenly.
FAQ
Questions About This Model
What Spring Options Are There
4, 8 or 10 leaves per axle. The 10-leaf pack is the one to choose if most of your running is on unsealed roads.
What Is the Total Weight Rating
35000kg with 21000kg carried across the three axles.
What Deck Heights Are Available
850mm or 980mm above ground. Without the ladder the total height is 1750mm.
What Is the Rear Structure Ground Height
500mm, which gives more clearance on steep approaches than the 400mm used on some other models.
Which Tires Can Be Fitted
8.25R20 12PR, 8.25R16LT 16PR or 235/75R17.5 16PR, twelve in total.
Is the Ladder Optional
Yes, and it can be supplied with rear spring power in single or double spring form.
Can You Customize the Build
Yes. Length, load capacity, axles, safety fittings and deck configuration are all adjustable, and you can take part in the design review before production starts.
