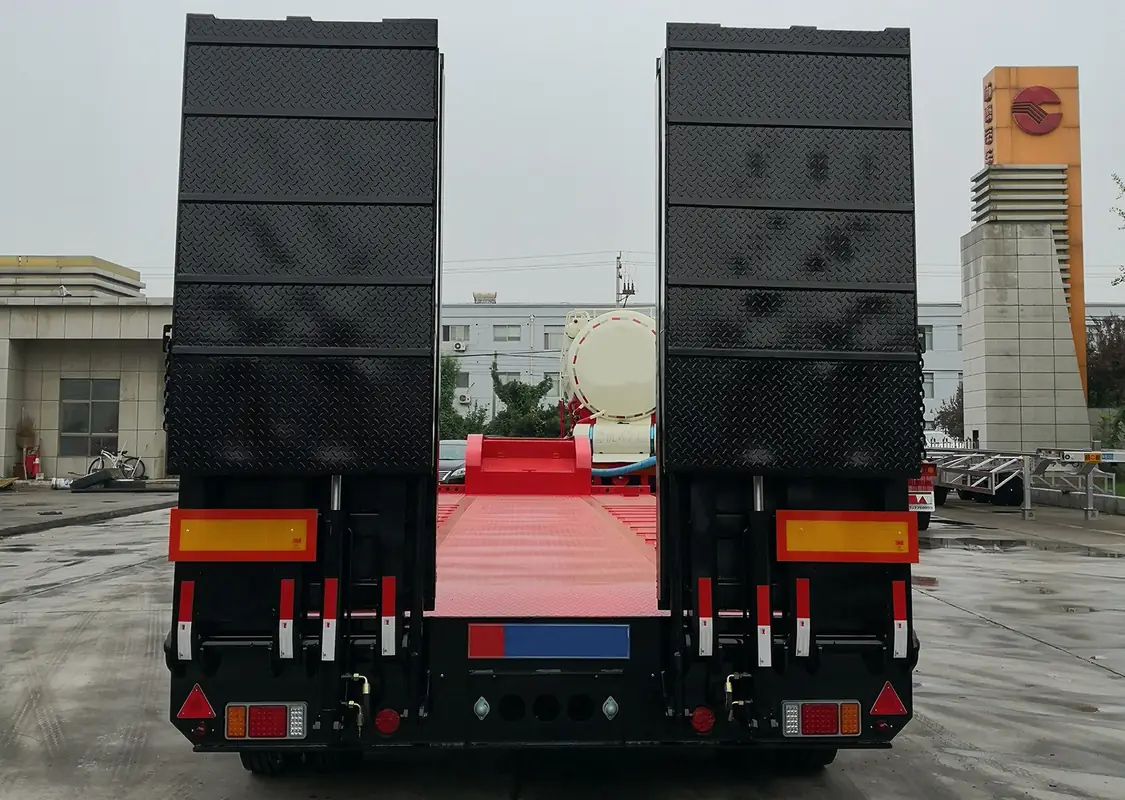

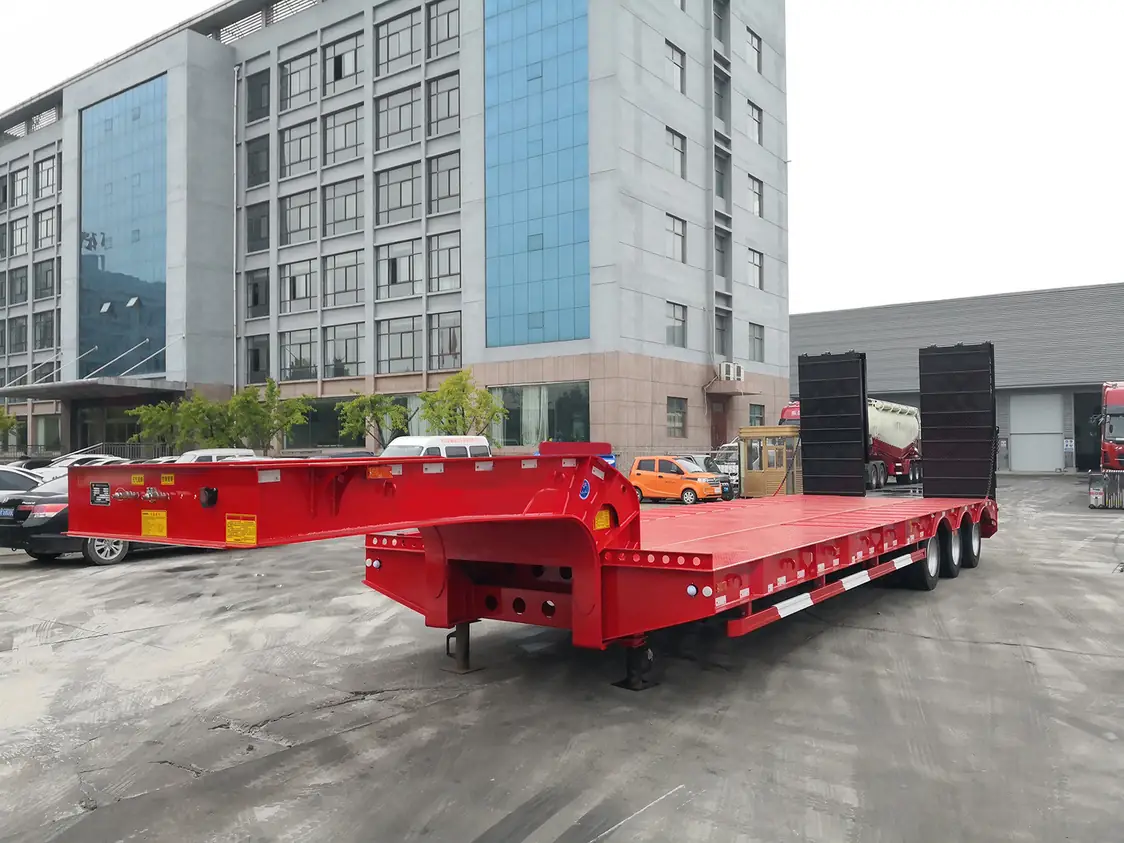

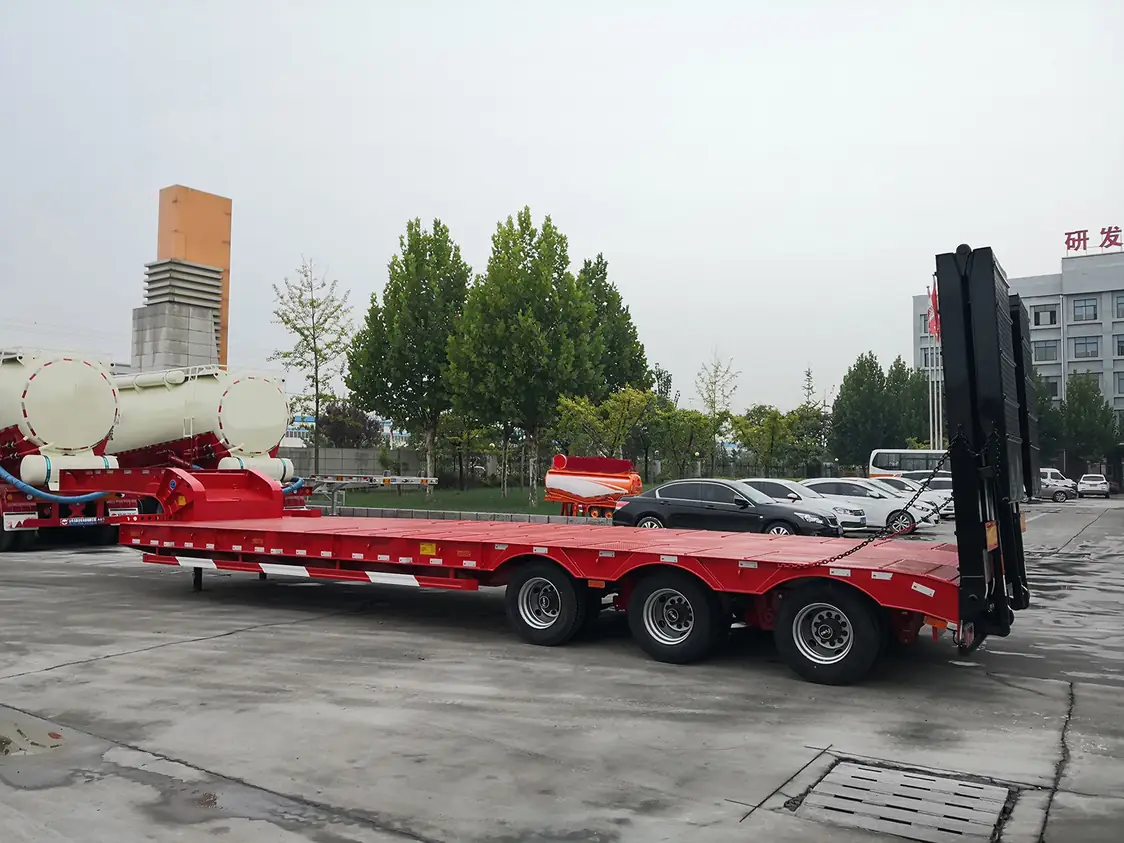

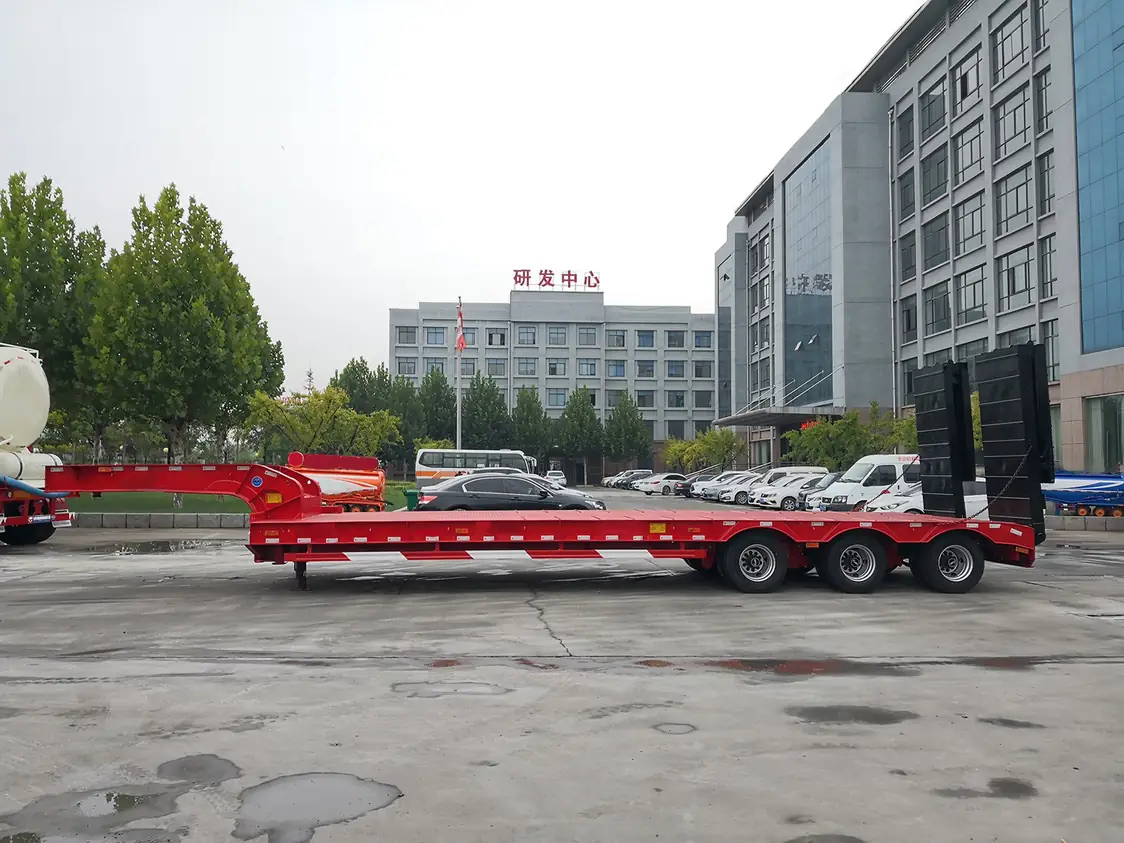

Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
Overview
What This Trailer Is Built For
The LHL9381TDP is the tall-profile variant of the three-axle lowbed range, built at 3200, 3300, 3500 or 3700mm overall height on deck lengths of 13750mm, 12990mm or 12500mm. Total weight is 38000kg with 21000kg over three axles on an 8090+1300+1300mm wheelbase. Deck height is set by tire choice: with 235/75R17.5 tires the deck sits at 880mm, 930mm or 960mm; with 8.25R20 tires it sits at 1020mm or 1100mm. The departure angle is 20 degrees and rear overhang 1300mm.
Key Benefits
What You Get
- Raised 3200-3700mm profile suits loads that need side support rather than a bare open deck
- Deck height follows tire choice, so you can set ground clearance and loaded height together
- The lowest deck setting of 880mm with 235/75R17.5 tires keeps tall machines under strict height limits
- 8090+1300+1300mm wheelbase is shared with the rest of the range, which simplifies spares
- 12 tires in two size families keep replacement straightforward in most markets
Problems Solved
What It Fixes
- An open low deck gives no side restraint for loads that can shift
- Deck height and tire size are often chosen separately and then conflict
- Different wheelbases across a fleet complicate spare parts and axle planning
- Rare tire sizes leave a trailer stranded after a blowout
Who It Is For
Operators Who Buy This Model
- Contractors carrying a mix of plant and crated cargo
- Operators working under strict loaded-height rules
- Fleets standardising on one wheelbase across several lowbed models
- Hauliers who prefer tire-linked deck height options
Application Scenarios
Where It Works
- Transporting machines that need side restraint on the deck
- Mixed loads of plant and crated equipment
- Site-to-site moves on routes with height enforcement
- Long plant moves where deck length matters more than ramp angle
Technical Features
Build Specification
- Low-bed semi-trailer, total weight 38000kg
- Length x width x height 13750, 12990 or 12500 x 3000 x 3200, 3300, 3500 or 3700mm
- Wheelbase 8090+1300+1300mm, rear suspension 1300mm
- Axle load 21000kg over three axles, departure angle 20 degrees
- 12 tires in 8.25R20 14PR or 235/75R17.5
- Deck height 880, 930 or 960mm on 235/75R17.5 tires; 1020 or 1100mm on 8.25R20
- Spring pieces 4/4/4 or 8/8/8
Specifications
Manufacturer Data Sheet
| Type | Low-bed semi-trailer |
|---|---|
| Dimensions L x W x H | 13750,12990,12500x3000x3200,3300,3500,3700 |
| Total Weight | 38000 |
| Approach / Departure Angle | 20 |
| Front/Rear Suspension | 1300 |
| Wheelbase | 8090+1300+1300 |
| Axle Load | 21000(Three axes) |
| Number of Spring Pieces | 4/4/4,-/8/8/8 |
| Number of Tires | 12 |
| Tire Specifications | 8.25R20 14PR,235/75R17.5 16P |
| Rear Wheel Base | 2180/2180/2180,2250/2250/2 |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Frame and upright welding inspected before painting
- Deck height verified against the tire size on the order
- Axle alignment and brake performance test
- Finished trailer checked on factory test equipment before dispatch
Customization
What You Can Change
- Overall height 3200, 3300, 3500 or 3700mm
- Deck length 13750mm, 12990mm or 12500mm
- Tire size 8.25R20 14PR or 235/75R17.5, which sets the deck height
- Spring pack 4-leaf or 8-leaf per axle
- Loading surface style set to your cargo
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LHL9382TDP | The 9381 carries the raised 3200-3700mm profile; the 9382 keeps the low 1750mm profile for maximum height clearance. |
| Fence semi-trailer | This lowbed still carries heavy plant at a low deck height; a fence trailer is for palletised and bagged cargo, not tracked machines. |
| Six-axle lowbed | Three axles are enough up to 38000kg gross; the six-axle build is for heavier plant and tighter axle-load enforcement. |
Use Guide
Operating This Trailer
- Choose the tire size first, since it fixes the deck height
- Verify loaded height with the raised profile included, not just the deck
- Keep heavy items over the axle group
- Do not load the gooseneck section
- Check ramp and locking pin condition before each load
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View Specification
Low Flatbed Semi-trailer LHL9375TDP Direct Sale from Chinese Factories
LHL9375TDP short-deck lowbed, 11000 or 10500mm, 37000kg gross and four wheelbase settings.
View SpecificationFAQ
Questions About This Model
How Does Tire Size Affect Deck Height
With 235/75R17.5 tires the deck sits at 880mm, 930mm or 960mm. With 8.25R20 tires it sits at 1020mm or 1100mm. Choose the tire first if loaded height is critical.
What Is the Overall Height
3200mm, 3300mm, 3500mm or 3700mm depending on the build you specify.
What Is the Departure Angle
20 degrees. For machines with very low ground clearance, the LHL9383TDP at 33 degrees loads more easily.
What Total Weight Is It Rated For
38000kg, with 21000kg carried across the three axles.
How Many Tires Are Fitted
Twelve, in 8.25R20 14PR or 235/75R17.5.
Can You Change the Spring Pack
Yes. The trailer is built with either 4 or 8 spring leaves per axle depending on the road conditions you run on.
What Is the Warranty
One year from delivery, with spare parts supply guaranteed for the service life of the trailer.
