Low Flatbed Semi-trailer Low Flat Trailer For sale Made in China LHL9359TDP
LHL9359TDP compact lowbed, 10000 or 9500mm deck, 35000kg gross and a 35 degree departure angle.
Overview
What This Trailer Is Built For

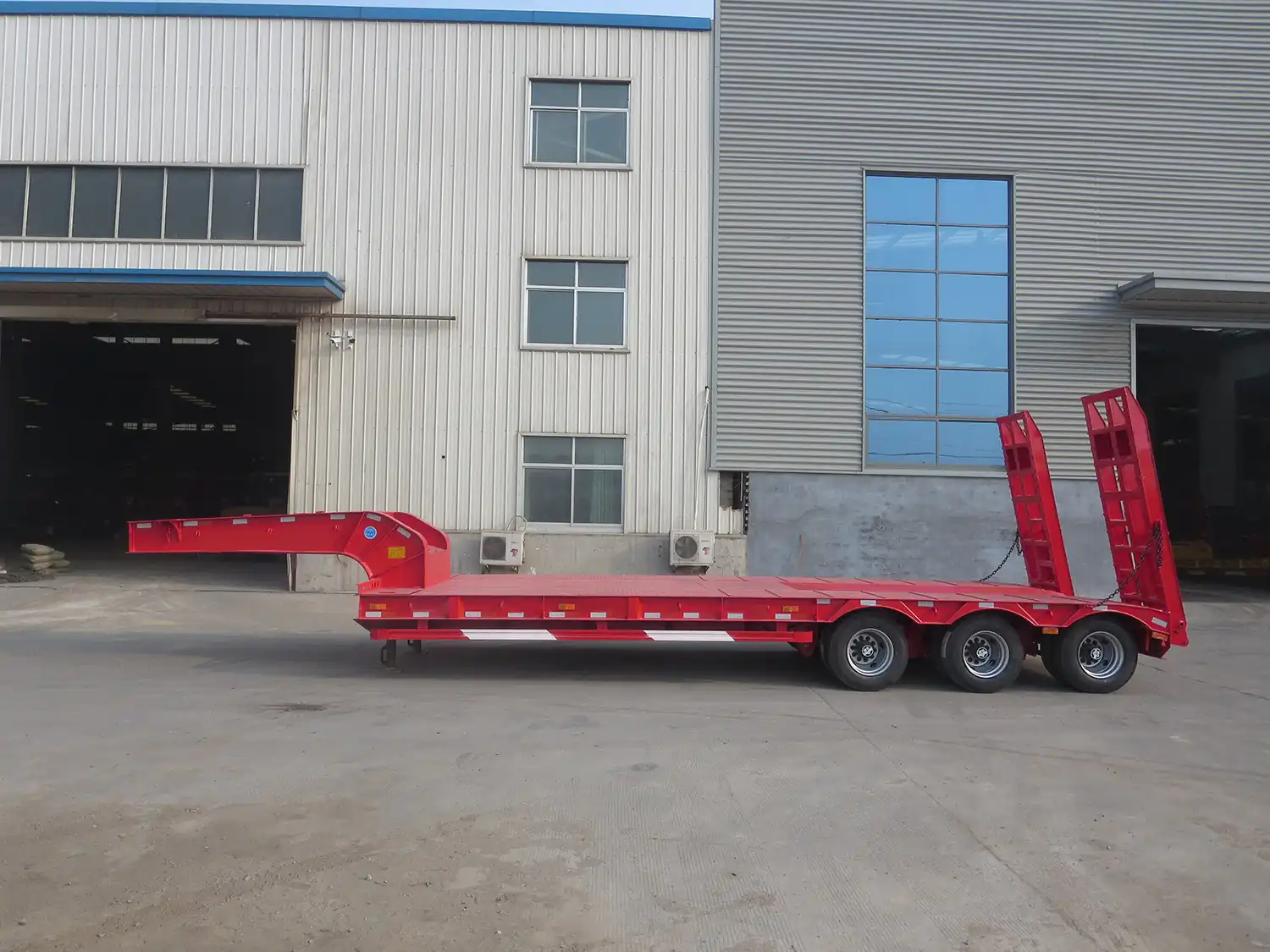

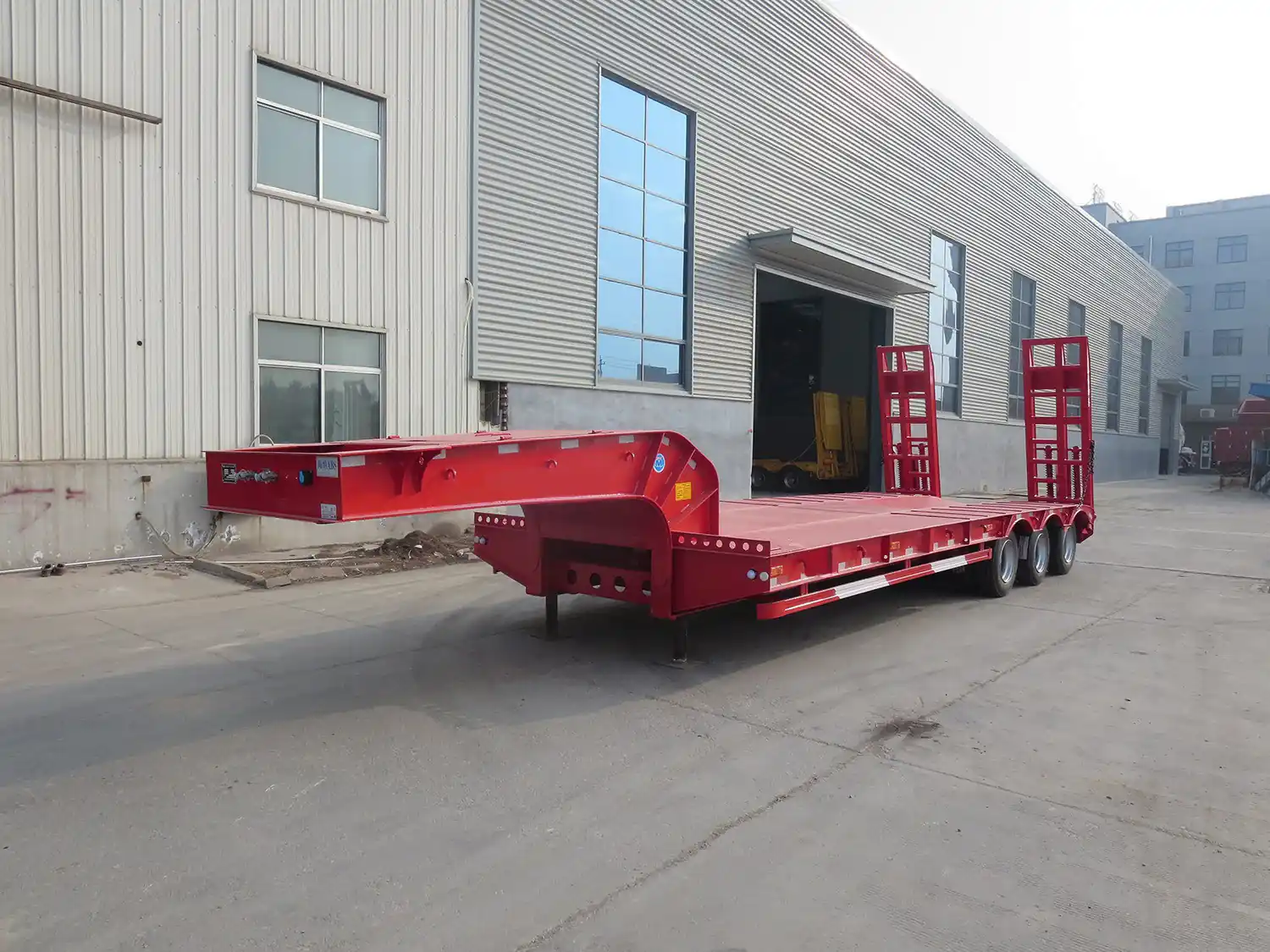

The LHL9359TDP is the most compact lowbed in the range at 10000mm or 9500mm deck length, rated at 35000kg total weight with 19000kg over three axles on a 6180+1170+1170mm or 5680+1170+1170mm wheelbase. Its 35 degree departure angle is the steepest here, which matters when loading low-clearance machines over short ramps. Deck height is 870, 900, 930, 960 or 1080mm, the ladder is optional with hydraulic and rear style choices and single or double spring assistance, and without ladders the overall height is 1750mm.
Key Benefits
What You Get
- 35 degree departure angle is the steepest in the range, so short ramps still clear low-slung machines
- 10000mm and 9500mm decks work in accesses no full-size lowbed can reach
- Short 6180+1170+1170mm wheelbase makes the trailer turn tightly behind the tractor
- 19000kg axle load within a 35000kg gross suits compact and mid-size machines
- Three tire families with five deck heights give a wide configuration range for a small trailer
Problems Solved
What It Fixes
- Full-size lowbeds cannot reach confined urban and rural sites
- Shallow departure angles ground low-clearance machines on short ramps
- Long trailers sweep too wide on narrow winding roads
- Oversized trailers are uneconomic for compact machine moves
Who It Is For
Operators Who Buy This Model
- Compact plant hire operators
- Utility and landscaping contractors
- Rental yards doing multiple deliveries per day
- Operators working on narrow or winding routes
Application Scenarios
Where It Works
- Compact plant delivery into inner-city sites
- Machine transport on narrow mountain and rural roads
- Landscaping, drainage and utility plant moves
- Short-haul rental deliveries with several drops per day
Technical Features
Build Specification
- Low-bed semi-trailer, total weight 35000kg
- Length x width x height 10000 or 9500 x 3000 x 1750, 2900, 3100, 3300, 3500 or 3700mm
- Wheelbase 6180+1170+1170mm or 5680+1170+1170mm, rear suspension 950mm or 1050mm
- Axle load 19000kg over three axles
- Approach angle 32 degrees, departure angle 35 degrees
- 12 tires in 8.25R20 12PR, 8.25R16LT 16PR or 235/75R17.5 16PR
- Deck height 870, 900, 930, 960 or 1080mm above ground
Specifications
Manufacturer Data Sheet
| Type | Low-bed semi-trailer |
|---|---|
| Dimensions L x W x H | 10000,9500x3000x1750,2900,3100,3300,3500,3700 |
| Total Weight | 35000 |
| Approach / Departure Angle | 32,-/35 |
| Front/Rear Suspension | 950,-/1050 |
| Wheelbase | 6180+1170+1170,5680+1170+1170 |
| Axle Load | 19000(three axes) |
| Number of Spring Pieces | 4/4/4,-/8/8/8 |
| Number of Tires | 12 |
| Tire Specifications | 8.25R20 12PR,8.25R16LT 16PR,235/75R17.5 16PR |
| Rear Wheel Base | 2180/2180/2180,2250/2250/2250,2330/2330/2330 |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Departure angle measured on the finished trailer
- Short wheelbase axle alignment verified as a set
- Ladder spring balance checked where fitted
- Brake and roll test before dispatch
Customization
What You Can Change
- Deck length 10000mm or 9500mm with matching wheelbase
- Deck height chosen from five settings
- Ladder fitted or omitted, hydraulic or spring assisted
- Tire size chosen from three families
- Overall height chosen from six settings
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| LHL9375TDP | The 9359 is shorter again at 10000mm with a steeper 35 degree departure angle; the 9375 carries 21000kg axle load against 19000kg here. |
| Full-size 13.75m lowbed | This compact unit reaches sites a long lowbed cannot; the long deck is needed for machines that will not fit 10m. |
| Drawbar plant trailer | A semi-trailer decouples from the tractor and carries far more; a drawbar unit is limited to light plant. |
Use Guide
Operating This Trailer
- Check that your machine length fits within the deck before ordering
- Use the steep departure angle to avoid ramp packing on low machines
- Keep loads centred over the short axle group
- Do not carry cargo on the gooseneck
- Allow for the tight turning behaviour of a short wheelbase when reversing
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationFAQ
Questions About This Model
How Short Is This Trailer
10000mm or 9500mm deck length on a 3000mm width, which is the most compact lowbed we build.
What Is the Departure Angle
35 degrees, the steepest in the range. It is the reason this model loads low-clearance machines over short ramps without packing.
What Is the Axle Load
19000kg over three axles, within a 35000kg total weight.
What Deck Heights Can I Order
870mm, 900mm, 930mm, 960mm or 1080mm above ground.
Is the Ladder Optional

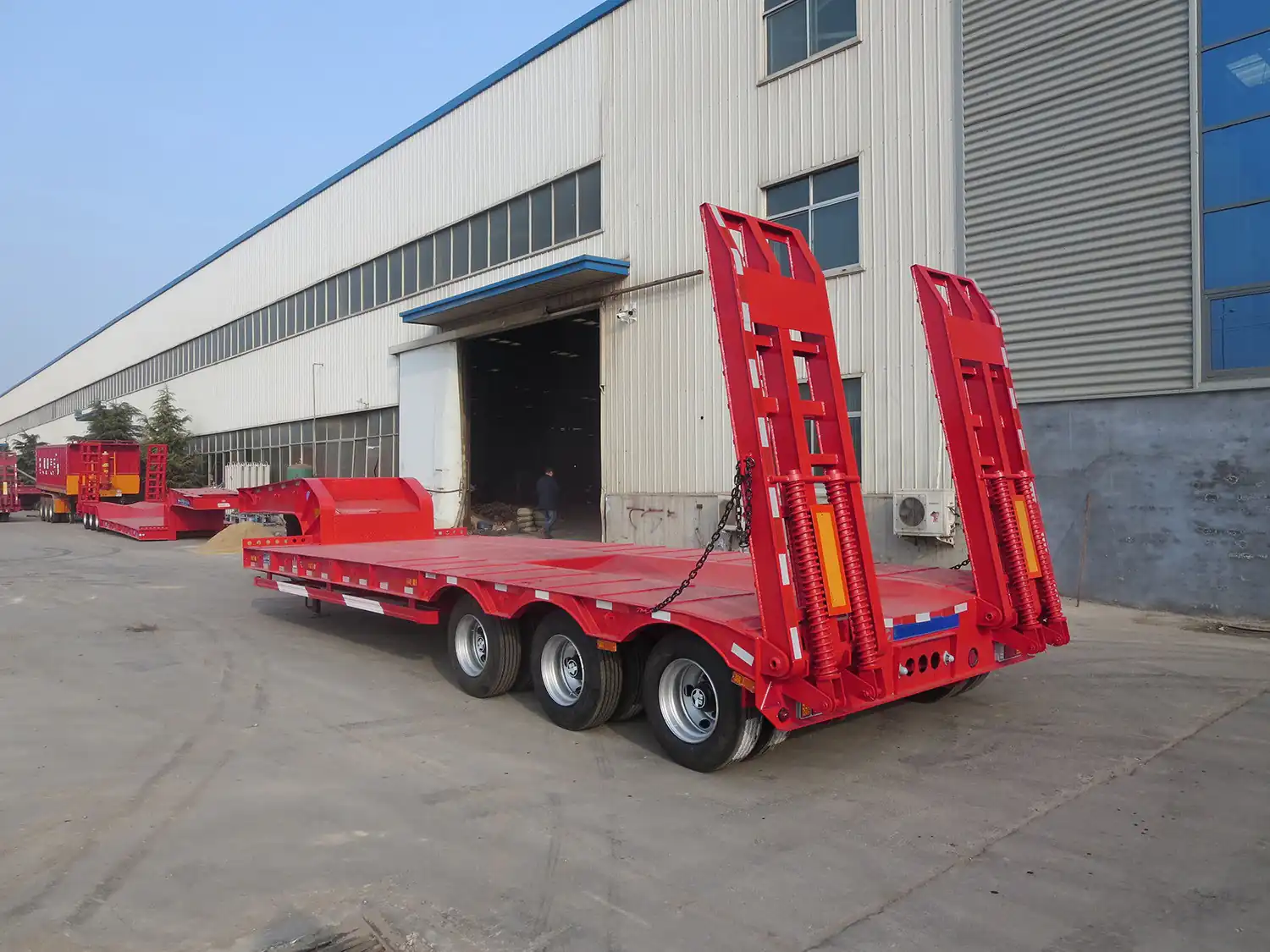

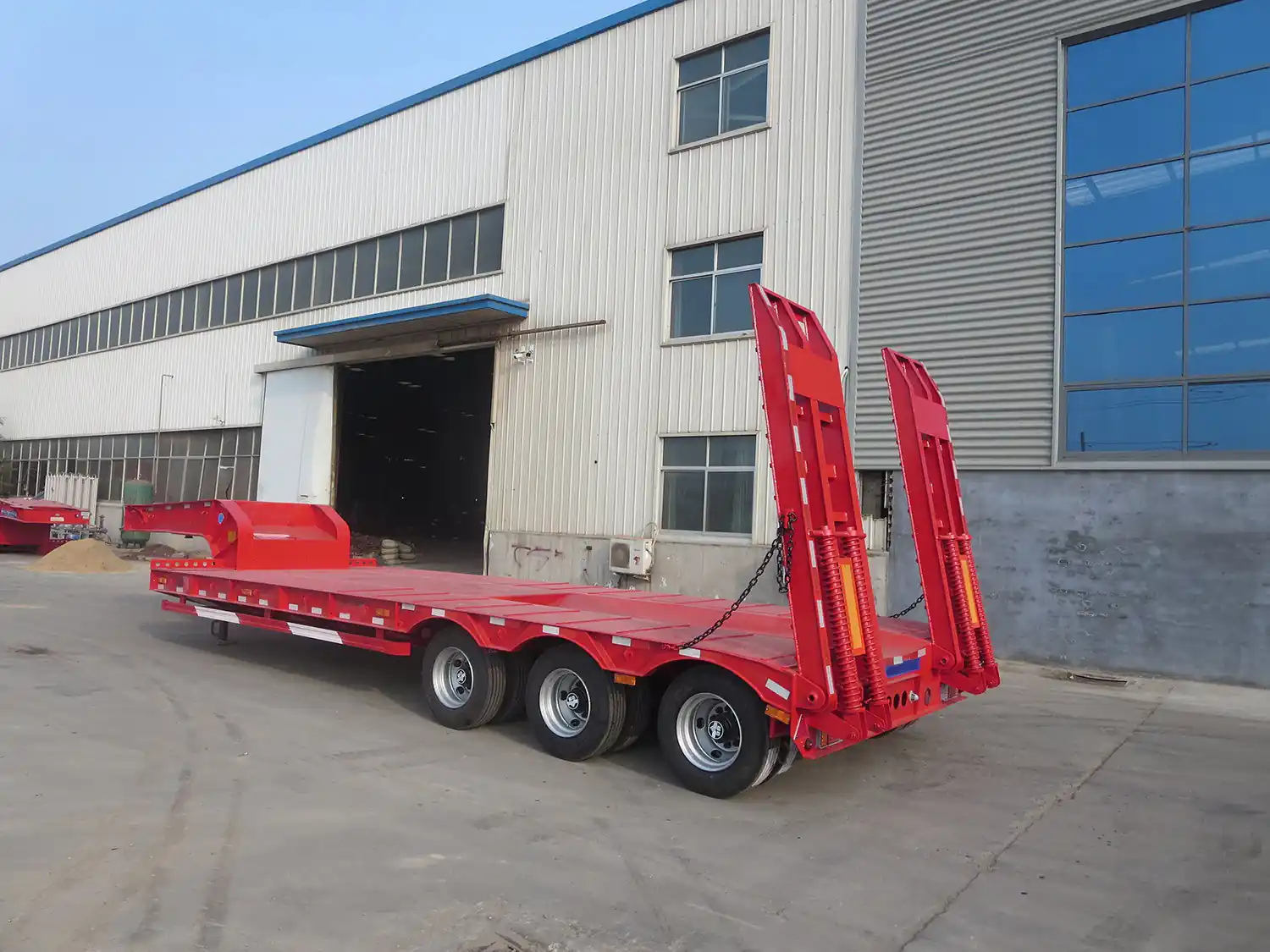

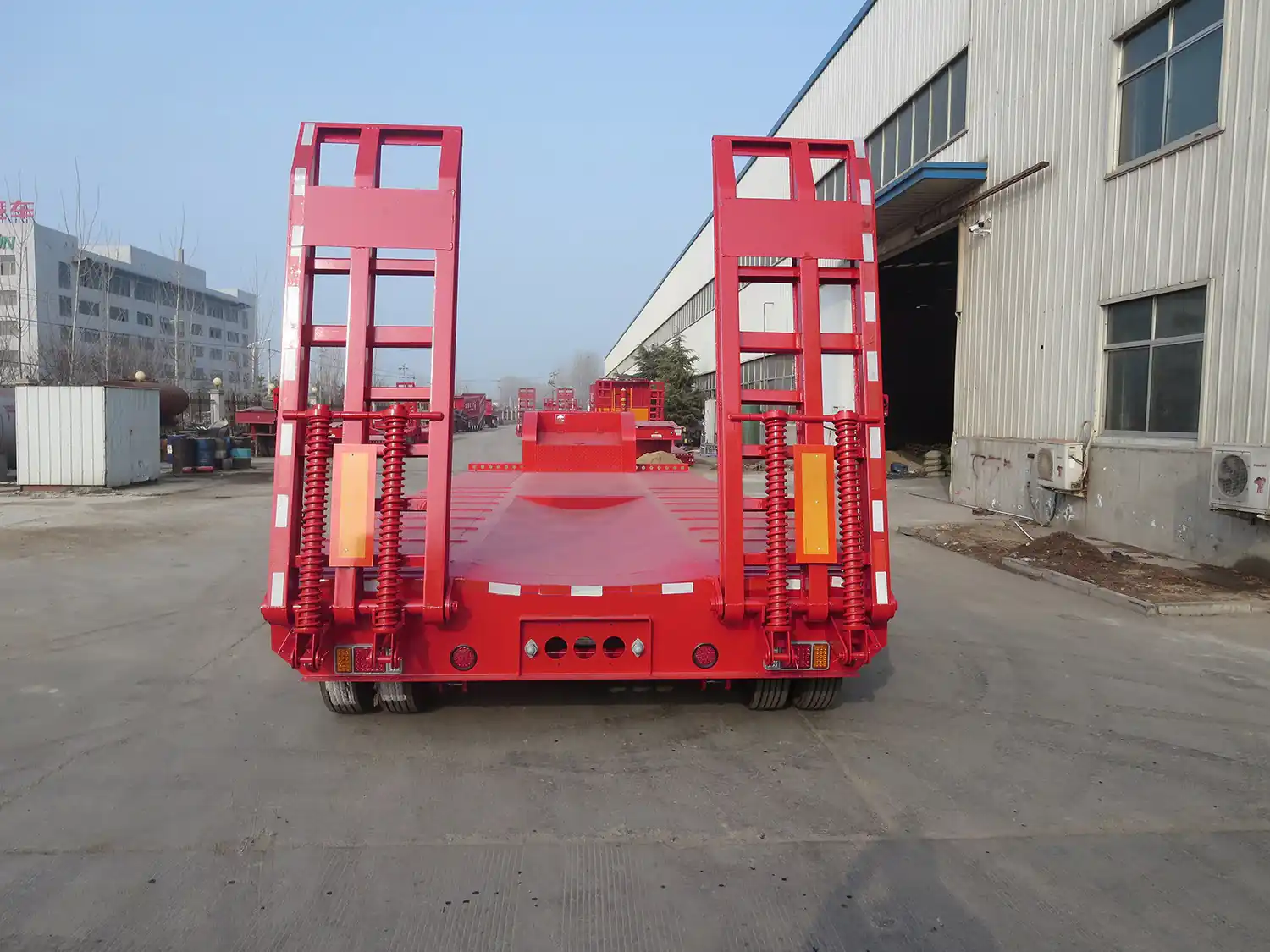

Yes. Hydraulic and rear ladder styles are available with single or double spring assistance, and without a ladder the total height is 1750mm.
Which Machines Suit This Trailer
Compact and mid-size plant that fits within a 10m deck and 19000kg axle load. Send us the machine model and we will confirm.
How Fast Can You Deliver
Stock units within about 10 days, customized builds in around 45 days.
Get A Price For The Low Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
