Low Flatbed/Low Bed Semi-trailer LHL9383TDP Three-Axle China Manufacturer
LHL9383TDP three-axle lowbed, 38000kg gross, 33 degree departure angle and five deck height options.
View SpecificationLow Bed Truck Trailer

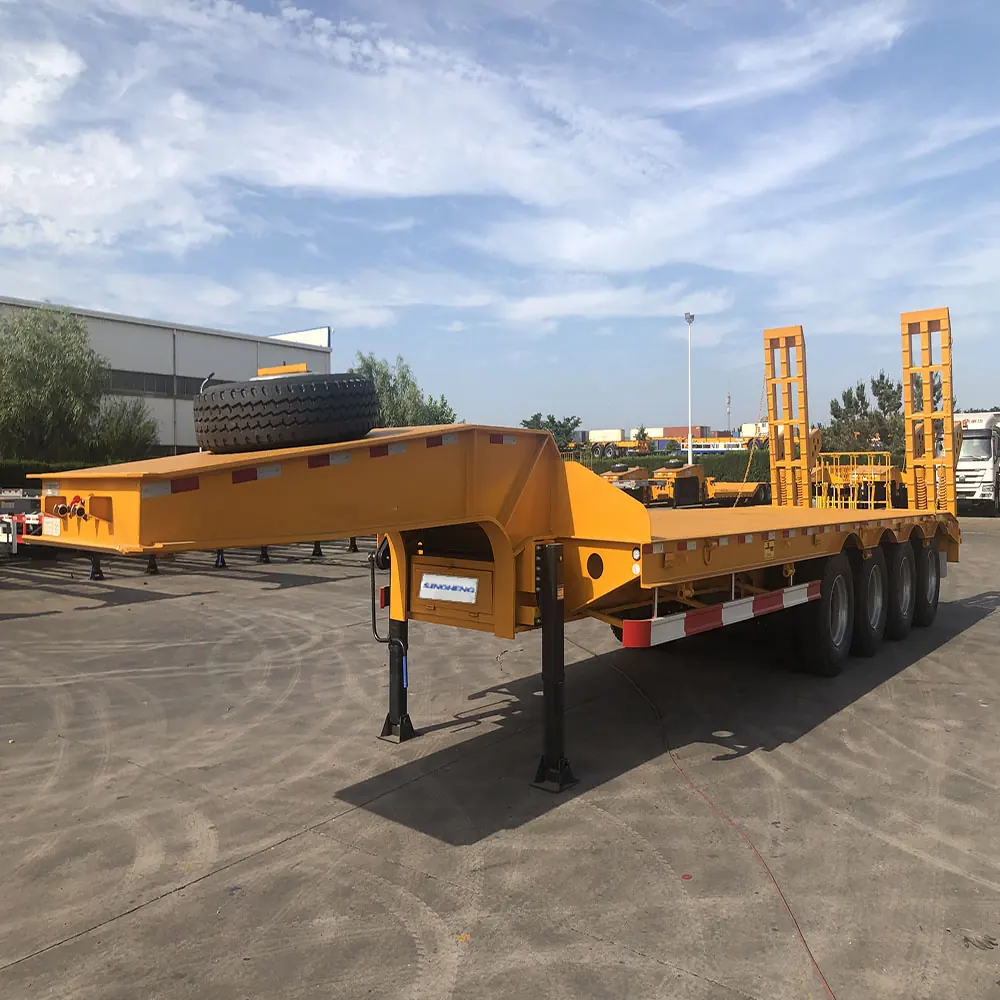

Excavator Dozers Low Loader Lowbed 60ton 80ton Semi Trailer China Supplier
Excavator and dozer low loader from 60 to 120 tonnes, deck 12000-18000mm to your platform spec.
Overview
What This Trailer Is Built For
A low loader built to your working platform dimensions rather than to a catalogue size. Deck length runs from 12000mm to 18000mm and width from 2500mm to 3500mm at 1650mm height, at about 11 tonnes tare, with loading capacity specified at 60T, 80T, 100T or 120T. Axles are 13T or 16T in FUWA, BPW or Huajing brand, tires can be 8.25R20, 10.00R20, 11.00R20 or 12.00R20 on rims from 6.5-20 to 8.5-20, and suspension is German style mechanical. When you enquire, state the working platform height and length you need and the trailer is built to it.
Key Benefits
What You Get
- Deck length from 12000mm to 18000mm built to your stated platform dimensions
- Loading capacity specified at 60, 80, 100 or 120 tonnes
- About 11 tonnes tare for a low loader of this capacity
- Axle choice across three brands and two ratings for local service support
- Four tire and four rim options for whatever your market stocks
Problems Solved
What It Fixes
- Catalogue deck sizes never quite match the machine you actually carry
- Standard low loaders top out well below 120 tonnes
- Limited tire and rim options cannot be sourced locally
- Wrong platform height puts the loaded machine over the clearance limit
Who It Is For
Operators Who Buy This Model
- Heavy haulage specialists at the top of the weight range
- Mining contractors moving large plant
- Crane hire companies
- Project logistics operators with non-standard loads
Application Scenarios
Where It Works
- Excavator and dozer transport at 60 to 120 tonnes
- Mining equipment relocation
- Crane and drill rig moves
- Industrial plant and transformer transport
Technical Features
Build Specification
- Low loader lowbed trailer for excavators and dozers
- Dimension 12000mm to 18000mm long x 2500mm to 3500mm wide x 1650mm high
- Tare weight about 11T, loading capacity 60T, 80T, 100T or 120T
- Axles 13T or 16T, FUWA, BPW or Huajing brand
- Tires 8.25R20, 10.00R20, 11.00R20 or 12.00R20
- Rims 6.5-20, 7.5-20, 8.00-20 or 8.5-20
- German style mechanical suspension, toolbox 1m x 0.5m x 0.5m
Specifications
Manufacturer Data Sheet
| Type | 60ton 80ton excavator dozers low loader trailer |
|---|---|
| Tare Weight | About 11T Dimension 12000mm-18000mm*2500mm-3500mm*1650mm Please indicate the working platform height and length. |
| Loading Capacity | 60T/80T/100T/120T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany |
| Tool Box | One piece, 1mx0.5mx0.5m ( |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Deck dimensions verified against your stated platform requirement
- Main beam weld inspection along the full deck length
- Axle alignment checked as a set
- Loaded deflection test before dispatch
Customization
What You Can Change
- Deck length from 12000mm to 18000mm and width from 2500mm to 3500mm
- Loading capacity 60T, 80T, 100T or 120T
- Axle rating 13T or 16T in three brands
- Tire and rim combination selected from the available options
- Working platform height set to your stated requirement
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Standard three-axle lowbed | This platform reaches 120 tonnes and 18 metres; a standard lowbed tops out near 38-40 tonnes gross. |
| Four-axle fixed lowbed | The low loader is built to your platform dimensions; a fixed lowbed comes in catalogue sizes. |
| Modular hydraulic trailer | A modular platform handles extreme loads and steering; this low loader is far simpler and cheaper up to 120 tonnes. |
Use Guide
Operating This Trailer
- State your working platform height and length at enquiry so the deck is built correctly
- Verify loaded height against route clearance before departure
- Distribute machine weight evenly along the deck
- Check axle alignment periodically on long decks
- Inspect the main beam for deflection after very heavy loads
Related Products
Related Trailers
Low Flatbed/Low Bed Semi-Trailer Direct sales from China factory
LHL9382TDP three-axle lowbed with 13750mm deck option, 8090mm wheelbase and 1300mm rear overhang.
View Specification
Low Flatbed Semi-Trailer LHL9381TDP China Factory for Sale
LHL9381TDP lowbed with a raised 3200-3700mm profile and tire-linked deck heights from 880mm.
View Specification
Low Flatbed/Bed Six-Axle Semi-trailer LHL9380TDPA China Customizable
Three-line six-axle lowbed with 7000kg per line, 24 tires and deck heights from 750mm.
View SpecificationFAQ
Questions About This Model
What Deck Sizes Are Available
12000mm to 18000mm long, 2500mm to 3500mm wide, at 1650mm height. Tell us the working platform height and length you need and we build to it.
What Is the Maximum Loading Capacity
60T, 80T, 100T or 120T depending on the build you specify.
What Is the Tare Weight
About 11 tonnes, which is light for a low loader at this capacity.
Which Axles Can Be Fitted
13T or 16T in FUWA, BPW or Huajing brand, on German style mechanical suspension.
What Tires and Rims Are Offered
Tires from 8.25R20 to 12.00R20 and rims from 6.5-20 to 8.5-20. Choose what your local suppliers stock.
What Information Do You Need to Quote
The machine weight and dimensions, the working platform height and length you want, the route and the country of use.
How Long Does It Take to Build
Around 45 days for a customized low loader, confirmed when drawings are approved.
Get A Price For The Excavator Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
