Inline Emulsifier
A single stage rotor and stator fixed in the pipeline, so emulsifying happens continuously as the product passes rather than batch by batch.
Overview
What This Pump Does

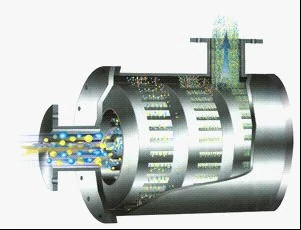

The inline emulsifier works on the same principle as the batch machine: the rotor and stator generate strong shear while running at speed to mix, smash and emulsify. Because it sits in the pipeline it also moves the product, which is why it is sometimes called an emulsifying pump.

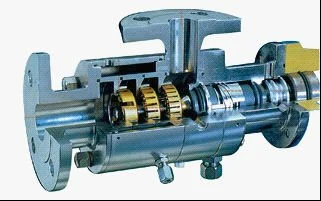

Standard components are the pump chamber, rotor and stator. It emulsifies and disperses liquids continuously, transmits low viscosity material and mixes powder with liquid, in daily chemical, beverage, food, pharmacy and chemical industry work.
- Single stage rotor and stator in a pump chamber
- Fixed on the pipeline for continuous work
- All wetted parts in grade 304 or 316 stainless steel
- Mirror or matt polish to Ra below 0.8 um
Key Benefits
Why Continuous Beats Batch On A Line
Shears And Transfers
The unit emulsifies and moves the product in one pass, which removes a separate transfer pump from the line.
Continuous Production
Fixed on the pipeline for continuous work rather than treating one vessel at a time.
Sanitary Construction
All wetted parts in grade 304 or 316 stainless steel with mirror or matt polish to Ra below 0.8 um.
Powder Into Liquid
Mixes powder and liquid as well as emulsifying, which suits in line make up of formulations.
Application Scenarios
Where It Is Installed
Continuous Emulsion Production
Producing emulsions in a continuous line instead of in vessel batches.
In Line Powder Addition
Wetting and dispersing powder into a flowing liquid stream.
Transfer With Shear
Moving low viscosity material between vessels while refining the dispersion.
Who It Is For
- Daily chemical and cosmetics plants
- Beverage and food producers
- Pharmaceutical manufacturers
- Chemical plants with continuous formulation lines
Problems It Solves
Batch processing limits throughput
An inline machine treats the stream continuously, which raises output without a bigger vessel.
Powder forms lumps on the surface
Shearing powder into the flowing stream avoids the floating agglomerates a vessel agitator leaves.
Two machines where one would do
The emulsifier also transfers the product, which simplifies the line.
Technical Features
How It Is Built
- Single stage rotor and stator in a pump chamber
- Fixed on the pipeline for continuous work
- All wetted parts in grade 304 or 316 stainless steel
- Mirror or matt polish to Ra below 0.8 um
- Mechanical seal for sanitary operation
- Quick opening for cleaning
Specifications
Technical Data
Published inline emulsifier data. Flow rate, viscosity and the number of passes decide the model and the motor.
- Single stage rotor and stator in a pump chamber
- Fixed on the pipeline for continuous work
- All wetted parts in grade 304 or 316 stainless steel
- Mirror or matt polish to Ra below 0.8 um
- Mechanical seal for sanitary operation
- Quick opening for cleaning
| Model | Power | Rotation speed | Diameter of inlet | Diameter of outlet | Capacity |
|---|---|---|---|---|---|
| ( Kw ) | (r/min) | (mm) | (mm) | ( m3 /h) | |
| SEM3-60 | 4 | 2900 | 38 | 32 | 0-1.5 |
| SEM3-100 | 5.5 | 2900 | 38 | 32 | 0-3 |
| SEM3-120 | 7.5 | 2900 | 38 | 38 | 0-4 |
| SEM3-140 | 11 | 2900 | 51 | 38 | 0-5 |
| SEM3-165 | 15 | 2900 | 63 | 51 | 0-8 |
| SEM3-180 | 22 | 2900 | 63 | 51 | 0-12 |
| SEM3-185 | 30 | 2900 | 76 | 63 | 0-18 |
| SEM3-200 | 45 | 2900 | 76 | 63 | 0-25 |
| SEM3-210 | 55 | 1470 | 87 | 76 | 0-35 |
| SEM3-230 | 90 | 1470 | 87 | 76 | 0-50 |
Materials And Process
What Goes Into Every Unit
Materials
- 304 or 316 stainless wetted parts
- Polished surfaces to Ra below 0.8 um
- Sanitary seal components
Manufacturing And Assembly

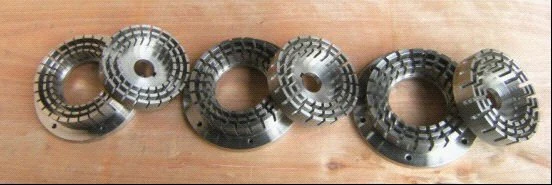

- Rotor and stator machining
- Pump chamber assembly
- Polishing and finishing
- Run test before dispatch
Quality Control
- Rotor stator clearance checked
- Run test before dispatch
- Documentation issued with the machine
Standards And Certification
- CE and ISO 9001 stated on the product data sheet
Customization Options
- Rotor and stator configuration
- 304 or 316 wetted parts
- Motor rating and speed
- Connection type and size for the line
Compared With Other Options
| High shear batch emulsifier | The batch machine treats a vessel of product. This one treats the stream and moves it at the same time. |
|---|---|
| Sanitary centrifugal pump | A centrifugal pump moves product without refining it. This unit adds controlled shear in the same pass. |
Use Guide
Fitting An Inline Emulsifier
Position In The Line
Place the unit where it can be fed reliably, with enough suction pressure to avoid cavitation.
Decide Passes
Single pass or recirculation, depending on the droplet size the product needs.
Watch Temperature
Continuous shear adds heat, so check product temperature at the outlet during commissioning.
Clean In Place
Include the unit in the CIP circuit and open it at planned intervals to inspect the stator.
Answers
Inline Emulsifier FAQ
Does it pump as well as emulsify?
Yes. Because it is fixed in the pipeline it transmits low viscosity material while emulsifying, which is why it is also called an emulsifying pump.
Can it mix powder into liquid?
Yes, it is used to mix powder and liquid as well as to emulsify and disperse.
Which industries use it?
Daily chemical, beverage, food, pharmacy and chemical industry applications.
What is the surface finish?
Mirror or matt polish with Ra below 0.8 um on wetted parts in 304 or 316 stainless steel.
Is it cleanable in place?
Yes, with quick opening construction for inspection between cleaning cycles.
Related Equipment
Related Equipment From The Same Line
Related shear equipment and the line components around it.
High Shear Emulsifiers
Colloid Mill
Wet grinding mill for superfine emulsions and pastes.
View specifications →
Sanitary Pumps
Milk Pump
Sanitary centrifugal pump for milk beer and beverage transfer.
View specifications →
Sanitary Valves And Fittings
Tri-Clamp
Clamps SK-CL001 to SK-CL003 with gaskets to match the line.
View specifications →Need Inline Emulsifier Sized For Your Duty Point
Send the flow rate, the viscosity and the product and we will size the rotor stator and the motor.
