Packaging Boxes Custom New Design 2025 Drawer Type Free

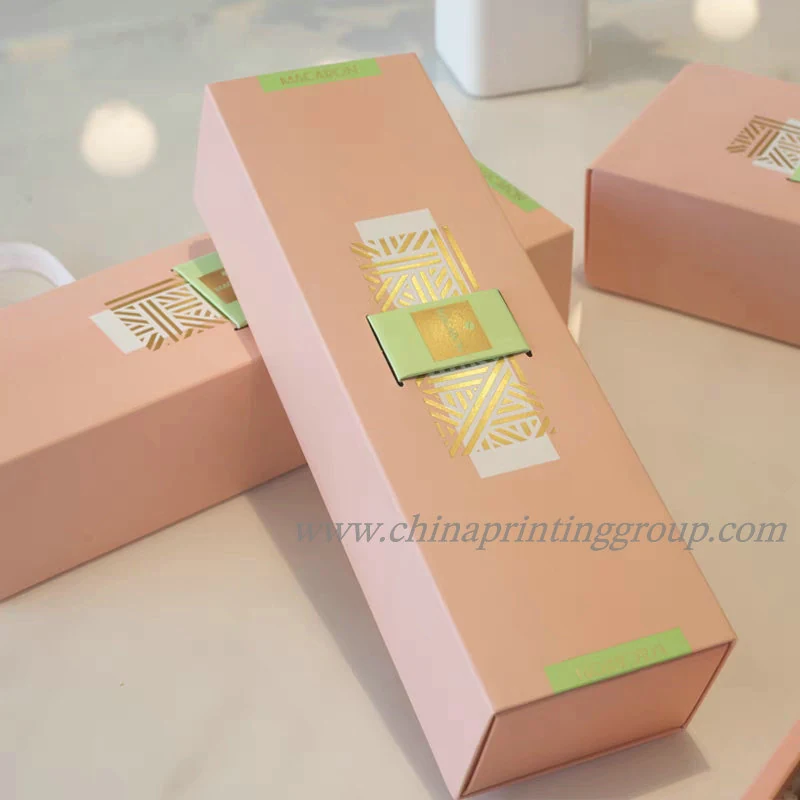

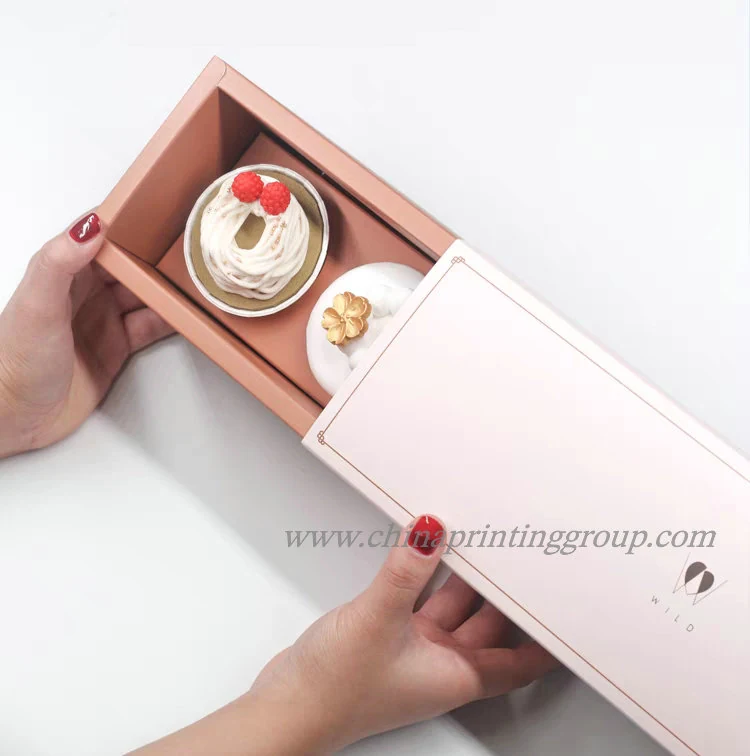

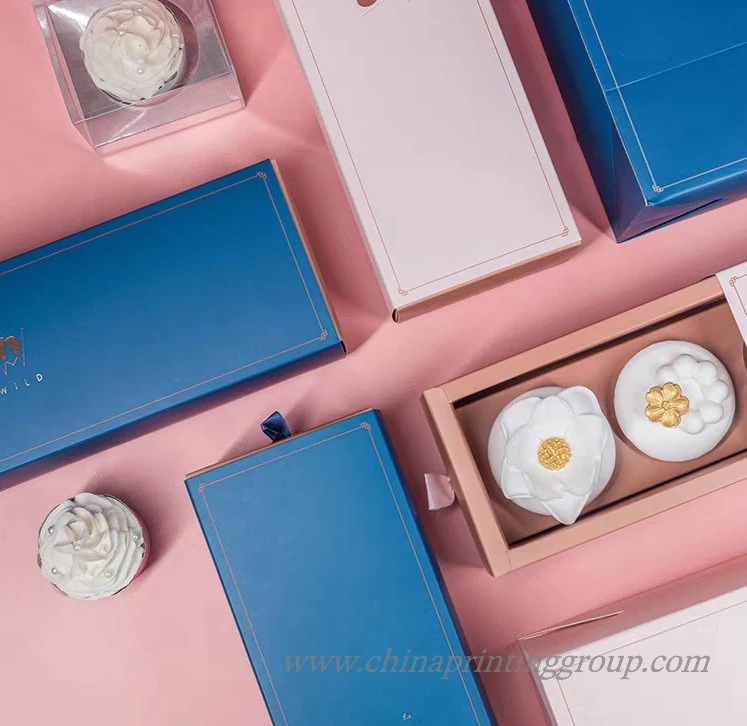

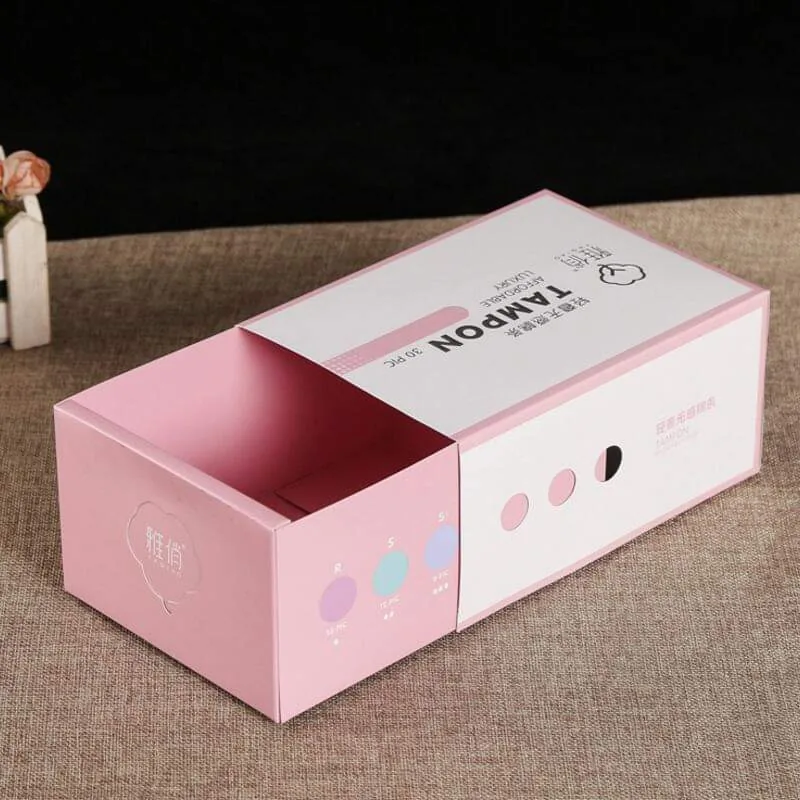

A drawer style rigid packaging box built as two independent parts: a tube-formed cover and a disc-formed body that slides inside it. The board is offset printed in CMYK or Pantone on art paper or cardboard, then finished with lamination, foil stamping, embossing or UV coating before the box is assembled and glued. Inner fittings are specified per product, from a paper tray to EVA, PET vacuum-formed or sponge inserts, with magnetic closures and ribbon handles available. It is bought by brand owners and packaging buyers who need a gift box that opens as an event rather than a lid being lifted off.
What This Product Gives You
- The sliding cover and body are formed separately, so the box opens in a controlled motion that protects a fragile item as it is revealed
- Structural board grade is matched to load, from light-duty builds carrying up to 2 kg of cosmetics or small gifts to heavy-duty builds over 10 kg
- Inner fittings in EVA, PET vacuum form, sponge or a paper tray hold the product still, so a box that travels does not arrive with a rattling contents
- CMYK or Pantone printing means a brand colour that has to match an existing pack can be run as a spot ink rather than built from process
- Foil stamping, embossing, spot UV and matt or gloss lamination can be combined on one box, so a logo can stay tactile against a flat background
- Recycled material construction keeps the pack inside retailer packaging policies without changing the box shape
Where It Is Used and Who Buys It
Application Scenarios
- Cosmetics and skincare gift sets sold through department stores
- Electronics and small appliance retail packaging in the 2-10 kg range
- Corporate gift and employee recognition boxes
- Food and confectionery hamper packaging
- Jewellery and watch presentation boxes with a fitted tray
Who It Is For
- Brand owners launching a retail gift line that needs a structured unboxing
- Packaging buyers at cosmetics and personal care companies
- Procurement managers sourcing corporate gift packaging in season runs
- Retail chains standardising a gift box across several product weights
- Print brokers quoting rigid box work for their own clients
What Goes Wrong Without It
- A lift-off lid can be dropped during handling, while a drawer stays captive in the sleeve until it is pushed out
- Boxes specified without reference to contents weight collapse in transit, which the light, medium and heavy-duty board choice avoids
- A loose product inside an empty void is the most common cause of return damage, so the insert is specified with the box rather than after it
- Process-built brand colours drift between print runs, which is why Pantone is offered instead
- Buyers under retailer recycling rules cannot use mixed-material packs, so recycled board construction is offered
Technical Features

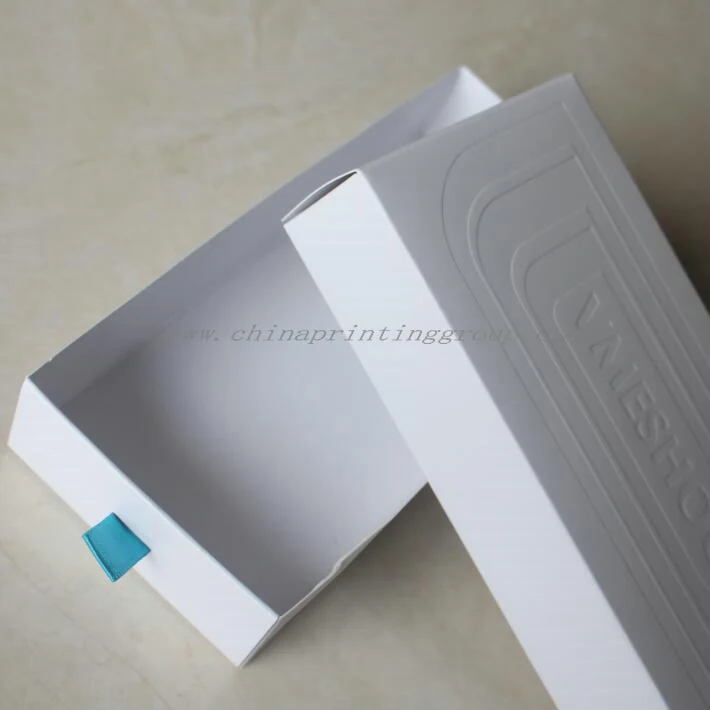

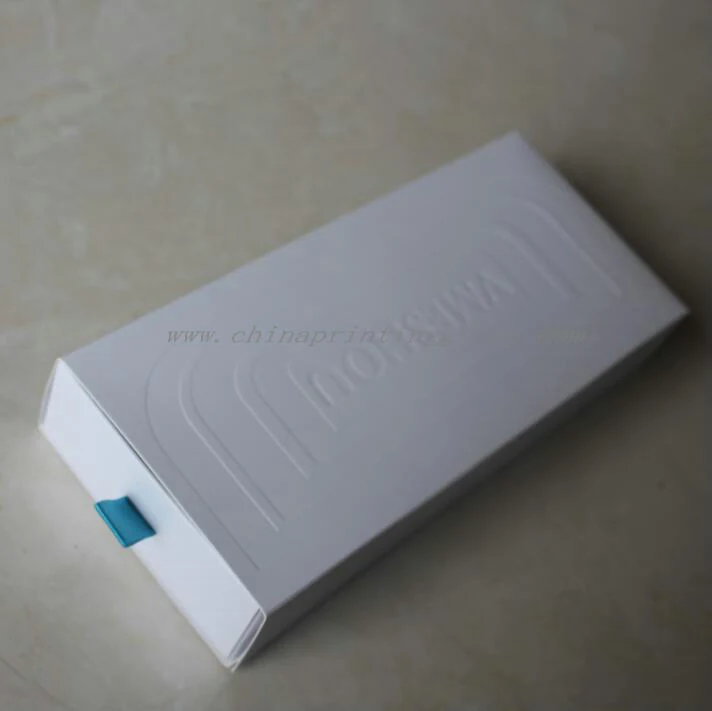

- Two-part construction: tube style cover over a disc style body
- Offset colour printing in CMYK or Pantone spot inks
- Surface finishing including glossy or matt lamination, gold foil, embossing, stamping, UV coating and varnishing
- Accessory options covering magnetic closure, EVA, PET vacuum forming, paper tray and sponge inserts
- Automatic box gluing and pit mounting for consistent assembly
- Recycled material specification available
Specification
| Structure | Drawer style, tube cover over disc body |
|---|---|
| Material | Art paper / cardboard paper |
| Colour Printing | CMYK or Pantone |
| Printing Finishing | Embossing, glossy lamination, gold foil, matt lamination, stamping, UV coating, varnishing |
| Foil | Gold or silver foil stamping |
| Accessories | Magnetic closure, EVA, PET vacuum form, paper tray, sponge |
| Handle | Ribbon handle optional |
| Light Duty Load | Up to 2 kg, cosmetics and small gifts |
| Medium Duty Load | 2-10 kg, electronics and food items |
| Heavy Duty Load | Over 10 kg, industrial or shipping use |
| Feature | Recycled materials |
| MOQ | 500pcs |
| Size | Customised to your drawing |
Materials and Manufacturing Process
Materials
- Art paper
- Cardboard paper
- Corrugated board
- Gold foil
- Silver foil
- EVA
- PET
- Sponge
Manufacturing Process
- Artwork preflight and imposition
- Offset printing in CMYK or Pantone
- Lamination and surface coating
- Hot foil stamping and embossing
- Die cutting
- Automatic box gluing and pit mounting
- Insert fitting and assembly
- Hand inspection and packing
How This Job Is Checked
- Artwork preflighted for design discrepancies before imposition and pagination
- PDF proof issued for written approval before the press run
- Printed sheets checked by hand for colour match against the approved artwork
- Assembled boxes checked for cover-to-body slide fit and insert seating
- Photographs of the finished boxes sent for approval before shipment
What You Can Change
- Any box size and depth built from your product dimensions
- Board grade selected against contents weight across the light, medium and heavy-duty bands
- CMYK process or Pantone spot colour printing
- Finish combination chosen from foil, embossing, spot UV, varnishing and matt or gloss lamination
- Insert specified as EVA, PET vacuum form, sponge or a printed paper tray
- Magnetic closure and ribbon handle added where the pack is carried by hand
Compared With the Alternatives
| Alternative | How This Compares |
|---|---|
| Lid and base rigid box | A drawer box keeps the tray captive during opening, but a lid and base box costs less to make and stacks flat more efficiently on a shelf |
| Folding carton | The drawer build holds its shape under weight over 10 kg where a thin folding carton buckles, though the carton ships flat and is cheaper per unit |
| Magnetic flap gift box | The magnetic flap opens faster for retail display, while the drawer gives a slower reveal and a deeper fitted cavity |
Getting the Best Result
- Send artwork as PDF, AI, PSD or JPEG at 300dpi minimum with fonts saved as outlines
- Give the packed weight of the product so the board grade is set against the correct duty band
- Supply the product's outer dimensions rather than the box size you want, so the insert cavity can be cut to fit
- Name Pantone references explicitly if the box has to match an existing pack
- Keep foil and embossing off areas where the drawer slides, so the fit is not tightened by raised material
- Confirm whether a ribbon handle is needed before tooling, as the pull hole position changes the die
Other Products in This Group
Plastic Packaging Boxes 0.2-1mm Thickness Clear PVC Wholesale Price
PVC Boxes Gift Packaging for Food Clear Plastic 0.2-0.5mm
Custom Paper Packaging Box With Beautiful Glittering 5x5cm
Custom Cardboard Boxes 1 Lid and Base Rigid Design Gift Box
Packaging Boxes Custom New Design 2025 Drawer Type Free FAQ
What is the minimum order for a custom drawer box?
500pcs per design. Tooling for the die is made once, so repeat runs of the same size do not repeat that setup.
How heavy a product can the box carry?
Board is specified against load: up to 2 kg for cosmetics and small gifts, 2-10 kg for electronics and food, and over 10 kg for industrial or shipping use.
Can you make the insert as well as the box?
Yes. Inserts are supplied as EVA, PET vacuum form, sponge or a printed paper tray, cut to your product dimensions.
What artwork format do you need?
PDF, AI, PSD or JPEG at 300dpi minimum with all fonts converted to outlines.
Can the box be made from recycled material?
Yes, recycled material construction is a standard option and does not change the drawer structure.
How do I pay and what is the deposit?
PayPal, bank transfer (T/T) or Western Union. A 30-50% deposit is taken before production and the 50% balance before shipment.
Can I combine gold foil and embossing on the same panel?
Yes. Foil, embossing, spot UV, varnishing and lamination can all run on one box, though each pass is a separate setup so tell us the full finish list when you ask for a price.
Quote Packaging Boxes Custom New Design 2025 Drawer Type Free
Send the quantity, size and finish. Digital samples run in 1-2 working days and custom sample cost is refunded once the bulk order is confirmed.
