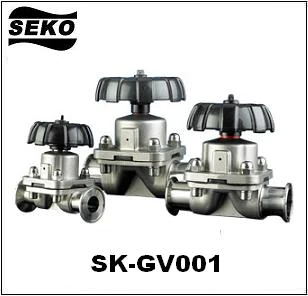

Sanitary Diaphragm Valve
Diaphragm valves that keep the working parts out of the product.
View specifications →Sanitary Valves And Fittings
Sanitary Butterfly Valve
The valve that does most of the work on a hygienic line: quarter turn, low pressure drop and easy to strip for a seat change.
Overview
What This Pump Does
Sanitary butterfly valves in SS304 or SS316L, sized DN15 to DN200, with mirror or matt polished surfaces to Ra below 0.4 um. Models SK-BV001 to SK-BV004 cover lever operated, weld, clamp and threaded arrangements as well as actuated versions.
Working pressure is up to 1.0 MPa, which is 10 bar, with vacuum on the low side and a working temperature band of minus 5 to 95 degrees Celsius. Sealing materials are silicone, EPDM or fluoroelastomer, chosen against the product and the cleaning chemistry.
| Material | 304 or |
|---|---|
| Finish | Mirror or Matt Polish; Ra<0.4um |
| Standard | DIN, SMS, 3A, ISO, IDF |
| Connection Type | Weld, Clamp, Thread |
| Polish | Mirror Polish Ra<0.5um |
| Max. Working pressure | 1.0 MPa (10 bar) |
Key Benefits
Why Butterfly Valves Dominate Hygienic Lines
Low Pressure Drop
A disc in the flow path costs less head than a seat and plug arrangement, which matters on long CIP circuits.
Fast Quarter Turn
Open or closed in ninety degrees, by hand or by a pneumatic actuator on an automated line.
Seat Changes Are Simple
The seal is a replaceable element, so a leaking valve is a seat change rather than a new valve.
Standards To Match The Line
DIN, SMS, 3A, ISO and IDF with weld, clamp or threaded connections.
Application Scenarios
Where It Is Installed
Tank Outlets
Isolating a vessel outlet with a valve that strips down for inspection.
Line Isolation
Sectioning a process line for cleaning or maintenance.
Automated Routing
Pneumatically actuated valves directing product or cleaning solution on an automated skid.
Who It Is For
- Dairy beverage and food plants
- Breweries
- Pharmaceutical and biotech fabricators
- Skid builders and maintenance teams
Problems It Solves
Valve seats fail against hot caustic
Choosing the elastomer for the cleaning chemistry, not just the product, is what makes seats last.
Mixed standards on one line
Valves supplied in the same standard as the fittings avoid adapters and the dead legs they create.
Manual valves where automation is needed
The same valve body is available for manual operation or with a pneumatic driving device.
Technical Features
How It Is Built
- Models SK-BV001 to SK-BV004
- Size DN15 to DN200, half inch to eight inch
- SS304 or SS316L body
- Mirror or matt polish, Ra below 0.4 um
- Maximum working pressure 1.0 MPa, 10 bar, minimum vacuum
- Manual operation or pneumatic driving device
Specifications
Technical Data
Published valve data. Confirm the connection standard against an existing fitting before ordering.
| Material | 304 or |
|---|---|
| Finish | Mirror or Matt Polish; Ra<0.4um |
| Standard | DIN, SMS, 3A, ISO, IDF |
| Connection Type | Weld, Clamp, Thread |
| Polish | Mirror Polish Ra<0.5um |
| Max. Working pressure | 1.0 MPa (10 bar) |
| Min.Working pressure | Vacuum |
| Working Temperature | -5 to 95 degrees Celsius |
| Sealing Material | Silicone, EPDM or fluoroelastomer , Viton |
| Application | Dairy, beer, food, beverage, pharmacy, biotechnology, etc |
| Working principle | manual operation or driving device operation |
| Operation | Manual or pneumatic Penumatic |
Materials And Process
What Goes Into Every Unit
Materials
- SS304 or SS316L body
- Silicone, EPDM or fluoroelastomer seals
- Polished wetted surfaces
Manufacturing And Assembly
- Body machining and polishing
- Seat and seal fitting
- Leak test before dispatch
- Packing with the order documentation
Quality Control
- Seat leak testing
- Surface finish verified
- Documentation supplied with the order
Customization Options
- Weld, clamp or thread connection
- SS304 or SS316L body
- Seal material for the product and CIP
- Manual lever, multi position handle or pneumatic actuator
Compared With Other Options
| Sanitary diaphragm valve | A diaphragm valve isolates the working parts from the product and suits sterile duty. A butterfly valve is simpler and cheaper for general isolation. |
|---|---|
| Check valve | A check valve prevents reverse flow automatically. A butterfly valve is an operated isolation valve. |
Use Guide
Installing And Maintaining The Valve
Confirm The Standard
Measure tube outside diameter and ferrule size so the valve lands on the existing line.
Support The Line
Clamp joints need square seating, so support pipework either side of the valve.
Change Seats On Schedule
Replace the seat at planned intervals rather than waiting for a leak in production.
Check After CIP
Inspect seats after a change in cleaning chemistry or temperature, since that is what shortens seal life.
Answers
Sanitary Butterfly Valve FAQ
Which sizes are available?
DN15 to DN200, which is half inch to eight inch.
What is the pressure rating?
Maximum working pressure 1.0 MPa, which is 10 bar, with vacuum as the minimum working pressure.
Which seal materials do you supply?
Silicone, EPDM or fluoroelastomer, selected for product contact and cleaning chemistry.
Can the valve be actuated?
Yes. Valves are supplied for manual operation or with a pneumatic driving device.
What temperature range?
Minus 5 to 95 degrees Celsius on the published data.
Related Equipment
Related Equipment From The Same Line
Other line components in the same standards and materials.
Sanitary Valves And Fittings
Sanitary Check Valve
Non return valves SK-CV001 and SK-CV002 for hygienic lines.
View specifications →
Sanitary Valves And Fittings
Tri-Clamp
Clamps SK-CL001 to SK-CL003 with gaskets to match the line.
View specifications →
Sanitary Valves And Fittings
Clamp Elbow
Clamp end elbows SK-EB003 SK-EB004 and SK-EB006 in 45 and 90 degrees.
View specifications →Need Sanitary Butterfly Valve Sized For Your Duty Point
Send the line standard, sizes and cleaning chemistry and we will quote valves and seals together.
