Tinplate Coil/Strip/Sheet
Customized Tinplate Sheet in SPCC MR and SPCH
Gauge temper coating weight and finish set per order rather than taken from stock
Customized tinplate sheet is electrolytic tinplate, SPTE or ETP, built to an ordered combination of base steel, gauge, temper, tin coating weight and surface finish instead of a fixed stock specification. Can makers, closure producers and packaging converters specify it when a drawing calls a particular coating weight or temper that a general stock sheet does not match. Ordering the sheet to specification removes the habit of buying the nearest available grade and then absorbing the scrap rate that comes from forming a sheet that is slightly too hard, too soft or too thin. Every combination is released against GB/T 2520-2008, JIS G3303-2008, DIN EN 10203-1991 or ASTM A623M-2011 with a mill test certificate.
- Product Name — Customized Tinplate Sheet
- Also Known As — SPTE ETP electroplated tin steel sheet
- Material — SPCC MR SPCH
- Thickness — 0.15~0.50mm
- Thickness Tolerance — +/- 0.01 mm
Why It Is Specified
Key Benefits of Customized Tinplate Sheet
Coating Weight Set to the Product
Tin coating is ordered anywhere across 1.1~11.2g/m2. A dry commodity pack does not need the same tin as an acidic food product, and paying for the difference is avoidable.
Temper Matched to the Forming Step
T2 T2.5 T3 T3.5 T4 T5 and the double reduced DR7 DR7M DR8 are all available, so a deep drawn body and a stiff end can be ordered on separate specifications.
Two Annealing Routes Available
CA continuous annealing and BA batch annealing are both offered, which matters when a converter has qualified one route on an existing line and cannot switch.
Gauge Called to the Nearest Hundredth
Thickness is ordered within 0.15~0.50mm and held to +/- 0.01 mm, so a lightweighting step can be taken without guessing what will actually arrive.
Finish Chosen for the Decoration Method
Bright, stone and silver finishes are all supplied with passivation treatment and DOS oil, letting you match the face to how the sheet will be printed or lacquered.
Specification Named on the Certificate
The mill test certificate is issued against whichever of the four standards the order cites, so incoming inspection has a document that matches the drawing.
Problems It Solves
What This Material Removes From Your Process
Forming Scrap From a Near Enough Temper
A sheet one temper grade away from the drawing splits on the draw or springs back on the flange. Ordering the exact T or DR grade removes the scrap that comes with a substitution.
Paying for Tin the Pack Does Not Need
A stock coating weight is often heavier than the product requires. Selecting within 1.1~11.2g/m2 aligns the tin on the sheet with the corrosion duty of the contents.
Certificates That Do Not Match the Drawing
Incoming inspection stalls when the paperwork cites a different standard from the specification. The certificate is issued against GB, JIS, DIN or ASTM as the order states.
Trimming Sheets Before Every Run
Standard sheet sizes force a trimming step and produce offcut. Sheets are sheared to the blank size so material goes straight to the press.
Line Qualification Tied to One Anneal Route
A converter qualified on batch annealed material cannot simply take continuously annealed sheet. Both BA and CA are available so the qualified route can be kept.
Application Scenarios
Where It Is Used
Food Can Bodies and Ends
Separate specifications for the body and the end of the same can, with a softer temper where the draw is deep and a harder one where the end has to stay rigid.
Pharmaceutical Packaging
Tins and closures where a defined coating weight and a non toxic surface have to be documented for the finished pack.
Printed Commodity and Gift Tins
Decorated containers where the finish is chosen for how the sheet will accept lithographic printing before forming.
Instrument and Industrial Packaging
Protective cases and industrial packs that need a rugged light proof metal wall in a gauge specific to the tool they hold.
Closure and Crown Cap Production
Light gauge sheet in a double reduced temper for high speed stamping of caps and closures.
Who It Is For
Buyers Who Specify This Product
- Can makers ordering body and end stock on separate temper specifications
- Closure and crown cap producers buying double reduced tinplate for stamping lines
- Pharmaceutical packaging converters needing a documented coating weight per pack
- Printing and lacquering houses matching sheet finish to their decoration process
- Packaging engineers running a lightweighting project on an existing container
- Traders consolidating several converter specifications into one mill order
Technical Data
Specifications and Technical Features
Values below come from the product data published by Shandong Tianyu Metal Products. Confirm the exact grade and size against your order.
| Product Name | Customized Tinplate Sheet |
|---|---|
| Also Known As | SPTE ETP electroplated tin steel sheet |
| Material | SPCC MR SPCH |
| Thickness | 0.15~0.50mm |
| Thickness Tolerance | +/- 0.01 mm |
| Size | Customized |
| Tin Coating | 1.1~11.2g/m2 |
| Temper | T2 T2.5 T3 T3.5 T4 T5 DR7 DR7M DR8 |
| Annealing | CA continuous annealing or BA batch annealing |
| Surface Treatment | Bright stone or silver finish with passivation treatment and DOS oil |
| Standards | GB/T 2520-2008 JIS G3303-2008 DIN EN 10203-1991 ASTM A623M-2011 |
| Place of Origin | China |
| Certificate | ISO9001 BV SGS RoHS and mill test certificate |
Technical Features
- Electrolytic tinplate SPTE ETP coated with commercial pure tin on both sides
- Base material selectable as SPCC MR or SPCH
- Thickness ordered within 0.15~0.50mm to +/- 0.01 mm
- Tin coating weight ordered within 1.1~11.2g/m2
- Temper T2 T2.5 T3 T3.5 T4 T5 DR7 DR7M DR8
- CA continuous annealing or BA batch annealing
- Bright, stone or silver finish with passivation treatment and DOS oil
- Certificate against GB/T 2520-2008 JIS G3303-2008 DIN EN 10203-1991 or ASTM A623M-2011
Materials
- SPCC cold rolled low carbon steel base for general forming
- MR base steel where the packaging specification calls it
- SPCH base steel for harder tempers
- Commercial pure tin electroplated on both faces
- Passivation film with DOS oil for transit protection
Certification
- ISO9001
- BV
- SGS
- RoHS
- Mill test certificate supplied with each shipment
Manufacturing
How It Is Made and Processed
Cold rolling the base steel to the ordered gauge
Annealing by the ordered CA or BA route
Double reduction rolling for DR7 DR7M and DR8 tempers
Electrolytic tin plating to the ordered coating weight
Passivation treatment and DOS oil application
Finishing to bright, stone or silver surface
Shearing to the ordered sheet size

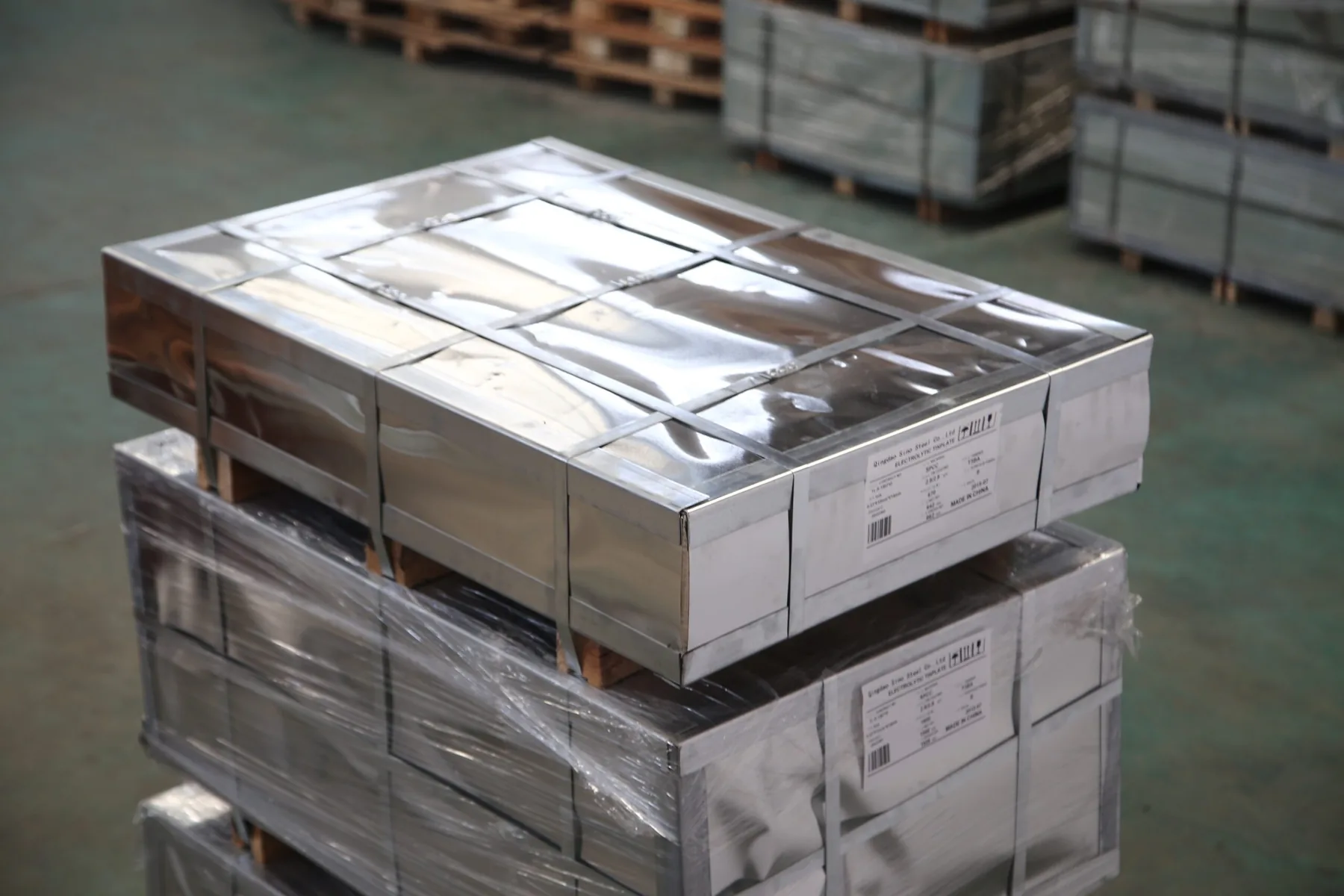

Packing with interleaving and edge protection for export
Quality Control
Checks Before It Ships
- Thickness verified against the ordered gauge inside +/- 0.01 mm
- Coating weight measured against the ordered point in the 1.1~11.2g/m2 range
- Temper checked against the ordered T or DR designation
- Surface finish and passivation coverage inspected before oiling
- Sheet size and squareness confirmed against the order
- Mill test certificate issued to the standard named on the order
Customization
What We Can Change on Your Order
- Base steel specified as SPCC MR or SPCH
- Gauge ordered at any point within 0.15~0.50mm
- Tin coating weight ordered within 1.1~11.2g/m2 and differential coating on request
- Temper ordered from T2 through T5 or DR7 DR7M DR8
- Annealing route ordered as CA or BA
- Sheet size sheared to your blank dimensions
Comparison
Customized Tinplate Sheet Against the Alternatives
| Standard stock tinplate sheet | A stock sheet fixes gauge, temper and coating weight, so the converter absorbs the mismatch. Here each of the three is ordered separately for the job. |
|---|---|
| Tinplate coil bought and slit locally | Sheets arrive sheared to the blank size with the DOS oil film intact, which removes a decoiling and shearing stage and the handling damage that comes with it. |
| Tin free steel | The tin surface keeps solderability and the familiar metallic appearance, which matters where seams are soldered or the pack is sold on its metal finish. |
Use Guide
Specifying Handling and Welding Notes
- Send the blank size, gauge, temper and coating weight together so one specification covers the whole order
- Name the standard your drawing follows so the certificate is issued against the same document
- Order a softer temper for the deepest draw in the pack and a harder or double reduced temper for ends and closures
- Specify the annealing route if your line is qualified on CA or BA rather than leaving it open
- Keep sheets in the original interleaved packing until the press so the tin surface is not scuffed
- Store in a dry area because passivation and DOS oil protect against handling but not against standing moisture
Questions Buyers Ask
Customized Tinplate Sheet FAQ
What exactly can we customize on this sheet?
Base steel, gauge within 0.15~0.50mm, temper, tin coating weight within 1.1~11.2g/m2, annealing route, surface finish and sheet size.
Can we order a different tin weight on each face?
Differential coating can be quoted within the 1.1~11.2g/m2 range. Tell us which face contacts the product and what the other face has to do.
Which temper should we use for a deep drawn can body?
Softer tempers such as T2 or T2.5 are usual for deep drawing, with T4, T5 or the DR grades kept for ends and closures. Send the draw ratio and we can confirm.
Is SPCC MR or SPCH better for our part?
SPCC is the general cold rolled base, MR is the packaging base grade and SPCH suits harder tempers. The choice follows the temper and the forming severity.
How close is the thickness held?
To +/- 0.01 mm on the ordered gauge, which is what allows a lightweighting step to be taken with confidence.
Can we get a trial quantity before committing to production?
Samples are available. Give the full specification you want to trial and we will confirm what can be released.
Which certificate will we receive?
A mill test certificate against GB/T 2520-2008, JIS G3303-2008, DIN EN 10203-1991 or ASTM A623M-2011 as ordered, with ISO9001, BV, SGS and RoHS documents on request.
