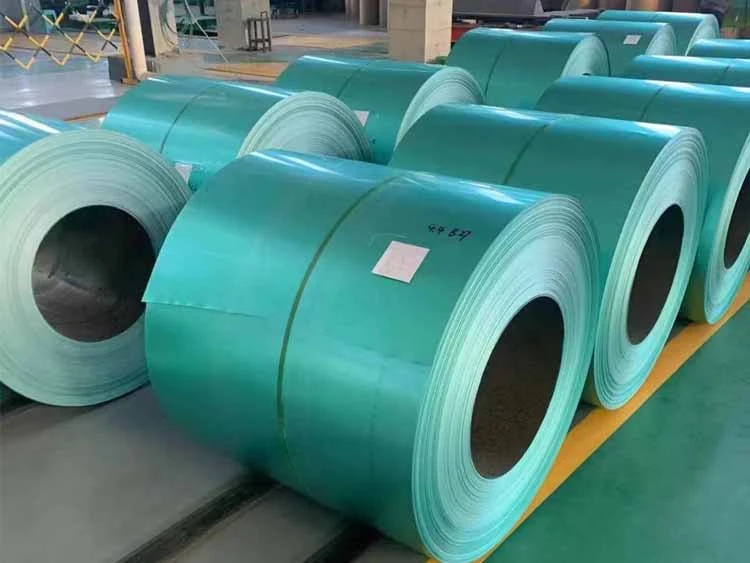

Pre-Painted Galvanized Steel Coil
Color finished galvanized coil that leaves the roll former ready to install
Specifications
GI and PPGI Galvanized and Pre Painted Steel Coil
Zinc coated and colour coated coil for roll formers who want the finish applied at the mill rather than in the workshop
GI and PPGI steel coil is the zinc coated part of the steel coil range and covers Galvanized Steel Coil, Galvanized Steel Strip and Pre-Painted Galvanized Steel Coil. GI is the bare zinc coated product and PPGI is the same substrate with the paint system already applied at the mill, so a roll former can take the coil straight to the line and produce a finished panel without a paint shop. Steel grades in this range include G250 G350 G450 and G550 together with A36 SS400 S275 S235 Q195 Q235 Q355 SGCC and DX51D, and zinc coating is specified as G20 G30 G40 G60 G90 or in the Z system from Z40 Z60 Z80 Z100 Z120 Z150 up to Z275 and Z350. Slit strip is held in the same category so narrow widths for framing and small profiles come from the same coil rather than from a second order.
Full Range
All 3 Products in GI/PPGI Steel Coil
Zinc coated and colour coated coil for roll formers who want the finish applied at the mill rather than in the workshop

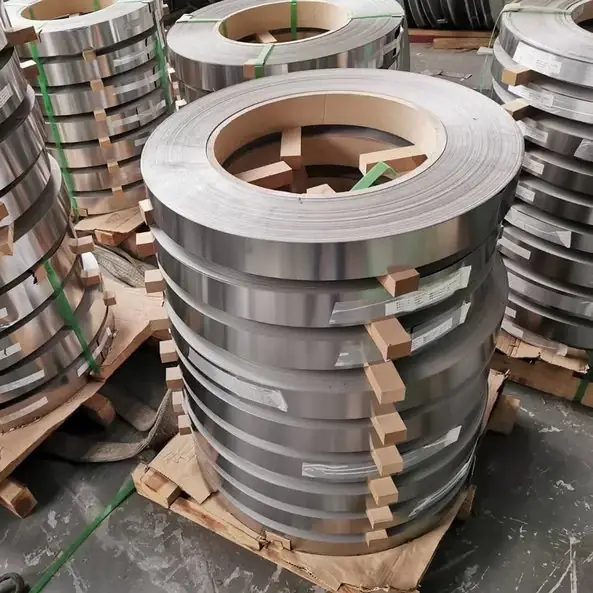

Galvanized Steel Strip
Narrow zinc coated strip slit to your width from full width galvanized master coil
SpecificationsGalvanized Steel Coil
Full width zinc coated coil in structural and commercial grades for roll forming lines
SpecificationsProblems Solved
What This Range Is For
Paint Shop Capacity Limiting Panel Output
Painting formed panels in house adds a booth a drying line and a rework rate. PPGI arrives with the colour already on the substrate so the line produces finished panels in one pass.
Coating Weight Guessed Rather Than Specified
A coastal roof and an interior partition do not need the same zinc layer. The Z system from Z40 through Z275 and Z350 lets the coating weight follow the exposure instead of a single default.
Substrate Grade Named in the Wrong System
One buyer asks for DX51D another for SGCC and a third for G550. All of these are listed here so the coil is ordered under the designation on your drawing.
Narrow Widths Slit After Delivery
decoiling a wide coil in your own shop costs a pass and leaves edge scrap. Galvanized steel strip is supplied as strip so narrow sections arrive ready to form.
Hard Grade Needed for a Thin Profile
Thin high rib profiles need a higher strength substrate or the section buckles. G450 and G550 sit in the same range as the soft forming grades so the profile decides the grade.
Who Buys It
Buyers Who Order From This Range
- Roofing and cladding sheet makers running corrugated and trapezoidal profiles
- Sandwich panel producers needing painted skins in a set colour and coating weight
- Light gauge framing manufacturers making studs tracks and purlins from strip
- Appliance and enclosure makers pressing parts from SGCC or DX51D coil
- Steel service centers decoiling and reselling coated coil to regional formers
- Distributors serving roofing contractors in humid and coastal markets
Core Advantages
Why Source This Range From Tianyu Metal
Bare and Painted Coil From One Range
GI for parts that get welded or later coated and PPGI for parts that go straight to site come from the same substrate family so the order can carry both.
Coating Weight Chosen Across Two Systems
Zinc coating is quoted as G20 G30 G40 G60 or G90 and as Z40 Z60 Z80 Z100 Z120 Z150 Z275 or Z350 so an American and a European specification both map onto the same order.
Soft Forming and Hard Structural Grades Together
DX51D and SGCC cover deep forming while G450 and G550 cover high rib profiles and light framing so one supplier serves both ends of the line.
Coil and Slit Strip Supplied Side by Side
Galvanized steel strip is held in the same category so a former running wide panels and narrow sections orders both widths together.
Structural Grades Named for Local Codes
A36 SS400 S275 S235 Q195 Q235 and Q355 are listed so a coil going into a structural part can be ordered under the code that governs the project.
Packed for Sea Freight to Export Markets
Coil is packed and shipped for export to Southeast Asia South America and Africa where painted surfaces have to survive the voyage as well as the service life.
Application Scenarios
Where This Range Ends Up
Roofing and Wall Cladding Sheets
PPGI run into corrugated and trapezoidal profiles for industrial sheds warehouses and housing where the panel is fixed as it comes off the line.
Sandwich Panel Skins
Painted coil used as the two faces of an insulated panel where colour and coating weight are set before lamination.
Light Gauge Steel Framing
Studs tracks purlins and girts formed from G450 or G550 strip where the zinc layer replaces a site applied primer.
Appliance and Cabinet Panels
Pressed and folded parts in SGCC or DX51D for enclosures cabinets and white goods bodies.
Ducting and Ventilation Components
Galvanized coil folded into duct sections and fittings where the coating protects the inside face as well.
Fencing Shutters and Formed Sections
Narrow strip formed into shutter slats fence rails and small profiles that would otherwise need painting after fabrication.
Buying Guide
What To State When You Order
Give thickness and coil width first then say whether you need full width coil or slit strip and at what strip width
Name the substrate grade in your own system such as DX51D SGCC G550 Q235 or S275 so the coil is not ordered twice under two names
State the zinc coating weight in the G or the Z system for example G90 or Z275 and say which exposure it is for
Say whether the coil is bare GI or pre painted PPGI and for painted coil give the colour reference and which face is the top coat
Give the coil inside diameter and the maximum coil weight your uncoiler can handle
Confirm the mill test certificate and ask for edge and surface protection in the packing so the paint film survives the voyage
Related
Industries and Solutions Around GI/PPGI Steel Coil
Construction and Infrastructure
Construction and infrastructure buyers order steel by the part it becomes: mild steel plate for base plates gussets and stiffeners
Read more
Automotive and Transport
Vehicle and trailer components fail on fatigue, not on a single overload, so the grade behind each part matters more than the pric
Read more
Power Generation and Energy
Energy projects are audited on documents as much as on steel. A boiler header, a cooling water line, a coal transfer chute and a s
Read more
Grade Selection and Substitution
A purchasing engineer rarely gets a free choice of grade. The drawing names one designation, the material that is actually availab
Read more
Export Packing and Shipping
Steel that leaves the yard in good condition and arrives rusted, unmarked or short is a claim nobody wins quickly. Most of the dam
Read moreQuestions Buyers Ask
GI/PPGI Steel Coil FAQ
What is the difference between GI and PPGI coil?
GI is galvanized coil with the zinc coating only. PPGI is pre painted galvanized coil where the paint system is applied over the same zinc coated substrate at the mill so the panel needs no painting after forming.
Which steel grades can I specify for the substrate?
The listed materials include G250 G350 G450 G550 A36 SS400 S275 S235 Q195 Q235 Q355 SGCC and DX51D. Soft grades are used where the part is deep formed and the higher G grades where the profile carries load.
How do I choose the zinc coating weight?
Coating is quoted as G20 G30 G40 G60 G90 or in the Z system as Z40 Z60 Z80 Z100 Z120 Z150 Z275 or Z350. A heavier coating is specified for exposed and humid service and a lighter one for indoor parts.
Do you supply narrow strip as well as full coil?
Yes. Galvanized steel strip is part of this range so you can order strip widths for framing shutter slats and small profiles instead of decoiling a wide coil yourself.
Can the paint colour be matched to our existing panels?
Pre painted coil is ordered against a stated colour reference. Send the colour you already run together with the coating weight and thickness and Request A Quote against that combination.
Is the coil supplied with a material certificate?
Yes. Ask for the mill test certificate with the order and it is issued against the ordered grade and coating.
Get a Quotation on GI/PPGI Steel Coil
Tell us give thickness and coil width first then say whether you need full width coil or slit strip and at what strip width and we will come back with price, availability and what the mill test certificate will show for gi/ppgi steel coil.
