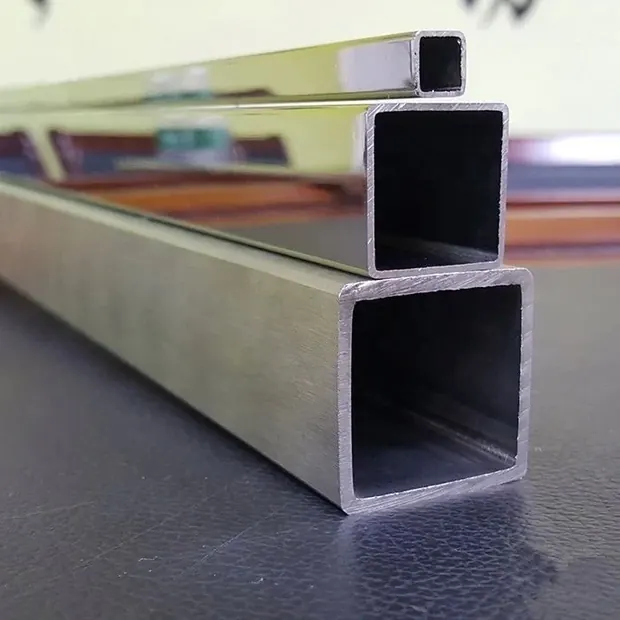

Welded Stainless Steel Square Pipe
Longitudinally welded square hollow section in austenitic duplex and ferritic stainless grades
Specifications
Stainless Steel Pipe Seamless and Welded
The corrosion resisting branch of the steel pipe range where the grade matters more than the wall thickness
Stainless steel pipe covers the round, square and rectangle sections that carry fluid or form structure in wet, acidic or hygienic service. The range runs from welded stainless steel round, square and rectangle pipe through to seamless stainless steel round, square and rectangle pipe, so a single project can take pressure duty and frame duty from the same order. Grades cover 201, 202, 301, 304, 304L, 309S, 310S, 316, 316Ti, 316L, 410, 430, 2205 and 904L against ASTM A312, EN10216 and JIS G3463. The sourcing problem it solves is the split order: buyers who normally buy welded tube from one mill and seamless from another, and who then have to reconcile SUS and EN number equivalents across two sets of paperwork.
Full Range
All 6 Products in Stainless Steel Pipe
The corrosion resisting branch of the steel pipe range where the grade matters more than the wall thickness
Welded Stainless Steel Rectangle Pipe
Rectangular hollow section that puts the deeper wall where the bending load acts

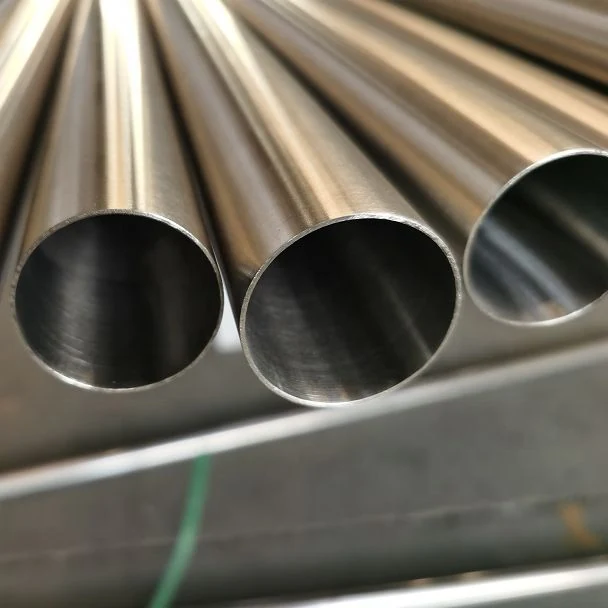

SpecificationsWelded Stainless Steel Round Pipe
Longitudinally welded round pipe for fluid lines handrails and process pipework
SpecificationsSeamless Stainless Steel Rectangle Pipe
Rectangular hollow section drawn from a pierced tube so there is no longitudinal seam
Specifications
Seamless Stainless Steel Square Pipe
Square hollow section with a continuous wall and no longitudinal weld line
Specifications

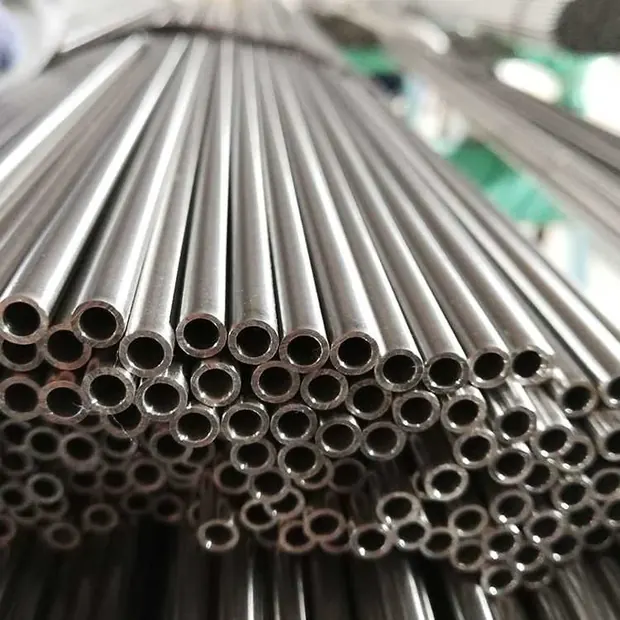

Seamless Stainless Steel Round Pipe
Hollow bar drawn pipe in austenitic duplex and ferritic grades cut to your size
SpecificationsProblems Solved
What This Range Is For
Grade Named Three Different Ways
A drawing says SUS316L, a European spec says 1.4404 and the purchase order says 316L. All three refer to the same material and confusing them wastes a quotation round. The grade list here is cross referenced so the order can be placed in whichever system the drawing uses.
Splitting Welded and Seamless Between Suppliers
Pressure lines need seamless while handrails, frames and low pressure runs do not. Buying them separately doubles the freight and the documentation. Both techniques come from the same range here.
Carbon Steel Pipe Failing in Wet Service
Galvanized or black pipe corrodes where condensate, washdown or chemical vapor sits on the surface. Moving that circuit to 304 or 316L removes the repaint and replace cycle rather than delaying it.
Chloride Attack on 304
Coastal air, brine and pool chemistry pit 304 faster than the design assumed. Stepping to 316L, 2205 duplex or 904L addresses the chloride rather than increasing the wall thickness.
Sizes That Do Not Match the Standard Table
Frames and skids often need a section that no stock list carries. Size is customized so the pipe can be made to the section your fabrication drawing already shows.
Who Buys It
Buyers Who Order From This Range
- Process plant contractors specifying 316L or 904L lines for acid, brine and washdown service
- Food, dairy and beverage equipment builders needing hygienic round tube in 304 and 316L
- Architectural metalwork shops fabricating stainless handrails, balustrades and facade frames
- Heat exchanger and furnace part makers buying 309S and 310S for elevated temperature duty
- Marine and offshore fabricators moving from 316L to 2205 duplex on chloride exposed circuits
- Stockists carrying a stainless pipe range in round, square and rectangle sections
Core Advantages
Why Source This Range From Tianyu Metal
Austenitic Duplex and Ferritic in One Range
201 and 202 for cost driven decorative work, 304 and 316L for general and chloride service, 2205 and 904L for aggressive media, 410 and 430 where a magnetic ferritic or martensitic grade is wanted. The selection is made on the same order.
Three Standards Accepted on the Order
ASTM A312, EN10216 and JIS G3463 are all quoted against, so a drawing written in any of the three systems can be supplied without redrawing the specification.
Round Square and Rectangle From the Same Grade
A stainless skid frequently mixes round process tube with square and rectangle framing. All three section shapes are available in both seamless and welded construction.
Size Made to the Drawing
Size is customized, so outside dimension, wall thickness and length follow your cutting list instead of being forced onto the nearest stock size.
Stated Delivery Window
Delivery runs within 7-10 working days after the deposit is received or according to your order, which gives a planner a date to build the fabrication schedule around.
Elevated Temperature Grades Held in the Same List
309S and 310S sit alongside the general grades, so furnace and exhaust components do not have to be sourced from a separate heat resisting supplier.
Application Scenarios
Where This Range Ends Up
Chemical and Process Piping
Acid transfer, dosing and effluent lines where 316L, 2205 or 904L is chosen for the specific media rather than for strength.
Food and Beverage Equipment
Frames, guards and product contact tube on filling and packing lines where washdown chemicals attack coated carbon steel.
Architectural and Structural Metalwork
Handrails, canopies and facade support frames in square and rectangle stainless section that stay exposed for the life of the building.
Marine and Coastal Installations
Deck fittings, davits and shore side structures where salt spray drives the move from 304 to 316L or 2205 duplex.
Heat Resisting Assemblies
Furnace internals, flue runs and kiln components built from 309S and 310S where scaling rather than corrosion is the failure mode.
Water Treatment and Pool Plant
Chlorinated circuits and dosing skids where pitting on 304 has already been seen and a higher alloy grade is specified.
Buying Guide
What To State When You Order
State the grade in the system your drawing uses and we will match it, for example 316L, SUS316L or 1.4404
Name the standard you want the pipe certified to from ASTM A312, EN10216 or JIS G3463
Give the section shape as round, square or rectangle, then outside dimension and wall thickness
Say whether the pipe must be seamless or whether welded construction is acceptable for that circuit
State cut length and whether ends are to be left plain or prepared for welding
Confirm the surface condition, ask for the mill test certificate, and state the packing and marking your port requires
Related
Industries and Solutions Around Stainless Steel Pipe
Food and Beverage Packaging
Can makers do not buy steel, they buy a strip that will draw without splitting, take a printed lacquer without blistering and seam
Read more
Oil Gas and Pipelines
Pipeline and wellsite buyers are not really buying steel, they are buying a pressure boundary and the paperwork that proves it. Th
Read more
Construction and Infrastructure
Construction and infrastructure buyers order steel by the part it becomes: mild steel plate for base plates gussets and stiffeners
Read more
Grade Selection and Substitution
A purchasing engineer rarely gets a free choice of grade. The drawing names one designation, the material that is actually availab
Read more
Cut to Size and Processing
Buying full plates to make small panels means paying freight on offcuts and storing them afterwards. Tianyu Metal processes steel
Read more
Inspection and Mill Test Certificates
Material without paperwork cannot be released into a job, however good the steel is. A quality department that receives plate with
Read moreQuestions Buyers Ask
Stainless Steel Pipe FAQ
Which standards can the pipe be supplied against?
ASTM A312, EN10216 and JIS G3463 are the standards quoted for this range. Tell us which one your drawing or inspection body works to and the material is ordered and certified against that standard.
What is the difference between ordering 316 and 316L here?
Both are held in the same grade list. 316L is the low carbon version and is usually specified where the pipe will be welded and then exposed to corrosive media, because it limits carbide precipitation at the weld. 316Ti is also available where a stabilized grade is preferred.
Can you supply square and rectangle pipe as seamless rather than welded?
Yes. Both seamless and welded stainless square pipe and rectangle pipe are in the range, so a frame that mixes a pressure section with a structural section can be covered by one order.
Do you hold duplex and super austenitic grades?
2205 duplex and 904L are both in the grade list along with 201, 202, 301, 304, 304L, 309S, 310S, 316, 316Ti, 316L, 410 and 430. Send the media and temperature and we will confirm which of these is appropriate.
How long does delivery take after the order is placed?
Delivery is within 7-10 working days after receiving the deposit, or according to your order. Larger or fully customized sections are confirmed against your quantity when the order is booked.
Are the sizes fixed or can you make our section?
Size is customized. Send the outside dimension, wall thickness and length from your drawing rather than trying to fit the job to a stock table.
Get a Quotation on Stainless Steel Pipe
Tell us state the grade in the system your drawing uses and we will match it, for example 316L, SUS316L or 1.4404 and we will come back with price, availability and what the mill test certificate will show for stainless steel pipe.
