Stainless Steel Sheet
Seven stock grades six surface finishes and two standard sheet sizes from one order
Specifications
Stainless Steel Sheet and Plate in 201 304 and 310
The flat stainless specialism of the steel sheet range where the surface finish is ordered as carefully as the grade

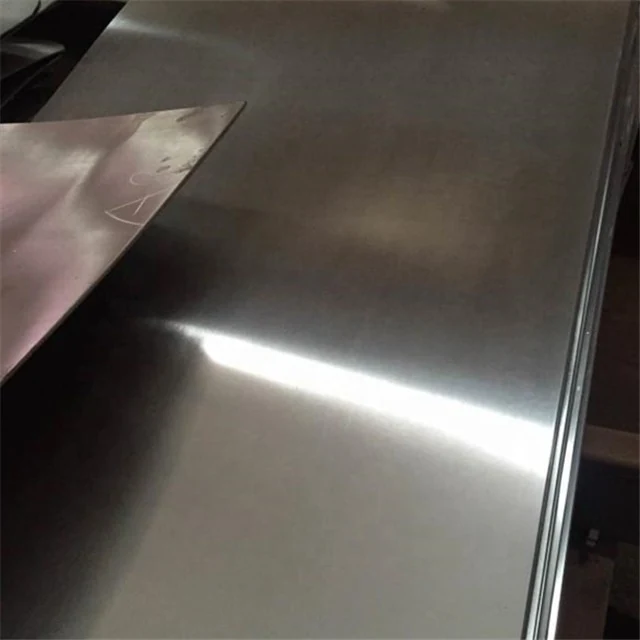

Stainless steel sheet and plate is the corrosion resisting flat product inside the wider steel sheet range, supplied in 201, 304 and 310 in thickness from 2mm to 100mm. Standard sizes are 1000x2000mm and 1220x2440mm, with custom size cut against your list, and the surface is ordered as NO.1, 2B, BA, embossed, HL or 8K depending on whether the panel will be fabricated, exposed or polished. Because the material is solid stainless rather than a coated substrate, cut edges and drilled holes do not need sealing to stay corrosion resistant. The problem it removes is buying a mill sized plate and then paying twice, once for the offcut and once for the polishing shop, when the sheet could have arrived at the right size in the right finish.
Full Range
All 1 Products in stainless steel sheet
The flat stainless specialism of the steel sheet range where the surface finish is ordered as carefully as the grade
Problems Solved
What This Range Is For
Finish Ordered Too Late
A panel bought in NO.1 and then sent out for polishing costs more and delays the build. Stating 2B, BA, HL or 8K on the purchase order gets the surface right before the sheet ships.
Coated Carbon Sheet Rusting at Cut Edges
Galvanized or painted sheet loses its protection wherever it is cut, drilled or welded. Solid stainless carries its corrosion resistance through the full thickness, so fabrication does not create a failure point.
Paying for Offcut on Every Panel
Ordering 1220x2440mm sheet to make a small tank side leaves scrap you store and eventually scrap again. Custom size and cutting service means you buy the panel, not the plate.
Thin Gauge and Plate Gauge From Different Sources
Fabricators often split thin decorative sheet and heavy structural plate between two suppliers. The 2-100mm thickness span covers both ends from one order.
Grade Chosen Only on Price
201 is cheaper than 304 but is not a substitute in every duty, and 310 is chosen for heat rather than for corrosion. Having all three in one range lets the choice be made per component instead of per project.
Who Buys It
Buyers Who Order From This Range
- Kitchen equipment and cookware manufacturers buying 304 sheet in 2B or BA finish
- Tank and vessel fabricators cutting 304 and 310 plate to shell and head blanks
- Architectural cladding and interior fit out contractors specifying HL and 8K panels
- Appliance and vehicle body shops buying sheet in fixed 1000x2000mm and 1220x2440mm sizes
- Furnace and heat treatment equipment builders using 310 for elevated temperature panels
- Medical and laboratory equipment makers needing a cleanable solid stainless surface
Core Advantages
Why Source This Range From Tianyu Metal
Six Surface Finishes on One Order
NO.1, 2B, BA, embossed, HL and 8K are all specified at the order stage, so a job that mixes a mill finish structural panel with a mirror finish trim panel does not need two suppliers.
Thickness Span From Sheet to Plate
Thickness runs from 2mm to 100mm, which covers light fabricated panels and heavy cut blanks without changing the grade or the certificate.
Two Stock Sizes Plus Cut to Size
1000x2000mm and 1220x2440mm are held as standard sizes and any other size is cut, so the blank arrives ready for forming instead of ready for trimming.
Processing Done Before Shipment
Bending, welding, decoiling, cutting and punching are available, so the sheet can leave here as a formed part rather than as raw stock.
Mill Test Certificate With the Material
A mill test certificate is issued for the ordered grade, which is what an inspector asks for on food, medical and pressure related fabrication.
Sample Before the Production Run
Samples are available, so a finish can be checked against your reference panel before the full quantity is committed.
Application Scenarios
Where This Range Ends Up
Commercial Kitchen and Cookware Production
Worktops, splashbacks, pans and cutlery blanks in 304 where the surface has to stay cleanable after years of scouring.
Surgical and Laboratory Equipment
Instrument trays, cabinets and bench tops where a solid stainless surface tolerates repeated sterilization and chemical cleaning.
Architectural Panels and Interior Trim
Lift interiors, column cladding and signage in HL brushed or 8K mirror finish, with embossed sheet used where scratches must be disguised.
Tanks Hoppers and Process Vessels
Shell plates and baffles cut from heavier gauge 304 for storage and mixing vessels in food and chemical plants.
Appliance and Vehicle Bodywork
Panels, liners and trim in major appliances and vehicle interiors where a formable sheet in a consistent finish is needed in volume.
Heat Exposed Enclosures
Furnace covers, flue shields and oven internals where 310 is chosen for its behavior at elevated temperature.
Buying Guide
What To State When You Order
State the grade as 201, 304 or 310 and say what the panel will touch in service
Give thickness within the 2-100mm range and say whether the tolerance is critical for forming
Choose 1000x2000mm, 1220x2440mm or send the cut sizes you actually need
Name the surface as NO.1, 2B, BA, embossed, HL or 8K and say which face is the visible one
List the processing you want done here from bending, welding, decoiling, cutting and punching
Ask for the mill test certificate and say whether the visible face needs protective film for transit
Related
Industries and Solutions Around stainless steel sheet
Food and Beverage Packaging
Can makers do not buy steel, they buy a strip that will draw without splitting, take a printed lacquer without blistering and seam
Read more
Construction and Infrastructure
Construction and infrastructure buyers order steel by the part it becomes: mild steel plate for base plates gussets and stiffeners
Read more
Automotive and Transport
Vehicle and trailer components fail on fatigue, not on a single overload, so the grade behind each part matters more than the pric
Read more
Cut to Size and Processing
Buying full plates to make small panels means paying freight on offcuts and storing them afterwards. Tianyu Metal processes steel
Read more
Grade Selection and Substitution
A purchasing engineer rarely gets a free choice of grade. The drawing names one designation, the material that is actually availab
Read more
Inspection and Mill Test Certificates
Material without paperwork cannot be released into a job, however good the steel is. A quality department that receives plate with
Read moreQuestions Buyers Ask
stainless steel sheet FAQ
What thickness and sheet sizes do you supply?
Thickness is 2-100mm. Standard sizes are 1000x2000mm and 1220x2440mm, and any other size is supplied as a customized cut. Send your blank list if the panels are not rectangular.
Which surface finishes can I choose from?
NO.1, 2B, BA, embossed, HL and 8K. NO.1 is the mill finish for fabricated parts, 2B and BA are general and bright finishes, HL is the brushed architectural finish, 8K is mirror, and embossed is used where surface marking must be hidden.
Is 201 an acceptable substitute for 304?
It depends on the duty. 201 is used where cost matters and exposure is mild, while 304 is the general purpose corrosion resisting grade and 310 is chosen for elevated temperature. Tell us the environment and we will say which of the three fits.
Can you cut and bend the sheet before shipping?
Yes. Processing covers bending, welding, decoiling, cutting and punching, so panels can arrive formed and drilled instead of as flat stock.
What applications is this sheet normally bought for?
Cookware, cutlery, surgical instruments, major appliances, vehicles and construction material are the applications stated for this product, which is why both fine finishes and heavier plate gauges are held.
Can we see a sample of the finish first?
Samples are available. Send the grade, thickness and the finish code you want to check, and confirm the panel size that would be useful for your evaluation.
Get a Quotation on stainless steel sheet
Tell us state the grade as 201, 304 or 310 and say what the panel will touch in service and we will come back with price, availability and what the mill test certificate will show for stainless steel sheet.
