Galvanized Welded Rectangle Steel Pipe
Zinc coated welded rectangular section in lengths from 0.3 to 18 M
Specifications
Square and Rectangle Steel Pipe
Square and rectangle hollow sections welded or seamless bare or galvanized for frames racking and load bearing steelwork
This part of the steel tube range covers hollow sections with four flat faces. It holds galvanized welded square and rectangle pipe plain welded square and rectangle pipe galvanized square and rectangle pipe and the seamless square and rectangle versions so a frame can be specified in whatever wall and surface the job calls for. Welded sections are made to ASTM 53 EN10217 DIN 2458 IS 3589 JIS G3452 and BS1387 in outside sizes from 21.3mm to 660.4mm with wall from 1.5 to 22.2mm and lengths from 0.3 to 18 M. Flat faces are the reason these sections end up in portal frames racking machine bases and fencing because a plate bolts or welds straight on without a saddle cut.
Full Range
All 10 Products in Square/Rectangle Steel Pipe
Square and rectangle hollow sections welded or seamless bare or galvanized for frames racking and load bearing steelwork Items here also sit under Galvanized Steel Pipe, Seamless Steel Pipe.
Galvanized Welded Square Steel Pipe
Four equal faces and a zinc coating for frames posts and site structures
Specifications
Galvanized Seamless Rectangle Steel Pipe
Jointless hollow section with a zinc coated surface in schedule wall thicknesses
Specifications
Galvanized Seamless Square Steel Pipe
Jointless square section with heavy schedule walls and a zinc coated surface
Specifications
Galvanized Square Pipe
Zinc coated square and rectangular hollow section in ASTM JIS and EN BS grades

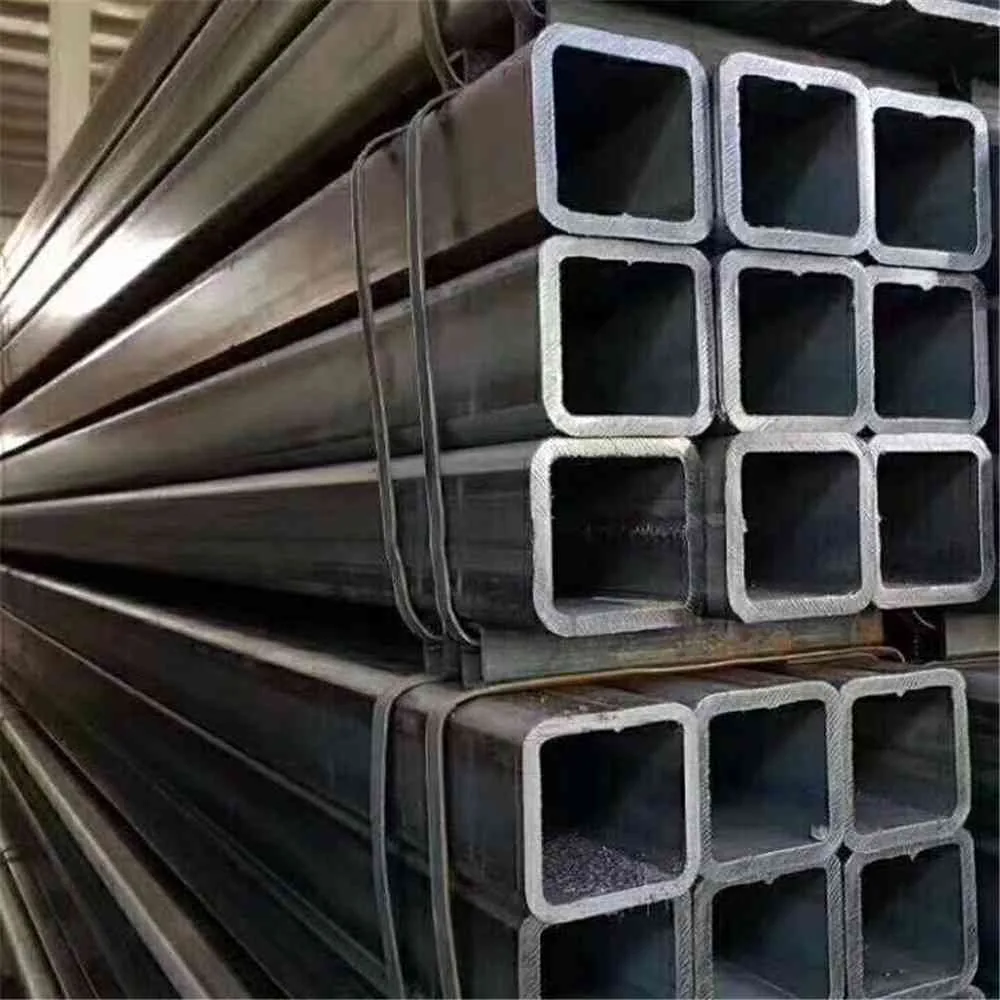

SpecificationsWelded Square Pipe
Welded square and rectangular tube in painted galvanized natural or 3PE coated finish
SpecificationsSeamless Square Pipe
Square hollow section with no longitudinal joint for machine frames and heavy wall duty
Specifications
Galvanized Rectangle Pipe
Zinc coated rectangular hollow section in ASTM JIS and EN grades cut to length

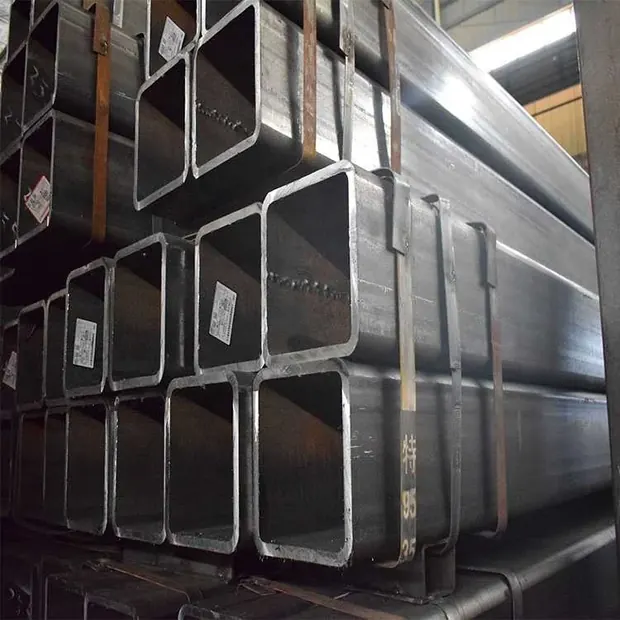

SpecificationsWelded Rectangle Pipe
Square and rectangular welded hollow section finished black galvanized or coated to order
Specifications
Seamless Rectangle Pipe
Rectangular hollow section with no joint around it for frames columns and structures
SpecificationsProblems Solved
What This Range Is For
Round Pipe Slow to Join
A round section needs a profiled cut or a fitting at every connection. A square or rectangle section presents a flat face so gussets base plates and brackets sit flush and weld in one pass.
Galvanizing Arranged After Fabrication
Sending finished frames out to a galvanizer adds handling a second freight leg and a coating that has to be repaired at cut ends. Galvanized square and rectangle pipe arrives already coated.
Wall Too Light for the Design Load
Welded sections cover 1.5 to 22.2mm wall and the seamless versions go heavier again so the section can be stepped up without changing the outside size the detailer already drew.
Members Cut Down on Site
Length is supplied from 0.3 to 18 M so members can arrive close to finished length instead of being cut out of standard bars in the yard.
A Bill of Materials Written to Several Standards
ASTM 53 EN10217 DIN 2458 IS 3589 JIS G3452 and BS1387 are all quoted so one order covers lines written against different national standards.
Who Buys It
Buyers Who Order From This Range
- Steel building fabricators pricing portal frames columns and bracing
- Solar mounting and greenhouse structure manufacturers buying galvanized sections
- Racking mezzanine and shelving makers working in light wall square tube
- Machine frame builders who need flat faces for mounting plates and bearing housings
- Fencing gate and barrier workshops buying coated tube by the bundle
- Tube stockists covering welded galvanized and seamless sections in one shipment
Core Advantages
Why Source This Range From Tianyu Metal
Welded and Seamless in the Same Shape
Welded square and rectangle pipe covers general structural work and the seamless versions are there when the specification will not take a longitudinal joint or the wall has to be heavy.
Wide Size and Wall Range
Welded sections run from 21.3mm to 660.4mm which is 1/2 inch to 26 inch with wall from 1.5 to 22.2mm while seamless sections are ordered by schedule from SCH5S to SCH160 and XS covering 1.65mm to 80mm.
Galvanized Surface on Both Routes
Galvanized welded and galvanized seamless square and rectangle pipe are both available so an outdoor structure needs no coating step after fabrication.
Grades From Three Standard Families
ASTM A53 GR A and GR B EN S275 S275JR S355JRH S355J2H and GB Q195 Q215 Q235 Q345 with L175 L210 L245 L320 and L360 through L555 are quoted for these sections.
Length Cut to the Member List
Lengths from 0.3 to 18 M on welded sections and fixed 5.8m and 6m lengths on the seamless line mean less offcut lying in the fabrication shop.
Application Scenarios
Where This Range Ends Up
Steel Building Frames and Portals
Columns rafters and bracing in Q235 or Q345 sections bolted through the flat faces without any profiled cutting.
Solar Mounting and Greenhouse Structures
Galvanized square and rectangle pipe for outdoor structures where the coating has to be on the steel before the frame is erected.
Racking Mezzanines and Platforms
Uprights beams handrails and stair stringers cut from light wall sections inside the 1.5 to 22.2mm wall range.
Machine and Conveyor Frames
Welded equipment frames where a flat face carries mounting plates drive brackets and bearing housings.
Fencing Gates and Site Barriers
Galvanized sections for perimeter work that stays outdoors for the life of the site.
Booms Masts and Lifting Structures
Seamless square and rectangle sections chosen where the wall is heavy and no longitudinal seam is wanted in a loaded member.
Buying Guide
What To State When You Order
Give the outside size as width by height and confirm it sits inside the 21.3mm to 660.4mm range
State wall thickness in millimetres for welded sections or as a schedule for the seamless sections
Name the standard and the grade together such as ASTM A53 GR B or GB Q345 so the test scope is fixed before rolling
Say whether the surface is bare or galvanized and confirm the coating is wanted before any fabrication
Give the cut length you want from the 0.3 to 18 M range or ask for the fixed 5.8m and 6m lengths
Confirm end finish and bundle packing so sections arrive square ended and strapped for the destination port
Related
Industries and Solutions Around Square/Rectangle Steel Pipe
Construction and Infrastructure
Construction and infrastructure buyers order steel by the part it becomes: mild steel plate for base plates gussets and stiffeners
Read more
Construction Machinery and Agriculture
One loader or one tractor needs four different steels and most fabrication shops buy them from four different suppliers. The struc
Read more
Power Generation and Energy
Energy projects are audited on documents as much as on steel. A boiler header, a cooling water line, a coal transfer chute and a s
Read more
Cut to Size and Processing
Buying full plates to make small panels means paying freight on offcuts and storing them afterwards. Tianyu Metal processes steel
Read moreExport Packing and Shipping
Steel that leaves the yard in good condition and arrives rusted, unmarked or short is a claim nobody wins quickly. Most of the dam
Read more
Stock and Lead Time Management
Most late steel is not late because of the mill. It is late because nobody told the buyer, at enquiry stage, which items were sitt
Read moreQuestions Buyers Ask
Square/Rectangle Steel Pipe FAQ
Do you supply square and rectangle pipe welded or seamless?
Both. Galvanized welded and plain welded square and rectangle pipe cover general structural work and seamless square and rectangle pipe is supplied where a longitudinal joint is not accepted.
What size and wall range is available?
Welded sections run from 21.3mm to 660.4mm which is 1/2 inch to 26 inch with wall from 1.5 to 22.2mm. Seamless sections are ordered by schedule from SCH5S to SCH160 and XS which covers 1.65mm to 80mm.
Which standards do the welded sections follow?
ASTM 53 EN10217 DIN 2458 IS 3589 JIS G3452 and BS1387. Tell us which standard your drawing quotes and the order is written against it.
What lengths can I order?
Length runs from 0.3 to 18 M on the welded sections and 5.8m and 6m fixed lengths are normal on the seamless line. Cut lengths to your member list can be arranged.
Is the galvanizing applied before or after forming?
The pipe is supplied with the surface already galvanized so you fabricate from coated material rather than sending finished frames out for coating.
Which grades do you quote for these sections?
ASTM A53 GR A and GR B EN S275 S275JR S355JRH and S355J2H and GB Q195 Q215 Q235 Q345 along with the L175 to L555 line pipe grades.
