stainless steel sheet
Stainless Steel Sheet in 201 304 316 and 430 Grades
Seven stock grades six surface finishes and two standard sheet sizes from one order
Stainless steel sheet is a ferrous alloy sheet containing a minimum of approximately 11% chromium, which stops the iron rusting and adds heat resistant properties. Kitchen equipment makers, food processing plants, appliance manufacturers, vehicle builders and architectural contractors specify it wherever the part needs steel strength together with corrosion resistance and a surface that can be steam cleaned. Ordering the grade, the finish and the sheet size from one place removes the usual split between a grade supplier and a polishing house, which is where lead time and finish mismatches normally appear. Standard sizes are 1000*2000mm and 1220*2440mm, with customized sizes cut on request.
- Product Name — Stainless steel sheet or plate
- Place of Origin — China
- Grade — 201 304 310 316 430 409 410
- Size — 1000*2000mm 1220*2440mm or customized size
- Thickness — 2-100mm
Why It Is Specified
Key Benefits of Stainless Steel Sheet
Seven Grades Held Against One Specification
Grades 201, 304, 310, 316, 430, 409 and 410 are all quoted from the same order, so an austenitic and a ferritic grade for the same assembly do not have to come from two suppliers.
Six Surface Finishes Without a Second Vendor
NO.1, 2B, BA, embossed, HL and 8K finishes are available, so a brushed exterior panel and a mill finish structural part can ship together.
Corrosion Resistance Built Into the Alloy
A minimum of approximately 11% chromium prevents the iron from rusting rather than sitting on the surface as a coating. There is nothing to reapply after cleaning or reworking.
Surfaces That Take Steam Cleaning
The material can be steam cleaned and disinfected and has no surface coating to break down, which is why it is used in kitchens and food processing plants.
No Metallic Taste Transferred to Food
The sheet is not porous, so it does not release metal or a metallic taste into food and is not harmed by the acids in many foods.
Two Standard Sheet Sizes Plus Cut to Size
1000*2000mm and 1220*2440mm cover most panel nesting, and any other size is cut to your requirement so offcuts stay with us.
Problems It Solves
What This Material Removes From Your Process
Grade and Finish Arriving From Two Sources
Splitting the grade order from the polishing order stretches lead time and leaves finish differences between panels. Grade and finish are set on the same line here.
Coated Steel Failing in Washdown Areas
Painted or plated steel loses its coating under steam and detergent. Chromium in the alloy itself carries the corrosion resistance, so cleaning does not degrade the protection.
Food Contact Parts Tainting Product
Porous or coated surfaces can pass metal or a metallic taste into food. Stainless sheet is not porous and is not harmed by the acids in many foods.
Buying Full Sheets for Small Panels
Customized size means panels are cut to your nesting plan instead of you paying for and storing the remainder of a 1220*2440mm sheet.
Uncertainty About What Grade Was Delivered
Mixed grade stock is easy to confuse on a shop floor. A mill test certificate is issued against the ordered grade so the delivery is documented.
Application Scenarios
Where It Is Used
Cooking Utensils and Tableware
Cookware and cutlery bodies where the sheet must resist scratching, denting and food acids.
Food Processing and Commercial Kitchens
Worktops, tanks and enclosure panels that are steam cleaned and disinfected between production runs.
Surgical and Medical Instruments
Instrument blanks and tray work where corrosion resistance and repeated sterilization matter.
Major Electrical Appliances
Appliance fronts and liners using BA and HL finishes for a surface that keeps its luster with low maintenance.
Building Materials and Architectural Panels
Cladding, handrails and trim for large buildings using 8K and embossed finishes.
Industrial Plant and Storage Tanks
Paper mills, chemical plants, water treatment works, and storage tanks and oil tankers for chemicals and food.
Who It Is For
Buyers Who Specify This Product
- Kitchen equipment manufacturers buying 304 sheet for worktops tanks and enclosure panels
- Food and beverage plant engineers buying 316 sheet for wet and washdown areas
- Appliance producers buying BA and HL finish sheet for visible fronts and liners
- Architectural fabricators buying 8K and embossed sheet for cladding and trim
- Automotive and exhaust fabricators buying 409 and 410 sheet for heat exposed parts
- Distributors buying mixed grade pallets in 1000*2000mm and 1220*2440mm sizes
Technical Data
Specifications and Technical Features
Values below come from the product data published by Shandong Tianyu Metal Products. Confirm the exact grade and size against your order.
| Product Name | Stainless steel sheet or plate |
|---|---|
| Place of Origin | China |
| Grade | 201 304 310 316 430 409 410 |
| Size | 1000*2000mm 1220*2440mm or customized size |
| Thickness | 2-100mm |
| Technique | Solid |
| Surface | NO.1 2B BA Embossed HL 8K |
| Chromium Content | Minimum of approximately 11% |
| Carbon Content | From 0.03% to greater than 1.00% depending on type |
| Application | Cookware cutlery surgical instruments major appliances vehicles construction material |
| Processing Service | Bending welding decoiling cutting punching |
| Certificate | Mill test certificate |
| Sample | Available |
Technical Features
- Grades 201 304 310 316 430 409 and 410
- Thickness 2-100mm
- Standard sizes 1000*2000mm and 1220*2440mm or customized size
- Surface finishes NO.1 2B BA embossed HL and 8K
- Solid technique delivery
- Minimum of approximately 11% chromium in the alloy
- Carbon content across the type range from 0.03% to greater than 1.00%
- Processing service covering bending welding decoiling cutting and punching
Materials
- Ferrous alloy containing a minimum of approximately 11% chromium
- Austenitic grades 201 304 310 and 316
- Ferritic and martensitic grades 430 409 and 410
- Alloying elements including carbon nitrogen aluminum silicon sulfur titanium nickel copper selenium niobium and molybdenum
- Acid resistant types for chemical corrosion media such as acid alkali and salt
Certification
- Mill test certificate supplied with the shipment

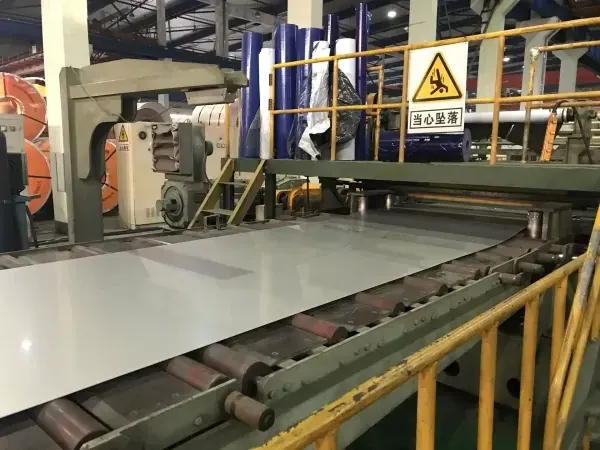

Manufacturing
How It Is Made and Processed
Melting and alloying to the ordered grade composition
Rolling to sheet and plate in the 2-100mm thickness range
Surface finishing to NO.1 2B BA embossed HL or 8K
Cutting to 1000*2000mm 1220*2440mm or the customized size
Bending welding decoiling and punching where ordered
Grade marking applied before packing
Protective film and packing for export shipment
Quality Control
Checks Before It Ships
- Grade confirmed against the mill test certificate before release
- Thickness checked within the 2-100mm range
- Surface finish inspected against the ordered NO.1 2B BA embossed HL or 8K specification
- Sheet dimensions checked against 1000*2000mm 1220*2440mm or the cutting list
- Finished faces inspected for scratching before the protective film is applied
- Packing checked for edge protection ahead of loading
Customization
What We Can Change on Your Order
- Grade selected from 201 304 310 316 430 409 and 410
- Surface finish selected from NO.1 2B BA embossed HL and 8K
- Customized sheet size cut from your nesting plan
- Thickness selected across the 2-100mm range
- Bending welding decoiling cutting and punching carried out before shipment
- Protective film applied to polished faces for transit
Comparison
Stainless Steel Sheet Against the Alternatives
| Painted or coated carbon steel sheet | Corrosion resistance comes from a minimum of approximately 11% chromium inside the alloy rather than a coating that has to be maintained or reapplied. |
|---|---|
| Aluminum sheet in cookware | Stainless sheet does not scratch or dent as easily as other types of cookware material and is not porous, so it does not release a metallic taste into food. |
| Galvanized sheet in washdown areas | Stainless sheet can be steam cleaned and disinfected without losing a zinc layer, which is why food processing plants specify it. |
| A single grade held in stock | Holding 201 304 310 316 430 409 and 410 together lets you match the grade to the corrosion duty instead of over specifying every part. |
Use Guide
Specifying Handling and Welding Notes
- Match the grade to the corrosion medium and reserve the acid resistant types for acid alkali and salt exposure
- Choose 2B or NO.1 where the surface will be covered and BA HL or 8K where the panel is visible
- Keep the protective film on polished sheet until fabrication is finished to avoid scratching
- Use dedicated tooling and brushes to avoid carbon steel contamination on the stainless surface
- Nest the panel layout against 1000*2000mm and 1220*2440mm before ordering customized sizes
- Store sheets dry and interleaved so the finish is not marked in transit or on the racks
Questions Buyers Ask
Stainless Steel Sheet FAQ
Which grades do you hold and how do I choose between them?
Grades 201, 304, 310, 316, 430, 409 and 410 are available. Tell us the corrosion medium and the service temperature and we will confirm which of them fits before you commit to a grade.
What sheet sizes and thicknesses are standard?
Standard sizes are 1000*2000mm and 1220*2440mm with customized sizes available, and thickness runs from 2mm to 100mm.
What is the difference between the surface finishes you list?
NO.1 is the hot rolled annealed and pickled condition, 2B is cold rolled and bright, BA is bright annealed, HL is a brushed hairline, 8K is mirror polished and embossed is a patterned finish. All six are available on the order.
How much chromium does the material contain?
Stainless steel contains a minimum of approximately 11% chromium, which is the composition that prevents the iron from rusting and also gives heat resistant properties.
Is the sheet suitable for direct food contact?
The material is not porous and is not harmed by the acids in many foods, and its ease of steam cleaning and disinfection is why it is used in kitchens and food processing plants.
Do you supply a certificate with the grade?
A mill test certificate is issued for the supplied material. Ask for the mill test certificate on the order so the grade is documented for your incoming inspection.
Can you cut the sheets to our panel sizes?
Yes. Processing covers bending, welding, decoiling, cutting and punching, so you can order finished panels instead of full sheets.
Go Deeper
Industries and Guides Related to This Product
Construction and Infrastructure
Construction and infrastructure buyers order steel by the part it becomes: mild steel plate for base plates gussets and stiffeners
Read more
Automotive and Transport
Vehicle and trailer components fail on fatigue, not on a single overload, so the grade behind each part matters more than the pric
Read moreNeed a Price on Stainless Steel Sheet
Send the grade, thickness, width and quantity you need together with your destination port. A cutting list or drawing gets you a firmer number.
