Round sling
Lifting Round Sling
Double sleeve two ply polyester round sling to European Standard EN 1492-2, with a load bearing core of AA class POY polyester and a capacity range from 1 ton to 100 ton.
- Standard
- EN 1492-2
- Material
- High tensile polyester PES, POY, AA class
- Safety factor
- 7:1 standard, 5:1, 6:1 and 8:1 optional
- Sleeve
- Double sleeve, two ply
- Capacity
- 1 ton to 100 ton
- Length
- According to the customer requirement
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Lifting Round Sling Is
A round sling carries the load on a continuous hank of polyester yarn running inside a woven sleeve. Because the core is a loop of parallel filaments rather than a woven band, the sling moulds itself to the load and shares the pull evenly across every strand.

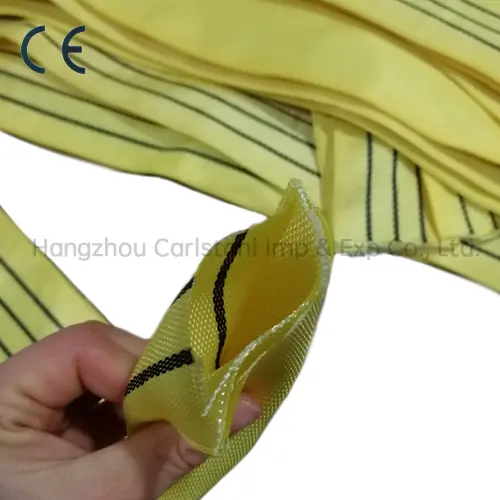

The double sleeve construction puts a second protective jacket over the core, so abrasion attacks the outer sleeve first and the load bearing yarn is left untouched. This is the most popular and most economical soft sling we supply, and it is available from 1 ton to 100 ton in effective lengths from 0.5 m upward.
Key Benefits
Why Buyers Choose This Product
Highest Capacity For Its Weight
A round sling reaches 100 ton in a package a rigger can still carry, which is where chain and wire rope become a lift of their own.
Double Sleeve Protection
Two sleeves over the load bearing core mean surface abrasion wears the jacket and not the yarn that carries the load.
Moulds To The Load
The soft body wraps irregular and round shapes closely, which increases contact area and keeps the load stable in a choke hitch.
Colour Code You Can See

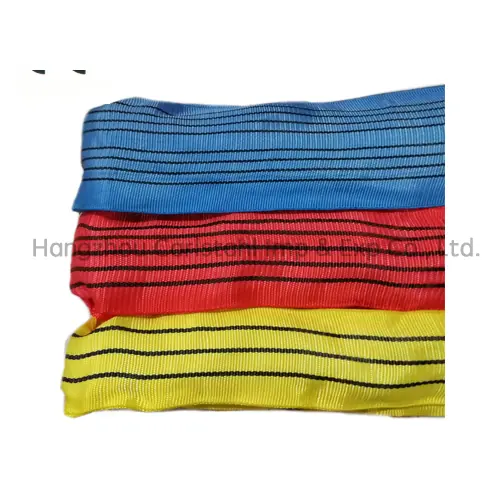

Violet, green, yellow, grey, red, brown, blue and orange sleeves make the working load limit obvious across a yard.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Bridge and steel structure erection
- Handling of pipes, rolls, coils and other round material
- Precast concrete beams and segments
- Transformer, tank and pressure vessel placement
- Heavy module handling where chain would be too heavy to rig
Who It Is For
- Contractors lifting heavy structural sections on infrastructure projects
- Distributors who need a full colour coded stock range from 1 t to 10 t
- Plant hire companies supplying sling sets with equipment
- Project buyers sourcing high capacity slings above 10 t
Problems It Solves
The Sourcing Problems This Product Removes
A chain sling of the same capacity is too heavy to rig
Solution. A round sling at the same working load limit can be carried and positioned by hand, which removes a secondary lift from the method statement.
Slings are retired early because the surface is scuffed
Solution. The double sleeve construction means the outer jacket takes the abrasion. The load bearing core stays protected and the service life is longer.
Round and irregular loads slip in the sling
Solution. The soft body conforms to the shape of the load and grips in a choke hitch far better than a rigid sling.
Capacity above 10 t is hard to source quickly
Solution. We build round slings from 1 ton to 100 ton to order, so high capacity sizes do not need a special enquiry to a third supplier.
Technical Features
Construction Standards And Specification
- Polyester round sling, double sleeve, two ply
- Material: high tensile polyester PES, POY, AA class
- Safety factor 7:1 as standard, options 5:1, 6:1 and 8:1
- Ply: double as standard, single on request
- Standard: European Standard EN 1492-2
- Capacity 1 ton to 100 ton
- Length according to the customer requirement
- Low weight and easy handling
- High abrasion, corrosion and mould resistance
- OEM brand and modification to local standards where required
- Standard
- EN 1492-2
- Material
- High tensile polyester PES, POY, AA class
- Safety factor
- 7:1 standard, 5:1, 6:1 and 8:1 optional
- Sleeve
- Double sleeve, two ply
- Capacity
- 1 ton to 100 ton
- Length
- According to the customer requirement
- Colour
- EN colour code
- Packing
- Individual plastic bag with CE declaration of conformity
- Lead time
- 30 to 45 days depending on order quantity and season
Specifications
Working Load Limits And Dimensions
| WLL | Colour | Straight 1.0 | Choke 0.8 | Basket to 7° 2.0 | Basket 7–45° 1.4 | Basket 45–60° 1.0 | 2 slings straight to 45° 1.4 | 2 slings choke to 45° 1.12 | 2 slings straight 45–60° 1.0 | 2 slings choke 45–60° 0.8 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1000 kg | Violet | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 |
| 2000 kg | Green | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 |
| 3000 kg | Yellow | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 |
| 4000 kg | Grey | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 |
| 5000 kg | Red | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 |
| 6000 kg | Brown | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 |
| 8000 kg | Blue | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400 |
| 10000 kg | Orange | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000 |
| WLL | Colour | Width mm | Eye length mm | Item code 1 m | Item code 3 m | Item code 6 m |
|---|---|---|---|---|---|---|
| 1000 kg | Violet | 25 / 30 / 50 | 200 | JLR-1001 | JLR-1003 | JLR-1006 |
| 2000 kg | Green | 50 / 60 | 250 | JLR-2001 | JLR-2003 | JLR-2006 |
| 3000 kg | Yellow | 75 / 90 | 300 | JLR-3001 | JLR-3003 | JLR-3006 |
| 4000 kg | Grey | 100 / 120 | 375 | — | JLR-4003 | JLR-4006 |
| 5000 kg | Red | 125 / 150 | 500 | — | JLR-5003 | JLR-5006 |
| 6000 kg | Brown | 150 / 180 | 600 | — | JLR-6003 | JLR-6006 |
| 8000 kg | Blue | 200 / 240 | 700 | — | JLR-8003 | JLR-8006 |
| 10000 kg | Orange | 250 / 300 | — | — | JLR-0003 | JLR-0006 |
Lifting Methods
Mode Factors For Each Hitch
The working load limit on the label applies to a straight lift. Multiply it by the mode factor for the hitch and the angle of inclination before selecting the sling.
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- AA class POY high tensile polyester filament for the load bearing core
- Woven polyester double sleeve as the wear jacket

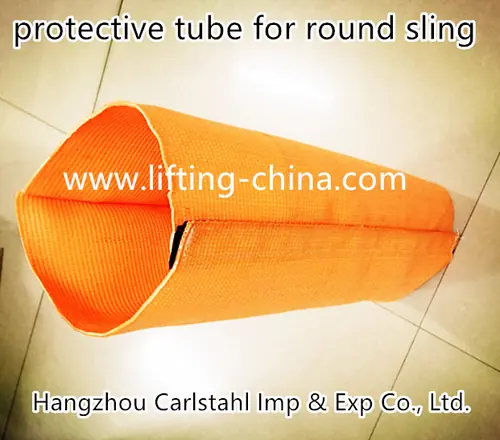

- Optional protective tube in high visibility polyester for sharp edge work
Manufacturing Process
- Core winding to the ordered number of turns for the working load limit
- Sleeve weaving and drawing of the sleeve over the core
- Double sleeve assembly and closure stitching
- Label sewing with WLL, colour, standard and batch data
- Sample proof loading and individual bagging
Quality Control
- Incoming inspection of AA class polyester yarn and thread
- Width, ply and stitch pattern checked against the production drawing
- Label content verified against the order before sewing
- Sample proof loading to the declared safety factor
- Every sling individually bagged with its CE declaration of conformity
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- CE declaration of conformity supplied with every sling
- ISO 9001 certified manufacturing partners
- SGS audited supply chain
Customisation Options
- Effective working length from 0.5 m upward
- Capacity 1 ton to 100 ton
- Safety factor 5:1, 6:1, 7:1 or 8:1
- Single or double sleeve
- Protective tube fitted over the sling body
- OEM brand and own label layout
- Modification to local standards on request
Comparison
How It Compares With Other Products
| Round sling | Flat webbing sling | Wire rope sling | |
|---|---|---|---|
| Capacity | 1 t to 100 t | Colour coded 1 t to 10 t | Wide |
| Conforms to the load | Excellent | Good | Poor |
| Abrasion protection | Double sleeve over the core | Single band | None needed |
| Weight at high capacity | Low | Low | High |
| Standard | EN 1492-2 | EN 1492-1 | Other |
Use Guide
How To Use The Lifting Round Sling Safely
- Check the working load limit on the label and confirm it against the sleeve colour before the lift.
- Apply the mode factor for the hitch and the angle of inclination from the table above.
- Estimate or measure the lifting distance and choose an effective length that suits it.
- Fit a protective tube or edge protector whenever the sling passes over an edge or a corner.
- Withdraw the sling from service if the outer sleeve is cut or damaged.
- Keep hands and body clear of the sling while the slack is taken up, and keep the area below the load clear.
FAQ
Lifting Round Sling FAQ
What is the capacity range of your round slings?
From 1 ton to 100 ton. Colour coded stock sizes run from 1 t violet to 10 t orange, and higher capacities are built to order.
Why choose a double sleeve rather than a single sleeve?
The second sleeve takes the abrasion that would otherwise reach the load bearing core, so the sling stays in service longer in rough conditions.
What safety factor do you supply as standard?
7:1 is standard. Slings at 5:1, 6:1 and 8:1 are built to order for markets that require them.
Do you supply protective tubes for sharp edges?
Yes. A protective tube can be fitted over the sling body, and edge protection should always be used where the sling passes over a corner.
Can we print our own brand on the sleeve?
Yes. OEM branding and a customer specific label layout are standard options.
