Endless webbing sling
Endless Flat Webbing Sling
Endless flat webbing sling in AA class polyester, built to European Standard EN 1492-1 with no sewn eyes, for choke and basket hitches on continuous loads.
- Standard
- EN 1492-1
- Type
- Endless, no sewn eyes
- Material
- High tensile polyester PES, AA class
- Safety factor
- 5:1, 6:1, 7:1 or 8:1
- Ply
- Single or as required
- Elongation
- Below 7 percent
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview

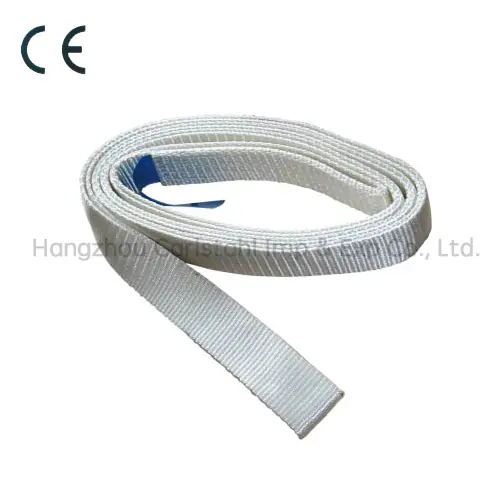

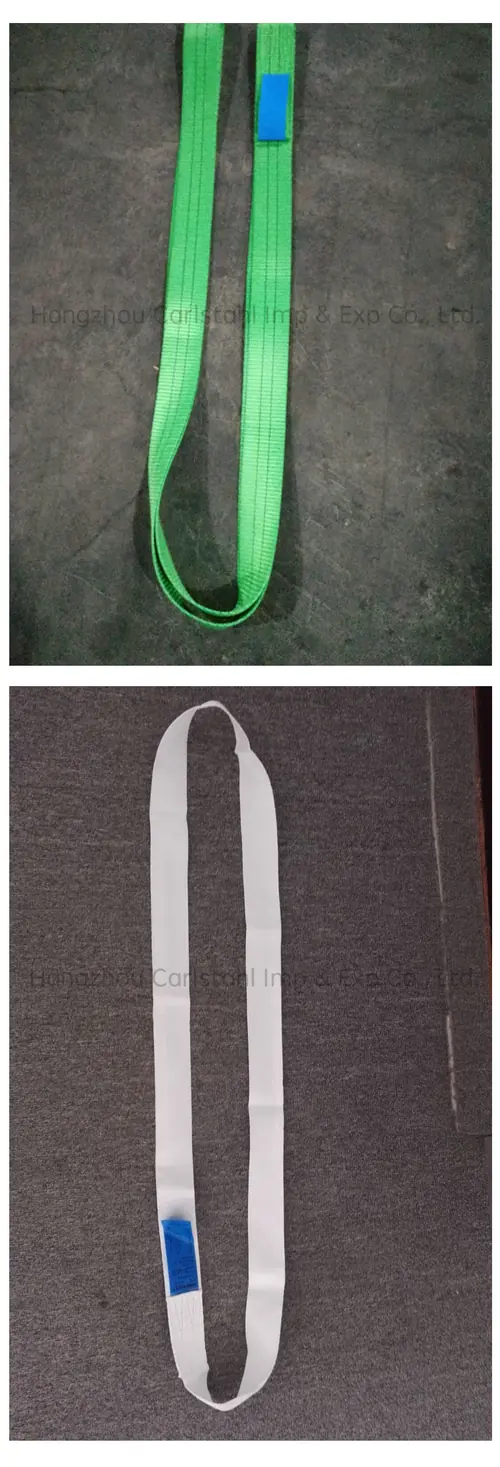

What The Endless Flat Webbing Sling Is
An endless flat sling is a loop of polyester webbing joined by a single lapped and stitched splice. With no eyes to wear, the sling can be rotated after each lift so the wear point moves around the loop instead of concentrating at two ends.
This construction suits repetitive choke and basket work in packing halls, timber yards and steel service centres, where a sling is used many times a day on the same shape of load.
Key Benefits
Why Buyers Choose This Product
Wear Spreads Around The Loop
Rotating the sling between lifts moves the contact point, so the whole band wears evenly and the service life is longer than a sling with fixed eyes.
Natural Choke Hitch
Without eyes the sling closes smoothly on a bundle or a coil and grips it without the eye stack that an eye and eye sling creates.
Low Elongation
Elongation stays below 7 percent at working load, so bundles do not shift as the sling takes up.
Full Colour Coded Range
The same EN colour code as the eye and eye range, so a mixed store stays readable.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Bundled timber, board and profile handling
- Coil, drum and roll lifting in a basket hitch
- Repetitive packing hall lifts
- Pipe and tube handling in a choke hitch
- General warehouse and yard lifting
Who It Is For
- Timber and panel yards handling bundles all day
- Steel service centres lifting coils and bundles
- Packing and export crating operations
- Distributors stocking a full soft sling range
Problems It Solves
The Sourcing Problems This Product Removes
Eye and eye slings wear out at the eyes
Solution. An endless sling has no eyes. Rotating it between lifts spreads the wear around the entire loop.
Choke hitches on bundles slip
Solution. The endless loop closes evenly on the bundle and grips without the bulk of two stacked eyes.
Mixed sling stock is hard to read
Solution. The endless range uses the same EN colour code as the rest of the soft sling programme.
Technical Features
Construction Standards And Specification
- Endless flat webbing sling, no sewn eyes
- Material: high tensile polyester PES, AA class
- Safety factor 5:1, 6:1, 7:1 or 8:1
- Standard: European Standard EN 1492-1
- Ply: single or according to the customer requirement
- Low elongation below 7 percent
- Colour coded, length made to the order
- OEM brand and modification to local standards where required
- Standard
- EN 1492-1
- Type
- Endless, no sewn eyes
- Material
- High tensile polyester PES, AA class
- Safety factor
- 5:1, 6:1, 7:1 or 8:1
- Ply
- Single or as required
- Elongation
- Below 7 percent
- Length
- According to the customer requirement
- Packing
- Individual plastic bag with CE declaration of conformity
- Lead time
- 30 to 45 days depending on order quantity and season
Specifications
Working Load Limits And Dimensions
| WLL | Colour | Straight 1.0 | Choke 0.8 | Basket to 7° 2.0 | Basket 7–45° 1.4 | Basket 45–60° 1.0 | 2 slings straight to 45° 1.4 | 2 slings choke to 45° 1.12 | 2 slings straight 45–60° 1.0 | 2 slings choke 45–60° 0.8 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1000 kg | Violet | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 |
| 2000 kg | Green | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 |
| 3000 kg | Yellow | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 |
| 4000 kg | Grey | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 |
| 5000 kg | Red | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 |
| 6000 kg | Brown | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 |
| 8000 kg | Blue | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400 |
| 10000 kg | Orange | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000 |
| WLL | Colour | Width mm | Eye length mm | Item code 1 m | Item code 3 m | Item code 6 m |
|---|---|---|---|---|---|---|
| 1000 kg | Violet | 25 / 30 / 50 | 200 | JLE-1001 | JLE-1003 | JLE-1006 |
| 2000 kg | Green | 50 / 60 | 250 | JLE-2001 | JLE-2003 | JLE-2006 |
| 3000 kg | Yellow | 75 / 90 | 300 | JLE-3001 | JLE-3003 | JLE-3006 |
| 4000 kg | Grey | 100 / 120 | 375 | — | JLE-4003 | JLE-4006 |
| 5000 kg | Red | 125 / 150 | 500 | — | JLE-5003 | JLE-5006 |
| 6000 kg | Brown | 150 / 180 | 600 | — | JLE-6003 | JLE-6006 |
| 8000 kg | Blue | 200 / 240 | 700 | — | JLE-8003 | JLE-8006 |
| 10000 kg | Orange | 250 / 300 | — | — | JLF-0003 | JLF-0006 |
Lifting Methods
Mode Factors For Each Hitch
The working load limit on the label applies to a straight lift. Multiply it by the mode factor for the hitch and the angle of inclination before selecting the sling.
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- AA class high tensile polyester PES webbing
- Matched polyester sewing thread at the splice
- Woven label with WLL, standard, length and batch data
Manufacturing Process
- Yarn selection and weaving of AA class polyester webbing
- Cutting to the ordered effective working length
- Sleeve or eye reinforcement and multi row lock stitching
- Label sewing with WLL, colour code, standard and batch data
- Sample proof loading, packing in individual plastic bags
Quality Control
- Incoming inspection of AA class polyester yarn and thread
- Width, ply and stitch pattern checked against the production drawing
- Label content verified against the order before sewing
- Sample proof loading to the declared safety factor
- Every sling individually bagged with its CE declaration of conformity
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- CE declaration of conformity supplied with every sling
- ISO 9001 certified manufacturing partners
- SGS audited supply chain
Customisation Options
- Circumference and effective length to the order
- Single or multiple ply
- Safety factor 5:1 to 8:1
- OEM brand and own label layout
- Protective sleeving over the splice or the body
Comparison
How It Compares With Other Products
| Endless flat sling | Eye and eye flat sling | Disposable endless sling | |
|---|---|---|---|
| Eyes | None | Sewn eye each end | None |
| Wear pattern | Spreads around the loop | Concentrates at the eyes | Single use |
| Best hitch | Choke and basket | Straight and basket | Choke and basket |
| Reuse | Many cycles | Many cycles | One transport only |
| Standard | EN 1492-1 | EN 1492-1 | DIN 60005 and EN 1492-2 labelling |
Use Guide
How To Use The Endless Flat Webbing Sling Safely
- Rotate the sling between lifts so the contact point moves around the loop.
- Apply the correct mode factor for a choke or basket hitch before selecting the size.
- Use edge protection on any corner or sharp edge.
- Inspect the splice at every use and withdraw the sling if the stitching is damaged.
- Store clean, dry and away from direct sunlight.
FAQ
Endless Flat Webbing Sling FAQ
When should I choose an endless sling over an eye and eye sling?
When the same lift is repeated many times a day in a choke or basket hitch. Rotating an endless sling spreads the wear and gives a longer service life.
Is the endless sling colour coded the same way?
Yes, it uses the same EN colour code as the rest of the soft sling range.
Can you make endless slings in multiple ply?
Yes, single ply is standard and multiple ply is built to the customer requirement.
