Permanent lifting magnet
Permanent Lifting Magnet CSmag
Permanent lifting magnet type CSmag for the transport of small to medium loads in flat and round material, activated by a hand lever with a safety lock and needing no electricity.
- Type
- CSmag permanent lifting magnet
- Capacity
- 100 kg to 2000 kg on flat material
- Round material capacity
- At least 50 percent of the flat capacity
- Break away force
- At least three times the rated capacity
- Activation
- Hand lever with safety lock
- Colour
- Orange or red, or according to the customer request
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Permanent Lifting Magnet CSmag Is

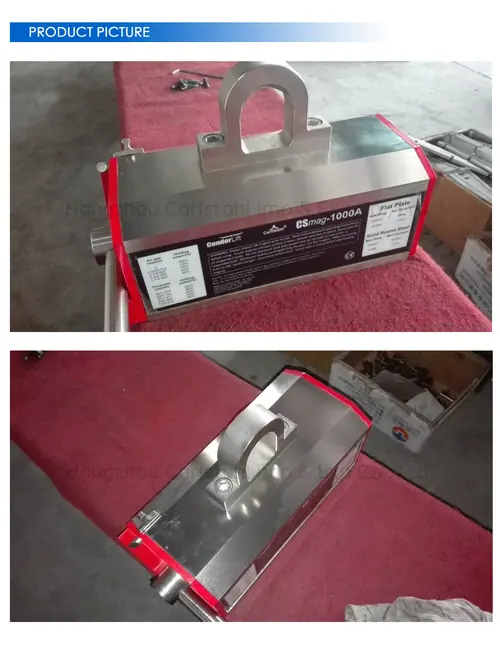

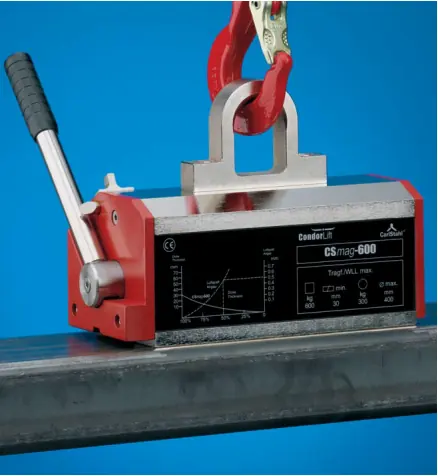

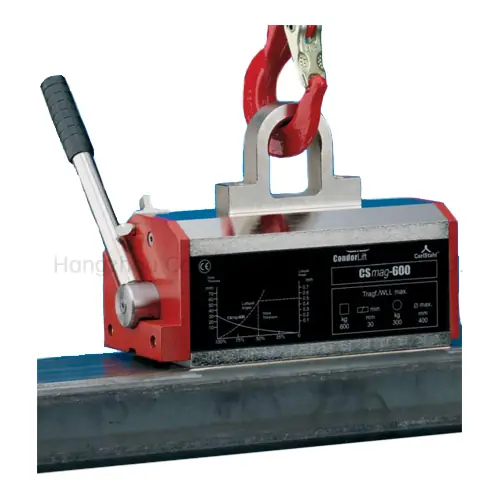

A permanent lifting magnet holds steel by magnetic force alone. There is no power supply, no battery and no risk of the load dropping when the power fails. The magnet is placed on the workpiece, the hand lever is turned to switch it on, and the load is lifted by the bolted lifting eye.
The prismatic groove in the base means the same magnet grips flat plate and round bar. Break away force is at least three times the rated capacity, and the working load limit for round material is at least 50 percent of the working load limit for flat material. Every magnet is supplied with a test certificate and operating instructions.
Key Benefits
Why Buyers Choose This Product
No Power Supply Needed
Magnetic force is permanent, so there is no cable, no battery and no danger of the load releasing in a power cut.
Flat And Round In One Tool
The prismatic bottom grips plate and round bar, so a workshop does not need two devices.
Three Times Break Away Reserve
Break away force is at least three times the rated capacity, which gives a real reserve above the marked working load limit.
One Man Handling
A single operator places the magnet, turns the lever and lifts, which replaces the two person job of slinging a plate.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Steel plate handling in cutting and fabrication shops
- Loading and unloading of laser and plasma tables
- Round bar and billet movement in machine shops
- Mould and die handling
- Steel stockholding and service centres
Who It Is For
- Fabricators and steel service centres handling plate all day
- Machine shops moving billet and bar
- Mould and die shops
- Distributors supplying workshop lifting equipment
Problems It Solves
The Sourcing Problems This Product Removes
Slinging every plate takes two people and a lot of time
Solution. One operator sets the magnet, turns the lever and lifts, which removes the second person and most of the rigging time.
Electric magnets drop the load when power fails
Solution. A permanent magnet holds by material properties, not by current, so a supply failure does not release the load.
Flat and round stock need different handling gear
Solution. The prismatic base grips both, with the round capacity at least half of the flat capacity.
Capacity in practice is lower than the plate says
Solution. Lifting capacity depends on plate thickness and surface roughness. Below Ra 6.3 um there is no surface gap and capacity is 100 percent. The performance curves on the magnet let the real capacity be calculated before the lift.
Technical Features
Construction Standards And Specification
- Suitable for the transport of small to medium loads in flat and round material
- Activation is done with a hand lever
- Powerful for maximum load capacity
- Prismatic bottom suits flat and round material
- Break away force is at least three times the rated capacity
- Working load limit for round material is at least 50 percent of the working load limit for flat material
- Easy moving lever with safety lock
- Compact and sturdy design
- Big bolted lifting eye suitable for load hooks according to the nominal load capacity
- Each magnet comes with a test certificate and operating instructions
- Type
- CSmag permanent lifting magnet
- Capacity
- 100 kg to 2000 kg on flat material
- Round material capacity
- At least 50 percent of the flat capacity
- Break away force
- At least three times the rated capacity
- Activation
- Hand lever with safety lock
- Colour
- Orange or red, or according to the customer request
- Supplied with
- Test certificate and operating instructions
- Lead time
- Normally 30 to 40 days depending on the order
Specifications
Working Load Limits And Dimensions
| Model | Max flat plate kg | Max round bar kg | Min plate thickness mm | Min round diameter mm | L mm | B mm | H1 mm | Net weight kg |
|---|---|---|---|---|---|---|---|---|
| PML-100A | 100 | 50 | 10 | 10 | 135 | 60 | 65 | 3.5 |
| PML-300A | 300 | 150 | 20 | 12 | 203 | 87 | 89 | 10 |
| PML-600A | 600 | 300 | 30 | 20 | 240 | 108 | 109 | 18.5 |
| PML-1000A | 1000 | 500 | 40 | 28 | 330 | 148 | 125 | 42.1 |
| PML-1500A | 1500 | 750 | 50 | 34 | 385 | 168 | 160 | 72.8 |
| PML-2000A | 2000 | 1000 | 60 | 40 | 465 | 178 | 145 | 101.4 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- High energy permanent magnet assembly
- Machined steel body with prismatic base groove
- Bolted lifting eye sized to the nominal capacity
Manufacturing Process
- Magnet assembly and magnetisation
- Body machining and prismatic groove cutting
- Lever and safety lock fitting
- Break away force testing
- Certificate issue, painting and packing
Quality Control
- Magnetic force measured on every unit
- Break away force verified to at least three times the rated capacity
- Lever and safety lock function tested
- Lifting eye bolt torque checked
- Test certificate issued with each magnet
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Test certificate supplied with every magnet
- Operating instructions supplied with every magnet
- ISO 9001 certified manufacturing partners
Customisation Options
- Colour orange, red or to the customer request
- OEM nameplate and branding
- Capacity from 100 kg to 2000 kg
Comparison
How It Compares With Other Products
| Permanent lifting magnet | Electromagnet | Plate clamp | |
|---|---|---|---|
| Power supply | None | Required | None |
| Load held on power failure | Yes | Only with a battery backup | Yes |
| Flat and round material | Both | Mainly flat | Mainly flat |
| Set up time | Seconds | Seconds | Seconds |
| Capacity here | 100 kg to 2000 kg | Varies | Varies |
Use Guide
How To Use The Permanent Lifting Magnet CSmag Safely
- Find the thickness and the surface quality of the component before operating the magnet.
- If the surface roughness Ra is below 6.3 um there is no surface gap and the lifting capacity is 100 percent.
- If Ra is above 6.3 um estimate the surface gap, read the percentage from the air gap capacity curve on the side of the lifter, and combine it with the thickness factor to calculate the real capacity.
- Centre the magnet over the centre of gravity of the workpiece before switching on.
- Turn the lever fully and engage the safety lock before lifting.
- Keep personnel clear of the load and never lift over people.
FAQ
Permanent Lifting Magnet CSmag FAQ
Does the magnet need electricity?
No. It is a permanent magnet activated by a hand lever, so it holds the load without any supply and cannot drop it in a power cut.
What is the capacity on round bar?
The working load limit for round material is at least 50 percent of the working load limit for flat material. The table above gives both figures for every model.
Why does the plate thickness matter?
Below the minimum thickness the plate cannot carry the whole magnetic field, so the achievable capacity drops. The minimum plate and round thicknesses for each model are in the table above.
What is supplied with the magnet?
Each magnet comes with a test certificate and operating instructions.
What is the lead time?
Normally 30 to 40 days depending on the order quantity.
