Geared trolley

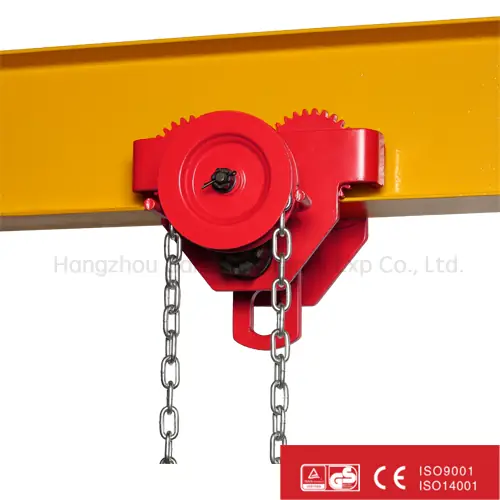

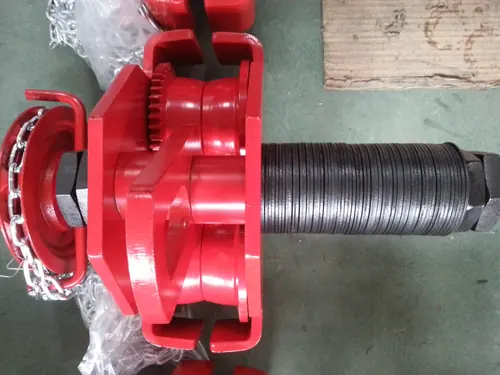

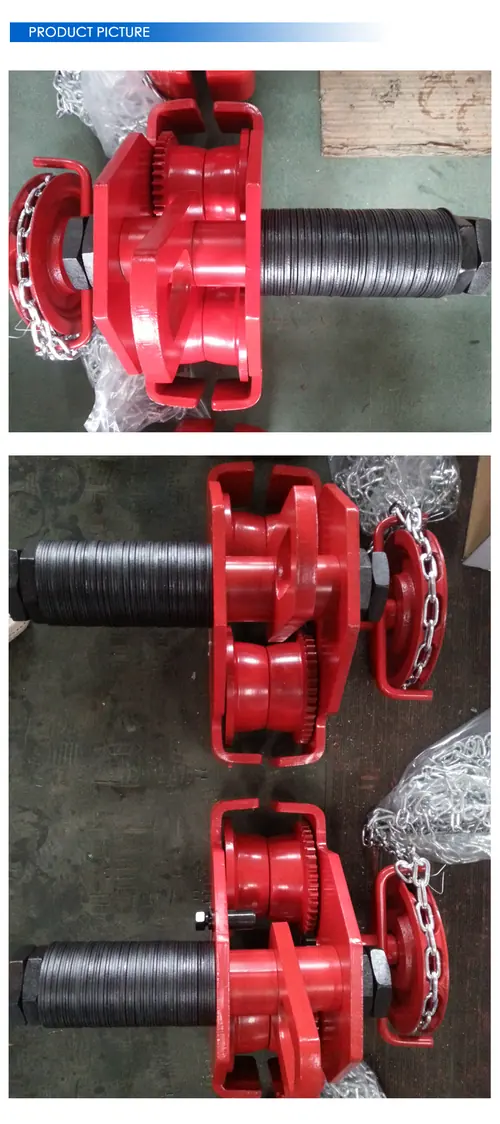

Geared Trolley
Heavy duty geared trolley moved by a hand chain through a gear train, for controlled positioning of a suspended load on high beams.
- Capacity
- 0.5 t to 10 t
- Type
- Geared hand chain travel
- I beam width
- 64 mm to 203 mm depending on model
- Wheels
- Contour profile cast iron
- Bearings
- Lifetime lubricated sealed ball bearings
- Hand chain
- Length according to the customer requirement
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Geared Trolley Is
A geared trolley adds a hand chain and a gear train to the plain trolley. The operator stands on the floor and turns the hand chain to drive the trolley along the beam, which gives precise positioning even when the beam is high above the working level.
The same lifetime lubricated sealed ball bearings and contour cast iron wheels are used as on the plain trolley, and beam width is set by changing the number of spacers.
Key Benefits
Why Buyers Choose This Product
Positioning From The Floor
The hand chain reaches the operator, so a load on a high beam is positioned precisely without climbing.
Controlled Travel Under Load
Gearing means the trolley does not run away when the load swings or the beam is not level.
Same Wheels And Bearings As The Plain Trolley
Lifetime lubricated sealed ball bearings and contour cast iron wheels give quiet running and long flange life.
Fits A Range Of Beams
Spacer adjustment covers I beam widths from 64 mm to 203 mm depending on size.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- High level runway beams in workshops and plants
- Precise positioning of machines during installation
- Foundry, forge and heat treatment bays
- Long monorail runs where a push travel is impractical
Who It Is For
- Plants with high runway beams
- Installation contractors positioning machinery
- Distributors of manual lifting equipment
- Hire fleets
Problems It Solves
The Sourcing Problems This Product Removes
The beam is too high to push the load by hand
Solution. The hand chain brings control down to the operator at floor level.
Loads run away on a beam that is not level
Solution. The gear train holds the travel position instead of letting the trolley roll.
Positioning has to be accurate to the millimetre
Solution. Hand chain travel gives fine control that a pushed trolley cannot match.
Technical Features
Construction Standards And Specification
- Ball bearings: the cast iron wheels are quiet and safe due to the lifetime lubricated sealed ball bearings
- Easy adjustability: adjustable for various beam sizes by simply changing the number of spacers
- Precise trolley wheels: a contour trolley wheel design provides maximum beam contact on flat or tapered beams
- Quality: conforms to CE safety standard
- Other colours available
- I beam width dimension can be changed
- The length of the hand chain is according to the customer requirement
- Capacity
- 0.5 t to 10 t
- Type
- Geared hand chain travel
- I beam width
- 64 mm to 203 mm depending on model
- Wheels
- Contour profile cast iron
- Bearings
- Lifetime lubricated sealed ball bearings
- Hand chain
- Length according to the customer requirement
- Standard
- Conforms to CE safety standard
Specifications
Working Load Limits And Dimensions
| Model | Capacity t | Proof load t | I beam width mm | A mm | B mm | C mm | Min curve radius m | Net weight kg |
|---|---|---|---|---|---|---|---|---|
| T005-610 | 0.5 | 0.625 | 64–140 | 230 | 212 | 198.5 | 0.6 | 7 |
| T010-619 | 1 | 1.25 | 64–140 | 254 | 255 | 231.5 | 0.8 | 12 |
| T020-619 | 2 | 2.5 | 76–165 | 294 | 302 | 278 | 1.1 | 20.5 |
| T030-619 | 3 | 3.75 | 76–203 | 344 | 344 | 338 | 1.4 | 33 |
| T050-619 | 5 | 6.25 | 88–203 | 360 | 378 | 393 | 1.0 | 51 |
| T100-619 | 10 | 12.5 | 125–203 | 403 | 455 | 490 | 1.3 | 86.5 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Cast iron contour trolley wheels
- Steel side plates, gear train and drive shaft
- Sealed lifetime lubricated ball bearings
Manufacturing Process
- Wheel casting and contour machining
- Gear cutting and drive shaft machining
- Bearing pressing and assembly
- Hand chain fitting and travel test
- Paint and packing
Quality Control
- Gear mesh and free travel checked on every unit
- Wheel contour profile checked against the gauge
- Beam width adjustment range verified
- Proof load applied at 1.25 times the rated capacity
- Final paint and packing inspection
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Conforms to CE safety standard
- ISO 9001 certified manufacturing partners
Customisation Options
- Other colours available
- I beam width dimension can be changed
- Hand chain length to the customer requirement
- OEM nameplate and branding
Comparison
How It Compares With Other Products
| Geared trolley | Plain trolley | |
|---|---|---|
| Travel | Hand chain through a gear train | Push by hand |
| Control on a high beam | Excellent | Poor |
| Positioning accuracy | Fine | Coarse |
| Capacity | 0.5 t to 10 t | 0.5 t to 10 t |
| Cost | Higher | Lower |
Use Guide
How To Use The Geared Trolley Safely
- Set the spacers for the beam flange width before mounting the trolley.
- Confirm the beam can carry the trolley, the hoist and the load together.
- Fit end stops on the beam before the trolley is put into service.
- Order the hand chain long enough to reach the operator with slack to spare.
- Inspect the gear train and the wheels at the scheduled interval.
FAQ
Geared Trolley FAQ
How long should the hand chain be?
Long enough to reach the operator comfortably from the beam. The hand chain length is made to the customer requirement.
Can the trolley be supplied in another colour?
Yes, other colours are available, and OEM branding can be applied to the nameplate.
Which beam widths are covered?
From 64 mm to 203 mm depending on the model, adjusted by changing the number of spacers.
