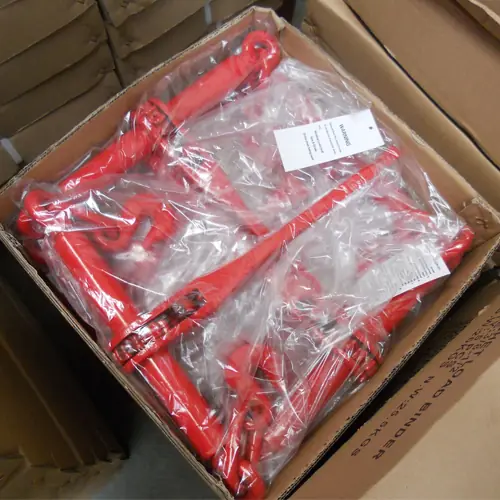

US Type Ratchet Load Binder
US type ratchet load binder in high quality carbon steel, forged and tempered with 100 percent proof testing, for tensioning lashing chain.
- Type
- US type ratchet load binder
- Material
- High quality carbon steel
- Technology
- Forged and tempered, 100 percent proof tested
- Function
- For lashing chain
- Colour
- Red, blue or yellow
- Certificates
- Material and test certificates available on request at order time
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The US Type Ratchet Load Binder Is
Where a webbing lashing would be cut by the load, a chain lashing is used instead, and the load binder is what puts the tension into it. The ratchet mechanism lets the operator apply and hold tension in controlled steps rather than throwing a lever over centre.
The binder is forged and tempered rather than fabricated, and every unit is proof tested. Material and testing certificates are available when they are requested at the time of order.
Key Benefits
Why Buyers Choose This Product
Tension In Controlled Steps
A ratchet mechanism applies tension gradually and holds it, instead of the sudden release energy of an over centre lever.
Forged And Tempered
The body is forged and tempered, which is what gives the binder its service life under repeated tensioning.
100 Percent Proof Tested
Every binder is proof tested rather than sampled by batch.
Colour Coded Stock
Red, blue and yellow finishes let a fleet colour code by capacity or by depot.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Chain lashing of steel, plant and machinery on flatbeds
- Heavy haulage and abnormal load securing
- Rail and container securing where webbing would be cut
- Site plant movement
Who It Is For
- Heavy haulage operators
- Steel and plant transport fleets
- Distributors of cargo securing hardware
- Project logistics contractors
Problems It Solves
The Sourcing Problems This Product Removes
Webbing lashings are cut by sharp steel loads
Solution. A chain lashing tensioned with a load binder is not damaged by the edges that cut webbing.
Over centre binders release with dangerous energy
Solution. The ratchet type applies and releases tension in controlled steps.
Binder quality is inconsistent
Solution. The body is forged and tempered and every unit is 100 percent proof tested.
Technical Features
Construction Standards And Specification
- High quality carbon steel
- Long service life
- Technology: forged and tempered with 100 percent proof test
- Function: for lashing chain
- Colour: red, blue or yellow
- Material certificate and testing certificate are available when requested at the time of order
- Type
- US type ratchet load binder
- Material
- High quality carbon steel
- Technology
- Forged and tempered, 100 percent proof tested
- Function
- For lashing chain
- Colour
- Red, blue or yellow
- Certificates
- Material and test certificates available on request at order time

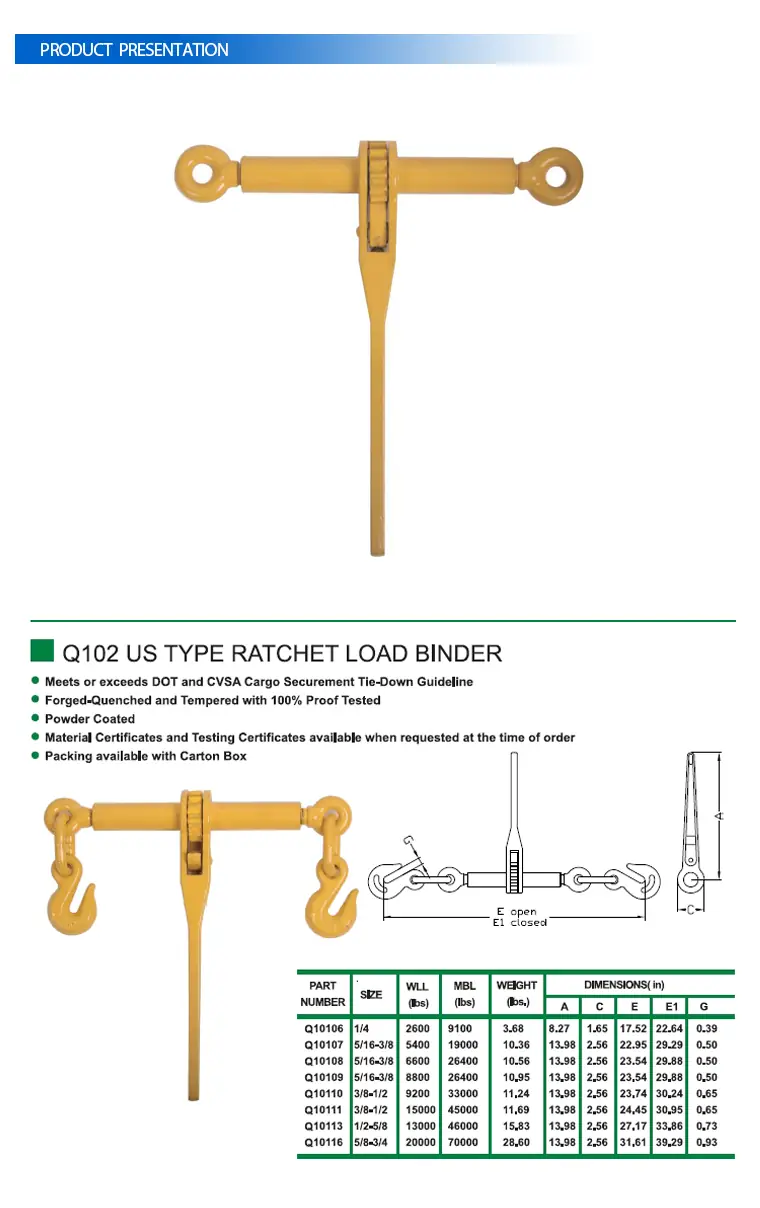

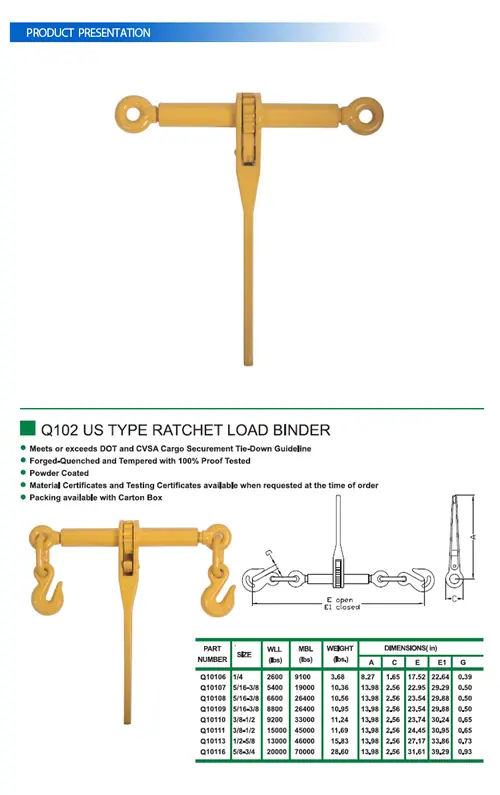

Specifications
Working Load Limits And Dimensions
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- High quality carbon steel, forged and tempered
- Painted finish in red, blue or yellow
Manufacturing Process
- Body forging
- Tempering to the specified hardness
- Thread and ratchet machining
- 100 percent proof testing
- Painting, marking and packing
Quality Control
- Carbon steel grade verified on incoming inspection
- Hardness checked after tempering
- 100 percent proof test applied to every binder
- Ratchet function checked through the full travel
- Paint and marking inspection
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Material certificate available on request at the time of order
- Test certificate available on request at the time of order
- ISO 9001 certified manufacturing partners
Customisation Options
- Colour red, blue or yellow
- Capacity range to the order
- Different types of ratchet load binder and matching chain and clevis hooks
Comparison
How It Compares With Other Products
| Ratchet load binder | Ratchet strap | Over centre binder | |
|---|---|---|---|
| Media | Lashing chain | Polyester webbing | Lashing chain |
| Resistance to sharp edges | High | Low without protection | High |
| Release energy | Controlled | Controlled | Sudden |
| Best for | Steel and plant | General cargo | Steel and plant |
Use Guide
How To Use The US Type Ratchet Load Binder Safely
- Match the binder to the chain size and the required lashing capacity.
- Attach the clevis hooks to the chain and take up the slack before ratcheting.
- Apply tension in steps and check the chain lies straight without twists.
- Release the tension in controlled steps rather than letting the handle fly.
- Inspect the threads, the hooks and the body for deformation before every use.
FAQ
US Type Ratchet Load Binder FAQ
What chain does the binder suit?
It is designed for lashing chain. We also supply matching chain and clevis hooks, so send the chain size to [email protected] and we will confirm the matching binder.
Is every binder tested?
Yes, the binder is forged and tempered with a 100 percent proof test.
Which colours are available?
Red, blue and yellow.
