Chain hoist
Chain Hoist
Hand chain hoist designed in accordance with EN 13157 and the CE regulations, with a capacity range from 0.5 t to 30 t and a standard lifting height of 3 m.
- Standard
- EN 13157 and CE
- Capacity
- 0.5 t to 30 t
- Standard lifting height
- 3 m
- Load chain
- High strength, 800 MPa
- Hand chain
- 5 x 5 mm
- Brake
- Double pawl with springs
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Chain Hoist Is
A hand chain hoist lifts where there is no power and no room for a crane. Pulling the hand chain turns a load wheel through a gear train, and a double pawl brake with springs holds the load at any point in the lift. There is nothing to plug in and nothing to charge.
Our chain hoists are built to German standards with an emphasis on safety, reliability and quality control. Drop forged top and bottom hooks are specially designed to bend slowly under excessive overload, so the hoist warns the operator before anything fails. The load chain is high strength material at 800 MPa, and RUD chain is available where the customer specifies it.
Key Benefits
Why Buyers Choose This Product
Lifts Where There Is No Power
A hand chain hoist needs no supply, no cable and no charging, so it works on remote sites, in tanks and inside structures.
Warns Before It Fails
Drop forged hooks are designed to bend slowly under excessive overload, giving a visible warning long before the hoist reaches a failure point.
Redundant Braking
A double pawl with springs provides redundancy in the operation of the brake mechanism, so the load is held even if one pawl is disturbed.
Built To EN 13157 And CE
The design accords with EN 13157 and the CE regulations, which is what European buyers are asked to prove.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Machine and plant installation and maintenance
- Workshop lifting under a beam or a gantry
- Steel structure erection on site
- Shipyard, dock and offshore maintenance
- Warehouse and yard lifting without a power supply
Who It Is For
- Maintenance departments in plants and factories
- Steel erectors and construction contractors
- Lifting equipment distributors and hire fleets
- Shipyards and marine maintenance operations
Problems It Solves
The Sourcing Problems This Product Removes
There is no power supply at the lifting point
Solution. A hand chain hoist works entirely from the hand chain, so it can be rigged in a tank, on a mast or on a remote site.
Overload is only discovered when something breaks
Solution. The drop forged hooks bend slowly under excessive overload and give a visible warning first.
Brake failure means a dropped load
Solution. A double pawl brake with springs provides redundancy, so the mechanism does not depend on a single pawl.
Load chain quality varies between suppliers
Solution. The load chain is high strength at 800 MPa, and RUD chain can be specified where the end user requires it.
Technical Features
Construction Standards And Specification
- The design accords with EN 13157 and the CE regulations
- Drop forged top and bottom hooks specially designed for slow bending to warn of excessive overload
- Durable powder coat paint
- Double pawl with springs provides redundancy for operation of the brake mechanism
- High strength load chain with 800 MPa
- Capacity range from 0.5 t to 30 t, standard lifting height 3 m
- Hand chain size 5 x 5 mm, strong and good quality
- Supplied with or without load chain, in black chain or RUD chain
- Overload protection available
- Other colours available
- Standard
- EN 13157 and CE
- Capacity
- 0.5 t to 30 t
- Standard lifting height
- 3 m
- Load chain
- High strength, 800 MPa
- Hand chain
- 5 x 5 mm
- Brake
- Double pawl with springs
- Hooks
- Drop forged top and bottom hooks
- Finish
- Durable powder coat paint
- Minimum order quantity
- 20 pieces each size
- Lead time
- About 30 days
Specifications
Working Load Limits And Dimensions
| Model | Capacity t | Load chain mm | Falls of chain | Standard lift m | Hand chain pull for rated load N | Test load kN | Hmin mm | Extra weight per m kg | Net weight kg |
|---|---|---|---|---|---|---|---|---|---|
| Z005-A622 | 0.5 | 6×18 | 1 | 2.5 | 200 | 6.13 | 270 | 1.6 | 8.9 |
| Z010-A622 | 1 | 6×18 | 1 | 2.5 | 320 | 12.25 | 317 | 1.6 | 11 |
| Z015-A622 | 1.5 | 8×24 | 1 | 2.5 | 360 | 18.38 | 399 | 2.2 | 15.6 |
| Z020-A622 | 2 | 8×24 | 1 | 3 | 365 | 24.5 | 414 | 2.2 | 18.3 |
| Z020S-A622 | 2 | 6×18 | 2 | 3 | 328 | 24.5 | 440 | 2.4 | 14.6 |
| Z030-A622 | 3 | 8×24 | 2 | 3 | 385 | 36.75 | 465 | 3.6 | 24.6 |
| Z050-A622 | 5 | 10×30 | 2 | 3 | 435 | 61.25 | 636 | 5.2 | 39 |
| Z100-A622 | 10 | 10×30 | 4 | 3 | 435 | 122.5 | 798 | 9.5 | 78.4 |
| Z200-A622 | 20 | 10×30 | 8 | 3 | 435×2 | 245 | 890 | 19 | 164.2 |
| Z300-A622 | 30 | 10×30 | 12 | 3 | 435×2 | 367.5 | 1380 | 27.7 | 220 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Drop forged alloy steel top and bottom hooks
- Grade 80 load chain at 800 MPa, black or RUD chain
- Pressed steel housing with durable powder coat paint
Manufacturing Process
- Hook forging, heat treatment and machining
- Gear train and load wheel machining
- Brake pawl and spring assembly
- Load chain fitting and hoist assembly
- Running test load, paint inspection and packing
Quality Control
- Incoming inspection of load chain, hooks and brake components
- Hook material and forging checked before assembly
- Brake mechanism function test on every unit
- Running test load applied to every unit before packing
- Final visual and paint inspection, packing in carton or wooden case
Certifications And Customisation
What We Certify And What We Can Change

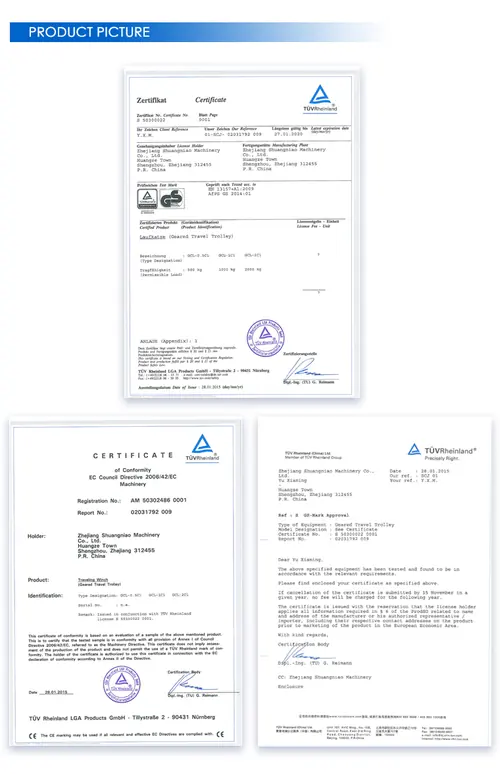

Certifications
- Designed in accordance with EN 13157 and the CE regulations
- ISO 9001 certified manufacturing partners
- Individual test certificate available with the order
Customisation Options
- Supplied with or without load chain
- Black load chain or RUD load chain
- Hand chain and load chain length to the customer requirement
- Other housing colours
- Overload protection
- OEM branding on the housing and the nameplate
Comparison
How It Compares With Other Products
| Chain hoist | Lever hoist | Wire rope pulling hoist | |
|---|---|---|---|
| Standard lift | 3 m | 1.5 m | 20 m of rope |
| Operated by | Hand chain | Lever | Lever |
| Direction | Vertical | Any, including pulling | Any, mainly pulling |
| Capacity | 0.5 t to 30 t | 0.75 t to 9 t | 0.8 t to 5.4 t |
| Best for | Overhead lifting | Tensioning and short lifts | Long distance pulling |
Use Guide
How To Use The Chain Hoist Safely
- Check the working load limit on the nameplate and confirm the hoist suits the load.
- Inspect the load chain, the hooks and the latches before every lift.
- Suspend the hoist so the load chain hangs vertically and the hoist is free to align with the load.
- Keep the correct lifting angle on the load chain. A hoist is designed for a straight vertical pull.
- Do not lengthen the hand chain or use a bar to increase the pull.
- Lower the load fully and store the hoist with the chain clear of the floor.
FAQ
Chain Hoist FAQ
What capacities are available?
The standard programme runs from 0.5 t to 30 t. Standard lifting height is 3 m and other lifts are built to order.
Can we order the hoist without a load chain?
Yes. Hoists are supplied with or without the load chain, and the chain can be black chain or RUD chain.
What is the minimum order quantity?
Twenty pieces per size, with a lead time of about 30 days.
Is overload protection available?
Yes, overload protection is an option on the standard hoist.
Do you supply spare parts?
Yes, spare parts for the hoist including hand chain connecting links are supplied. Send the model and the part you need to [email protected].
Related Products
Plain trolley
Plain Trolley
Push type plain trolley for suspending a hoist under an I beam, with lifetime lubricated sealed ball bearings, contour...

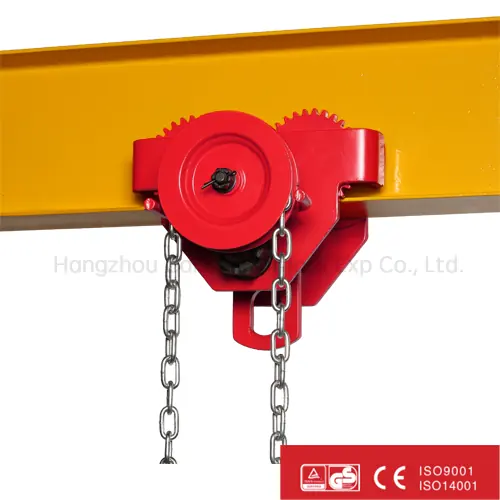

Geared trolley
Geared Trolley
Heavy duty geared trolley moved by a hand chain through a gear train, for controlled positioning of a suspended load o...

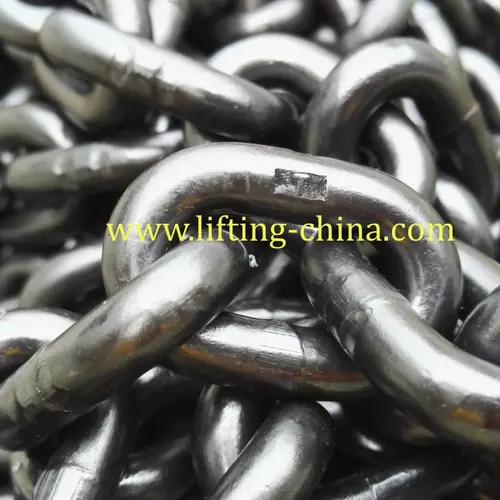

G80 load chain hoist chain
