Lever hoist
Lever Hoist
Heavy duty lever hoist block with 1.5 m load chain, designed in accordance with EN 13157 and the CE regulations, for lifting, pulling and tensioning in any direction.
- Standard
- EN 13157 and CE
- Standard lifting height
- 1.5 m
- Load chain
- High strength, 800 MPa, black or RUD
- Brake
- Double pawl with springs
- Hooks
- Drop forged top and bottom hooks
- Finish
- Durable powder coat paint
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Lever Hoist Is
A lever hoist is worked by a short ratchet lever instead of a hand chain, so it can be used at any angle. That makes it the tool of choice for pulling a structure into line, tensioning a stay, or lifting where there is no headroom for a hand chain to hang.
This is the most popular and most economical piece of manual lifting equipment in our programme. Safety, reliability and quality control are what the design is built around, and the drop forged hooks are specially designed to bend slowly to warn of excessive overload.
Key Benefits
Why Buyers Choose This Product
Works At Any Angle
The lever can be operated horizontally, vertically or overhead, so one tool covers lifting, pulling and tensioning.
Short Handle, High Force
The ratchet lever multiplies a modest hand effort into tonnes of pull without a power source.
Redundant Brake
A double pawl with springs gives redundancy in the brake mechanism, so the load is held reliably.
Compact Where Headroom Is Tight
With no hand chain to hang, the lever hoist fits where a chain hoist cannot.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Pulling steel structures into alignment during erection
- Tensioning stays, guys and bracing
- Short lifts in confined spaces with no headroom
- Vehicle and plant recovery and repositioning
- Rail, shipyard and maintenance work
Who It Is For
- Steel erection and structural contractors
- Maintenance and shutdown teams
- Rigging and hire companies
- Distributors stocking manual lifting equipment
Problems It Solves
The Sourcing Problems This Product Removes
There is no headroom for a hand chain hoist
Solution. The lever hoist has no hanging hand chain, so it fits into short spaces and can be operated from the side.
Structures need pulling into line, not lifting
Solution. A lever hoist pulls horizontally as easily as it lifts, which is what alignment work needs.
Operators tire on long tensioning jobs
Solution. The lever gives a high mechanical advantage from a short stroke, so the job takes fewer and lighter movements.
Technical Features
Construction Standards And Specification
- The design accords with EN 13157 and the CE regulations
- Drop forged top and bottom hooks designed for slow bending to warn of excessive overload
- Durable powder coat paint
- Double pawl with springs provides redundancy for operation of the brake mechanism
- High strength load chain with 800 MPa
- Standard lifting height 1.5 m
- Supplied with or without load chain, black chain or RUD chain
- Hand chain size 5 x 5 mm
- Overload protection available
- Other colours available
- Standard
- EN 13157 and CE
- Standard lifting height
- 1.5 m
- Load chain
- High strength, 800 MPa, black or RUD
- Brake
- Double pawl with springs
- Hooks
- Drop forged top and bottom hooks
- Finish
- Durable powder coat paint
- Minimum order quantity
- 20 pieces each size
- Lead time
- About 30 days
Specifications
Working Load Limits And Dimensions
| Model | Capacity t | Load chain mm | Falls of chain | Standard lift m | Lever effort for rated load N | Test load kN | Hmin mm | Lever length mm | Net weight kg |
|---|---|---|---|---|---|---|---|---|---|
| H008-A619 | 0.75 | 6×18 | 1 | 1.5 | 140 | 9.2 | 320 | 290 | 6.3 |
| H015-A619 | 1.5 | 8×24 | 1 | 1.5 | 220 | 18.4 | 380 | 420 | 11 |
| H03-A619 | 3 | 10×30 | 1 | 1.5 | 320 | 36.8 | 480 | 420 | 18.7 |
| H060-A619 | 6 | 10×30 | 2 | 1.5 | 340 | 73.5 | 620 | 420 | 30 |
| H090-A619 | 9 | 10×30 | 3 | 1.5 | 360 | 110.3 | 700 | 420 | 41.2 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Drop forged alloy steel hooks
- Grade 80 load chain at 800 MPa
- Pressed steel housing with powder coat finish
Manufacturing Process
- Hook forging and heat treatment
- Gear and ratchet machining
- Brake pawl and spring assembly
- Chain fitting and assembly
- Running test load and packing
Quality Control
- Incoming inspection of load chain, hooks and brake components
- Hook material and forging checked before assembly
- Brake mechanism function test on every unit
- Running test load applied to every unit before packing
- Final visual and paint inspection, packing in carton or wooden case
Certifications And Customisation
What We Certify And What We Can Change
Certifications

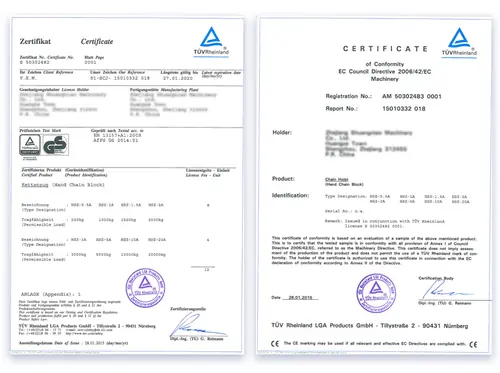

- Designed in accordance with EN 13157 and the CE regulations
- ISO 9001 certified manufacturing partners
- Individual test certificate available with the order
Customisation Options
- With or without load chain
- Black or RUD load chain
- Load chain length to the customer requirement
- Other housing colours
- Overload protection
- OEM branding
Comparison
How It Compares With Other Products
| Lever hoist | Chain hoist | Pulling hoist | |
|---|---|---|---|
| Operated by | Ratchet lever | Hand chain | Ratchet lever |
| Standard travel | 1.5 m | 3 m | 20 m of rope |
| Direction | Any | Vertical | Any |
| Headroom needed | Low | Higher | Low |
| Best for | Tensioning and alignment | Overhead lifting | Long pulls |
Use Guide
How To Use The Lever Hoist Safely
- Check the nameplate capacity and inspect the chain, hooks and latches before use.
- Set the direction selector fully to lift or lower before working the lever.
- Take up the slack by hand with the free chaining function before applying the lever.
- Operate the lever through its full stroke rather than short jerky movements.
- Never extend the lever with a bar to increase the force.
- Release the load fully before setting the direction selector to neutral.
FAQ
Lever Hoist FAQ
What is the standard lifting height?
1.5 m as standard. Longer load chains are made to the customer requirement.
Can a lever hoist be used horizontally?
Yes. That is one of its main advantages. It lifts, pulls and tensions in any direction.
What is the difference between a lever hoist and a chain hoist?
A lever hoist is worked by a short ratchet lever and suits pulling and short lifts in tight spaces. A chain hoist is worked by a hanging hand chain and suits vertical overhead lifting with a longer travel.
Is RUD load chain available?
Yes, the hoist can be supplied with black load chain or with RUD chain.
