Snatch block

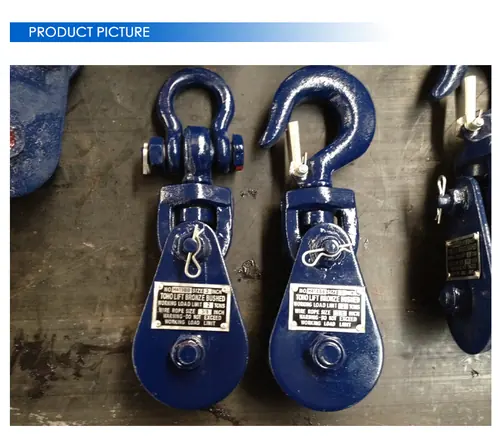

Heavy Duty Snatch Pulley Block
LH type heavy duty single sheave snatch pulley block with rated loads from 2 MT to 50 MT, safety factor 4, tested at 200 percent overload one by one before packing.
- Type
- LH type heavy duty snatch block
- Rated load
- 2 MT to 50 MT
- Safety factor
- 4
- Sheave diameter
- 75 mm to 600 mm
- For wire diameter
- 7 mm to 50 mm
- Proof test
- 200 percent overload, one by one
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Heavy Duty Snatch Pulley Block Is
A snatch block changes the direction of a wire rope and, when it is rigged as a moving block, halves the line pull needed to move the load. It is the simplest way to get more capacity out of a winch or a pulling hoist that is already on site.
The LH type is built for extreme conditions with a durable powder coat finish and sheave diameters from 75 mm to 600 mm. Every block is overload tested at 200 percent of its rated load individually before it is packed.
Key Benefits
Why Buyers Choose This Product
More Capacity From The Same Winch
Rigged as a moving block, the snatch block halves the line pull needed, which doubles the effective capacity of the pulling equipment.
Every Block Individually Tested
200 percent overload capacity test one by one before packing, not batch sampling.
Sheave Sizes To Match The Rope
Sheave diameters from 75 mm to 600 mm for wire ropes from 7 mm to 50 mm.
Built For Extreme Conditions
Heavy duty construction and a durable powder coat finish let the block work outdoors and in rough handling.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Winch and pulling hoist rigging on site
- Overhead line and cable pulling
- Marine and dock work
- Recovery and heavy haulage
- Crane and derrick reeving
Who It Is For
- Rigging contractors and crane hire companies
- Utility and cable pulling contractors
- Marine and port operations
- Distributors of rigging hardware
Problems It Solves
The Sourcing Problems This Product Removes
The winch does not have enough pull for the load
Solution. Rigging the block as a moving block halves the required line pull.
The pull direction is wrong for the anchor point available
Solution. A snatch block redirects the rope so the winch can be anchored where there is a suitable point.
Block quality cannot be verified
Solution. Every block is overload tested at 200 percent of its rated load individually before packing, and the range is CE approved.
Technical Features
Construction Standards And Specification
- Durable powder coat finish
- Heavy duty construction permits performance under extreme conditions
- Rated loads from 2 MT to 50 MT
- Safety factor 4 times
- 200 percent overload capacity test one by one before packing
- Manufactured according to ISO 9001 quality standard
- CE approved
- Other colours available
- Packing: high quality carton or wooden box
- Type
- LH type heavy duty snatch block
- Rated load
- 2 MT to 50 MT
- Safety factor
- 4
- Sheave diameter
- 75 mm to 600 mm
- For wire diameter
- 7 mm to 50 mm
- Proof test
- 200 percent overload, one by one
- Standard
- ISO 9001 manufacture, CE approved
- Packing
- High quality carton or wooden box
Specifications
Working Load Limits And Dimensions
| Type | SWL t | Sheave dia mm | A1 mm | B mm | C mm | For wire dia mm | Net weight kg |
|---|---|---|---|---|---|---|---|
| LH3"X1 | 2 | 75 | 292 | 82 | 70 | 7–9 | 3.9 |
| LH4(1/2)"X1 | 4 | 115 | 358 | 120 | 70 | 10–12 | 6.2 |
| LH6"X1 | 4 | 150 | 412 | 160 | 70 | 16–18 | 8.4 |
| LH6"X1 | 8 | 150 | 498 | 160 | 93 | 20–22 | 14.1 |
| LH8"X1 | 8 | 200 | 549 | 210 | 93 | 20–22 | 19 |
| LH8"X1 | 15 | 200 | 672 | 230 | 102 | 22–24 | 34 |
| LH10"X1 | 10 | 250 | 695 | 260 | 115 | 24–26 | 36 |
| LH10"X1 | 12 | 250 | 701 | 260 | 115 | 24–26 | 36 |
| LH12"X1 | 12 | 300 | 797 | 310 | 133 | 24–26 | 56 |
| LH12"X1 | 15 | 300 | 800 | 310 | 133 | 26–28 | 58 |
| LH14"X1 | 22 | 355 | 960 | 365 | 140 | 28–32 | 112 |
| LH16"X1 | 22 | 400 | 1027 | 415 | 140 | 28–32 | 122 |
| LH16"X1 | 30 | 400 | 1085 | 415 | 155 | 32–35 | 170 |
| LH20"X1 | 30 | 500 | 1177 | 514 | 162 | 32–35 | 213 |
| LH24"X1 | 50 | 600 | 1445 | 625 | 240 | 46–50 | 408 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Alloy steel side plates and hook
- Machined sheave with bushing or bearing
- Durable powder coat finish
Manufacturing Process
- Side plate cutting and forming
- Sheave machining and groove cutting
- Hook forging and fitting
- Assembly and 200 percent overload test
- Powder coating and packing
Quality Control
- Material certificate checked on incoming steel
- Sheave groove profile checked against the rope diameter
- 200 percent overload test applied to every block
- Rotation and side plate opening checked
- Finish inspection before packing
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Manufactured according to ISO 9001
- CE approved
- Test certificates available when requested at the time of order
Customisation Options
- Other colours available
- Hook or eye termination
- Sheave sized to the customer rope diameter
- OEM branding
Comparison
How It Compares With Other Products
| LH type snatch block | DY type snatch block | |
|---|---|---|
| Capacity | 2 t to 50 t | 0.5 t to 10 t |
| Sheave diameter | 75 mm to 600 mm | 75 mm to 350 mm |
| Sheaves | Single | Single or double |
| Certification | ISO 9001, CE approved | CE and GS certification |
| Best for | Heavy rigging and haulage | General site and utility work |
Use Guide
How To Use The Heavy Duty Snatch Pulley Block Safely
- Match the sheave diameter to the rope diameter using the table above.
- Check the anchor point can carry the resultant force, which can be higher than the load itself.
- Open the side plate to insert the rope rather than threading the whole rope through.
- Keep the rope in the sheave groove and check that the block aligns with the direction of pull.
- Inspect the sheave, the bushing and the side plates for wear before every job.
FAQ
Heavy Duty Snatch Pulley Block FAQ
What rated loads are available?
From 2 MT to 50 MT in the LH type range. The DY type covers 0.5 t to 10 t with a single or double sheave.
Is every block tested?
Yes. Each block is given a 200 percent overload capacity test one by one before it is packed.
How is the block packed for export?
In a high quality carton or a wooden box depending on the size and the order.
