Thimble

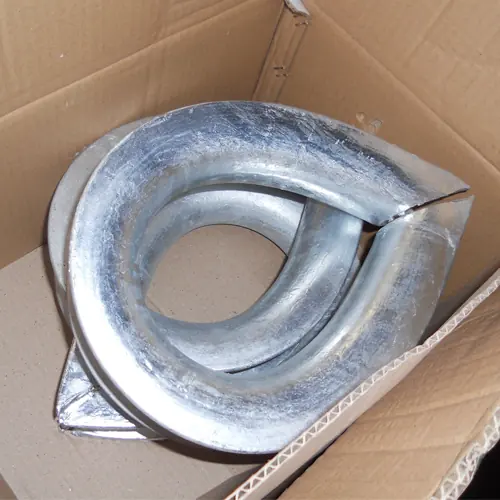

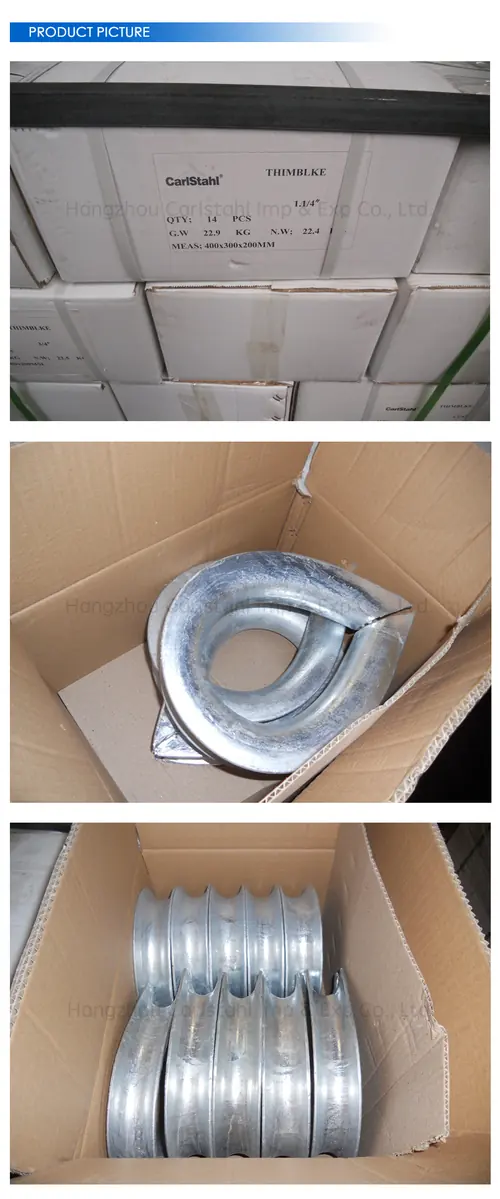

Wire Rope Thimble
High quality wire rope thimble used at the end of a steel wire rope to hold the eye shape and protect the rope from crushing and abrasion.
- Type
- Q 605 BS464
- Standard
- US, DIN and European standards
- Certificate
- ISO 9001, CE
- Technology
- Punching
- Material
- Carbon steel, alloy steel or stainless steel
- Finish
- Hot dipped galvanised, electro galvanised, colour painted, high polished or mirror polished
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Wire Rope Thimble Is
A thimble is a small part that decides how long a rope termination lasts. Without one the eye closes onto whatever it is connected to, the rope is crushed at the bearing point and the wires break from the inside.
Carl Stahl China supplies thimbles alongside the rest of the wire rope accessory range including hooks and terminations. We have cooperated with the same factory for over 13 years, and all goods are strictly produced according to standards and tested before shipment.
Key Benefits
Why Buyers Choose This Product
Protects The Eye Of The Rope
The thimble carries the bearing load so the rope is not crushed against a pin or a shackle.
Multiple Standards Covered
US standard, DIN standard and European standard thimbles from one source.
Finish To Suit The Environment
Hot dipped galvanised, electro galvanised, colour painted, high polished or mirror polished.
Wide Size Range
From 5/16 inch to 2.1/2 inch, marked with the size or to the customer requirement.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Wire rope sling and assembly terminations
- Marine hardware fittings and rigging
- Lifting and connecting applications
- Architectural and balustrade cable work
Who It Is For
- Wire rope sling assemblers
- Marine and rigging hardware distributors
- Architectural cable and balustrade installers
- Project buyers sourcing rope accessories
Problems It Solves
The Sourcing Problems This Product Removes
Rope eyes fail from the inside
Solution. A thimble takes the bearing load and stops the rope being crushed at the connection point.
Different projects call for different standards
Solution. US, DIN and European standard thimbles are all available from the same source.
Galvanised parts corrode in marine air
Solution. Stainless steel thimbles with a high polished or mirror polished finish are available for marine use.
Technical Features
Construction Standards And Specification
- High quality thimble
- Commodity name: wire rope thimble
- Type: Q 605 BS464
- Main standard: US standard, DIN standard, European standard
- Certificate: ISO 9001, CE
- Technology: punching
- Material: carbon steel, alloy steel or stainless steel
- Finish: hot dipped galvanised, electro galvanised, colour painted, high polished or mirror polished
- Size: 5/16 inch to 2.1/2 inch
- Type: light duty type
- Application: lifting and connecting, wire rope fittings, marine hardware fittings
- Marking: size or according to the customer request
- Type
- Q 605 BS464
- Standard
- US, DIN and European standards
- Certificate
- ISO 9001, CE
- Technology
- Punching
- Material
- Carbon steel, alloy steel or stainless steel
- Finish
- Hot dipped galvanised, electro galvanised, colour painted, high polished or mirror polished
- Size
- 5/16 inch to 2.1/2 inch
- Duty
- Light duty type
- Marking
- Size or according to the customer request
Specifications

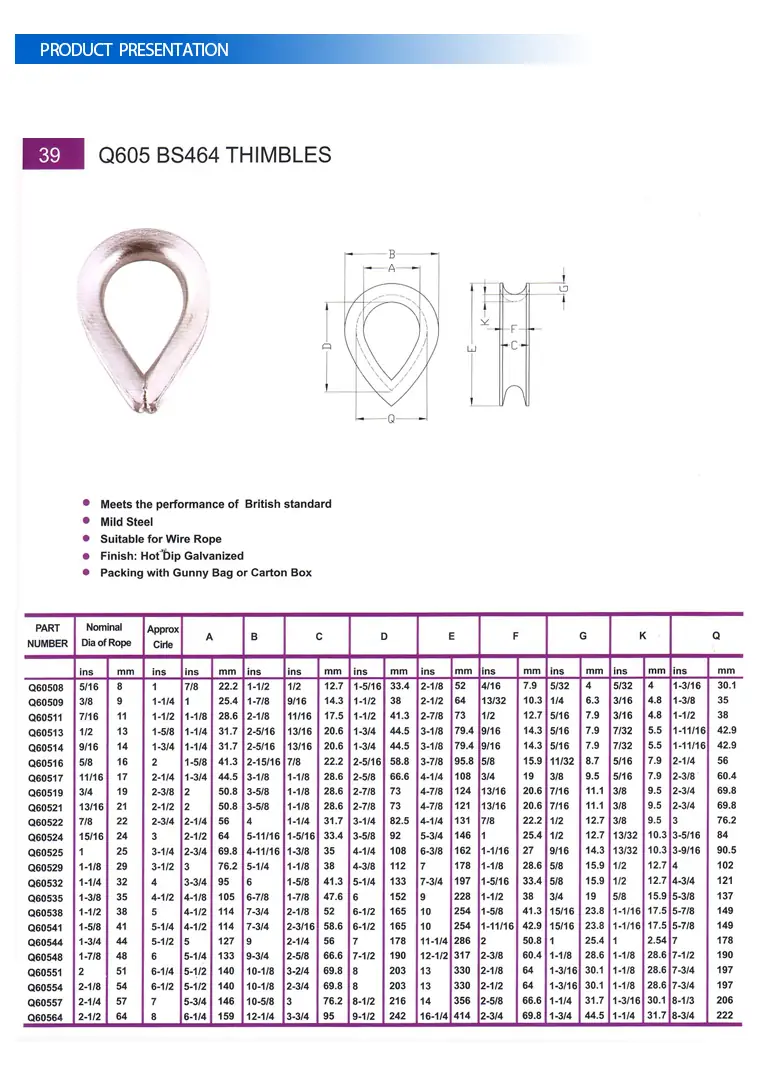

Working Load Limits And Dimensions
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Carbon steel, alloy steel or stainless steel
- Hot dipped or electro galvanised finish
- Polished stainless finishes for marine work
Manufacturing Process
- Blanking and punching to the thimble profile
- Forming and sizing
- Surface finishing by galvanising, painting or polishing
- Marking
- Inspection and packing
Quality Control
- Material verified on incoming inspection
- Groove profile checked against the rope diameter
- Coating thickness or polish quality inspected
- Dimension check against the specification
- Tested before shipment
Certifications And Customisation
What We Certify And What We Can Change
Customisation Options
- Size 5/16 inch to 2.1/2 inch
- Carbon, alloy or stainless steel
- Any of the listed surface finishes
- Marking according to the customer request
Use Guide
How To Use The Wire Rope Thimble Safely
- Choose a thimble groove that matches the rope diameter exactly.
- Seat the rope fully in the groove before swaging or clamping the eye.
- Use a stainless thimble with a stainless rope to avoid galvanic corrosion.
- Replace any thimble that has been crushed out of shape.
- Check the marking matches the size ordered before assembly.
FAQ
Wire Rope Thimble FAQ
What sizes are available?
From 5/16 inch to 2.1/2 inch in the standard programme.
Which standards can you supply?
US standard, DIN standard and European standard thimbles.
Are stainless thimbles available?
Yes, in stainless steel with a high polished or mirror polished finish for marine and architectural work.
Related Products
Rope construction clips SS316
Stainless Steel 316 Wire Rope Connector And Terminal
Custom stainless steel 316 wire rope connectors and terminals, highly polished or mirror polished, produced to custome...
Snatch block
Heavy Duty Snatch Pulley Block
LH type heavy duty single sheave snatch pulley block with rated loads from 2 MT to 50 MT, safety factor 4, tested at 2...
Keep Reading
Applications, Cases And Guides
Industry Applications
Related Knowledge Articles
Fast order of stainless steel wire rope
fast order of stainless steel wire rope,if you need good quality and short delivery time for special lifting goods, we will offer
Next Step
Send Us The Sizes And We Will Quote
Tell us the working load limits, the lengths and the quantities you need and we will come back with a specification and a price. Drawings can be sent by WhatsApp or email.
