Aluminium Housing Wire Rope Pulling Hoist

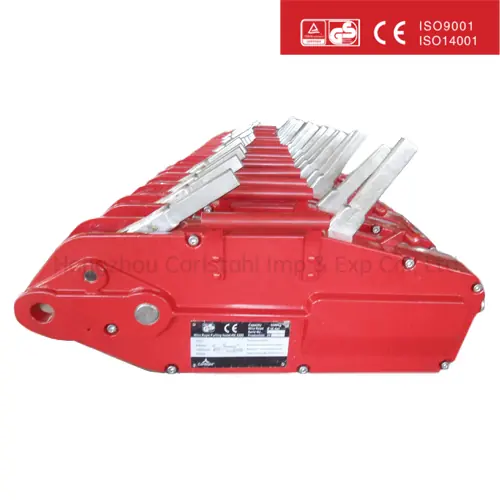

HX model aluminium housing pulling hoist, a small and compact hand operated lifting and pulling tool supplied complete with 20 m of wire rope and an extendable operating lever.
- Model range
- HX-0.8TA, HX-1.6TA, HX-3.2TA, HX-5.4TA
- Capacity
- 800 kg to 5400 kg
- Rope length supplied
- 20 m standard, other lengths to order
- Housing
- Aluminium
- Safety factor
- 5
- Packing
- Carton, then wooden case
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Aluminium Housing Wire Rope Pulling Hoist Is
A wire rope pulling hoist grips the rope with self energising jaws and feeds it through the body as the lever is worked. Because the rope passes straight through rather than winding onto a drum, the pulling distance is limited only by the length of rope, not by the size of the machine.
The HX model is a small sized, compact, hand operated lifting tool. The aluminium housing keeps the weight down for a tool that is meant to be carried to the work, and this type of hoist is suitable for outdoor use. The rope is tapered at one end for threading and fitted with a hook and safety catch at the other.
Key Benefits
Why Buyers Choose This Product
Pulls As Far As The Rope Runs
The rope feeds through the body, so the travel is set by the rope length and not by a drum capacity.
Light Enough To Carry To The Work
The aluminium housing keeps the tool portable, which matters when the job is at the top of a slope or a pylon.
Built For Outdoor Work
This type of hoist is well used outdoors, where it is safe, easy to operate and reduces the labour needed.
Low Maintenance
The hoist has low maintenance requirements and is easy to service.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Pulling and tensioning on overhead line and pylon work
- Cable pulling and stringing
- Recovery and repositioning of plant on slopes
- Tree and timber pulling in landscaping work
- Site work where a long controlled pull is needed
Who It Is For
- Utility and overhead line contractors
- Civil contractors working on slopes and in rough terrain
- Landscaping and forestry operations
- Distributors supplying manual pulling equipment
Problems It Solves
The Sourcing Problems This Product Removes
A drum winch runs out of travel
Solution. The rope feeds straight through the pulling hoist, so the travel depends only on the length of rope supplied.
The tool is too heavy to carry to the work face
Solution. The aluminium housing brings the weight down to 6.5 kg on the 0.8 t model.
Rope length never matches the job
Solution. The length of wire rope is supplied according to the customer requirement.
Servicing takes the tool out of use
Solution. The hoist has low maintenance requirements and is easy to service.
Technical Features
Construction Standards And Specification
- Capacity 0.8 t x 20 m, 1.6 t x 20 m, 3.2 t x 20 m and 5.4 t x 20 m
- All hoists are supplied complete with 20 metre wire rope and an extendable operating lever
- The length of wire rope can be supplied according to the customer requirement

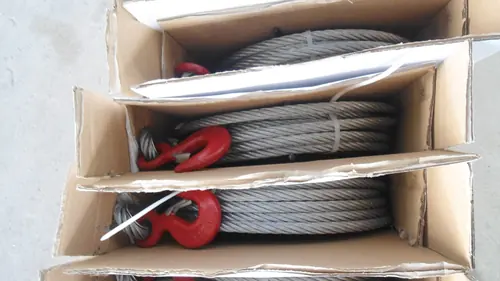

- Wire rope is tapered at one end and fitted with a hook and safety catch at the other
- The hoist has low maintenance requirements and is easy to service
- Material: aluminium housing
- Packed in cartons and then in a wooden case to ship
- Well used outdoors, safe, easy operation, reduces the labour of the workers
- Model range
- HX-0.8TA, HX-1.6TA, HX-3.2TA, HX-5.4TA
- Capacity
- 800 kg to 5400 kg
- Rope length supplied
- 20 m standard, other lengths to order
- Housing
- Aluminium
- Safety factor
- 5
- Packing
- Carton, then wooden case
- Minimum order quantity
- 20 pieces per capacity
- Lead time
- 30 days depending on the order quantity
Specifications
Working Load Limits And Dimensions
| Model | Rated capacity kg | Lever effort N | Rope diameter mm | Safety factor | Max travelling load kg | A mm | B mm | C mm | Net weight kg |
|---|---|---|---|---|---|---|---|---|---|
| HX-0.8TA | 800 | 343 | 8.3 | 5 | 1200 | 426 | 235 | 64 | 6.5 |
| HX-1.6TA | 1600 | 441 | 11 | 5 | 2400 | 545 | 280 | 97 | 12.5 |
| HX-3.2TA | 3200 | 441 | 16 | 5 | 4000 | 660 | 325 | 116 | 28 |
| HX-5.4TA | 5400 | 745 | 20 | 5 | 8000 | 930 | 480 | 152 | 56.5 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Aluminium alloy housing
- Alloy steel jaws and lever mechanism
- Steel wire rope, tapered at one end, hook and safety catch at the other
Manufacturing Process
- Housing casting and machining
- Jaw forging, heat treatment and grinding
- Lever and pawl assembly
- Rope swaging and hook fitting
- Load testing, carton and wooden case packing
Quality Control
- Jaw grip force tested on every unit
- Lever mechanism function checked through the full stroke
- Rope diameter and termination inspected
- Static load test to the declared safety factor
- Packing inspection before wooden case sealing
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- ISO 9001 certified manufacturing partners
- Test certificates available when requested at the time of order
Customisation Options
- Wire rope length to the customer requirement
- Capacity from 0.8 t to 5.4 t
- OEM nameplate and branding
Comparison
How It Compares With Other Products
| Wire rope pulling hoist | Lever hoist | Chain hoist | |
|---|---|---|---|
| Travel | Length of the rope, 20 m standard | 1.5 m | 3 m |
| Media | Steel wire rope | Load chain | Load chain |
| Weight at 1.6 t | 12.5 kg | 11 kg at 1.5 t | 15.6 kg at 1.5 t |
| Outdoor use | Designed for it | Yes | Yes |
| Best for | Long pulls and tensioning | Short pulls and lifts | Vertical lifting |
Use Guide
How To Use The Aluminium Housing Wire Rope Pulling Hoist Safely
- Check the capacity on the nameplate and confirm the rope diameter matches the machine.
- Anchor the hoist to a point that can carry the maximum travelling load, not just the rated capacity.
- Thread the tapered end of the rope through the machine and pull it through until the hook reaches the load.
- Work the forward lever with the full stroke, and use the reverse lever to release under control.
- Never use a rope of the wrong diameter or a rope with broken wires.
- Keep everyone out of the line of the rope while it is under tension.
FAQ
Aluminium Housing Wire Rope Pulling Hoist FAQ
What rope length is supplied?
20 metres as standard on every model. Other rope lengths are supplied according to the customer requirement.
What is the safety factor?
The wire rope safety factor and the machine static load safety factor are both 5.
How is it packed for export?
Packed in cartons and then in a wooden case for shipment.
What is the minimum order quantity?
Twenty pieces per capacity, with a lead time of about 30 days depending on quantity.
