0.5T ratchet strap

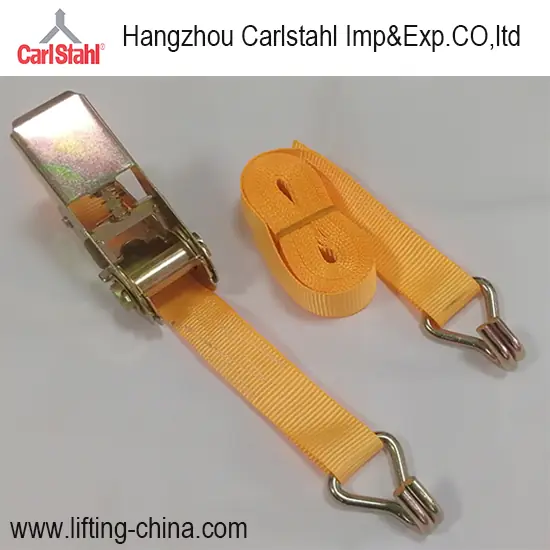

Carl Stahl 0.5T Ratchet Strap And Lashing Belt
Two part 0.5T ratchet strap with double J hooks, 25 mm polyester webbing and a standard assembly length of 3.5 m, made according to EN 12195-2.
- Standard
- EN 12195-2
- Capacity
- 0.5T
- Assembly length
- 0.5+3.5 m
- Fixed end
- 0.5 m
- Strap width
- 25 mm
- Material
- 100 percent polyester, AA class
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Carl Stahl 0.5T Ratchet Strap And Lashing Belt Is
This is a two part lashing assembly. The short fixed end carries the ratchet, the long loose end passes around the load, and the double J hooks anchor into the lashing points of the vehicle or container. Tension is applied with the ratchet handle rather than by pulling on the webbing, so the required pretension is reached without effort and without straining the operator.
The assembly is used for freight, shipment, removal and storage. It fastens the load, keeps it in place, and protects both the goods and the people around them. It is a cargo securing device and it must never be used as a lifting sling.
Key Benefits
Why Buyers Choose This Product
Pretension Without Effort
The ratchet mechanism reaches the required pretension through the handle, so no one has to pull the strap tight by hand.
Easy And Spine Friendly Handling
The long handle does the work, which keeps the operator upright instead of hauling on webbing at floor level.
Fits Any Anchor Point
Different end hooks can be fitted, so the same assembly suits trailers, containers, rail wagons and flat racks.
Low Elongation Webbing
The lashing webbing holds its tension through the journey instead of relaxing as the load settles.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Road freight on curtainsiders, flatbeds and trailers
- Container and flat rack stuffing for sea freight
- Rail wagon and air freight pallet securing
- Machinery and plant movement between sites
- Warehouse storage of stacked and palletised goods
Who It Is For
- Hauliers and fleet operators securing mixed loads
- Freight forwarders and container packing operations
- Machinery makers shipping equipment on flatbeds
- Distributors and safety wholesalers stocking a full tonnage range
Problems It Solves
The Sourcing Problems This Product Removes
Rope lashings loosen during the journey
Solution. A ratchet assembly reaches and holds a measured pretension, and it can be retensioned in seconds at a rest stop without untying anything.
Operators strain themselves tightening loads
Solution. The ratchet handle multiplies the effort, so the strap is tensioned from a standing position rather than by hauling on the webbing.
Anchor points differ between vehicles
Solution. End fittings are interchangeable. J hooks, claw hooks and snap hooks are all available on the same assembly.
Cargo securing paperwork is questioned at the border
Solution. The assembly is made according to EN 12195-2 and test certificates are available when requested at the time of order.
Technical Features
Construction Standards And Specification
- Two part version with double J hook
- Usage and application: shipping, transport, industrial
- Material: 100 percent polyester, AA class
- Available strap length: 0.5+3.5 m
- Size and capacity: 0.5T
- Strap width: 25 mm
- Colour: orange or other colour
- Type of end hook: J hook, claw or snap hook also available
- The required pretension is reached without effort
- Easy handling and spine friendly
- According to EN 12195-2
- Standard
- EN 12195-2
- Capacity
- 0.5T
- Assembly length
- 0.5+3.5 m
- Fixed end
- 0.5 m
- Strap width
- 25 mm
- Material
- 100 percent polyester, AA class
- Colour
- orange or other colour on request
- End fitting
- Double J hook, claw hook or snap hook
- Application
- Shipping, transport, industrial
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- 100 percent polyester lashing webbing in AA class yarn
- Pressed and plated steel ratchet body and pawl
- Forged and finished end hooks
Manufacturing Process
- Weaving of polyester lashing webbing to the ordered width
- Ratchet assembly and pawl fitting
- Cutting of the fixed and loose ends to length
- Sewing of the end fittings and the ratchet
- Label sewing, function test and packing
Quality Control
- Webbing width and breaking strength verified on incoming inspection
- Ratchet handle, mandrel and pawl checked for free operation
- End fitting weld and finish inspected
- Assembly sample tested against the declared lashing capacity
- Label content checked against EN 12195-2 before packing
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Manufactured according to EN 12195-2
- ISO 9001 certified manufacturing partners
- Test certificates available when requested at the time of order
Customisation Options
- Assembly length and fixed end length to the order
- Webbing colour and printed branding along the strap
- J hook, claw hook or snap hook end fittings
- Ergonomic ratchet handle on request
- Own label layout
Comparison
How It Compares With Other Products
| Ratchet strap | Rope lashing | Chain lashing | |
|---|---|---|---|
| Measured pretension | Yes, through the ratchet | No | Yes |
| Effort to tension | Low | High | Medium |
| Protects painted surfaces | Yes | Cuts and abrades | Needs protection |
| Retension during transit | Seconds | Untie and redo | Quick |
| Standard | EN 12195-2 | None | Other |
Use Guide
How To Use The Carl Stahl 0.5T Ratchet Strap And Lashing Belt Safely

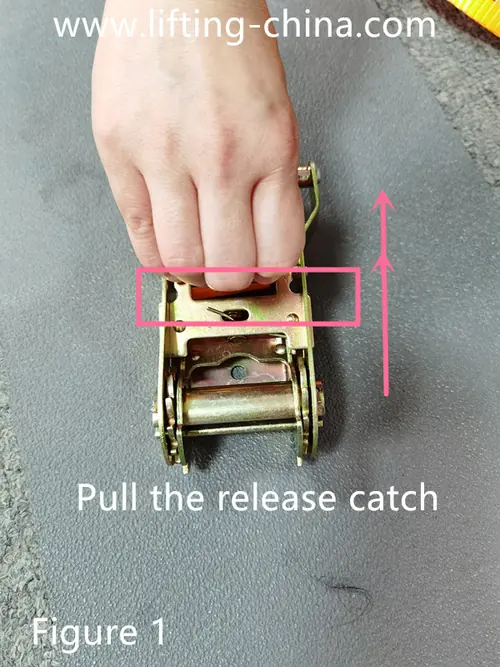

- Pull the release catch in the centre of the top movable piece of the ratchet and flip it fully open.
- Thread the strap up through the mandrel at the bottom of the ratchet so it lays straight and overlaps the fixed end.
- Raise and lower the handle until the strap is tight.

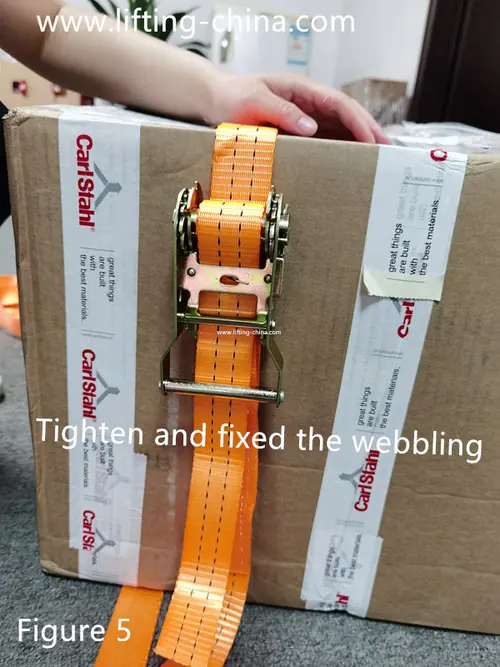

- Pull the handle down and close the ratchet when the strap feels tight.

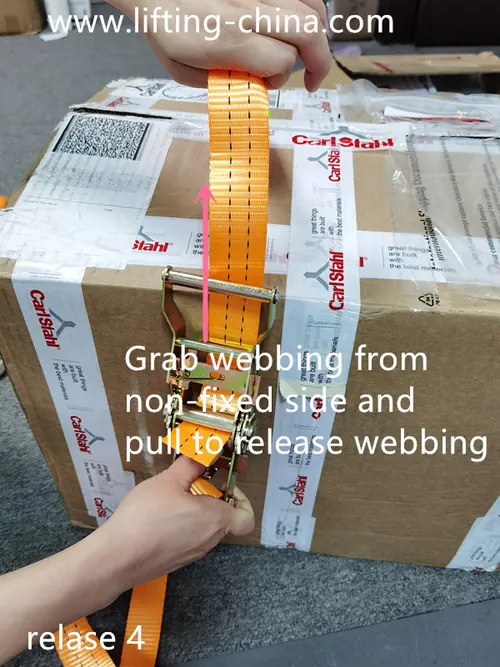

- To release, pull and hold the release tab on the top assembly to override the ratcheting function, open the ratchet fully and pull the webbing free.
- Never use a ratchet strap to lift a load. It is a cargo securing device only.
FAQ
Carl Stahl 0.5T Ratchet Strap And Lashing Belt FAQ
What does the 0.5T rating mean?
It is the lashing capacity of the assembly under EN 12195-2. It describes the force the assembly may be subjected to when securing cargo, and it is not a lifting capacity.
Can this strap be used to lift a load?
No. Ratchet tie downs must not be used as lifting slings. Use a sling from our EN 1492 range for lifting.
Can we have a different colour and our own printing?
Yes. The webbing colour is made to the order and your brand can be printed along the strap.
Which end hooks are available?
Double J hook as standard, with claw hooks and snap hooks available on the same assembly.
Is a test certificate available?
Material and test certificates are available when they are requested at the time of order.
