Single and double sheave snatch block DY
DY Type Single And Double Sheave Snatch Block
DY type snatch block with CE and GS certification, available with a single or double sheave, an alloy steel shell and a side opening link that lets the rope be inserted without threading.
- Type
- DY single or double sheave
- Certification
- CE and GS
- Load capacity
- 0.5 t to 10 t
- Sheave diameter
- 75 mm to 350 mm
- For wire diameter
- 8 mm to 28 mm
- Termination
- Drop forged hook or eye
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The DY Type Single And Double Sheave Snatch Block Is
The DY block is the general purpose site block. A side opening link permits quick and easy insertion of rope or cable without threading, which saves the time normally lost feeding a long rope through a closed block.
The lifting ring is 360 degree rotatable so the block finds its own alignment with the direction of pull. The compact double load bearing structure and the alloy steel shell make it resistant to falling and collision, which is what gives it a long service life on a working site.
Key Benefits
Why Buyers Choose This Product
Rope Goes In Without Threading
The side opening link lets the rope drop into the sheave, so the whole rope does not have to be fed through the block.
Finds Its Own Alignment
The 360 degree rotatable lifting ring lets the block turn to the line of pull instead of being loaded sideways.
Survives Being Dropped
The alloy steel shell resists falling and collision, which is normal handling on a working site.
CE And GS Certified
Both certifications are held on this range, which is what German and wider European buyers ask for.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- General site rigging and pulling
- Cable and line pulling
- Winch reeving and direction change
- Marine and dockside work
- Recovery and towing
Who It Is For
- Site contractors and riggers
- Utility and cable pulling crews
- Distributors serving European markets that ask for GS
- Hire fleets
Problems It Solves
The Sourcing Problems This Product Removes
Threading a long rope through a closed block wastes time
Solution. The side opening link permits quick and easy insertion of rope or cable without threading.
Blocks are damaged when they are dropped
Solution. The alloy steel shell is resistant to falling and collision, so the block survives normal site handling.
European customers require GS as well as CE
Solution. This range carries both CE and GS certification.
Technical Features
Construction Standards And Specification
- CE and GS certification

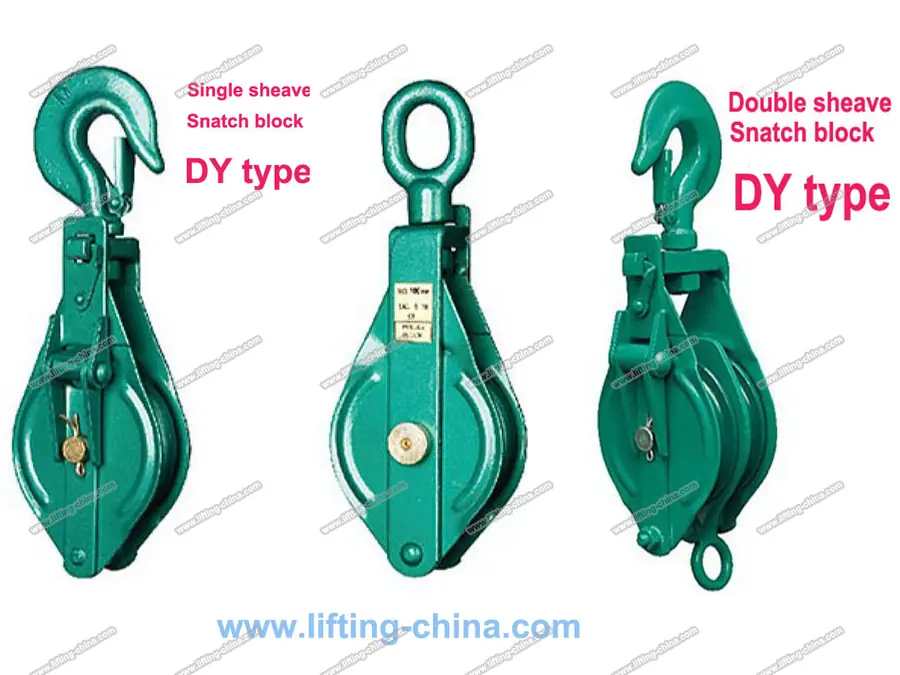

- Single sheave or double sheave, strong structure

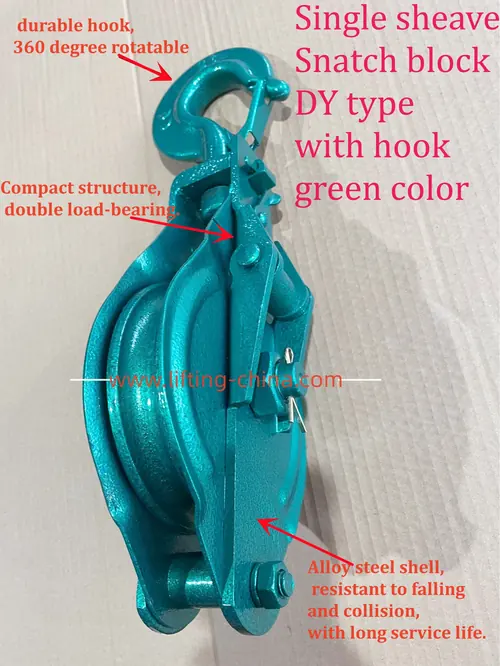

- Strong and durable, lifting ring with 360 degree rotatable design
- Compact structure, carefully crafted, double load bearing
- Alloy steel shell, resistant to falling and collision, with long service life
- Drop forged hook or eye is available
- Load capacity 0.5 t to 10 t

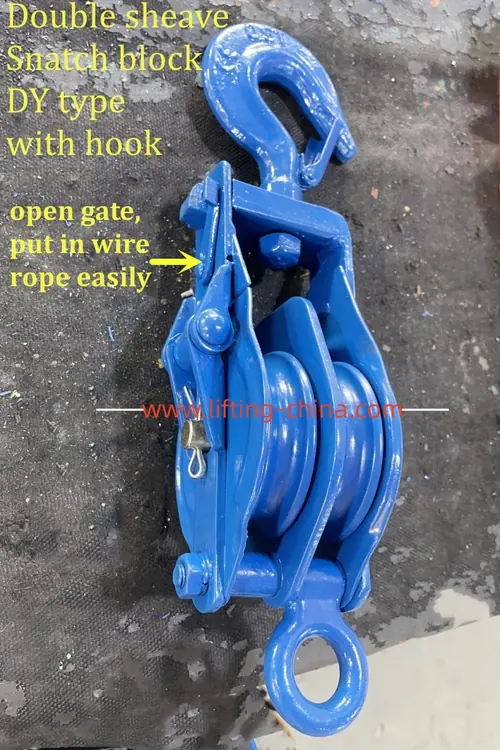

- Side opening link permits quick and easy insertion of rope or cable without threading
- Finish painting colour green, blue, red or orange, or as required
- Type
- DY single or double sheave
- Certification
- CE and GS
- Load capacity
- 0.5 t to 10 t
- Sheave diameter
- 75 mm to 350 mm
- For wire diameter
- 8 mm to 28 mm
- Termination
- Drop forged hook or eye
- Shell
- Alloy steel
- Finish
- Green, blue, red, orange or as required
Specifications
Working Load Limits And Dimensions

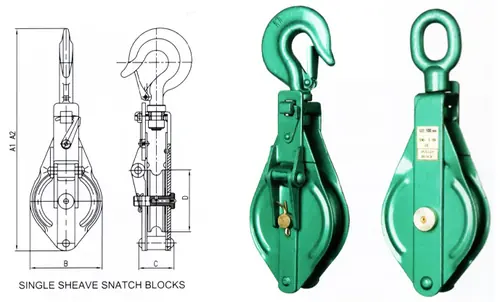

| Single sheave hook | Double sheave hook | SWL t | Sheave dia mm | Hook A1 mm | Eye A2 mm | B mm | For wire dia mm | Net weight single kg | Net weight double kg |
|---|---|---|---|---|---|---|---|---|---|
| 75DYx1S | 75DYx2S | 0.5 | 75 | 286 | 227 | 87 | 8 | 1.6 | 2.8 |
| 100DYx1S | 100DYx2S | 1 | 100 | 311.5 | 284.5 | 112 | 10 | 3.5 | 4.3 |
| 125DYx1S | 125DYx2S | 1.5 | 125 | 370 | 344 | 140 | 13 | 4.6 | 7.8 |
| 150DYx1S | 150DYx2S | 2 | 150 | 442.5 | 417 | 168 | 16 | 7.7 | 12.2 |
| 180DYx1S | 180DYx2S | 3 | 180 | 498 | 478 | 204 | 19 | 11 | 18.5 |
| 200DYx1S | 200DYx2S | 4 | 200 | 590.5 | 556 | 226 | 22 | 19.3 | 31 |
| 250DYx1S | 250DYx2S | 5 | 250 | 590.5 | 651 | 276 | 25 | 33.8 | 49.8 |
| 300DYx1S | 300DYx2S | 6 | 300 | 795 | 775 | 330 | 26 | 48 | 72 |
| 350DYx1S | 350DYx2S | 10 | 350 | 934 | 898 | 395 | 28 | 66 | 102 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Alloy steel shell and side plates
- Machined sheave
- Drop forged hook or eye
Manufacturing Process
- Shell forming and machining
- Sheave machining and groove cutting
- Hook or eye forging and fitting
- Assembly and proof testing
- Painting and packing
Quality Control
- Alloy steel material verified on incoming inspection
- Sheave groove profile checked against the rope diameter
- Side opening link operation checked on every block
- Proof load applied before packing
- Paint finish and marking inspection
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- CE certification
- GS certification
- ISO 9001 certified manufacturing partners
Customisation Options
- Single or double sheave
- Hook or eye termination
- Painting colour green, blue, red, orange or as required
- OEM branding
Comparison
How It Compares With Other Products
| DY single sheave | DY double sheave | LH type | |
|---|---|---|---|
| Capacity | 0.5 t to 10 t | 0.5 t to 10 t | 2 t to 50 t |
| Weight at 5 t | 33.8 kg | 49.8 kg | Varies |
| Sheaves | One | Two | One |
| Certification | CE and GS | CE and GS | ISO 9001, CE |
| Best for | Direction change | Mechanical advantage | Heavy rigging |
Use Guide
How To Use The DY Type Single And Double Sheave Snatch Block Safely
- Choose the sheave diameter to suit the rope diameter from the table above.
- Open the side link, drop the rope into the sheave groove and close the link fully.
- Confirm the lifting ring is free to rotate to the direction of pull.
- Check that the anchor point can carry the resultant force on the block.
- Inspect the shell, the sheave and the link before every job.
FAQ
DY Type Single And Double Sheave Snatch Block FAQ
What is the difference between the single and double sheave versions?
The double sheave version gives extra mechanical advantage when it is reeved as a moving block, at the cost of extra weight. Both cover 0.5 t to 10 t.
Does the block carry GS certification?
Yes, the DY range carries both CE and GS certification.
What colours are available?
Green, blue, red and orange as standard, or another colour to the customer requirement.
