Grade 80 Load Chain For Chain Slings
Grade 80 alloy steel load chain designed for chain slings used in industrial applications, manufactured according to EN 818-2 with a safety factor of 4:1.
- Standard
- EN 818-2
- Grade
- Grade 80 alloy steel
- Safety factor
- 4:1
- Proof test
- 2.5 times the working load limit
- Elongation
- Not less than 20 percent
- Marking
- G80 plus ID marks plus batch number
Full specification, standards and testing detail below. CAD files are available on request via WhatsApp.
Product Overview
What The Grade 80 Load Chain For Chain Slings Is
Chain sling chain is not the same product as hoist chain. EN 818-2 chain is made for slinging duty, where the chain is dragged across steel, choked around loads and exposed to heat and chemicals that would end a soft sling.
Every batch is proof tested at 2.5 times its working load limit and the elongation at fracture is not less than 20 percent, which is what gives a chain sling its visible warning before failure. Regular marking on the chain carries G80, the identification marks and the batch number.
Key Benefits
Why Buyers Choose This Product
Made For Slinging Duty
EN 818-2 chain is specified for chain slings, not for hoist reeving, so it is the correct product for a sling assembly.
Stretches Before It Breaks
Elongation of not less than 20 percent means an overloaded chain deforms visibly before it fails.
Traceable Marking
Regular marking carries G80, the identification marks and the batch number, so a chain can be traced back to its production batch.
Finish For The Environment

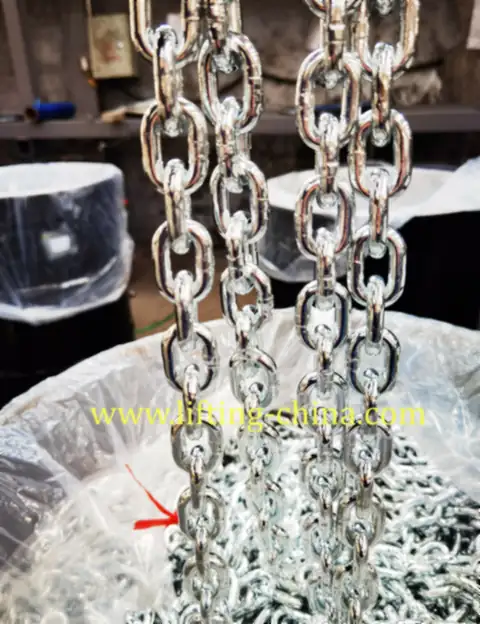

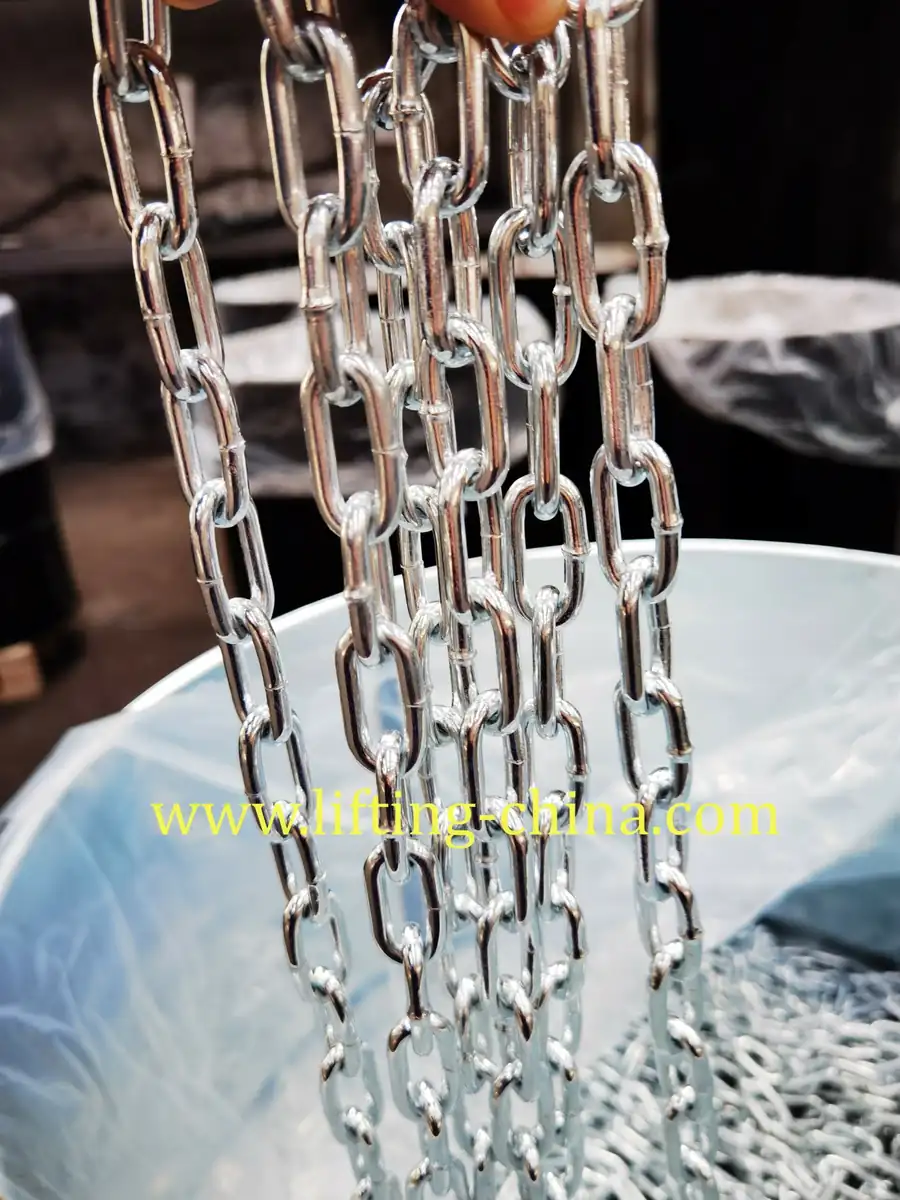

Oiled, blackened, galvanised, dip painted or as required.
Application Scenarios
Where It Is Used And Who It Is For
Application Scenarios
- Chain sling manufacture in one, two, three and four leg configurations
- Foundry and forge handling where soft slings would burn
- Steel structure and heavy plant lifting
- Scrap and recycling handling
Who It Is For
- Chain sling assemblers and rigging houses
- Foundries and forges
- Steel service centres and scrap yards
- Distributors of Grade 80 rigging
Problems It Solves
The Sourcing Problems This Product Removes
Soft slings burn or cut in foundry and scrap work
Solution. Grade 80 chain withstands heat, sharp edges and abrasion where a polyester sling cannot survive.
Chain of unknown origin has no traceability
Solution. Regular marking on the chain gives G80, the identification marks and the batch number.
Hoist chain is used to build slings
Solution. EN 818-2 chain is the correct specification for slinging duty and is a different product from EN 818-7 hoist chain.
Technical Features
Construction Standards And Specification
- This chain is designed for chain slings used for industrial applications
- Material: alloy steel, manufactured according to EN 818-2
- Safety factor 4:1
- 2.5 times of working load limit proof tested
- Elongation not less than 20 percent
- Regular mark: G80 plus ID marks plus batch number
- Surface treatment: oiled, blackened, galvanised, dip painted or as required
- Package: steel drum
- Standard
- EN 818-2
- Grade
- Grade 80 alloy steel
- Safety factor
- 4:1
- Proof test
- 2.5 times the working load limit
- Elongation
- Not less than 20 percent
- Marking
- G80 plus ID marks plus batch number
- Surface
- Oiled, blackened, galvanised, dip painted or as required
- Packing
- Steel drum
Specifications
Working Load Limits And Dimensions
| Chain size d mm | Pitch t mm | WLL t | Minimum breaking load kN | Weight kg/m |
|---|---|---|---|---|
| 5 | 15 | 1.12 | 45.2 | 0.54 |
| 6 | 18 | 1.50 | 61.6 | 0.77 |
| 8 | 24 | 2.00 | 80.4 | 1.36 |
| 10 | 30 | 3.15 | 126 | 2.13 |
| 13 | 39 | 5.30 | 212 | 3.55 |
| 16 | 48 | 8.00 | 322 | 5.45 |
Materials And Manufacturing
Materials, Process And Quality Control
Materials
- Alloy steel to the Grade 80 specification
- Oiled, blackened, galvanised or dip painted finish
Manufacturing Process
- Wire drawing and link forming
- Flash butt welding of each link
- Heat treatment to Grade 80 properties
- Proof testing at 2.5 times the WLL
- Marking, surface treatment and drum packing
Quality Control
- Alloy steel verified against the mill certificate
- Weld quality checked on every production run
- Heat treatment records checked per batch
- Proof test at 2.5 times the working load limit
- Elongation verified at not less than 20 percent
Certifications And Customisation
What We Certify And What We Can Change
Certifications
- Manufactured according to EN 818-2
- Marked with G80, identification marks and batch number
- Test certificates available when requested at the time of order
Customisation Options
- Chain size 5 mm to 16 mm
- Surface treatment oiled, blackened, galvanised or dip painted
- Cut lengths or full drums
- Marking to the customer requirement
Comparison
How It Compares With Other Products
| G80 chain sling chain EN 818-2 | G80 hoist chain EN 818-7 | Polyester round sling | |
|---|---|---|---|
| Designed for | Chain slings | Hand chain hoists | Soft slinging |
| WLL at 8 mm | 2.00 t | 2 t | n/a |
| Heat resistance | High | High | Low |
| Marks the load | Yes | Yes | No |
| Weight | High | High | Low |
Use Guide
How To Use The Grade 80 Load Chain For Chain Slings Safely
- Use EN 818-2 chain for slings and EN 818-7 chain for hoist reeving. They are not interchangeable.
- Confirm the working load limit from the chain size using the table above.
- Reduce the capacity for the number of legs and the angle of inclination.
- Withdraw any chain with a stretched, nicked, gouged or heat damaged link.
- Keep the chain identification tag with the assembly at all times.
FAQ
Grade 80 Load Chain For Chain Slings FAQ
What is the difference between EN 818-2 and EN 818-7 chain?
EN 818-2 chain is specified for chain slings and EN 818-7 chain is specified for the load chain of hand chain hoists. The working load limits differ for the same chain size.
How is the chain marked?
The regular mark carries G80, the identification marks and the batch number, stamped at a set distance along the chain.
How is the chain packed?
In steel drums, in the surface finish specified on the order.
