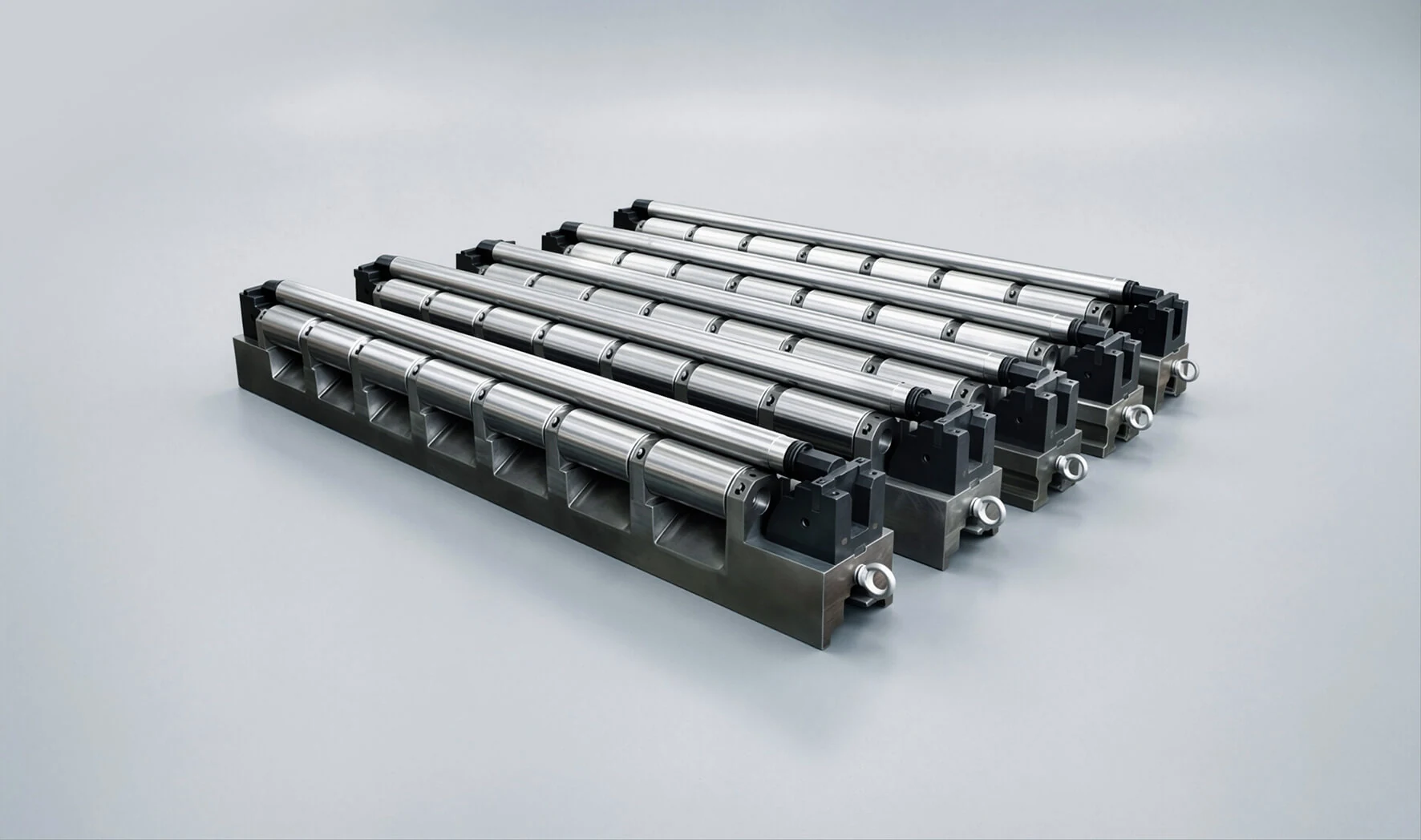

High Precision Scale Breaker Roll Cassettes for Hot Rolled Pickling Lines
At the entry of a hot rolled pickling line the scale breaker rolls bend and compress the dense iron oxide layer until it cracks, which lets the acid penetrate and speeds descaling. Because these rolls work in heat, humidity, corrosion and impact, their precision decides both descaling effectiveness and final surface quality.
- Located at the entry section of hot rolled pickling lines
- Designed for high temperature, humidity, corrosion and impact
- Roll geometry held in the 0.02-0.05 mm class
- Surface finish in the 0.05-0.15 micron class
Key Benefits
What high precision buys on a pickling line.
Faster Descaling
Mechanically cracking the oxide layer lets pickling acid penetrate, which accelerates descaling through the tanks.
Surface Quality For High Value Products
Precision matters because these lines process automotive sheet, appliance panels and electrical steel where surface requirements are stringent.
Survives The Entry Environment
The cassette is specified for the combination of heat, humidity, corrosion and heavy impact loads present at the line entry.
Where It Is Used
Where they are used.
- Entry sections of hot rolled strip pickling lines
- Lines producing automotive sheet
- Appliance panel production
- Electrical steel processing
Who It Is For
- Pickling line operators
- Mills producing high value added flat products
- Maintenance teams replacing entry section cassettes
- Buyers upgrading cassette precision
Problems It Solves
- Slow or uneven descaling from intact scale
- Surface defects on high value products
- Cassette corrosion at the line entry
- Impact damage from heavy incoming coil
Technical Features
Precision and construction.
Bending Roll Function
The cassette rolls mechanically bend and compress the scale layer to create the cracks acid needs.
Tight Geometry Control
Dimensional control in the 0.02-0.05 mm class keeps bending even across the strip width.
Fine Surface Finish
Working surfaces are finished in the 0.05-0.15 micron class so contact does not mark high value strip.
Specifications
Cassette dimensions follow your line. Precision data is listed below.
| Position | Entry section of hot rolled strip pickling line |
|---|---|
| Function | Mechanical bending and compression of iron oxide scale |
| Dimensional Class | 0.02-0.05 mm |
| Surface Finish Class | 0.05-0.15 micron |
| Environment | High temperature, high humidity, strong corrosion, heavy impact |
| Target Products | Automotive sheet, appliance panels, electrical steel |
Materials
- Corrosion resistant cassette construction
- Hardened and finely ground rolls
- Sealed bearing units for the acid environment
Manufacturing Process
Line Survey
Strip width, thickness, scale condition and existing cassette dimensions are reviewed.
Frame Manufacturing
Cassette bodies are machined for roll alignment under impact load.
Roll Production
Rolls are hardened and finish ground into the 0.05-0.15 micron class.
Assembly And Sealing
Bearings are fitted and sealed for the humid corrosive entry environment.
Quality Control
- Dimensional inspection in the 0.02-0.05 mm class
- Surface finish verification
- Bearing seal integrity check
- Assembly alignment record
Customization Options
- Cassette geometry to your pickling line
- Roll diameter and count for your scale condition
- Corrosion protection specification
- Spare cassettes for rotating service
Use Guide
- Rinse and dry cassettes removed from the acid area
- Check bearing seals at every service
- Monitor descaling effectiveness as an indicator of roll condition
- Keep a spare cassette for high value product campaigns
How It Compares
Against standard cassettes.
| General purpose roll cassettes | Precision and surface finish are specified for lines producing high value added products with stringent surface requirements. |
|---|---|
| Cassettes without corrosion protection | Construction and sealing are chosen for the humidity and acid exposure at the line entry. |
| Running worn cassettes | Worn rolls crack the scale unevenly, which slows pickling and shows on the finished surface. |
Related Products
Roller Cartridges for Tension Leveling Machines
Deep quenched and chrome plated cassettes supporting work rolls and intermediate rolls.
View Details
Roll Units for High Accuracy Tension Leveling With 16 mm Work Rolls
Support units that prevent deflection of 16 mm diameter work rolls on high precision lines.
View Details
15 Roll Heavy Plate Multi Roll Leveler Roll Cassette
Quarto configuration 15 roll cassette for medium and wide heavy plate leveling lines.
View Details
1660 mm Precision Roll Units for Scale Breaking Machines
DIN 1.2344 equivalent alloy roll units with quick disassembly for 0.5-12 mm strip pickling lines.
View Details
Related Technical Articles
Tension Leveler Spare Parts Planning For AHSS Galvanizing Lines
What to stock, when to replace and why advanced high strength steel changes the roll wear calculation.
Read More
Choosing A Multi Roll Straightener Configuration For Mixed Materials
One machine can straighten high strength steel, stainless and titanium, but never with the same parameters.
Read More
Roll End Bush For Steel Strip Tension Levelers Explained
A small symmetrical part on both sides of the cassette that decides whether the roll system stays where it belongs.
Read MoreHigh Precision Scale Breaker Roll Cassettes for Pickling Lines FAQ
What do scale breaker cassettes actually do?
They mechanically bend and compress the dense iron oxide scale on the strip surface, creating cracks that let pickling acid penetrate and accelerate descaling.
Why does precision matter here?
These lines process automotive sheets, appliance panels and electrical steel where surface quality requirements are stringent, and roll precision determines both descaling effectiveness and final surface quality.
What conditions do they work in?
High temperature, high humidity, strong corrosion and heavy impact loads at the pickling line entry.
Can you build to our existing line?
Yes. Send cassette drawings or detailed dimensions with strip width and thickness range.
Do you supply replacement rolls?
Yes, rolls and bearing units for these cassettes are produced in the same shop.
What do you need to quote?
Cassette drawing or sample, strip width and thickness, scale condition, product grades and quantity.
