EHWHA Pin Plate Holder
Pin plate holder matched to EHWHA frames, the part that carries the plate on the chain.
View Details
Pin Plates
Bruckner Stenter Chain With Pin Plate Section

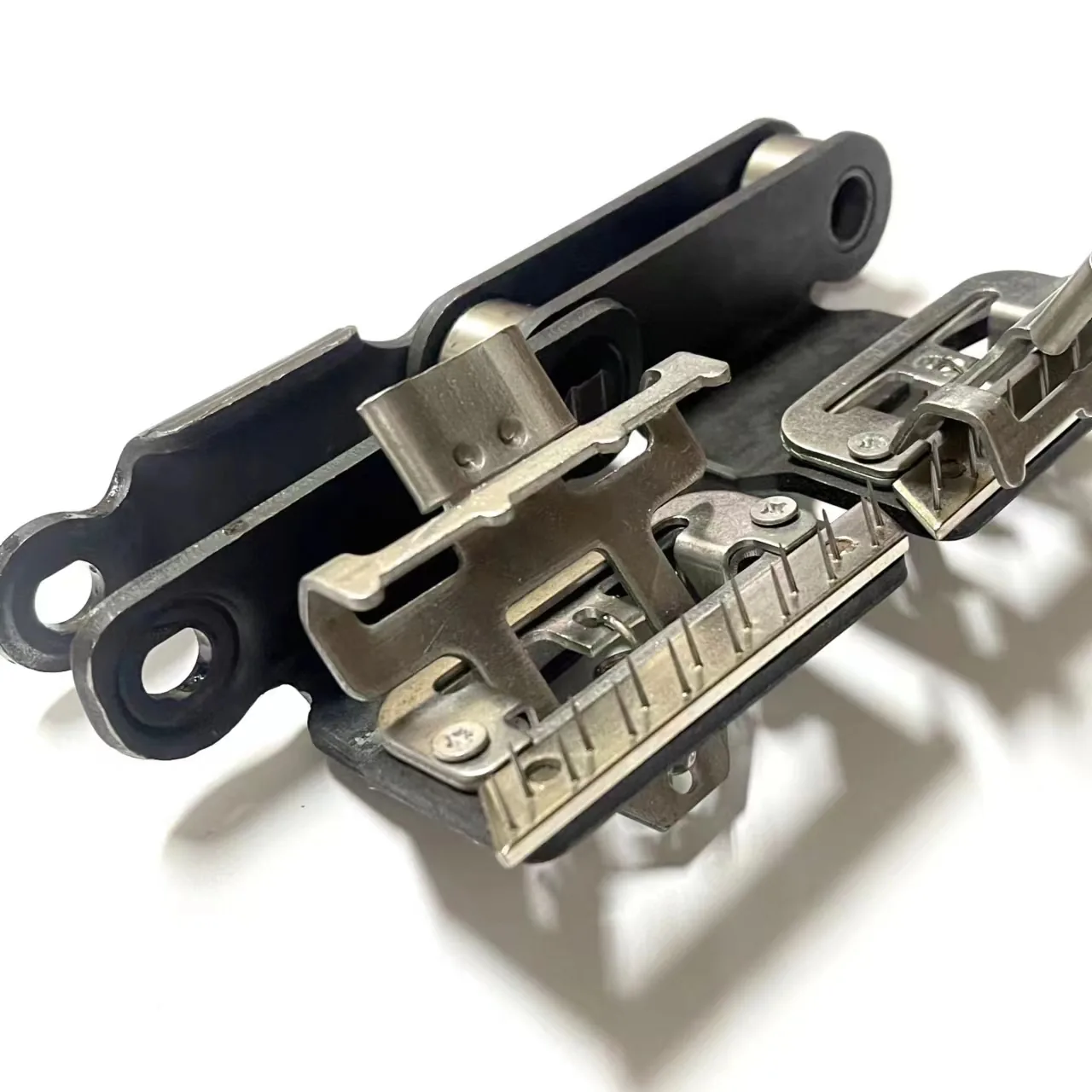

Complete Bruckner chain section with pin plates and holders already mounted.
Product Overview
This is a complete Bruckner chain section supplied with pin plates and holders already mounted on it: the chain links, the holders bolted to them, and the plates seated in the holders.
It is the largest assembly we supply for a Bruckner bed. Mills use it when a whole section has to be replaced at once, typically after a serious jam or at the end of a chain's service life, and it removes almost all of the on-machine assembly work.
Key Benefits
- Chain, holders and pin plates supplied as one fitted section
- Almost no on-machine assembly, so the shutdown is much shorter
- Everything in the section is new, so there is no mixing of new and worn parts
- Pin height continuity checked across the whole section before despatch
Who It Is For
- Bruckner users planning a major chain-side overhaul
- Plants with limited maintenance labour available during shutdowns
- Engineers who want a known, uniform starting condition for the bed
Problems It Solves
- Days of on-machine assembly during a shutdown
- Pin height stepping where new parts meet worn ones
- Chain elongation limiting speed even after the pin bed is renewed
Application Scenarios
- Bruckner chain reaching the end of its service life
- Serious jam damage taking out chain, holders and plates together
- Planned full section renewal during an annual shutdown
Technical Features
- Bruckner chain with holders and pin plates mounted
- Standard 5 mm two-row pin bed at 3 to 4 pins per cm
- Supplied by the section to your specified length
- Chain components in black finish, plates silver and yellow
Specifications
| Machine | Bruckner stenter |
|---|---|
| Supplied as | chain section with holders and pin plates fitted |
| Pin length | approx 5 mm |
| Pin density | approx 3-4 pins/cm in two rows |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Pin height measured across the whole assembled section
- Chain pitch checked link by link before the holders are fitted
- Section run over a test radius to confirm it articulates freely
Customisation Options
- Section length built to your order
- Pin density specified for the article
- Supplied with PEEK bushes and dust covers where the chain specification calls for them
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against buying chain, holders and plates separately, this costs more but removes the assembly labour and guarantees a uniform section. Against replacing only the plates, it addresses chain elongation, which is the limit that plate replacement alone cannot fix.
Use Guide
Measure existing chain elongation before deciding scope; elongation is what makes a full section the right answer
Specify section length carefully, because the section is built to it
Check the guide rail condition while the chain is out
Grease according to the machine schedule before running
Clean the guide and chain at least once a year afterwards, using a high temperature grease
FAQ
Questions About Bruckner Stenter Chain With Pin Plate Section
How long a section can you supply?
We build to your specified length. Tell us the run you are replacing and we quote the section.
Does it come with PEEK bushes?
It can. Where the chain specification calls for PEEK bushes and dust covers we fit them, which extends chain life and makes the chain run more smoothly on the track.
Do I need to replace the whole chain?
Only if elongation has reached the point where the pin bed cannot be kept in register. If the chain still gauges good, plates and holders alone may be enough.
What maintenance does the new chain need?
Clean the guide and chain at least once a year and add a high temperature grease. Brands such as DuPont, Miller and Kluber are used for this.
Lead time for a full section?
Quoted at order, because the section is built to your length rather than held in stock.
Can you supply the guide rail too?
Yes, guide rail is part of our range and is worth checking while the chain is out.
