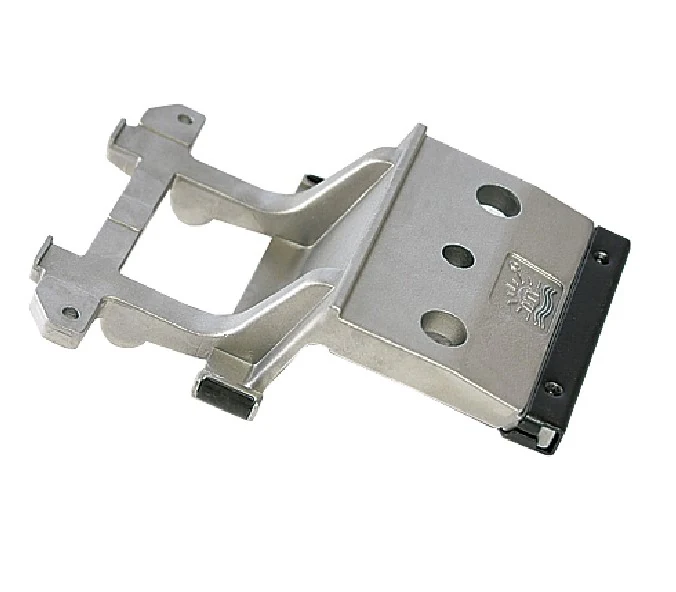

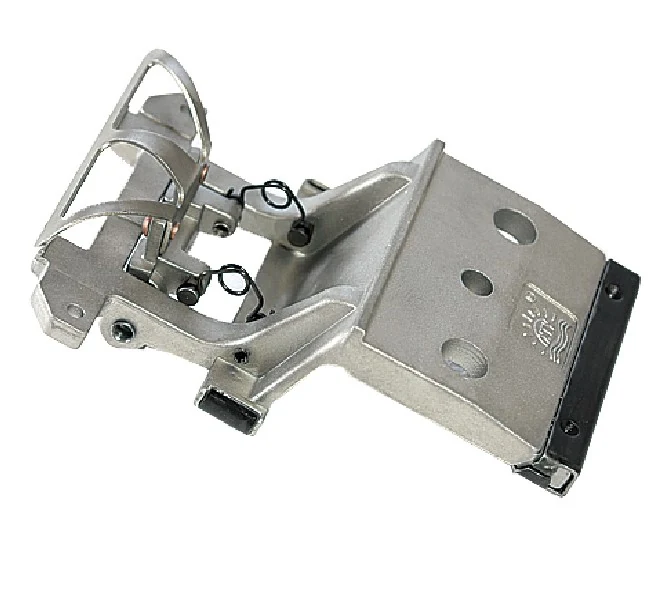

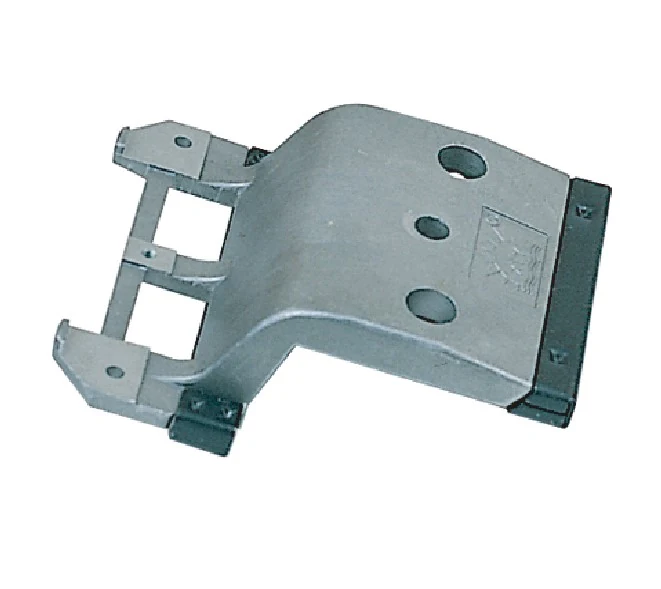

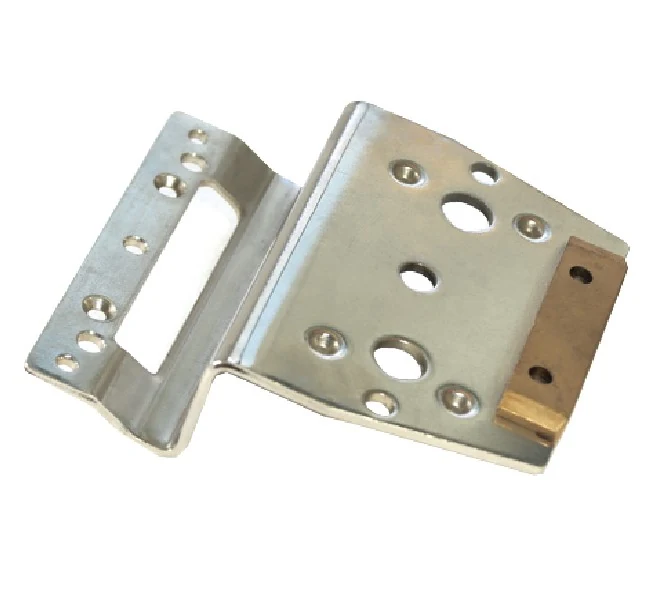

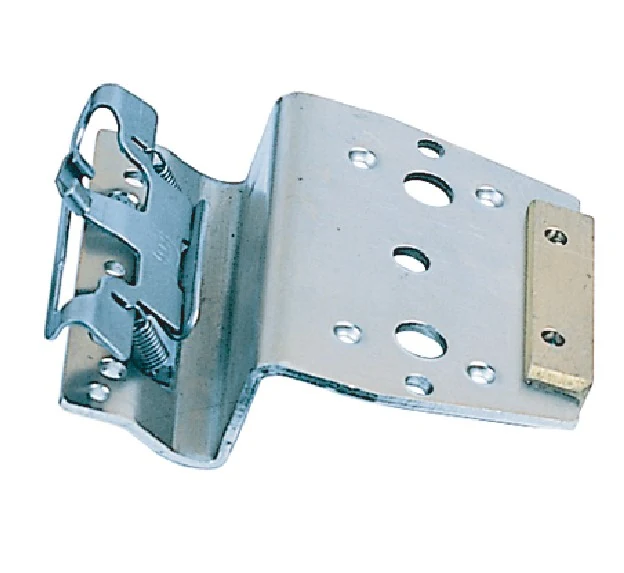

LK Pin Plate Holder For Stenter Chains
Chain-mounted holder that carries the pin plate on LK stenter frames.
Product Overview
This is the chain-mounted pin plate holder for LK stenter frames. The holder is what the pin plate seats into, and it is bolted to the chain, so it takes the working load every time the press wheel drives the cloth onto the pins.
Because it is a load path rather than a contact surface, the holder wears more slowly than the plate but it does wear. Once the seat has opened, every new plate fitted into it will start rocking and bending pins, which is why the two parts are best renewed together.
Key Benefits
- Restores the seat that a new pin plate needs to sit flat
- Mounted to the chain in the standard arrangement
- Part of our complete LK chain-side range including rail, chain and plates
- Made to sample where your holder differs from our reference
Who It Is For
- LK stenter users renewing the pin bed properly rather than repeatedly
- Engineers who have diagnosed plate failure as a seat problem
- Maintenance stores building an LK chain-side spares kit
Problems It Solves
- Short pin plate life caused by worn holder seats
- Chain-side parts for LK frames being hard to source
- Holder and plate wear being addressed in separate shutdowns
Application Scenarios
- LK frames where new plates keep failing early
- Complete chain-side rebuild on an LK stenter
- Bed sections that have taken jam damage through the holder as well as the plate
Technical Features
- Seat matched to LK pin plates
- Bolts to the chain in the standard arrangement
- Metal construction, silver finish
- Approximate weight 0.6 kg
Specifications
| Machine | LK stenter |
|---|---|
| Function | carries the pin plate on the chain |
| Material | metal |
| Weight | approx 0.6 kg |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat gauged against the matching LK pin plate
- Chain bolt hole position checked on every unit
- Trial assembly with plate and chain link before batch release
Customisation Options
- Reproduced from your sample holder
- Hold size made to your dimension; 76 mm is our standard LK size
- Quoted with LK chain, rail and pin plates as one package
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against replacing plates alone, renewing the holder costs more but is the fix rather than the patch. Against a complete chain replacement, holders alone are the right scope when the chain links themselves are still within tolerance.
Use Guide
Gauge existing seats with a new plate before ordering
Renew holders and plates as a set within each section
Check chain link elongation while the holders are off
Torque the chain bolts to the machine specification
Confirm every plate seats flat before running the line
FAQ
Questions About LK Pin Plate Holder For Stenter Chains
What hold size do you supply for LK?
76 mm is our standard LK hold size. If yours differs, send the part and we make to match.
Should I change holders or just plates?
Change plates if the seats gauge good. Change both if new plates rock, because a worn seat destroys a new plate quickly.
Do you supply LK chain as well?
Yes, LK chain, chain parts, guide rail, pin plates, brush wheels and high temperature chain oil are all in our range.
Can you copy our holder?
Yes. Send a sample; reverse engineering is routine work for us.
Minimum order?
No fixed minimum. Section quantities are normal.
Delivery time?
Within 7 days for standard items.
