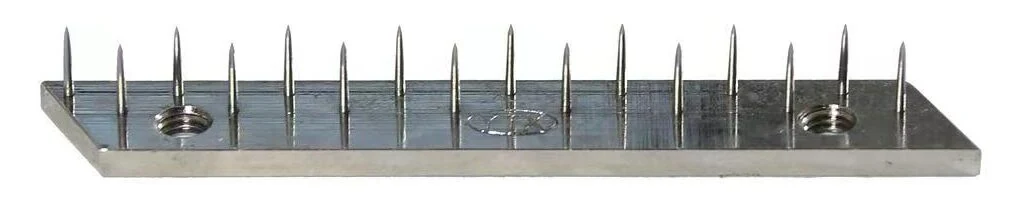

Bruckner Stenter Pin Plate Assembly
Pin plate supplied assembled with its Bruckner holder, ready to fit to the chain.
Product Overview
This is the Bruckner pin plate supplied already assembled into its holder, so the seat pairing is done in our factory rather than on the machine. The assembly bolts straight onto the chain.
Mills order this way when a bed section has taken jam damage through both parts, or when they want to avoid the mixing of new plates with old seats that shortens plate life.
Key Benefits
- Plate and holder paired and checked before it leaves the factory
- Bolts straight to the chain, so the shutdown is shorter
- Removes the risk of fitting a new plate onto a worn seat
- Matched to Bruckner chain geometry
Who It Is For
- Bruckner users planning a complete bed section renewal
- Maintenance teams working to a tight shutdown window
- Engineers who have had repeated early plate failures
Problems It Solves
- New plates destroyed by worn holder seats within weeks
- Assembly time on the machine extending a planned stop
- Plate and holder wear being tracked as separate items
Application Scenarios
- Bruckner bed sections damaged through both plate and holder
- Short shutdown windows where on-machine assembly time matters
- Full chain-side renewal on a Bruckner frame
Technical Features
- Pin plate and holder supplied as a matched assembly
- Bruckner chain mounting
- Standard 5 mm two-row pin bed at 3 to 4 pins per cm
- Black chain-side finish with silver and yellow plate
Specifications
| Machine | Bruckner stenter |
|---|---|
| Supplied as | pin plate assembled into holder |
| Pin length | approx 5 mm |
| Pin density | approx 3-4 pins/cm in two rows |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Plate seating checked in its own holder before packing
- Pin height measured on the assembled unit
- Chain mounting interface gauged on every assembly
Customisation Options
- Built to your Bruckner generation from a sample assembly
- Pin density adjusted for the article
- Supplied loose as separate plates and holders if preferred
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Buying plate and holder separately is cheaper and lets you replace only what has worn. Buying them assembled costs more but removes on-machine fitting time and guarantees the seat pairing, which matters most when the shutdown window is short.
Use Guide
Count the assemblies you need per section before ordering
Check chain link condition while the section is open
Torque the chain fixings to the machine specification
Verify pin height continuity across assembly joints
Keep one spare assembly on the shelf for jam damage
FAQ
Questions About Bruckner Stenter Pin Plate Assembly
Can I buy the plate and holder separately?
Yes. We supply both as loose items as well. The assembly is for shutdowns where fitting time is the constraint.
Which Bruckner frames does it fit?
We hold more than one Bruckner profile. Send a sample assembly or a plate and we confirm which you need.
Does the assembly come pre-torqued?
The plate is seated in the holder. The chain fixings are torqued on the machine to your specification.
What pin specification is used?
The standard arrangement, two rows of about 5 mm pins at three to four per centimetre.
Minimum order?
No fixed minimum. Section quantities are normal.
Lead time?
Within 7 days for standard profiles.
