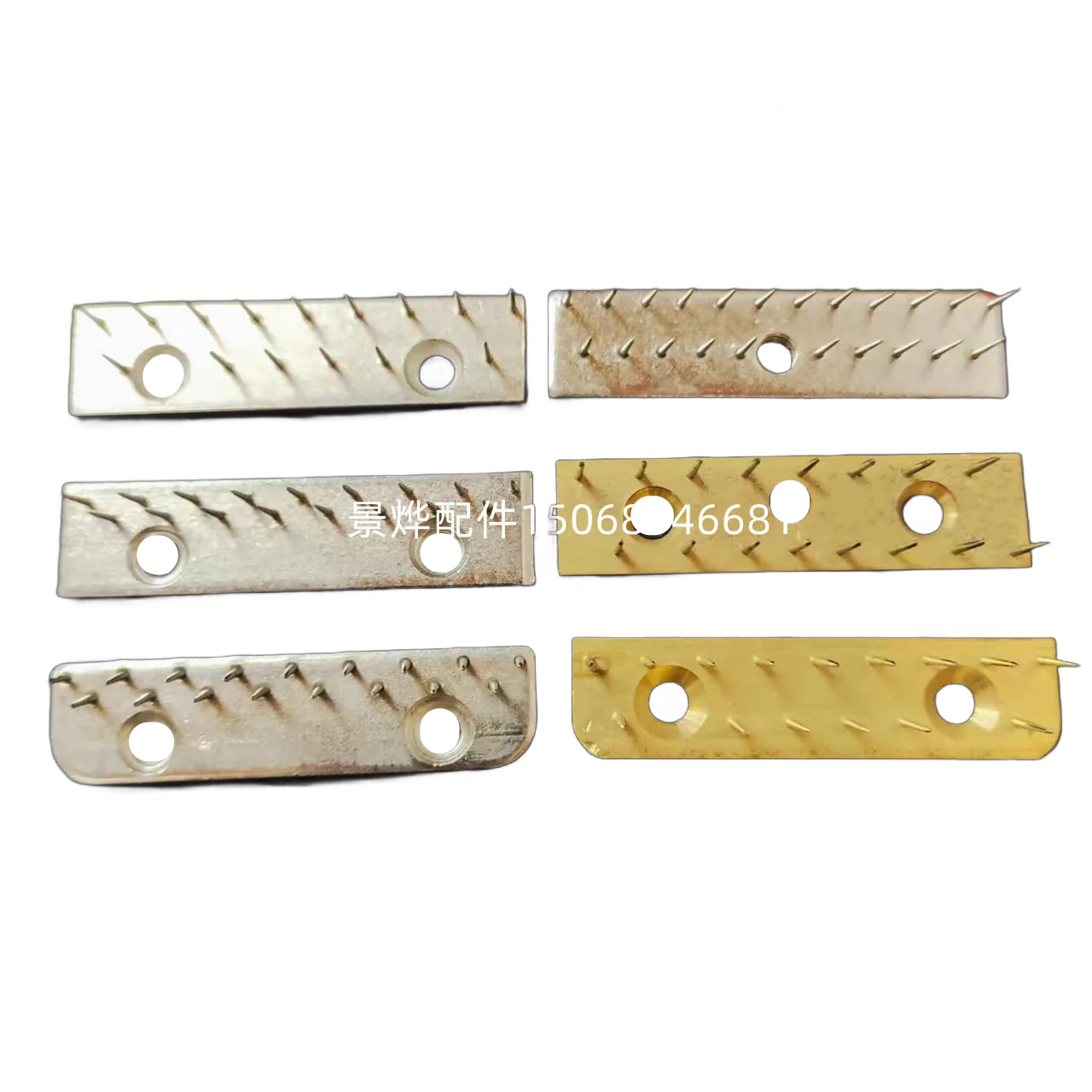

Pin Plate 642 Small Size
The small-size 642 pin plate for narrow beds and tight pin positions.
Product Overview
The 642 is the small-size plate in our standing pin plate range. It carries the same pin arrangement as the larger plates, two rows at three to four pins per centimetre with pins around 5 mm long, but on a shorter base.
A shorter plate follows the chain around a curve more closely, which matters where the pin bed has to negotiate a tighter radius or where the holder pitch is short.
Key Benefits
- Short base follows a tighter chain radius without the plate ends lifting
- Same standard 5 mm two-row pin bed at 3 to 4 pins per cm
- Held as a running size for fast despatch
- Pins thickened at the base to keep cloth off the hot base plate
Who It Is For
- Mills whose frames take the short plate size
- Maintenance stores holding both long and short plates for one machine
- Engineers dealing with a bed section that has never sat quite right
Problems It Solves
- Long plates lifting at the ends where the chain turns
- Pin line breaking up at the curve because plate length exceeds the radius
- Holder pitch too short for the standard plate
Application Scenarios
- Frames with a short holder pitch where long plates will not sit
- Narrow beds and tighter chain radii
- Sections of a bed where a shorter plate gives a cleaner pin line
Technical Features
- Small size 642 base
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Thickened pin bases
- Silver and yellow finish
Specifications
| Size | 642, small size |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Finish | silver and yellow |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Base length gauged against the recorded 642 reference
- Pin height measured across the shorter plate
- Seat flatness verified so the plate does not rock
Customisation Options
- Shorter or longer base cut from your sample
- Pin density varied within the same base
- Mixed length orders where a bed uses two plate sizes
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the larger 707 and 708 sizes, the 642 gives up some pin count per plate but follows a tighter radius. Where the chain path is straight and the holder pitch allows it, the larger sizes mean fewer joints in the pin line.
Use Guide
Confirm holder pitch before ordering; the plate has to match it, not the bed width
Check the pin line across the joints after fitting, particularly at curves
Renew a full section so joint spacing stays even
Watch for end lift at the curve, which indicates a plate still too long
Record the size against the machine so reorders are simple
FAQ
Questions About Pin Plate 642 Small Size
When would I choose the small plate?
Where the holder pitch is short or the chain has to follow a tighter radius. A long plate in that position lifts at the ends and breaks the pin line.
Is the pin work the same as the larger plates?
Yes. Two rows of about 5 mm pins at three to four per centimetre.
Can one bed use two plate sizes?
It can, where the geometry genuinely calls for it. Tell us which positions take which and we supply a mixed order.
How do I measure what I need?
Measure the holder pitch and send us a sample plate. Those two together settle it.
Delivery time?
Held sizes within 7 days.
Minimum order?
No fixed minimum; a trial section is normal.
Related Products
Other Parts In This Family
Bruckner Stenter Chain With Pin Plate Section
Complete Bruckner chain section with pin plates and holders already mounted.
View Details
Bruckner Stenter Pin Plate Assembly
Pin plate supplied assembled with its Bruckner holder, ready to fit to the chain.
View Details
Pin Plate For Artos Stenters
Artos profile pin plate with the standard two-row 5 mm pin bed.
View DetailsRelated Reading
Guides That Cover This Part
What Is a Stenter Machine and How Does It Work
The stenter heat-sets and dries fabric by stretching it to width and holding it there under controlled heat.
Key Parts of a Stenter Machine
Entry section, clip or pin chains, rails, heating chambers, exhaust, blowers, temperature control, width adjustment and weft straightener.
Pin Stenter or Clip Stenter Which To Use
Clips leave no pin marks and suit thicker fabrics; pins hold more tension and run faster, to 100 m per minute.
Send A Sample And We Will Match The Profile
Seat profiles and geometry changed across frame generations, so the part itself is more reliable than a model number. We identify it and quote the matching specification.
