Pin Plate For Artos Stenters
Artos profile pin plate with the standard two-row 5 mm pin bed.
Product Overview

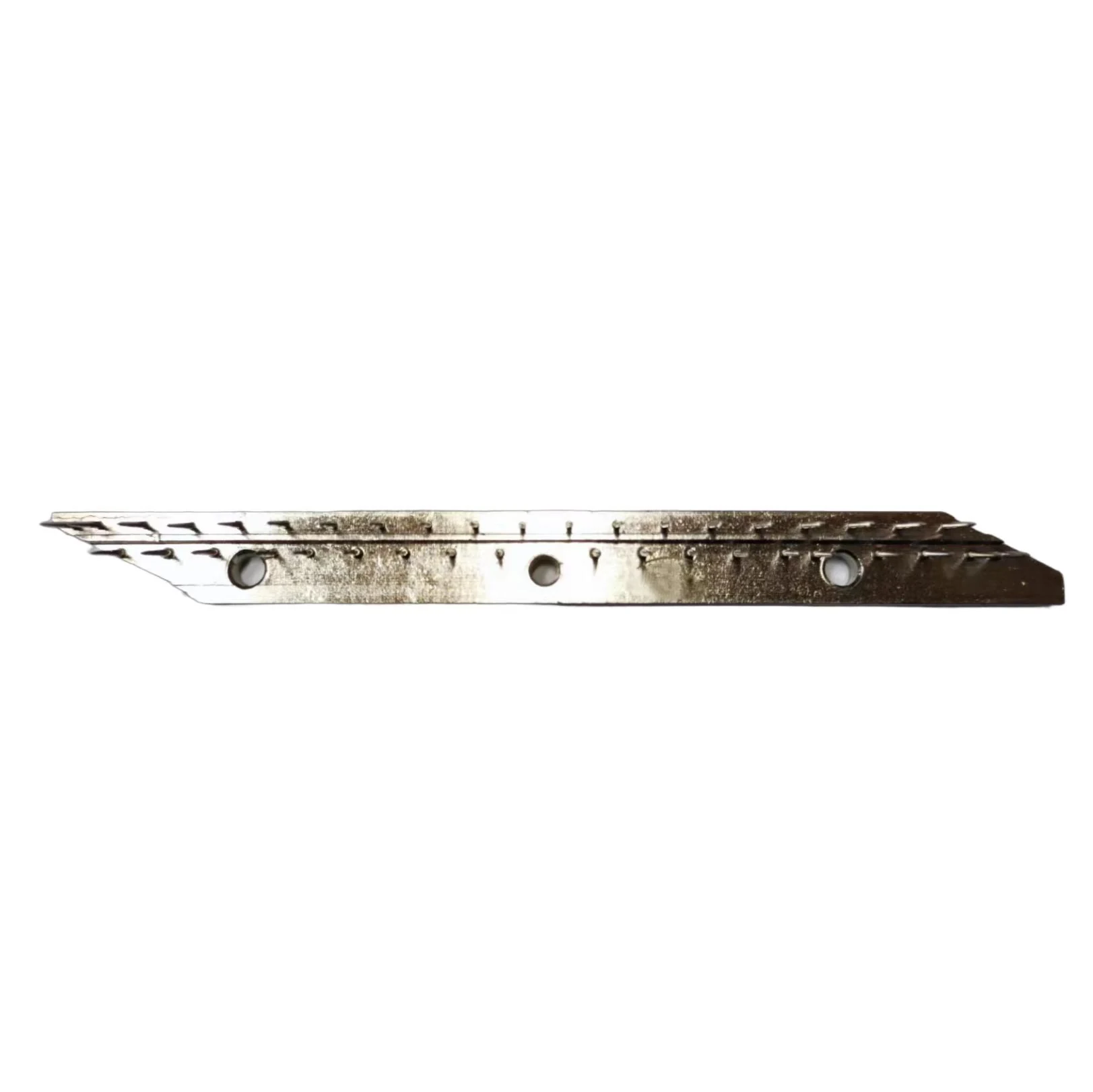

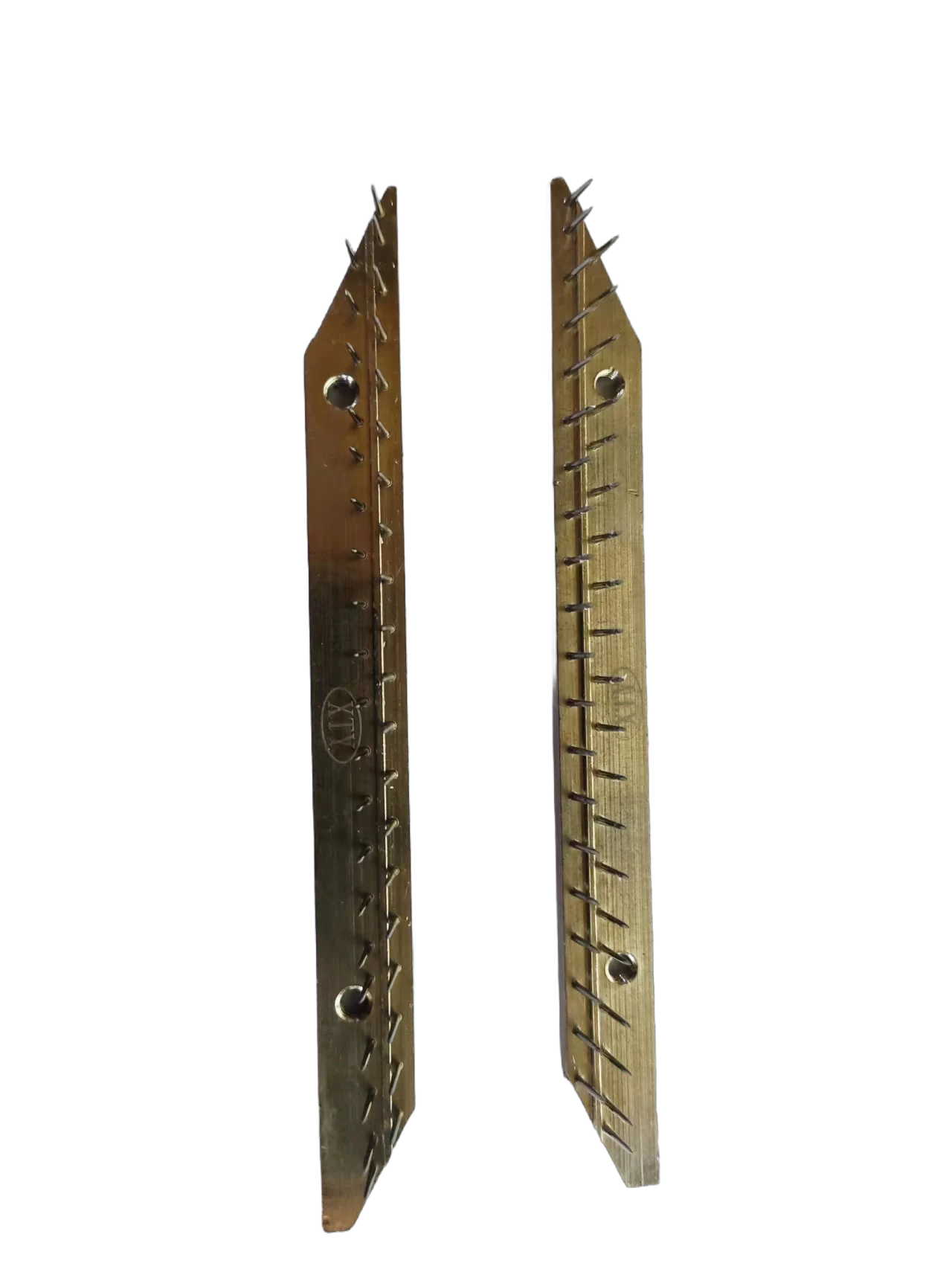

A pin plate cut to the Artos base profile. Artos stenter machines are used across cotton, polyester, nylon and other textiles that need precise treatment, and the pin bed is what holds the cloth while the frame stretches, dries and heat sets it.
The pin work follows the common arrangement: two rows, pins about 5 mm long at three to four per centimetre, thickened near the base so the cloth never rests on the hot base plate. Pinning is what lets the frame carry higher fabric tension and run up to 100 m/min.
Key Benefits
- Seat profile matched to the Artos pin plate holder
- Standard 5 mm pins in two rows at 3 to 4 pins per cm
- Supports the higher tension and speed that pin stentering allows
- Supplied with matching Artos chains, clips, sliders and bushes
Who It Is For
- Artos users sourcing pin plates as a repeat consumable
- Mills running Artos frames alongside Monforts or Bruckner and wanting one supplier
- Maintenance engineers renewing the pin bed and the chain together
Problems It Solves
- Long lead times on Artos wear parts through original channels
- Cloth releasing from the pins at speed and causing width variation
- Pin bed and chain being maintained on different schedules so neither stays right
Application Scenarios
- Artos frames finishing cotton, polyester and nylon qualities
- Pin bed renewal after bent or broken pin damage
- Artos lines being brought back into service after a period idle
Technical Features
- Artos seat profile
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Pins thickened at the base to prevent fabric touching the hot base plate
- Silver and yellow finish
Specifications
| Machine | Artos stenter |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Finish | silver and yellow |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat gauged against the Artos holder reference
- Pin height measured along the plate
- Trial fit before the batch is released
Customisation Options
- Cut from your sample plate
- Pin density adjusted for the article range
- Quoted with Artos chains, peek sliders, peek bushes and clips
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Artos plates differ from Monforts and Bruckner plates at the seat, not in the pin work. If you run more than one brand, the plates are not interchangeable even though they look similar, which is why we mark them by machine.
Use Guide
Send one Artos plate as a sample before the first order
Check holder seats for wear during the changeover
Fit by section and confirm pin height continuity
Reset the press wheel after renewal
Keep a spare section on the shelf for the machine
FAQ
Questions About Pin Plate For Artos Stenters
Do Artos and Monforts plates interchange?
No. They look similar but the seat differs. Keep them separated in the store and mark them by machine.
What else do you supply for Artos frames?
Artos chains with copper or PEEK sliders, PEEK bushes, clips, pin holders and brush wheels sized 205 by 145.
Can you match a plate we can no longer identify?
Yes. Send the worn plate and we reproduce it. Model numbers are less reliable than the part itself.
What fabrics do Artos frames handle?
Cotton, polyester, nylon and other textiles that need precise treatment. The pin specification follows the article as much as the machine.
Minimum order?
No fixed minimum. Trial sections are normal.
Delivery time?
Within 7 days for stock profiles.
