Pin Plates
Pin Plate For IL SUNG Stenters

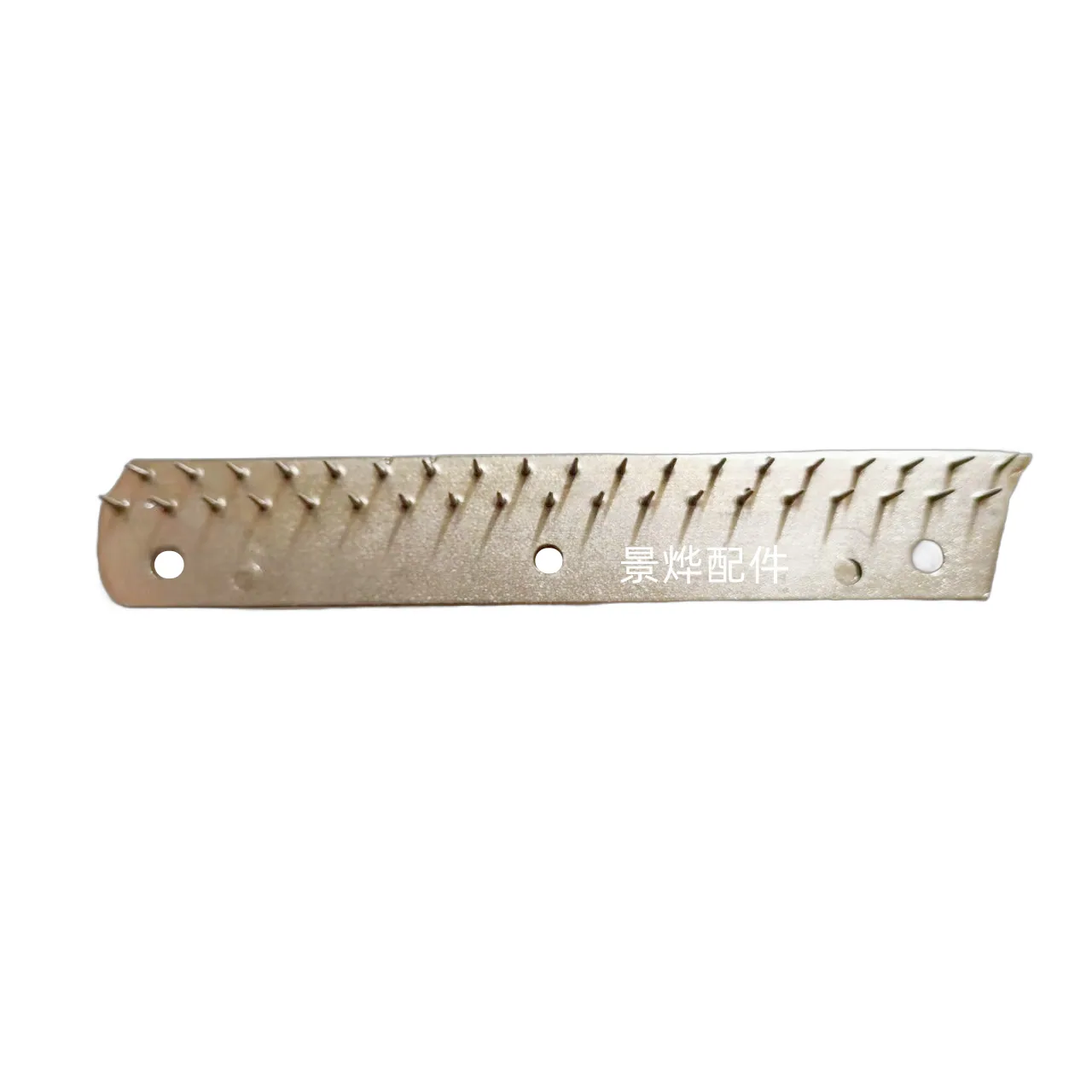

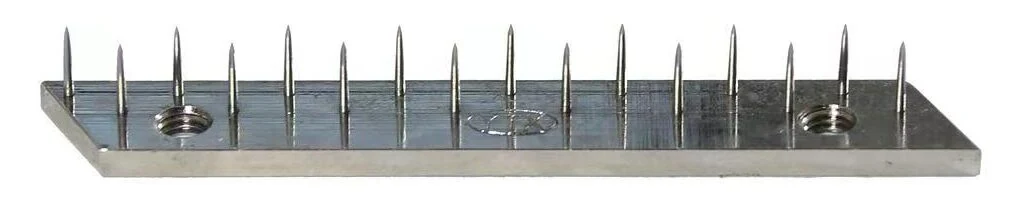

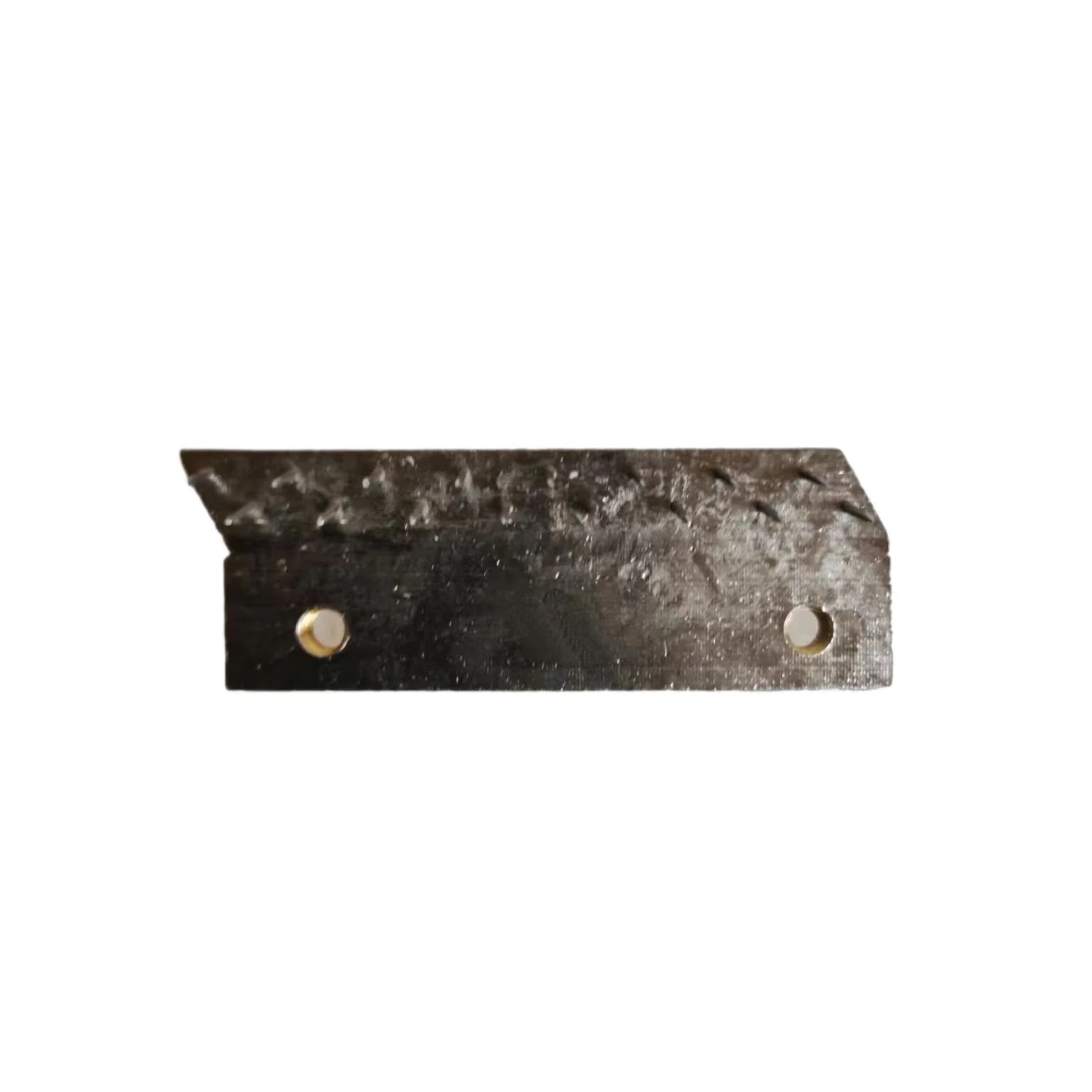

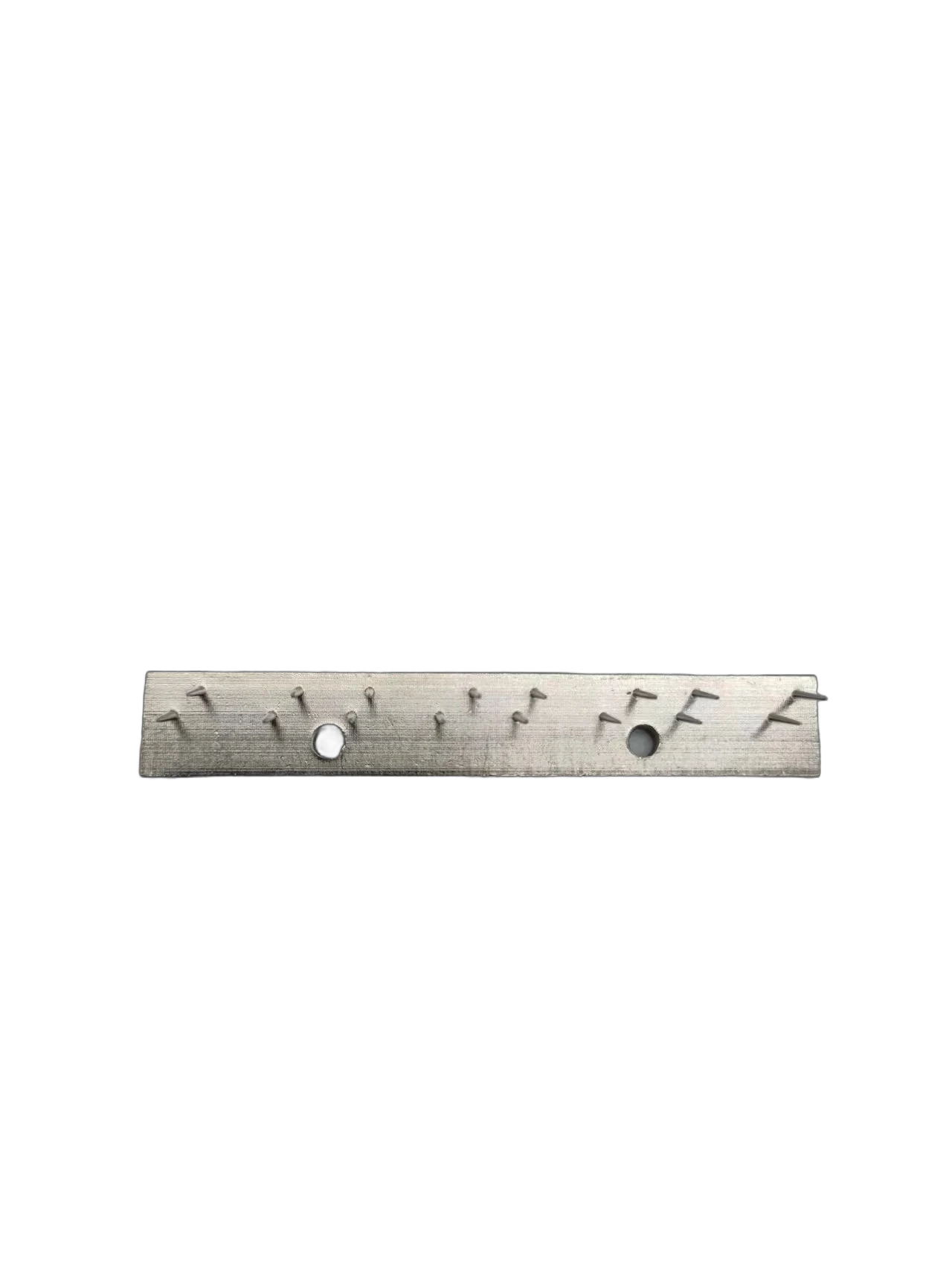

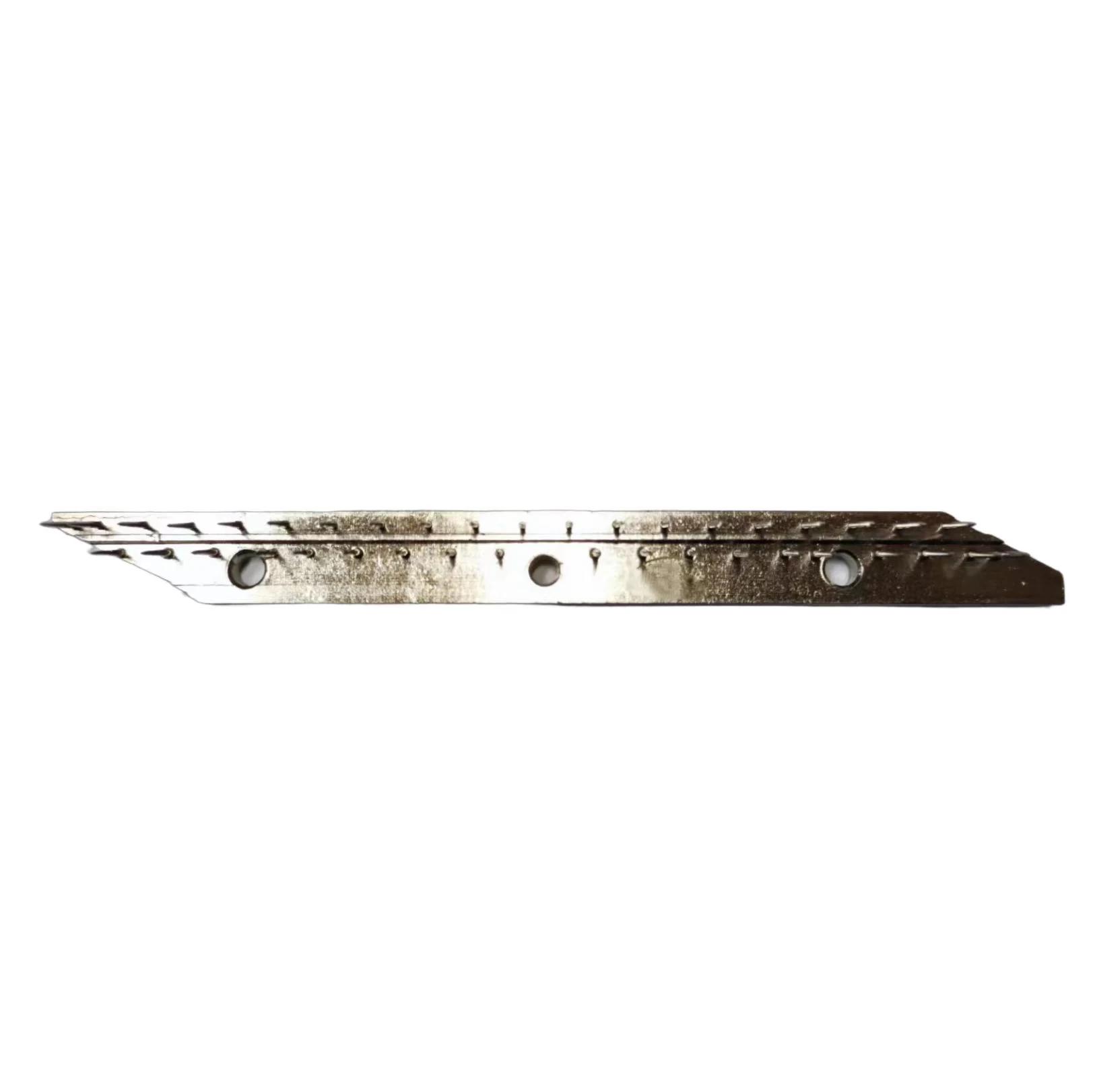

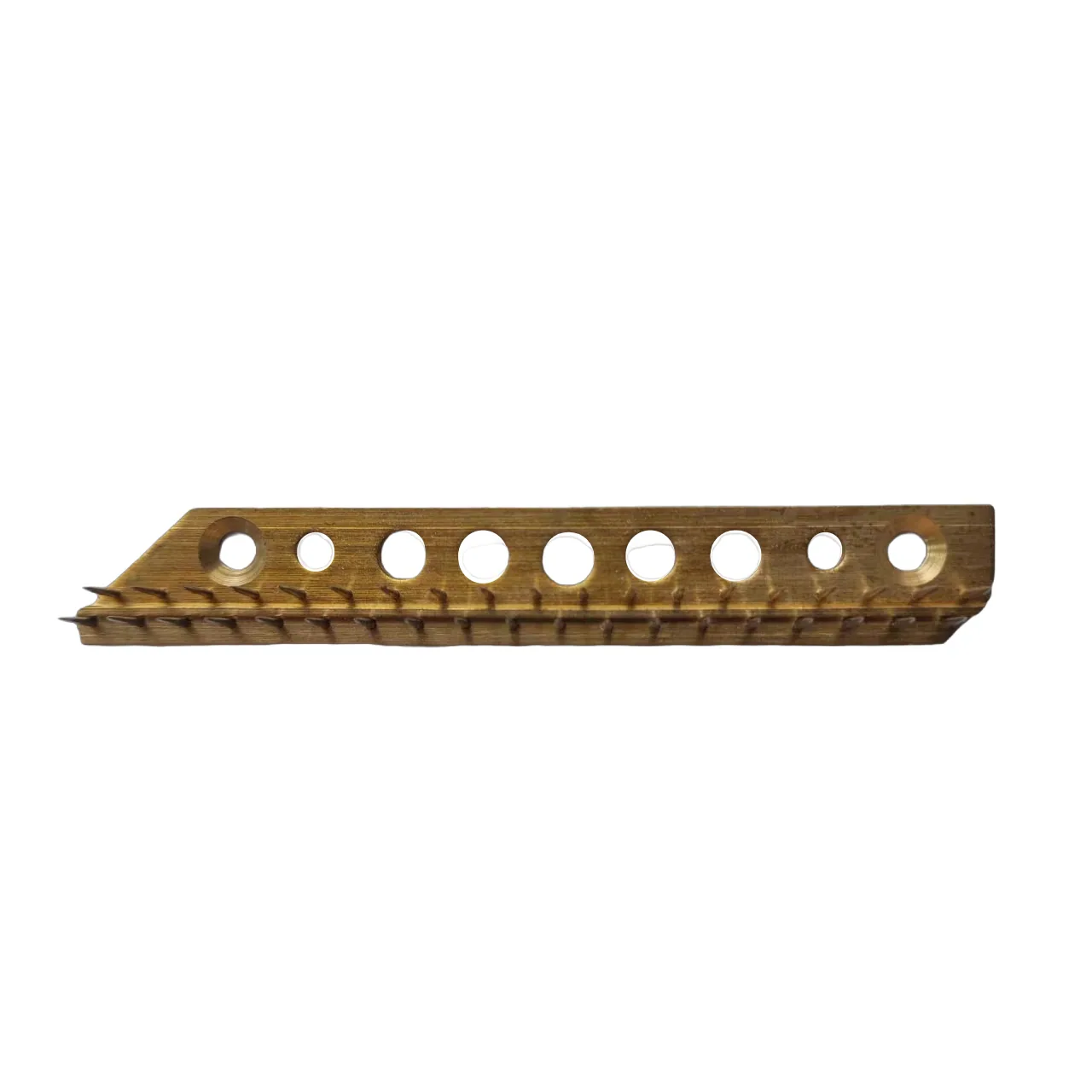

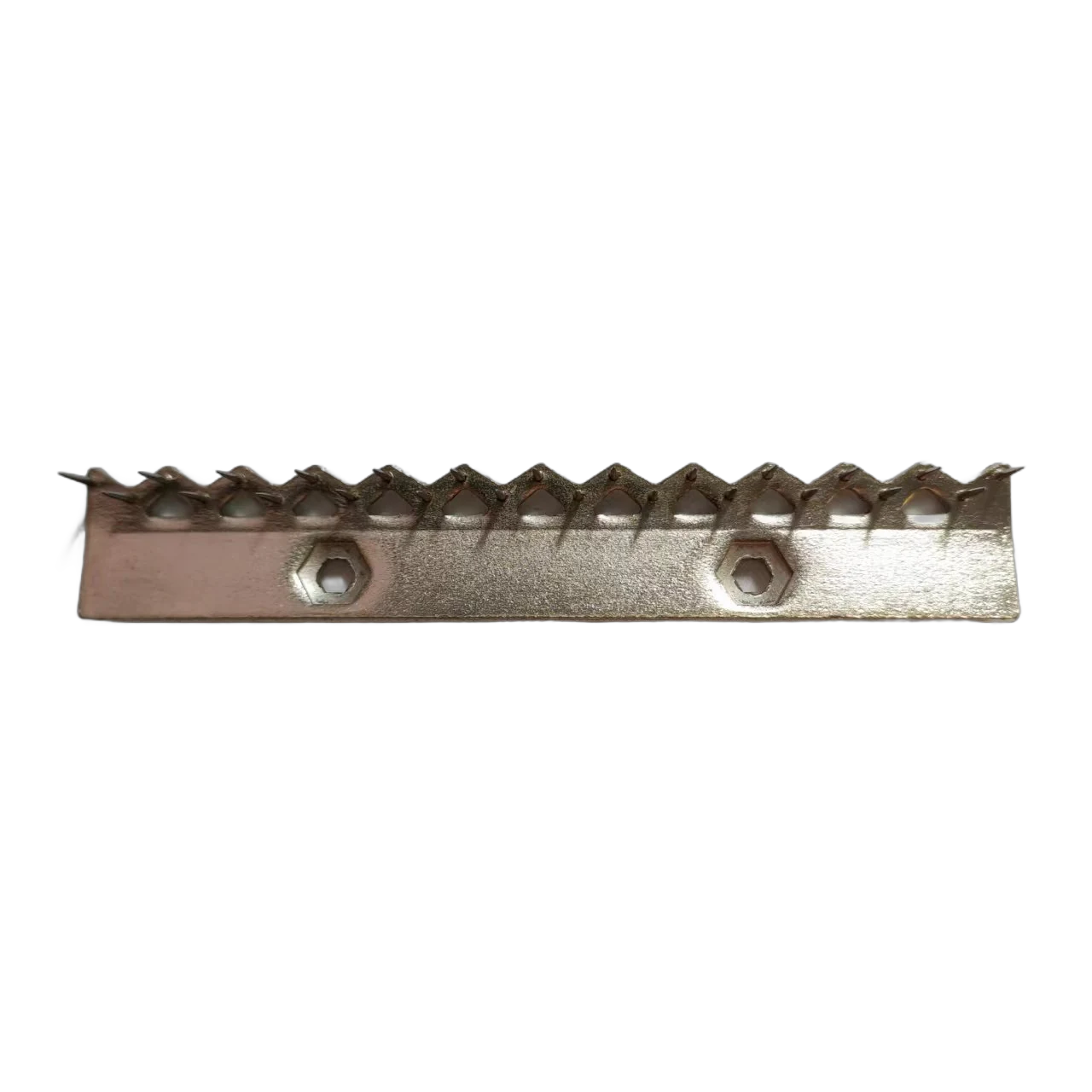

IL SUNG profile pin plate for the Korean-built frames, supplied with matching PEEK nuts.
Product Overview

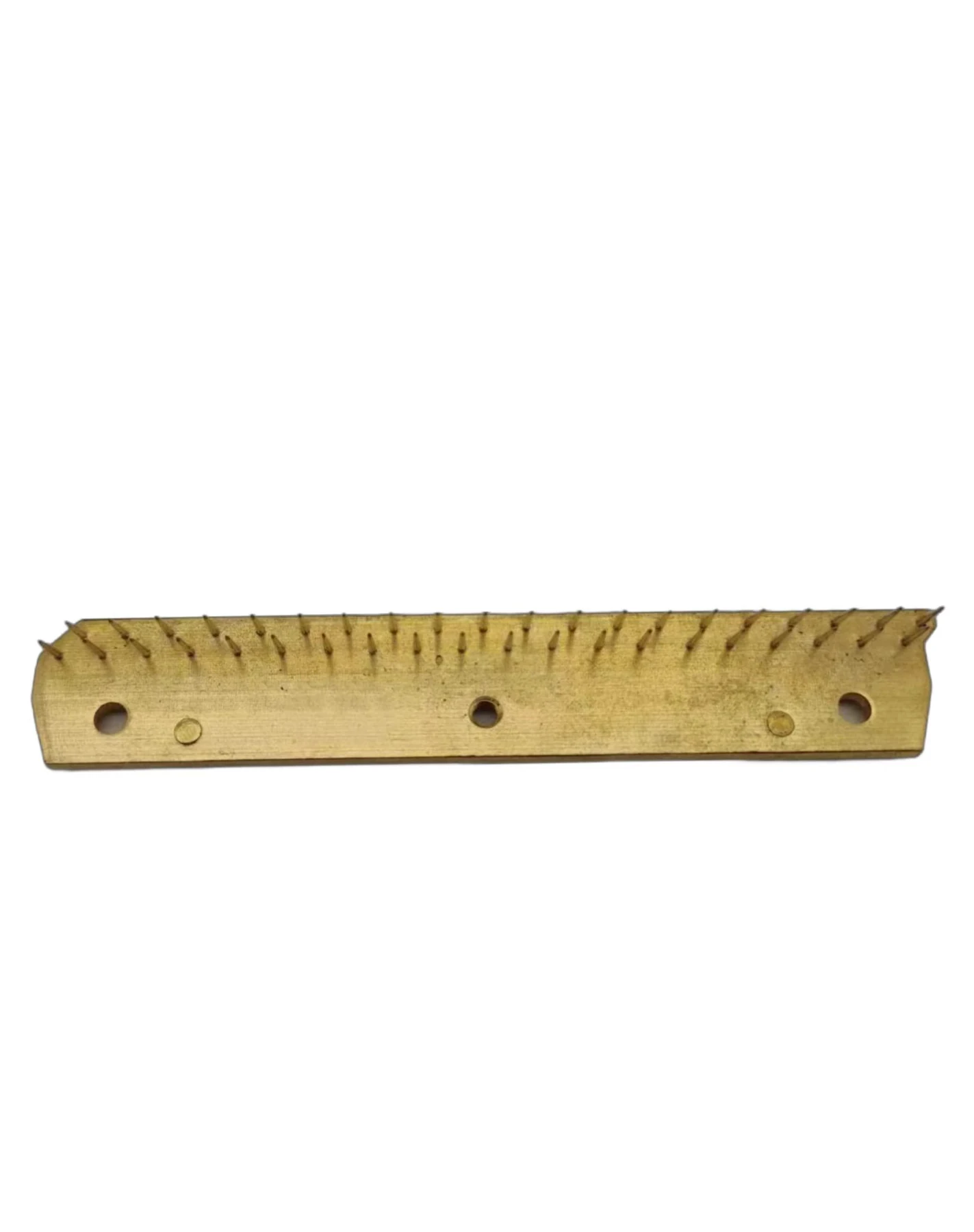

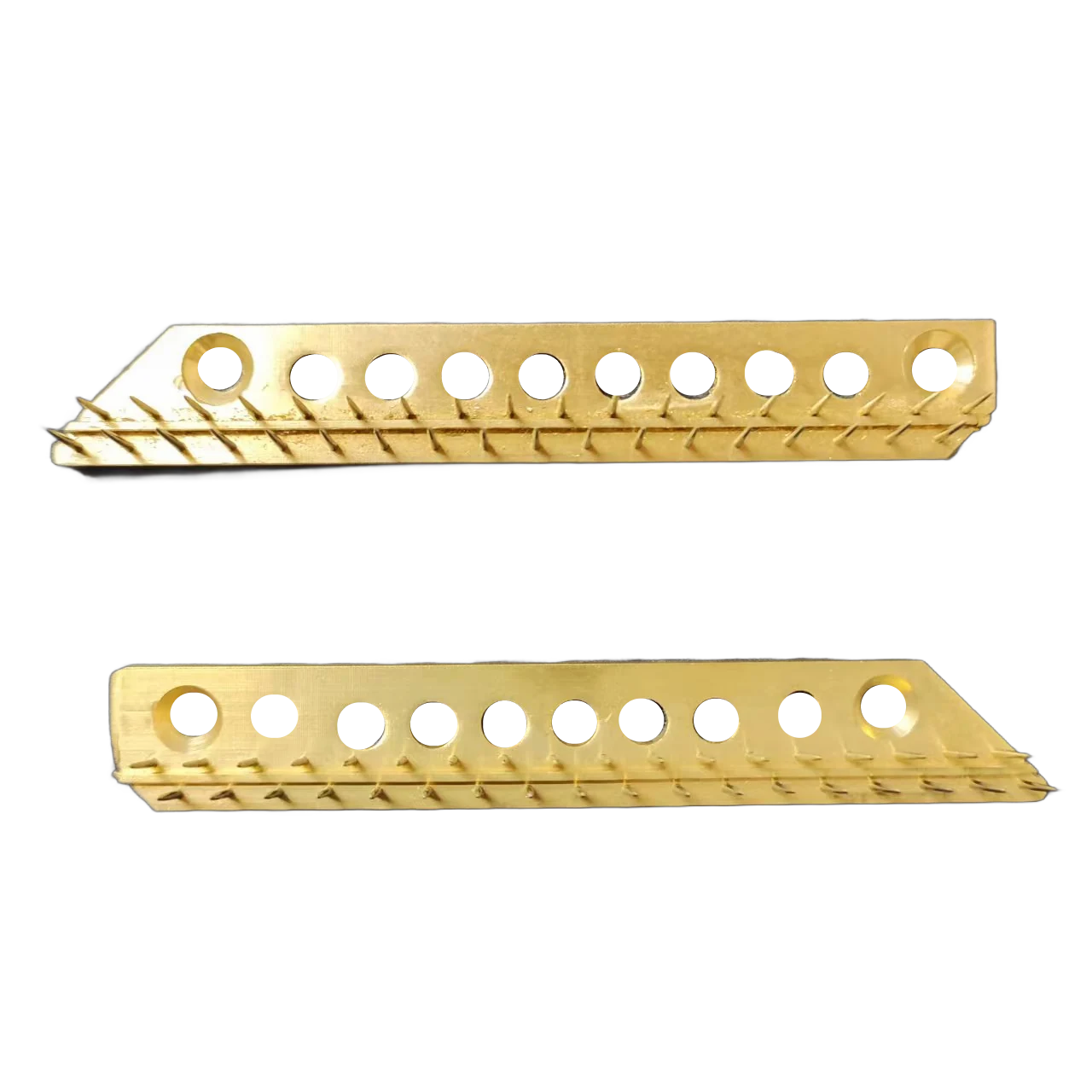

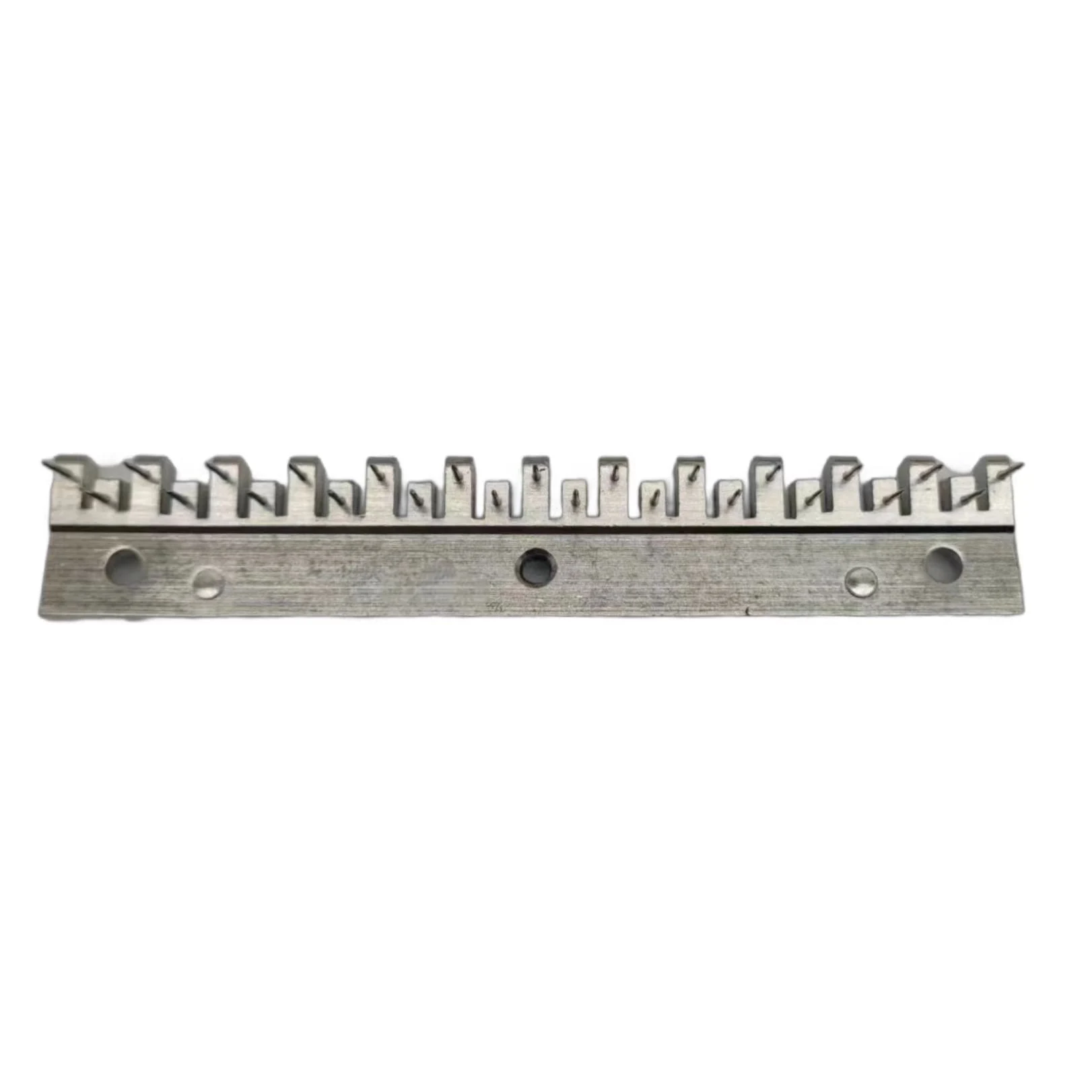

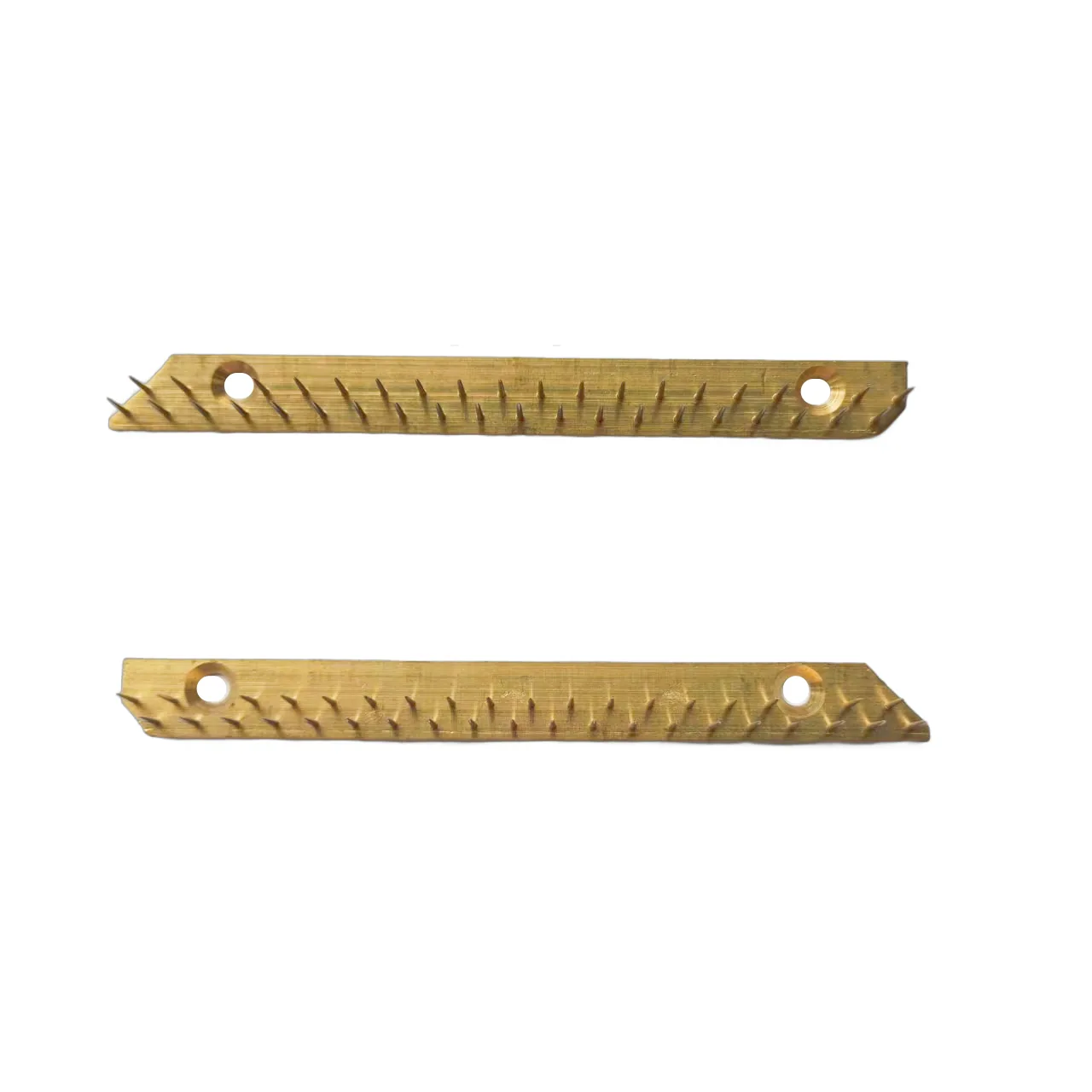

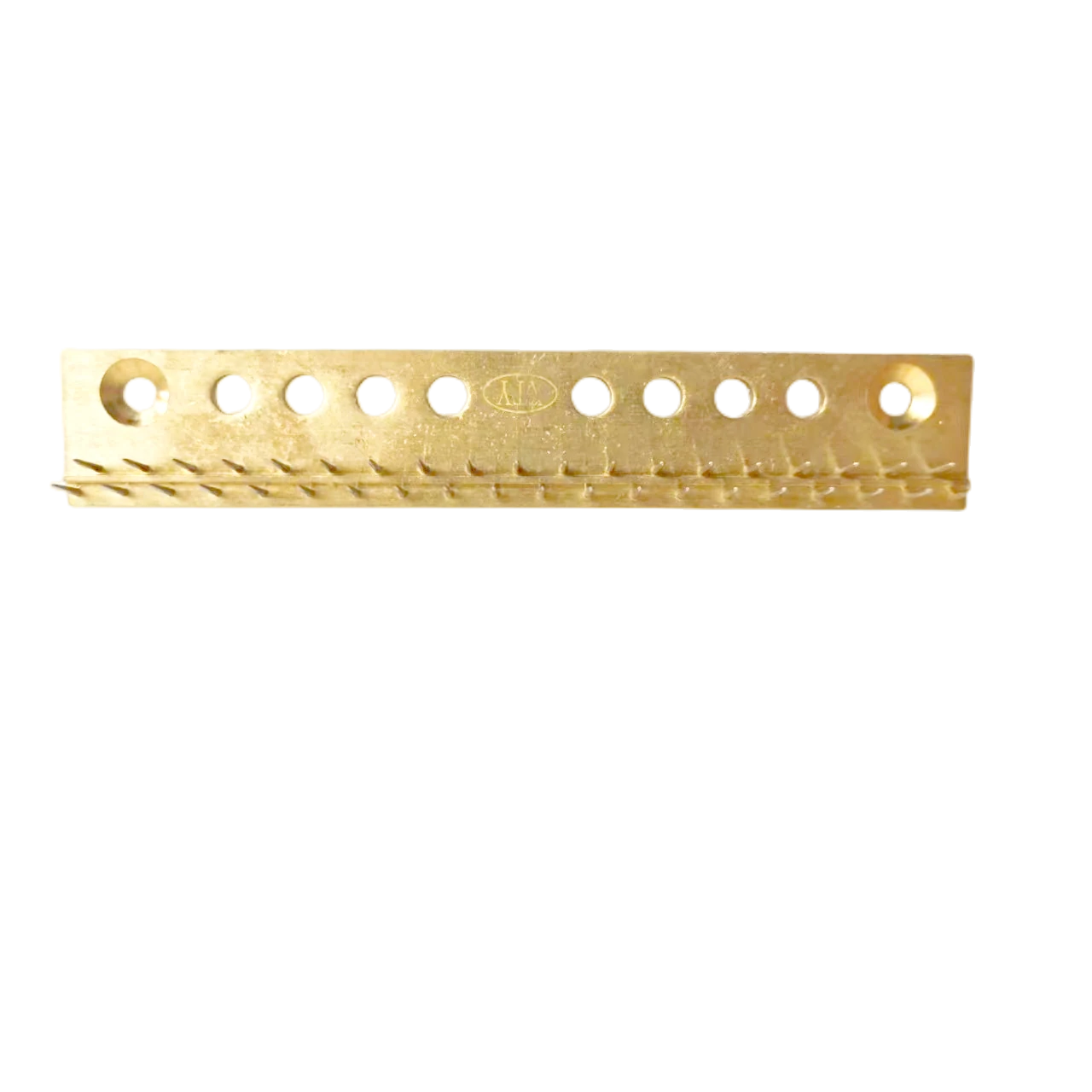

A pin plate cut to the IL SUNG base profile. IL SUNG is a South Korean stenter brand, and we hold its chain-side wear parts including pin plates and the PEEK nuts used on the guide rod.
The pin bed is the standard two-row arrangement, pins around 5 mm long at three to four per centimetre, thickened at the base so the fabric never rests on the hot base plate. That grip is what allows higher fabric tension and faster running.
Key Benefits
- Seat profile matched to IL SUNG holders
- Standard 5 mm two-row pin bed at 3 to 4 pins per cm
- Supplied alongside IL SUNG PEEK nuts for the widening gear
- Available without going through Korean original equipment channels
Who It Is For
- IL SUNG stenter users needing chain-side wear parts
- Mills with a mixed fleet who want one supplier across brands
- Engineers overhauling an IL SUNG frame end to end
Problems It Solves
- IL SUNG wear parts being slow or expensive to source
- Pin bed and widening gear being maintained on separate schedules
- Cloth releasing from a tired pin bed at speed
Application Scenarios
- IL SUNG frames renewing a pin bed section
- Plants running Korean and European frames side by side
- IL SUNG lines where the widening gear and pin bed are being serviced together
Technical Features
- IL SUNG seat profile
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Thickened pin bases for heat separation
- Silver and yellow finish
Specifications
| Machine | IL SUNG stenter |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Finish | silver and yellow |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat gauged against the IL SUNG reference
- Pin height checked along the plate
- Trial fit before batch release
Customisation Options
- Cut to your sample plate
- Pin density adjusted for the article range
- Quoted with IL SUNG PEEK nuts and other chain-side parts
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
IL SUNG plates do not interchange with the German or Taiwanese profiles. Where a plant runs IL SUNG alongside Monforts, keeping the two spares clearly separated in the store saves more time than any price comparison.
Use Guide
Send an IL SUNG plate as a sample before the first order
Check the holder seats during the changeover
Renew by section to keep pin height continuous
Service the PEEK nuts on the guide rod at the same shutdown
Reset press wheel pressure after the bed is renewed
More Images
Additional Views
