EHWHA Pin Plate Holder
Pin plate holder matched to EHWHA frames, the part that carries the plate on the chain.
View Details
Pin Plates

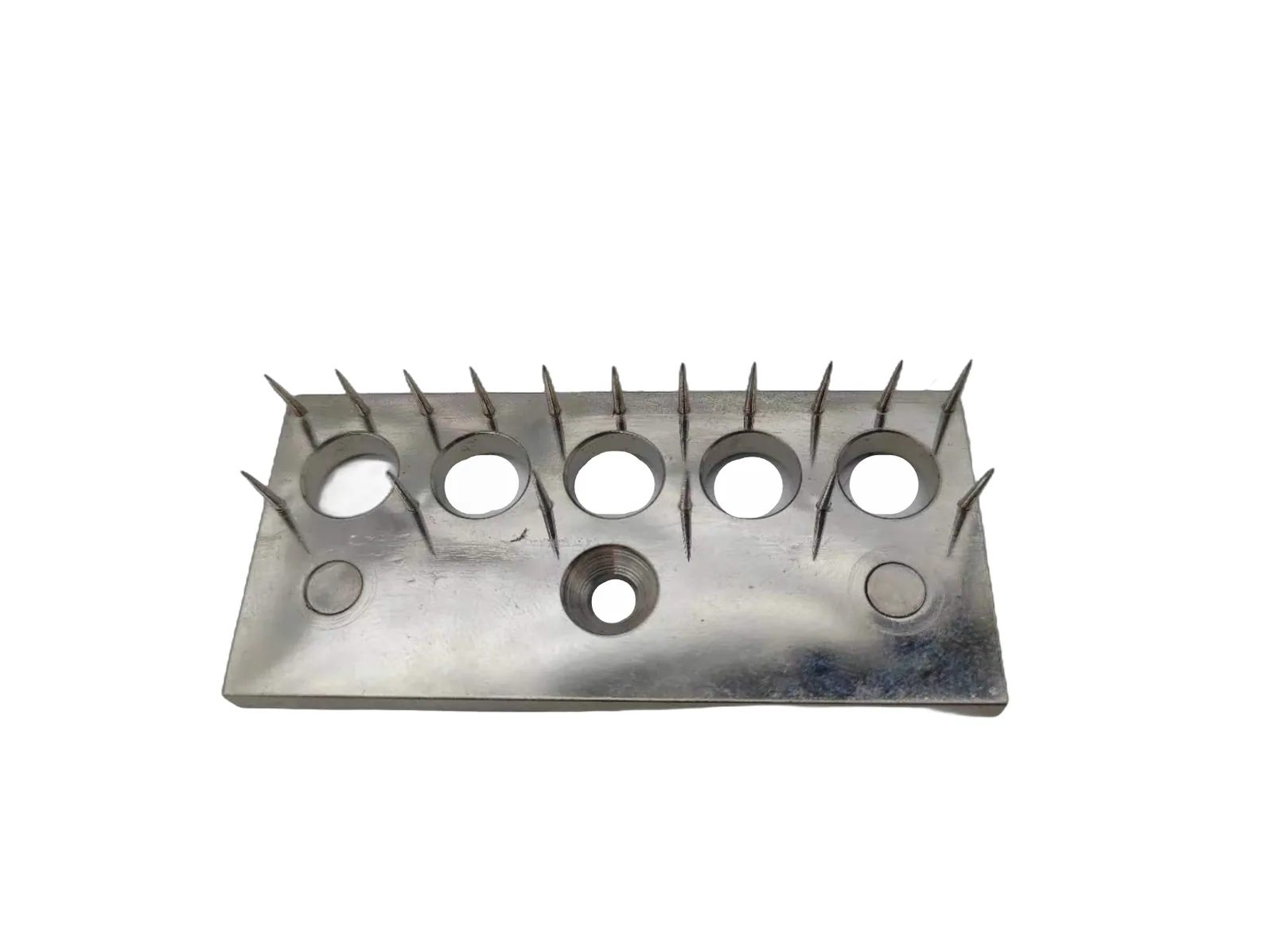

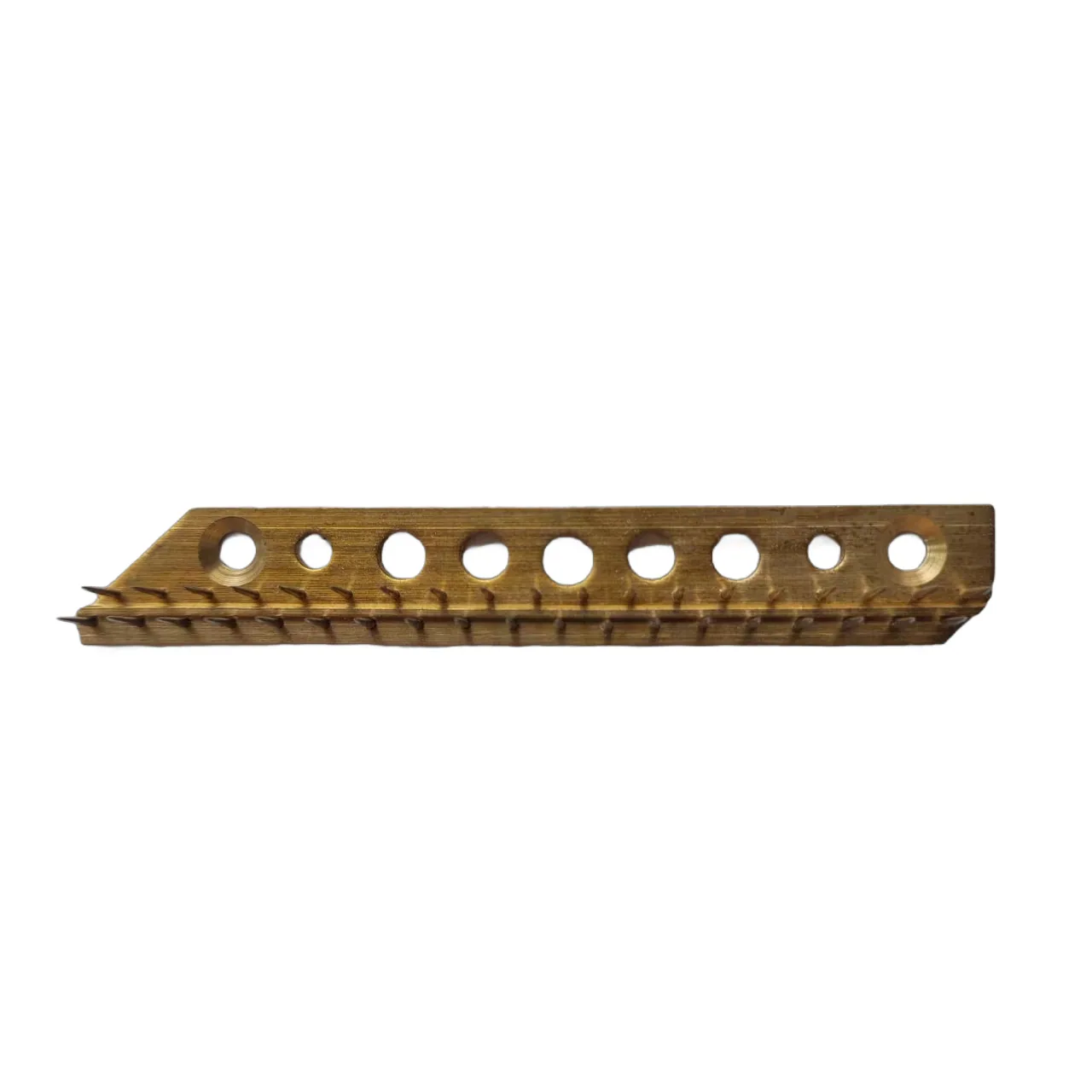

Pin Plate For LK Stenters
LK profile pin plate, part of our full LK spare parts range including rail, chain and holders.
Product Overview
A pin plate cut to the LK base profile. LK stenter frames are built in Taiwan and are common across Asian finishing plants, and we carry the full chain-side range for them: guide rail, chain, pin plate holders, pin plates and brush wheels.
The pin bed follows the standard arrangement of two rows at three to four pins per centimetre with pins around 5 mm long. The pins thicken toward the base so the cloth stays clear of the hot base plate, and the grip is what allows the higher tension that takes fabric speed to 100 m/min.
Key Benefits
- Seat profile matched to the LK pin plate holder, including the 76 mm hold size
- Standard 5 mm two-row pin bed at 3 to 4 pins per cm
- Part of a complete LK range, so rail, chain, holder and plate come from one source
- Supports fabric speeds up to 100 m per minute
Who It Is For
- LK stenter users across Asian finishing plants
- Mills that run LK alongside European frames and want a single parts supplier
- Engineers planning a full LK chain-side overhaul
Problems It Solves
- LK spare parts being hard to source outside Taiwan
- Pin bed and holder wearing together but being replaced separately
- Loss of fabric tension and speed from a tired pin bed
Application Scenarios
- LK frames renewing a pin bed section
- Plants converting an LK rail to a Monforts rail and renewing the pin side at the same time
- LK lines being overhauled after long service
Technical Features
- LK seat profile, matched to LK pin plate holders
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Thickened pin bases keep fabric off the hot base plate
- Silver and yellow finish
Specifications
| Machine | LK stenter |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Matching holder hold size | 76 mm |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat gauged against the LK holder reference
- Pin height measured along the full plate length
- Trial fit to an LK holder before batch release
Customisation Options
- Cut to your sample plate
- Matched to the 76 mm LK holder or to another hold size you supply
- Quoted together with LK guide rail, chain and chain oil
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
LK plates are not interchangeable with Monforts, Bruckner or Artos plates. If you are converting an LK rail to a Monforts rail, which we do, then the pin side needs planning as part of the same conversion rather than afterwards.
Use Guide
Confirm your holder hold size before ordering; ours is made to 76 mm as standard
Send a sample plate if you are unsure of the seat
Renew by section and check pin height continuity
Inspect guide rail condition at the same shutdown
Re-grease the chain after the bed work using a high temperature grease
More Images
Additional Views
FAQ
Questions About Pin Plate For LK Stenters
Do you carry the whole LK range?
Yes: guide rail, chain, chain parts, pin plate holders at 76 mm hold size, pin plates, brush wheels at 207 by 80 and 225 by 90, and high temperature chain oil.
Can you convert my LK rail to a Monforts rail?
Yes, rail guide conversion between brands is work we do, including LK rail to Monforts rail and Artos rail to Monforts rail.
What hold size are your LK holders?
76 mm. If yours differs, send the part and we make to match.
Are LK plates the same as Monforts plates?
No. The seat is different and they do not interchange.
Minimum order?
No fixed minimum. Trial sections are normal.
How quickly can you ship?
Within 7 days for stock items.
Related Products
Other Parts In This Family
Bruckner Stenter Chain With Pin Plate Section
Complete Bruckner chain section with pin plates and holders already mounted.
View Details
Bruckner Stenter Pin Plate Assembly
Pin plate supplied assembled with its Bruckner holder, ready to fit to the chain.
View Details
LK Pin Plate Holder 76 mm Hold Size
Specialised alloy holder with a 76 mm hold size, shaped to match LK stenter chains.
View DetailsRelated Reading
Guides That Cover This Part
What Is a Stenter Machine and How Does It Work
The stenter heat-sets and dries fabric by stretching it to width and holding it there under controlled heat.
Key Parts of a Stenter Machine
Entry section, clip or pin chains, rails, heating chambers, exhaust, blowers, temperature control, width adjustment and weft straightener.
Pin Stenter or Clip Stenter Which To Use
Clips leave no pin marks and suit thicker fabrics; pins hold more tension and run faster, to 100 m per minute.
Send A Sample And We Will Match The Profile
Seat profiles and geometry changed across frame generations, so the part itself is more reliable than a model number. We identify it and quote the matching specification.
