Pin Plate For LK Stenters
LK profile pin plate, part of our full LK spare parts range including rail, chain and holders.
View Details
Pin Plates

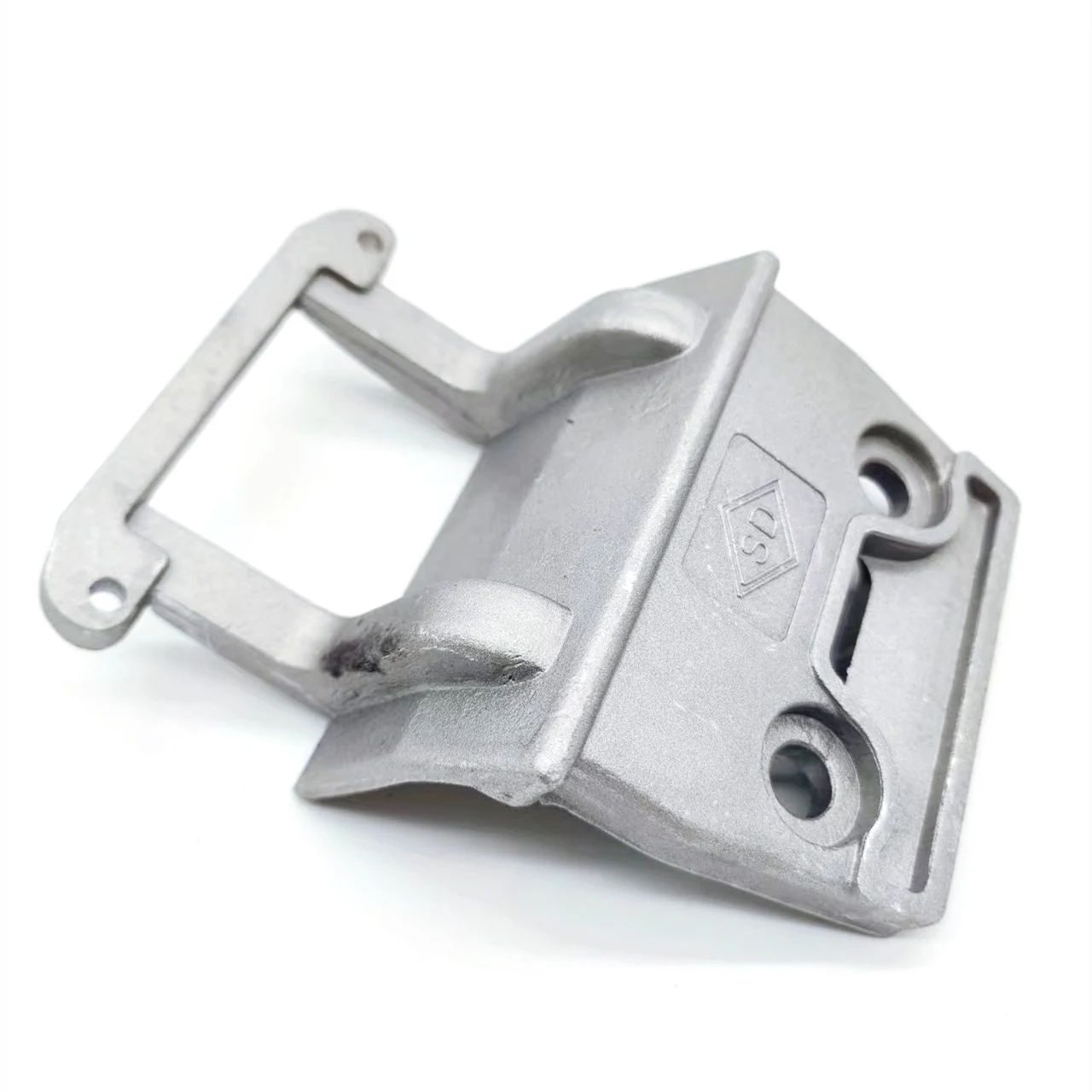

LK Pin Plate Holder 76 mm Hold Size
Specialised alloy holder with a 76 mm hold size, shaped to match LK stenter chains.
Product Overview
This LK pin plate holder is made from specialised alloys that can handle the high temperatures inside a stenter frame, with a shape matched to the LK stenter and a hold size of 76 mm.
The hold size is the dimension that decides whether a plate seats, so it is the first thing to confirm before ordering. Where a frame has been modified or the holders are not original, the size is best taken from the part rather than the machine documentation.
Key Benefits
- Specialised alloy that handles the high temperatures in a stenter frame
- Shape matched to the LK stenter
- 76 mm hold size, confirmed as a stated dimension rather than assumed
- Supplied with matching LK pin plates so the pair is renewed together
Who It Is For
- LK stenter users who know their hold size and want to reorder by specification
- Engineers rebuilding an LK chain assembly
- Maintenance stores standardising LK spares
Problems It Solves
- Holders softening or distorting under stenter chamber temperature
- Pin plates that do not seat because the hold size is wrong
- LK chain-side spares taking too long to source
Application Scenarios
- LK frames where the pin plate hold size is confirmed as 76 mm
- Chain-side renewal on LK machines in Asian finishing plants
- Sections damaged by a fabric jam that took holders as well as plates
Technical Features
- Material: specialised alloys able to handle high temperatures in the stenter frame
- Shape: matched to the LK stenter
- Hold size: 76 mm
- Silver finish
Specifications
| Machine | LK stenter |
|---|---|
| Material | specialised alloys for high temperature service |
| Shape | matched to the LK stenter |
| Hold size | 76 mm |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Hold size measured on every unit, not sampled
- Material specification checked on incoming alloy stock
- Trial fit with an LK pin plate before batch release
Customisation Options
- Hold sizes other than 76 mm made to your measurement
- Shape reproduced from your sample where the frame has been modified
- Supplied as a kit with LK pin plates and chain parts
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against a general-purpose holder, the alloy specification here is chosen for stenter chamber temperature rather than ambient service. Against ordering by machine model, ordering by measured hold size is the difference between a plate that seats and one that rocks.
Use Guide
Measure the hold size on your existing holder before ordering
Renew holders and plates together within each section
Torque chain fixings to the machine specification
Confirm every plate seats flat with no rock
Record the hold size against the machine number for future orders
FAQ
Questions About LK Pin Plate Holder 76 mm Hold Size
What is hold size and why does it matter?
It is the dimension that the pin plate seats into. If it is wrong the plate rocks under the press wheel and bends its own pins, so it is the figure to confirm before ordering.
What material are the holders?
Specialised alloys chosen to handle the high temperatures inside a stenter frame.
Can you make other hold sizes?
Yes. Measure your existing holder and tell us the dimension, or send the part.
Do you supply matching LK pin plates?
Yes, and it is worth ordering them together so plate and seat are renewed as a pair.
What else is in your LK range?
Guide rail, chain, chain parts, brush wheels at 207 by 80 and 225 by 90, and BESLUX high temperature chain oil.
Delivery?
Within 7 days for the 76 mm standard size.
