EHWHA Pin Plate Holder
Pin plate holder matched to EHWHA frames, the part that carries the plate on the chain.
View Details
Pin Plates

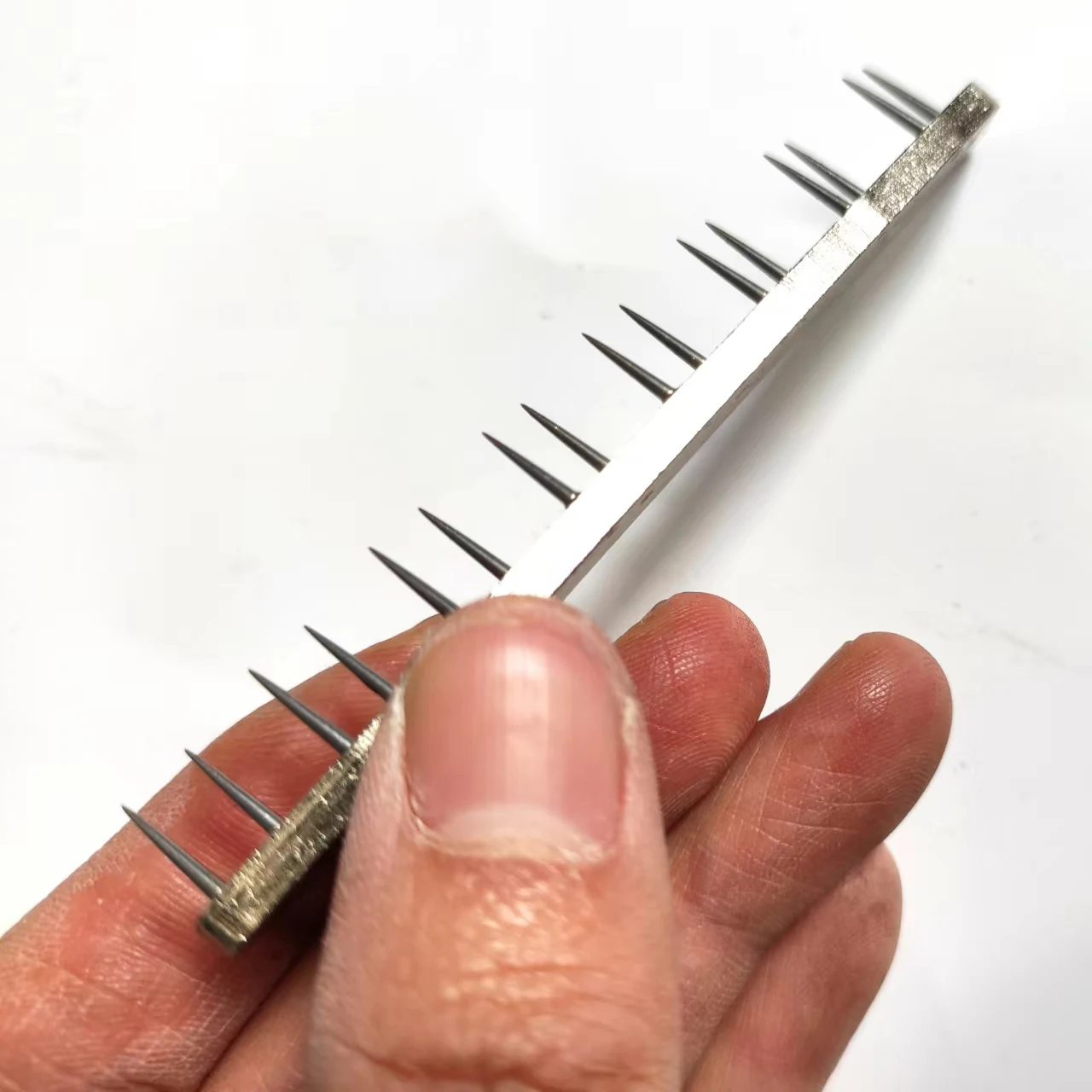

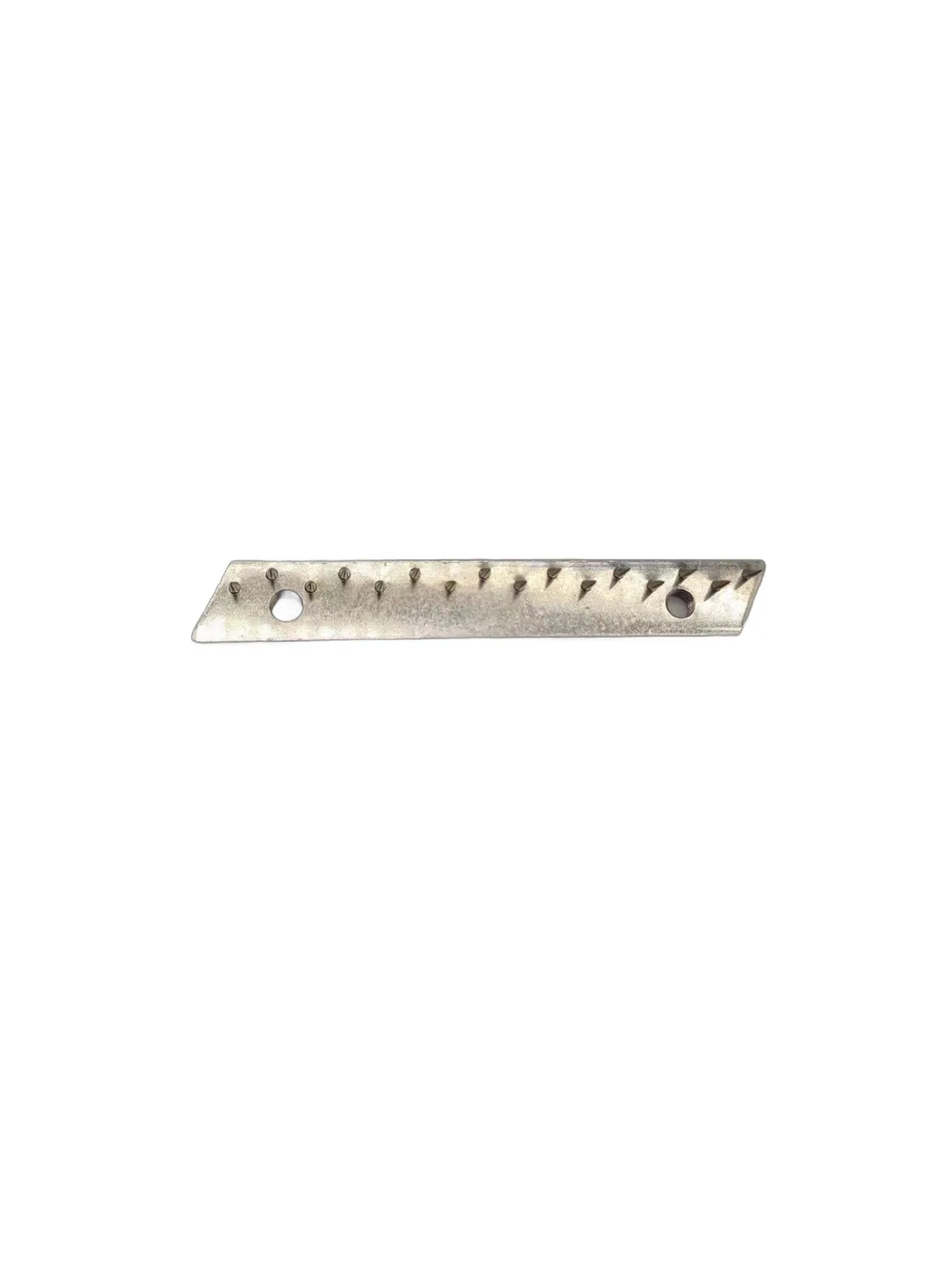

Pin Plate For Bruckner Stenters Type 2
The alternative Bruckner seat profile for frames the Type 1 plate does not fit.
Product Overview
The second Bruckner pin plate profile in our range. The pin work is unchanged from Type 1, with two rows of roughly 5 mm pins at three to four per centimetre and thickened pin bases keeping the cloth off the hot plate.
What differs is the seat. Holding both profiles means a Bruckner user does not have to find out at the shutdown that the plates ordered will not sit down on the holders.
Key Benefits
- Alternative Bruckner seat, covering frames the Type 1 profile does not fit
- Same standard pin arrangement, so cloth handling does not change
- Supplied with matching Bruckner holders to renew plate and seat together
- Both profiles held, so a mixed Bruckner fleet is served from one supplier
Who It Is For
- Bruckner users who have already found the common profile does not fit
- Maintenance stores that need spares identified per machine
- Engineers standardising spares across a mixed Bruckner fleet
Problems It Solves
- Ordering the wrong Bruckner plate from a model number alone
- Plates rocking on the seat and bending their own pins
- Mixed profiles on one bed producing stepped pin height
Application Scenarios
- Bruckner frames of a generation that takes the alternative seat
- Plants running two Bruckner frames that turn out to need different plates
- Bed renewal where the existing plates are too worn to gauge
Technical Features
- Alternative Bruckner seat profile
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Thickened pin bases for heat separation from the base plate
- Silver and yellow finish
Specifications
| Machine | Bruckner stenter, alternative seat profile |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Finish | silver and yellow |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat gauged against the reference for this profile specifically
- Pin height and straightness checked plate by plate
- Sample fitted to a holder before batch release
Customisation Options
- Reproduced from your sample plate
- Pin density and length adjusted for your article
- Plates marked by machine for mixed fleets
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Type 1 and Type 2 differ only at the seat. The pin bed, pin length and density are the same, so cloth behaviour does not change when you identify the right one; what changes is whether the plate sits flat.
Use Guide
Label a sample plate per machine and send both if you run two frames
Keep the two profiles on separate shelves and mark them by machine number
Check every plate sits flat with no rock before running the line
Replace worn holders at the same time as the plates
Renew by section to keep pin height continuous
FAQ
Questions About Pin Plate For Bruckner Stenters Type 2
How do I tell Type 1 from Type 2?
By the seat where the plate meets the holder. The quickest route is to send us one plate from each frame; we identify and mark them.
Is the pin work the same?
Yes. Both are the standard two rows of approximately 5 mm pins at three to four per centimetre.
Can you make a profile you do not currently hold?
Yes, from a sample plate. That is routine work.
Do you supply Bruckner clips as well?
Yes, Bruckner clips and chains are in our range, and we hold several clip variants for Bruckner frames.
Minimum quantity?
No fixed minimum. Most first orders are a trial section.
Delivery?
7 days for stock, quoted for cut-to-sample.
Related Products
Other Parts In This Family
Bruckner Stenter Chain With Pin Plate Section
Complete Bruckner chain section with pin plates and holders already mounted.
View Details
Bruckner Stenter Pin Plate Assembly
Pin plate supplied assembled with its Bruckner holder, ready to fit to the chain.
View Details
Pin Plate 642 Small Size
The small-size 642 pin plate for narrow beds and tight pin positions.
View DetailsRelated Reading
Guides That Cover This Part
What Is a Stenter Machine and How Does It Work
The stenter heat-sets and dries fabric by stretching it to width and holding it there under controlled heat.
Key Parts of a Stenter Machine
Entry section, clip or pin chains, rails, heating chambers, exhaust, blowers, temperature control, width adjustment and weft straightener.
Pin Stenter or Clip Stenter Which To Use
Clips leave no pin marks and suit thicker fabrics; pins hold more tension and run faster, to 100 m per minute.
Send A Sample And We Will Match The Profile
Seat profiles and geometry changed across frame generations, so the part itself is more reliable than a model number. We identify it and quote the matching specification.
