Pin Plates

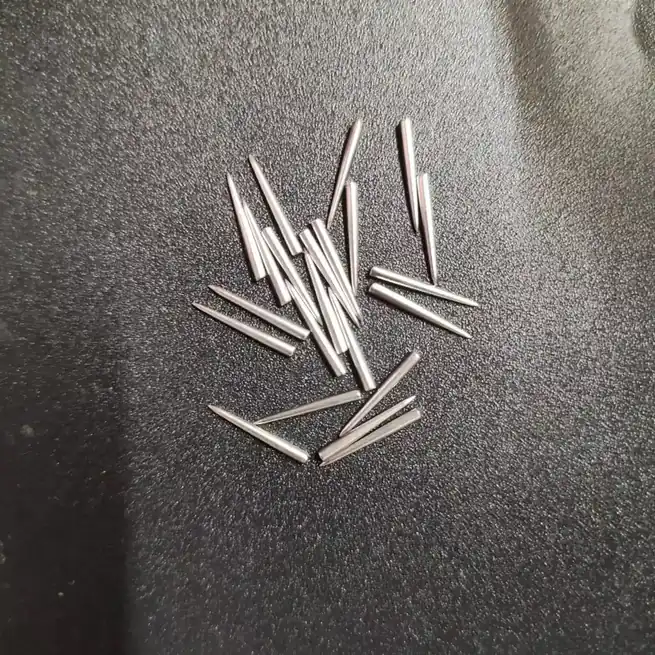

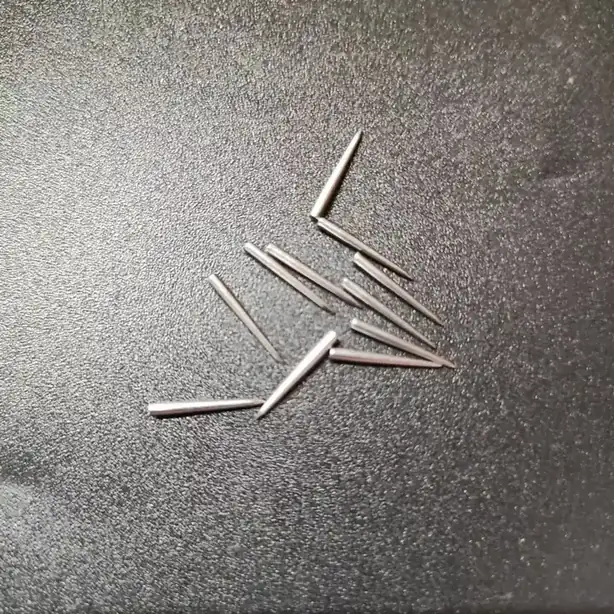

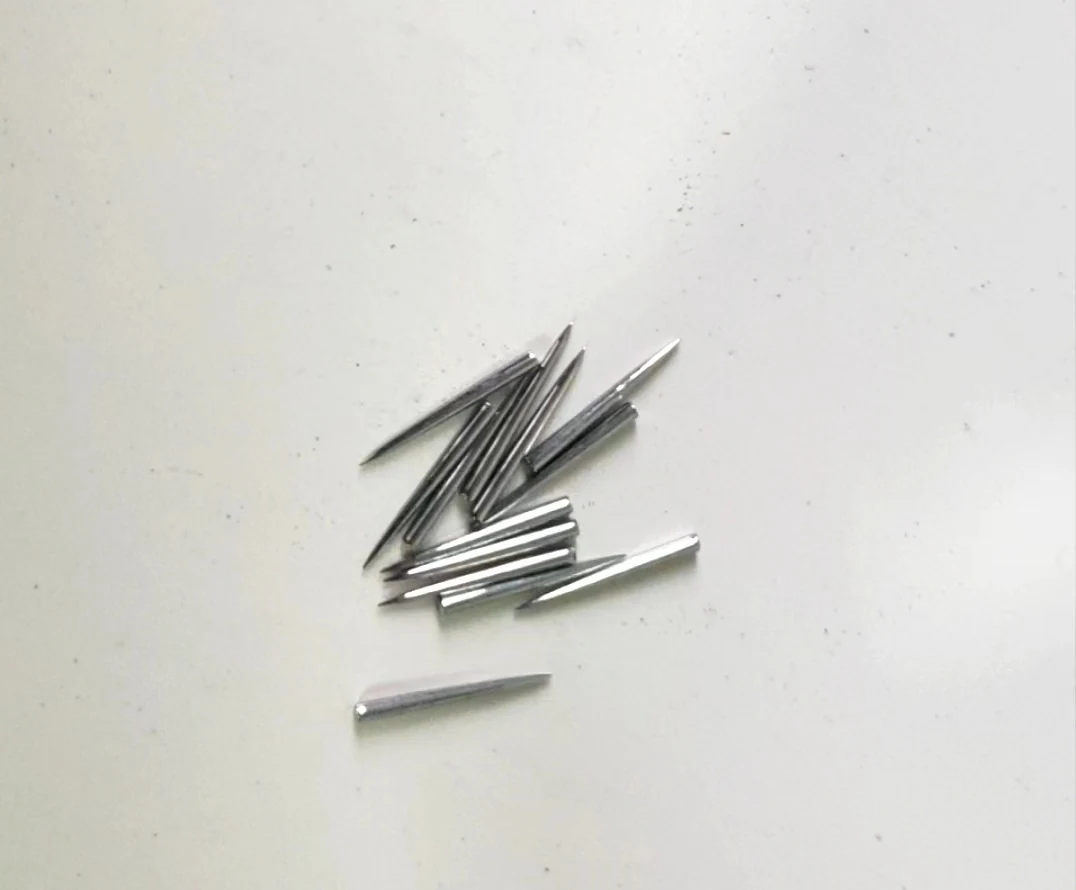

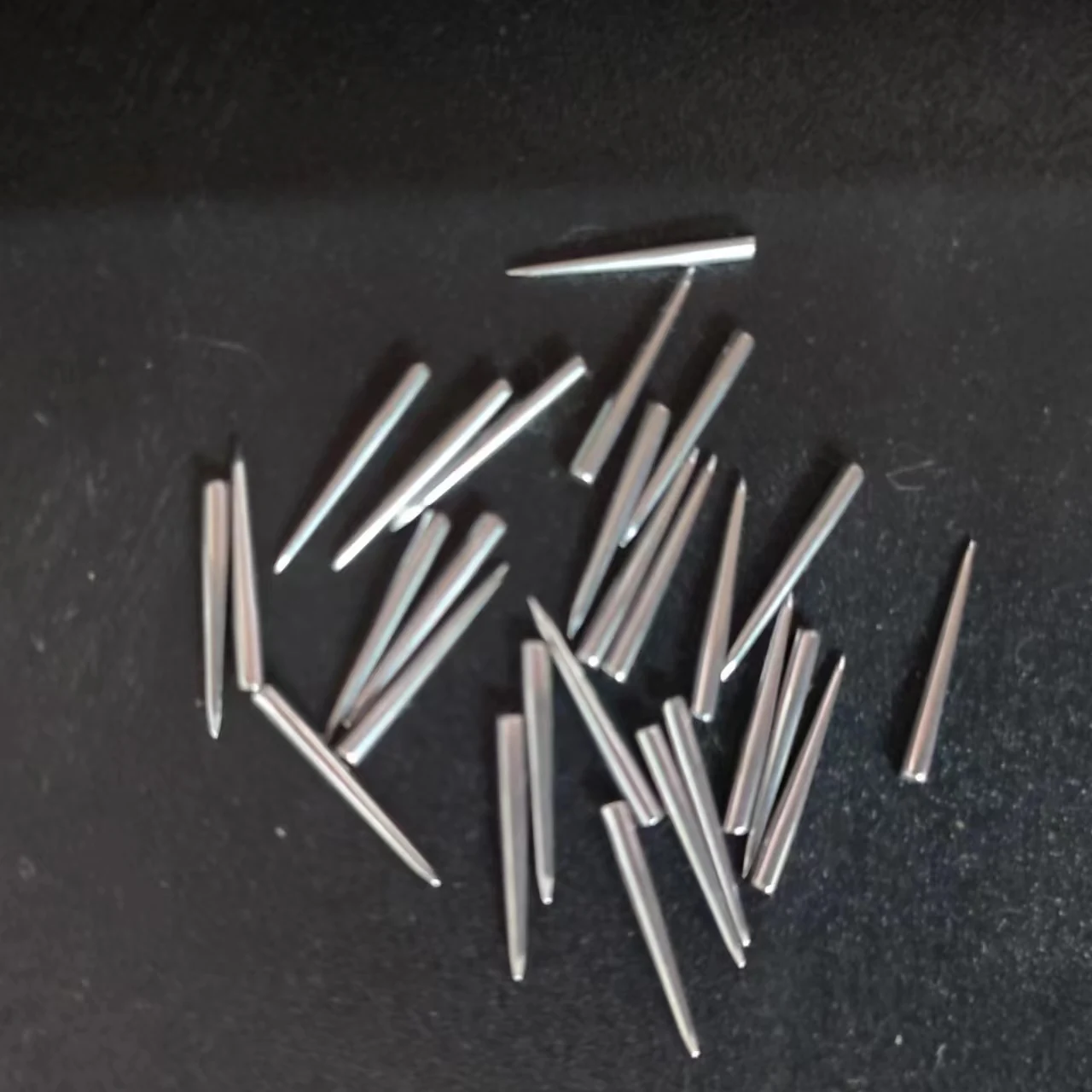

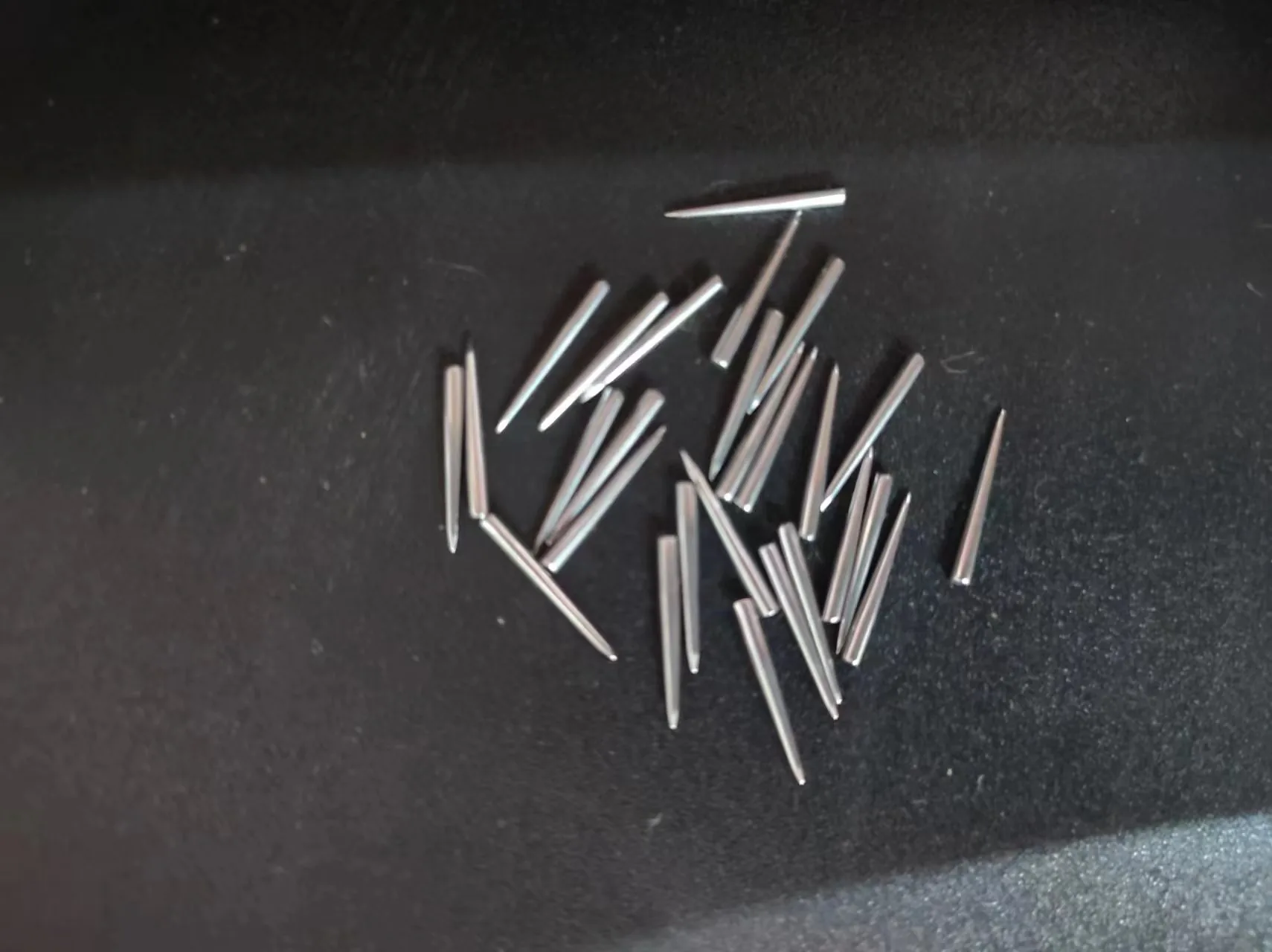

Pin Needles For Textile Stenter Machines
Replacement pins for stenter pin plates, supplied loose for re-pinning rather than plate replacement.
Product Overview
These are the pins themselves, supplied loose. On a pin stenter the pins are about 5 mm long, mounted in two rows at roughly three to four pins per centimetre along the base plate, and thickened near the base so the fabric does not contact the hot base plate directly.
Buying pins rather than complete plates makes sense where the base plates are sound and only the pins have bent, dulled or broken. It is the lower-cost route back to a bed that grips properly.
Key Benefits
- Repairs a bed where the base plates are still sound and only the pins have gone
- Thickened base section keeps the fabric clear of the hot base plate
- Standard 5 mm length matched to the common two-row arrangement
- Much lower cost than replacing complete plates
Who It Is For
- Maintenance workshops equipped to re-pin plates in house
- Mills managing pin bed cost on a tight maintenance budget
- Engineers repairing isolated damage rather than renewing a section
Problems It Solves
- Replacing a whole plate when only a few pins are bent
- Grip loss from dull or shortened pins across an otherwise sound bed
- Waiting for complete plates when a pin stock would have fixed it the same day
Application Scenarios
- Localised pin damage after a fabric jam, with the plates themselves undamaged
- Routine re-pinning during a planned shutdown
- Plants that re-pin in house and stock pins as a consumable
Technical Features
- Pins approximately 5 mm long
- Thicker near the base to prevent fabric contact with the hot base plate
- Sized for two-row mounting at 3 to 4 pins per cm
- Silver finish
Specifications
| Pin length | approx 5 mm |
|---|---|
| Base | thickened to separate fabric from hot base plate |
| Intended density | approx 3-4 pins/cm in two rows |
| Finish | silver |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Length and point condition sampled through the batch
- Base diameter checked so the press fit into the plate is correct
- Straightness verified before packing
Customisation Options
- Alternative pin lengths on request
- Base diameter matched to your plate bore
- Supplied in bulk quantities for in-house re-pinning programmes
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Re-pinning is cheaper than plate replacement and faster if you have the tooling. Complete plates are the better answer when the base plate itself has worn, distorted or lost flatness, because new pins in a distorted plate will not restore a straight pin line.
Use Guide
Check the base plate is flat and unworn before re-pinning it
Press pins to a consistent height across the plate; a mixed height bed marks the cloth
Work a full plate at a time rather than replacing individual pins in service
Verify pin line straightness after re-pinning, before the plate goes back on the chain
Discard plates whose bores have opened up rather than re-pinning them
FAQ
Questions About Pin Needles For Textile Stenter Machines
How long are the pins?
About 5 mm, which is the common pin stenter length, mounted in two rows at roughly three to four pins per centimetre.
Why are the pins thicker at the base?
To prevent direct contact of the fabric with the hot base plate. The thickening holds the cloth clear.
Should I re-pin or replace the plate?
Re-pin if the base plate is flat and the bores are sound. Replace the plate if the base has distorted or worn, because new pins will not fix a bent plate.
Can you supply other pin lengths?
Yes, on request. Tell us the length and base diameter you need.
What quantity do you supply?
Bulk quantities for in-house re-pinning programmes. Tell us how much of the bed you are repairing and we quote accordingly.
Delivery?
Within 7 days for the standard specification.
