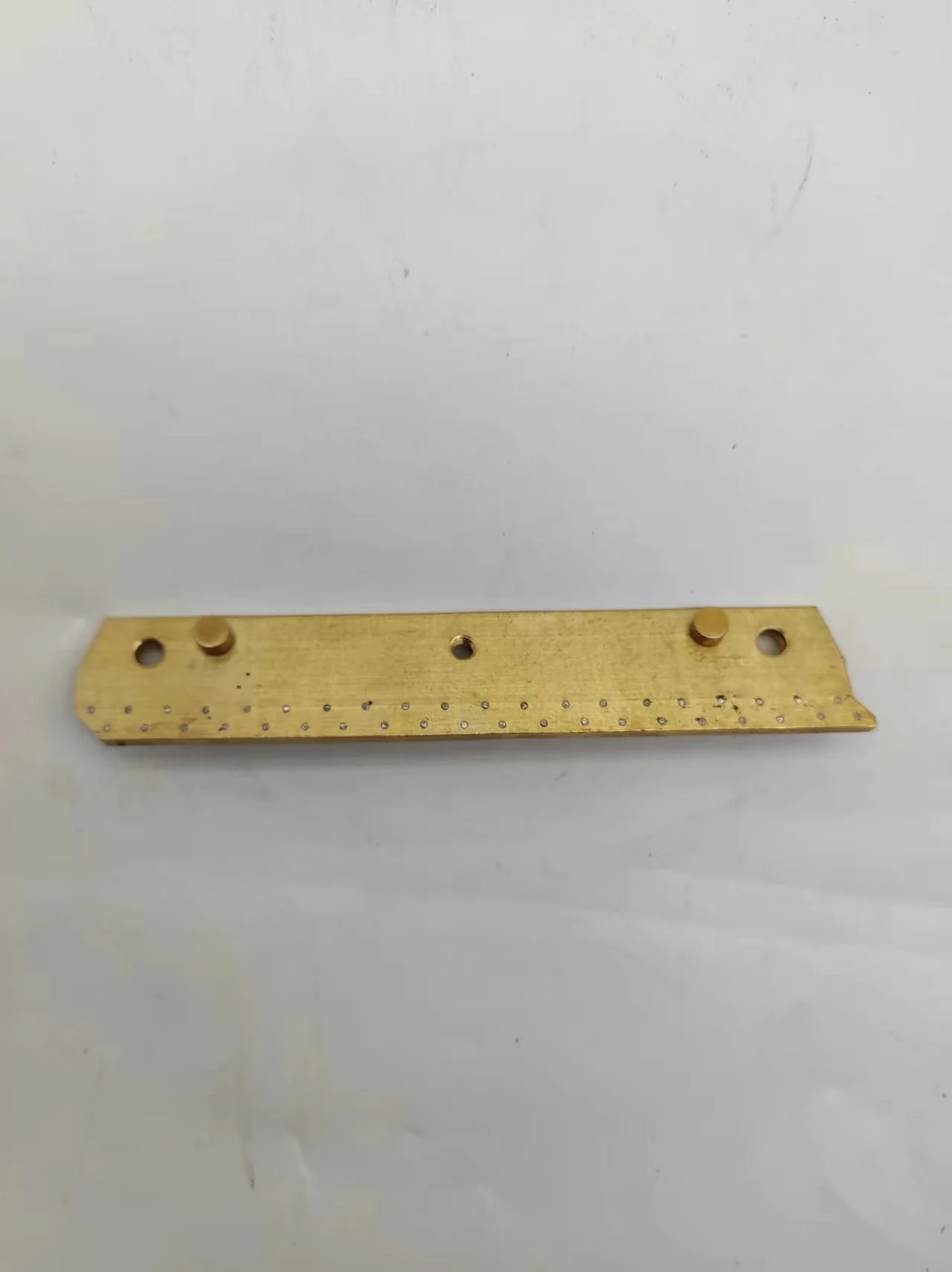

Pin Plate For Monforts Stenters Type 1
Monforts profile pin plate, the first of the two base profiles we hold for Monforts frames.
Product Overview
This is a pin plate cut to the Monforts base profile. It carries the standard pin arrangement of two rows at roughly three to four pins per centimetre, with pins around 5 mm long and thickened at the base so the cloth is kept clear of the hot base plate.
Monforts frames have gone through several generations and the plate seat is not the same on all of them, which is why we hold more than one profile. This is the first of the two we stock for Monforts, and it also serves frames converted to run clip and pin work.
Key Benefits
- Base profile matched to the Monforts pin plate holder, so it drops into place
- Standard 5 mm pins in two rows at 3 to 4 pins per cm
- Raises fabric tension so cloth runs faster, to 100 m/min
- Held alongside the Monforts holders, chains and clips as a single supply
Who It Is For
- Monforts users buying pin plates as a repeat consumable
- Maintenance engineers who need the plate to seat correctly first time
- Buyers comparing an original spare against a matched Chinese-made equivalent
Problems It Solves
- Plates that almost fit and rock on the holder, which bends pins within a shift
- Waiting on original-equipment lead times for a routine wear part
- Uneven pin height along the bed from mixing plate specifications
Application Scenarios
- Renewing a section of pin bed on a Monforts frame after bent-pin damage
- Monforts lines running mixed clip and pin schedules
- Mills standardising on one Monforts pin plate specification across several machines
Technical Features
- Base profile cut for the Monforts holder
- Pins approximately 5 mm, two rows, 3 to 4 pins per cm
- Pins thicker at the base to keep fabric off the hot base plate
- Silver and yellow finish
Specifications
| Machine | Monforts stenter |
|---|---|
| Pin length | approx 5 mm |
| Pin rows | 2 |
| Pin density | approx 3-4 pins/cm |
| Finish | silver and yellow |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Seat profile checked against the Monforts holder reference on every batch
- Pin height measured across the plate length
- Sample plate fitted to a holder before the batch is released
Customisation Options
- Cut to the exact Monforts generation you run, from a sample plate
- Pin density altered where your article needs a different grip
- Supplied together with matching Monforts pin plate holders
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the Monforts Type 2 plate we also hold, the difference is the base profile, not the pin work. Which one you need is decided by your holder, so the reliable method is to send a plate rather than a machine model number.
Use Guide
Send one old plate before ordering so we confirm which profile you run
Check the holder seat for wear while the plate is off
Fit a section at a time and check pin height continuity between plates
Reset press wheel pressure after a bed renewal
Keep one spare section on the shelf, because pin damage is usually sudden
FAQ
Questions About Pin Plate For Monforts Stenters Type 1
How do I know which Monforts profile I need?
Send us one plate from the machine, or a photo with a ruler in frame. The machine model alone is not enough, because the seat changed between generations.
Are these original Monforts parts?
No. They are our own manufacture, matched to the Monforts profile. We are a manufacturer and trader of stenter machine parts based in Shaoxing, Zhejiang.
Can you also supply the holders?
Yes. Pin plate holders, chains and clips for Monforts frames are all our own production.
What speed will these support?
Pinning raises the tension you can hold on the cloth, which is what lets the fabric run faster, up to 100 m/min.
How long is delivery?
Within 7 days for our standard profiles; matched-to-sample plates are confirmed once we have the sample.
Do you supply small trial quantities?
Yes. Most customers start with a short section to confirm fit before committing to a full bed.
