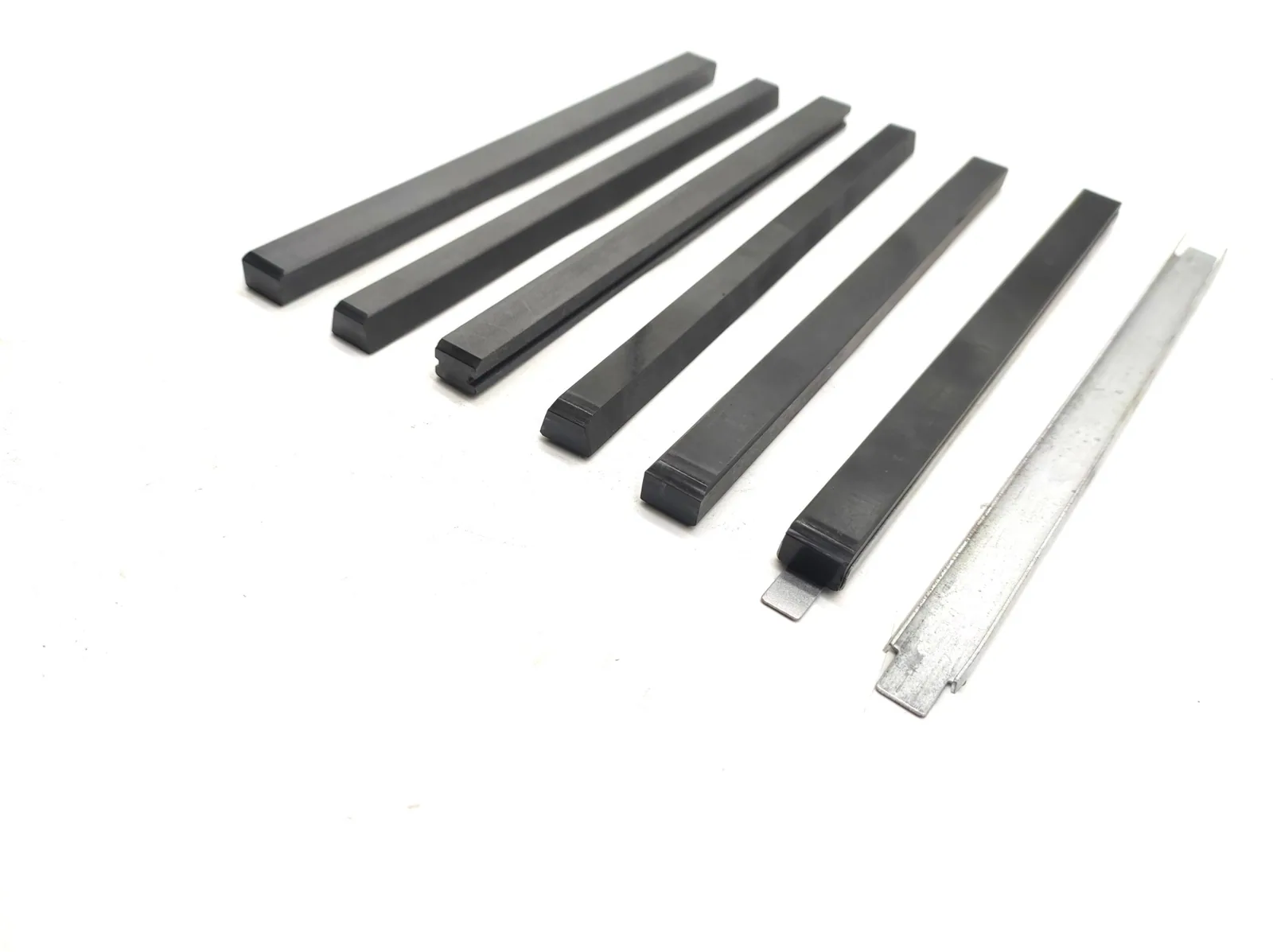

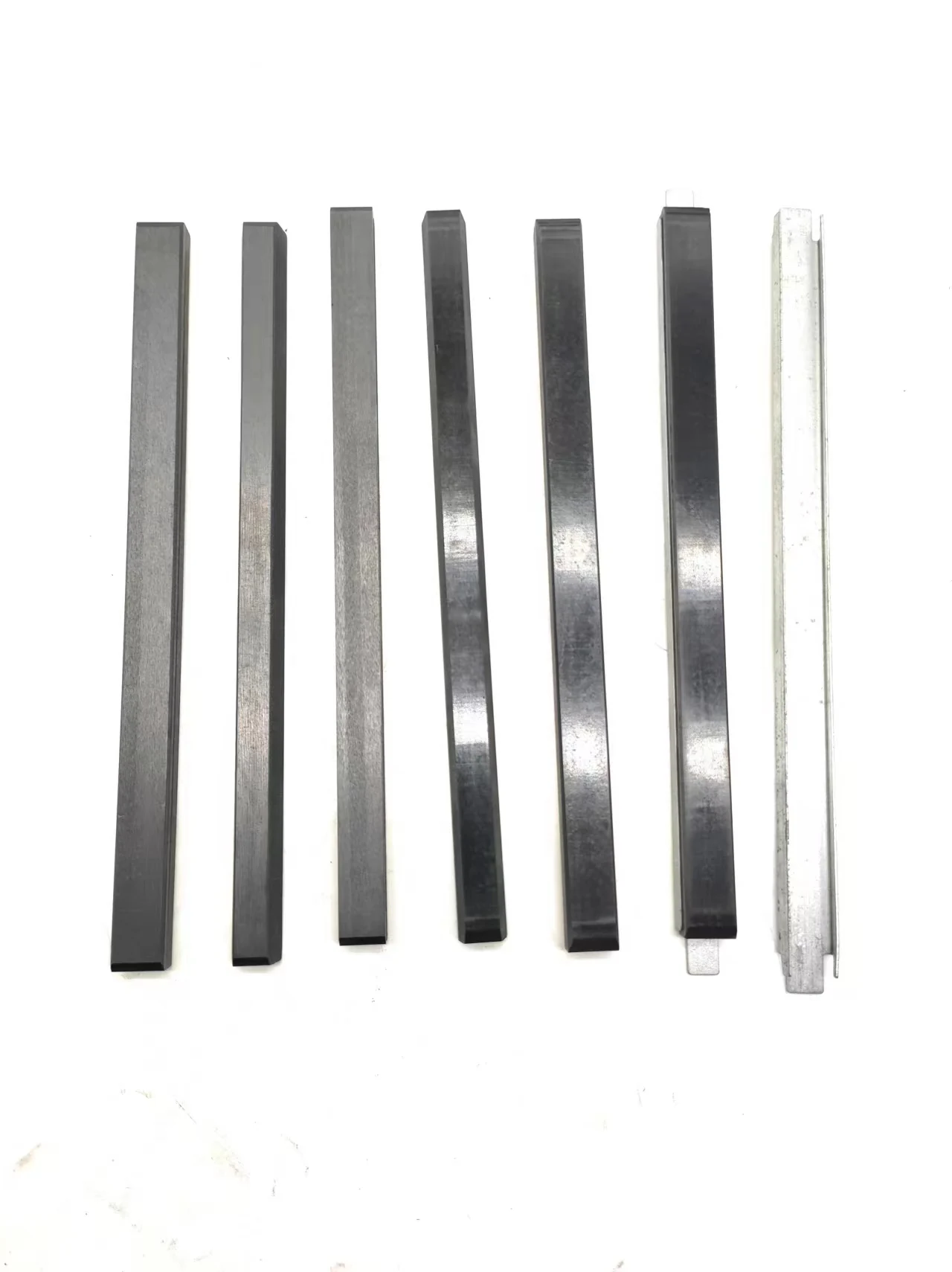

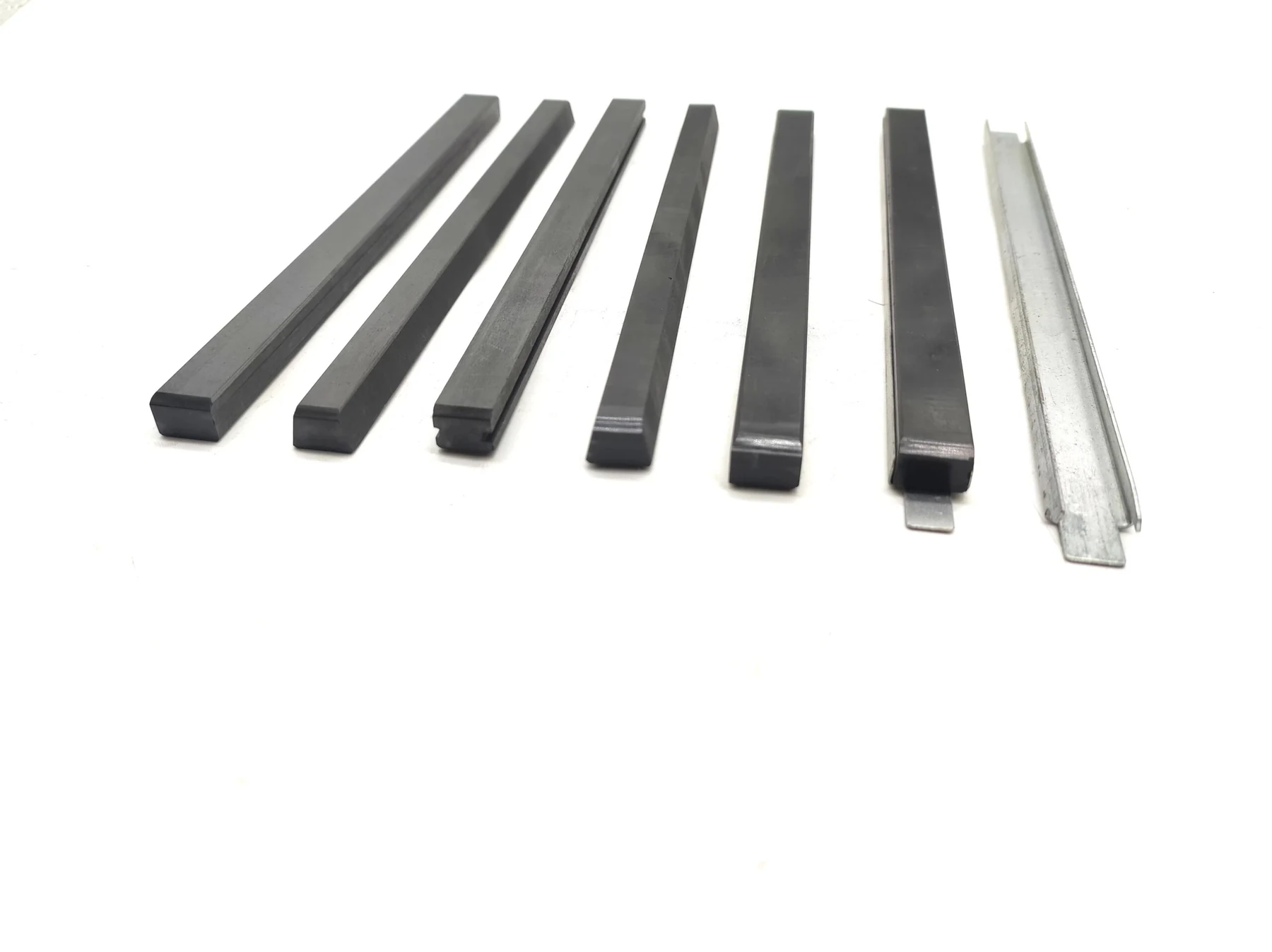

Carbon Graphite Strip For Monforts Guide Rails
Graphite strip fitted into the guide rail as a low friction running surface.
Product Overview
A carbon graphite strip fitted into the guide rail of a Monforts stenter. It provides the running surface the chain slider travels on, so the chain rides on graphite rather than directly on the rail metal.
Graphite is chosen for the same reason PEEK is chosen elsewhere on the chain: it is a dry lubricant, so the interface does not depend on grease that will eventually find its way onto the cloth. We supply it alongside the PEEK sliders and bushes that run against it.
Key Benefits
- Dry running surface, so the rail does not depend on grease
- Protects the rail metal from direct slider contact
- Replaceable as a wear strip rather than replacing the rail
- Supplied with the PEEK sliders and bushes that run on it
Who It Is For
- Monforts users refurbishing a guide rail rather than replacing it
- Engineers reducing grease on the chain line
- Maintenance teams overhauling rail and chain together
Problems It Solves
- Rail metal wearing directly under the chain slider
- Grease from the rail reaching the fabric
- Rail replacement cost where only the running surface has worn
Application Scenarios
- Monforts guide rails where the running surface has worn
- Lines where grease from the rail is contaminating the cloth
- Rail refurbishment during a chain overhaul
Technical Features
- Carbon graphite strip for the stenter guide rail
- Dry lubricating running surface
- Fitted as a replaceable wear strip
- Supplied to length for your rail
Specifications
| Machine | Monforts stenter guide rail |
|---|---|
| Material | carbon graphite |
| Function | low friction running surface in the guide rail |
| Supplied | cut to length for your rail |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Cross section measured along the strip length
- Surface finish inspected on the running face
- Fit checked against a rail section sample where one is supplied
Customisation Options
- Cross section and length cut to your rail
- Reproduced from a sample strip where the rail has been modified
- Supplied with PEEK sliders matched to run on it
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against running the slider directly on the rail metal, a graphite strip is a sacrificial wear surface: it is cheaper and quicker to replace than the rail. Against a greased rail, it removes a contamination route to the cloth.
Use Guide
Measure the rail groove cross section and length before ordering
Clean the groove thoroughly before fitting the new strip
Check the strip sits flush along its whole length with no steps at joints
Inspect at each chain service and replace before the metal is reached
Match slider material to the strip; PEEK sliders are the usual pairing
FAQ
Questions About Carbon Graphite Strip For Monforts Guide Rails
What does the graphite strip do?
It provides the running surface in the guide rail that the chain slider travels on, so the chain does not run directly on the rail metal.
Why graphite rather than grease?
Graphite is a dry lubricant. Removing grease from the rail also removes a route for grease to reach the fabric.
Can you cut it to our rail?
Yes. Send the rail groove cross section and the length, or a sample strip.
Which sliders should run on it?
PEEK sliders are the usual pairing, and we supply those for Monforts and Artos chains.
How often should it be replaced?
Inspect at each chain service and replace before the strip is worn through to the rail metal.
Lead time?
Quoted at order, since strips are cut to your rail dimensions.
