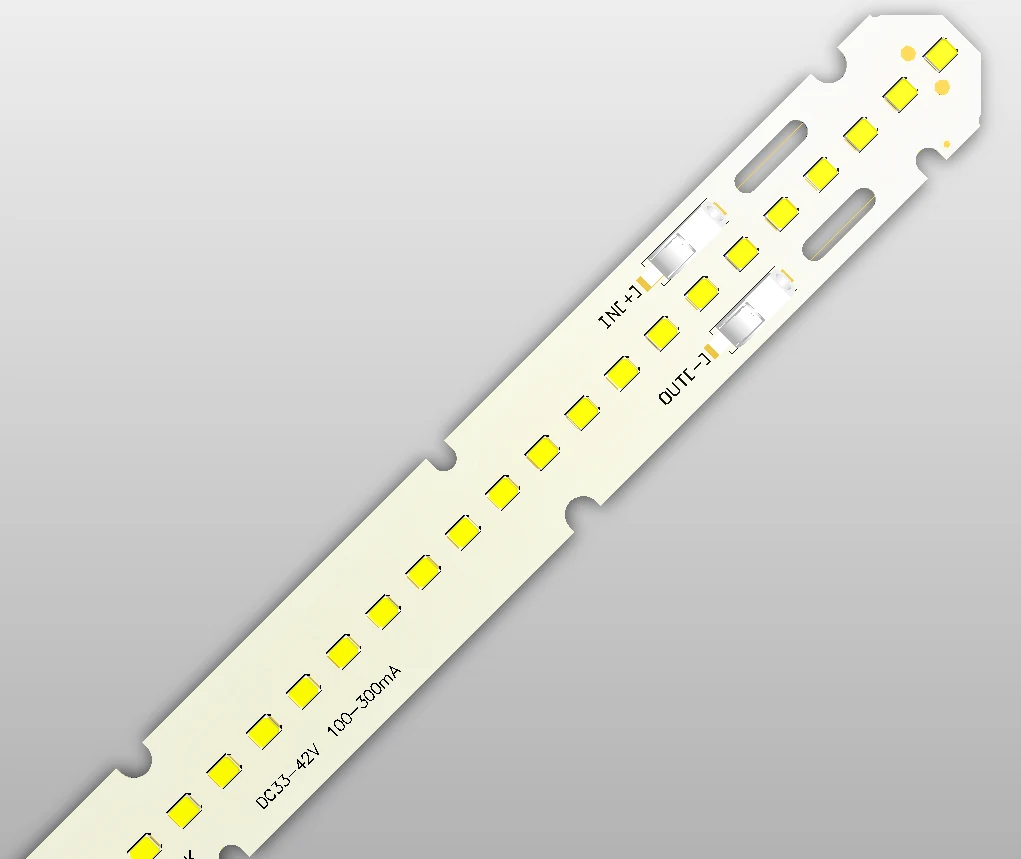

LED linear module board with mid power LED packages and solder pads
Product Category

LED Module Products

Every LUK module in one place: AC and DOB boards that need no driver, DC boards that reach the highest efficacy, cooler specific engines and square boards for downlights. If you are choosing between driver on board and low voltage, start here.

Request A QuoteSee All Products
The Range

25 Products In LED Module

The full module range across AC, DC, cooler and square formats

LED Module

Linear Module 230V

280 x 30 mm board running straight off 230V with a 0.95 power factor and no external driver

View Specifications →
LED Module

LED Strip Light 2216

High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m

View Specifications →
LED Module

LED Strip Light 5050

5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67

View Specifications →
LED Module

LED Strip Light 2110 700LED

700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line

View Specifications →
LED Module

LED Strip Light 2110 300LED

300 LEDs per metre on the 2110 package for accent brightness with no visible dots

View Specifications →
LED Module

COB Strip Dual Color

Continuous COB phosphor line carrying two colour channels for tunable white

View Specifications →

Who This Category Is For

  • Luminaire manufacturers
  • OEM lighting brands
  • Display and cabinet lighting makers

Problems It Solves

  • Choosing between AC direct and low voltage DC
  • Matching a board to an existing fitting profile
  • Holding one efficacy and CRI specification across a whole fitting family
  • Sourcing modules and strips from separate suppliers

Core Advantages

  • AC, DC, DOB, linear and square formats in one range
  • Efficacy from 85 to 207 lm/W depending on build
  • CRI 80, 90 and 98 options
  • ODM board design to your fitting

Application Scenarios

  • Panel and troffer fittings
  • Downlights and ceiling lights
  • Spot and pendant lights
  • Refrigerated display cases
Industries

Where LED Module Is Used

The industry pages set out the constraints these products are specified against.

Refrigeration And Cold Display

Lighting for refrigerated cases has to work at low temperature, survive condensation and wash-down, render fresh food honestly and add as little heat as possible to the plant.

Read More →
Related Categories

Other Parts Of The Range

Most projects draw on more than one category.

DC Module

Low voltage linear and square boards from 1.5W to 40W reaching 207 lm/W

5 products →

AC Module

Driver on board modules that run straight off 120V or 230V mains

5 products →

Cooler LED Module

Lighting engines specified for refrigerated display cases and cold rooms

7 products →

Shelf LED Module

Modules and strips for shelf edges display cases and merchandising

10 products →
FAQ

LED Module Questions

Should I choose an AC or a DC module?

AC removes the driver and suits slim fittings. DC needs an external driver but reaches much higher efficacy.

Can boards be made to a custom size?

Yes. Board size, LED count and connector position are set per project.

What is the widest efficacy range available?

From 85 lm/W on a CRI 90 round AC board up to 207 lm/W on the 280 x 40 mm DC linear board.

Ask For The LED Module Specification Sheet

Part number tables, efficacy, CRI, CCT, dimensions and IP ratings for every product in this category.
