LED Module
260 x 260 mm Square LED Module White For Downlights And Ceiling Lights
260 x 260 mm square board with 84 LEDs, reaching 200 lm/W across the CCT range
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For

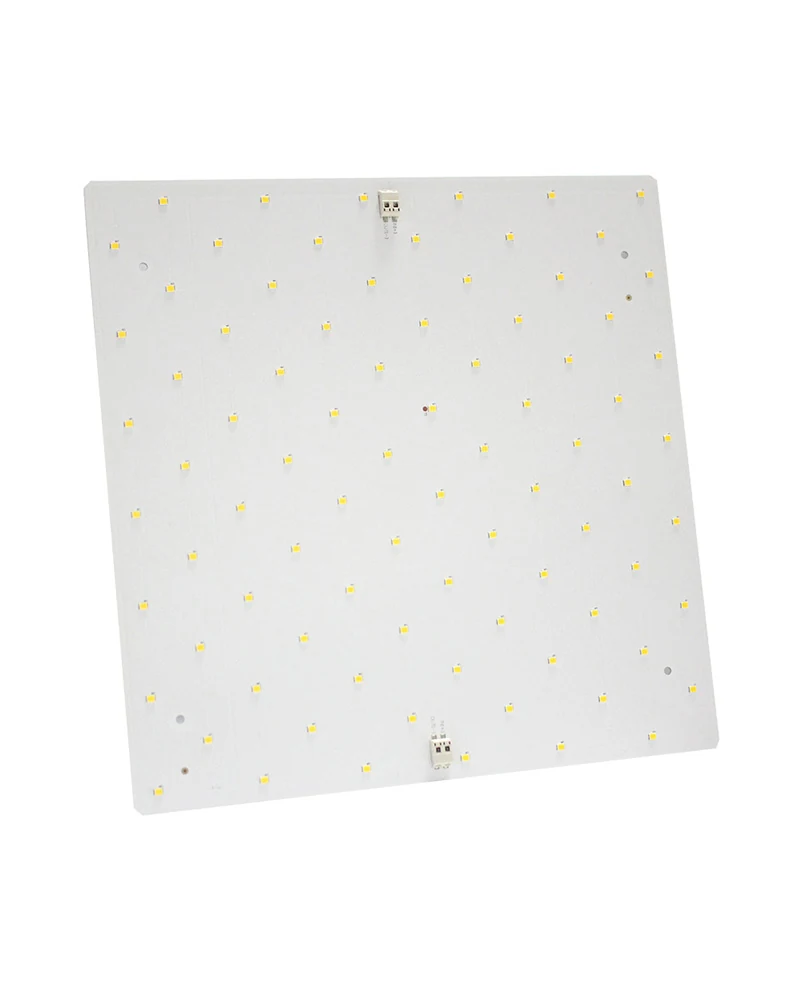

A 260 x 260 mm square board carrying 84 pieces of 2835, built for square downlights and ceiling fittings where a linear board wastes the aperture. Efficacy climbs from 185 lm/W at 2700K to 200 lm/W at 4000K and above, so the same part number can be quoted across a CCT range with the efficacy figure stated honestly per temperature rather than as a single headline number.
Key Benefits
Why Buyers Choose This Build
A square emitting area fills a square aperture, so less light is trapped inside the fitting
Efficacy quoted per colour temperature rather than as one best case figure
84 LEDs spread the load, which keeps the drive current per emitter low
One board covers 2700K through 5700K within the same mechanical design
Application
Where It Fits And What It Fixes
Who It Is For
- Downlight and ceiling fitting manufacturers
- Panel light makers with square apertures
- OEM brands standardising a square module across a range
Problems It Solves
- Square downlights where a round or linear board leaves dark corners in the diffuser
- Specifiers comparing modules quoted only at the most flattering colour temperature
- Ceiling fitting ranges that need one board across several colour temperature SKUs
Application Scenarios
- Square downlights
- Ceiling lights
- Square panel fittings
- Surface mounted luminaires
Technical Features
- 260 x 260 mm square board
- 84 pieces of 2835 per board
- Efficiency from 140 to 200 lm/W
- CRI 80 and CRI 90 options
- CCT from 2700K to 5700K
- 10W and 13W builds
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Board Size
- 260 x 260 mm
- Power
- 10W and 13W
- Input Voltage
- 33V to 37.2V DC
- Efficiency
- 140 to 200 lm/W
- CRI
- 80, with a CRI 90 round variant listed
- CCT
- 2700K / 3000K / 4000K / 5000K / 5700K
- LED Package
- 2835, 84 pcs
Part Number Table
| Part Number | Power (W) | Input Voltage (V) | Power Factor | Efficiency (lm/W) | CRI | CCT (K) | LED | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| LK-LMD070A1402H010-9**T | 10 | 120V | 0.95 | 85 | 90 | 2700 | 2835 x 28 pcs | Diameter 70 mm |
| LK-CM260x260A1207H010-8** | 10 | 33-34.2 | - | 185 | 80 | 2700 | 2835 x 84 pcs | 260 x 260 |
| LK-CM260x260A1207H010-8** | 10 | 33-34.2 | - | 190 | 80 | 3000 | 2835 x 84 pcs | 260 x 260 |
| LK-CM260x260A1207H010-8** | 10 | 33-34.2 | - | 200 | 80 | 4000 | 2835 x 84 pcs | 260 x 260 |
| LK-CM260x260A1207H010-8** | 10 | 33-34.2 | - | 200 | 80 | 5000 | 2835 x 84 pcs | 260 x 260 |
| LK-CM260x260A1207H010-8** | 10 | 33-34.2 | - | 200 | 80 | 5700 | 2835 x 84 pcs | 260 x 260 |
| LK-CM260x260A1207N013-8** | 13 | 35.4-37.2 | - | 140 | 80 | 2700 | 2835 x 84 pcs | 260 x 260 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Aluminium or FR4 square board
- 2835 mid power LED package
- Constant current DC circuit
Manufacturing Process
- Solder paste printing
- SMT placement
- Reflow soldering
- Automated optical inspection
- Lit ageing
- Packing
Quality Control
- Incoming LED inspection
- Automated optical inspection
- Lit test of every board
- Colour consistency sorting
- Ageing run
Certifications
- CE
- RoHS
Customisation Options
- Board size and LED count
- CCT selection
- CRI selection
- Connector and lead length
Comparison
How It Compares With Other Products In The Range
Compared With DC Module Square Module Dual Color
The dual colour version carries 2700K and 5700K on the same 260 x 260 mm board
Compared With DOB Module Standard
A mains voltage DOB board for spot and pendant fittings with a small emitter area
Use Guide
Specifying And Installing It Correctly
- Quote the efficacy at the colour temperature actually being supplied, not the 4000K figure
- Use the 10W build where efficacy matters and the 13W build where output per fitting matters
- Allow the board to sit flat on the fitting back plate for heat transfer
Related Products
Other Products Worth Comparing
Cooler LED Module
DC Module Standard for Cooler Lighting Tunable White
Dual channel 2700K and 6500K boards in 140, 280 and 560 mm with CRI 80, 90 or 98
View Specifications →
LED Module
DC Module High Efficiency 24V Linear
600 x 24 mm 24V board reaching 200 lm/W for panels, linears, troffers and wall lights
View Specifications →
LED Module
DC Module Square Module Dual Color
One 260 x 260 mm board carrying 2700K, 5700K and the mixed setting at 12W
View Specifications →FAQ
DC Module Square Module White FAQ
Why does the efficacy change with colour temperature?
Warmer phosphor conversion costs light. The board runs 185 lm/W at 2700K and 200 lm/W at 4000K and above.
What is the board size?
260 x 260 mm with 84 pieces of 2835.
Is a dual colour version available?
Yes. The Square Module Dual Color carries 2700K and 5700K.
What input voltage does it need?
33V to 34.2V on the 10W build, 35.4V to 37.2V on the 13W build.
Request A Quote For DC Module Square Module White
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
