Product Overview
What This Product Is And Who It Is For

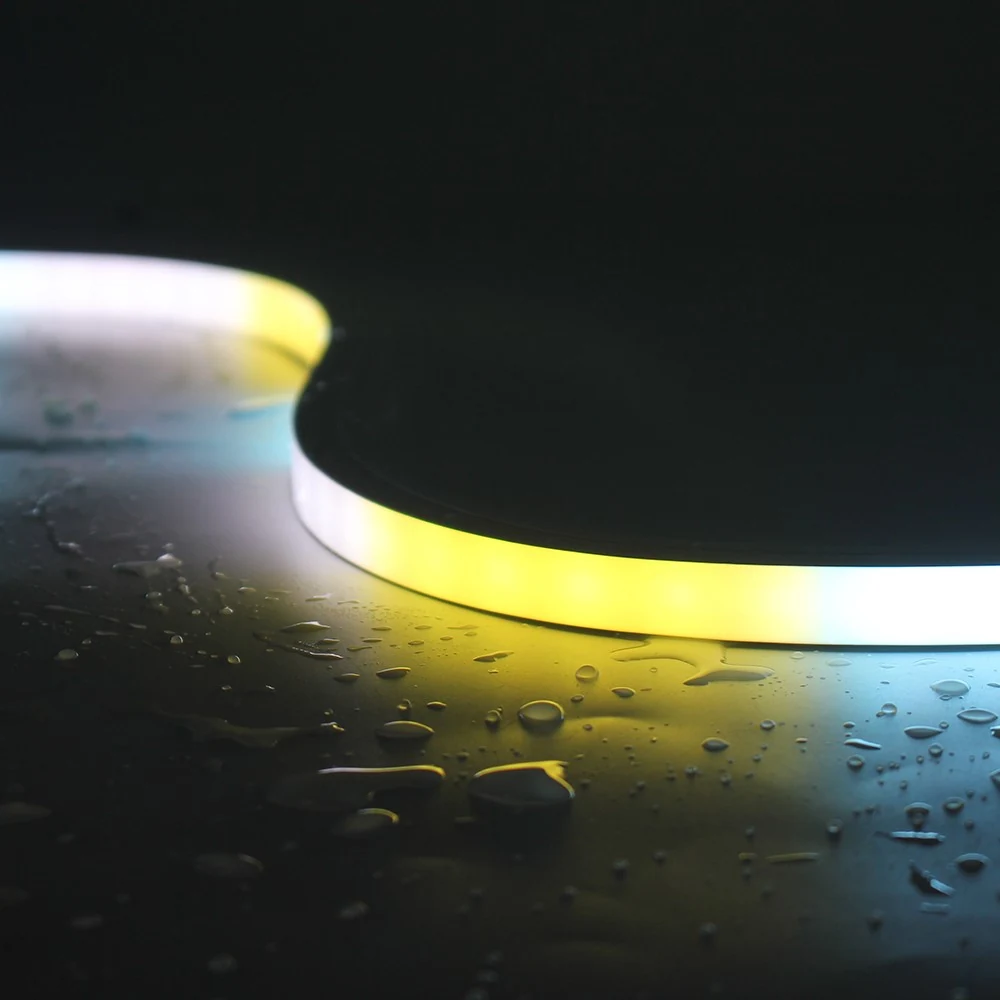

A media ribbon rather than a decorative neon: 10 pixels per metre under DMX-AB or SPI control, in a 15 x 16 mm IP67 body. Seven part numbers cover 2700K, 3000K, 4000K and 6000K single colour, a 120 LED dynamic white build, and RGB and RGBW. Power runs from 12W to 14.4W per metre with a 12 mm PCB and a 100 mm cut unit.
Key Benefits
Why Buyers Choose This Build
10 pixels per metre gives real pixel resolution for media content on a facade
DMX-AB and SPI builds from the same body, so the controller choice stays open
Fixed colour temperatures published at 2700K, 3000K, 4000K and 6000K rather than a vague range
IP67 body for permanent exterior media installations
Application
Where It Fits And What It Fixes
Who It Is For
- Media facade and entertainment lighting integrators
- Architectural lighting contractors running pixel content
- Specifiers who need a published pixel pitch
Problems It Solves
- Media facades where a decorative neon gives no addressable resolution
- Projects where the control system is chosen after the fixture
- Exterior pixel runs that fail because the body is not properly sealed
Application Scenarios
- Media facade content
- Landscape lighting
- Indoor and outdoor decorative pixel runs
- Entertainment and event structures
Technical Features
- DMX and SPI media ribbon
- 10 pixels per metre
- 60 and 120 LEDs per metre builds
- IP67 body at 15 x 16 mm
- Single colour, dynamic white, RGB and RGBW
- 12 mm PCB with a 100 mm cut unit
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Body Size
- 15 x 16 mm
- Ingress Protection
- IP67
- Voltage
- 24V
- Power
- 12W to 14.4W per metre
- LED Density
- 60 or 120 per metre
- Pixels
- 10 per metre
- Control
- DMX-AB or SPI
- CCT
- 2700K / 3000K / 4000K / 6000K, and 2700-6000K dynamic white
- PCB
- 12 mm
- Cut Unit
- 100 mm
Part Number Table
| Part Number | LEDs Per Metre | Voltage | Current | Power | Efficiency | Flux | CRI | CCT | PCB | Cut | Protection | Control | Pixels Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FL2415167-827-60-DMX | 60 | 24 | 0.5 | 12 | 50 | 600 | 80 | 2700 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-830-60-DMX | 60 | 24 | 0.5 | 12 | 55 | 660 | 80 | 3000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-840-60-DMX | 60 | 24 | 0.5 | 12 | 60 | 720 | 80 | 4000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-860-60-DMX | 60 | 24 | 0.5 | 12 | 60 | 720 | 80 | 6000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-DW-120-DMX | 120 | 24 | 0.6 | 14.4 | 60 | 850 | 80 | 2700-6000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-RGB-60-DMX | 60 | 24 | 0.6 | 14.4 | 25 | 360 | - | RGB | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-RGBW-60-DMX | 60 | 24 | 0.6 | 14.4 | 30 | 430 | 80 | 2700-6000 | 12 | 100 | IP67 | DMX-AB | 10 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body
- 2835 and 5050 LED packages
- Pixel control IC
- 12 mm FPC carrier
Manufacturing Process
- SMT placement
- Pixel IC placement
- Reflow soldering
- Silicone extrusion
- IP67 verification
- Pixel address test
- Reeling
Quality Control
- Incoming LED and IC inspection
- Pixel addressing verification
- IP67 immersion verification
- Colour consistency sorting
- Lit inspection
Certifications
- CE
- RoHS
Customisation Options
- Control protocol
- Colour temperature or colour build
- Pixel pitch
- End cap and connector
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip DMX SPI Media Ribbon IP67 1020
The same ribbon offered in 15 x 15, 12 x 12 and 10 x 20 mm side bend bodies
Compared With COB Strip SPI Chasing Strip Light
An interior COB strip for seamless chasing effects rather than exterior pixel media
Use Guide
Specifying And Installing It Correctly
- Confirm whether the controller is DMX-AB or SPI before ordering, as the builds differ
- Plan the pixel map around 10 pixels per metre and the 100 mm cut unit
- Cap and seal every cut to hold the IP67 rating on an exterior run
Related Products
Other Products Worth Comparing
LED Module
Neon Strip Slim Digital Neon Flex Strip Light
The slim neon body at 6 x 14 mm and 8 x 16 mm, up to 140 LEDs per metre
View Specifications →
Cooler LED Module
Neon Strip Side Bending Digital Neon Flex
Side bending neon flex in two body sizes, single colour through to DMX RGBW
View Specifications →
Cooler LED Module
Neon Strip 3D Bending And Free Cutting
Neon flex that bends in any direction and cuts at any length
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Architectural Facade Lighting
A facade installation is permanent, exposed and seen from a distance.
Read More →
Comparison Article
DMX512 vs SPI Control For LED Strips
Both protocols drive addressable LED product, but they behave very differently over distance and in mixed installations. Choosing the wrong one is expensive to correct on site.
Read The Guide →FAQ
Neon Strip DMX SPI Media Ribbon IP67 1516 FAQ
What is the pixel pitch?
10 pixels per metre on every build listed.
Which control protocols are available?
DMX-AB and SPI.
What colour temperatures are offered?
2700K, 3000K, 4000K and 6000K fixed, plus a 2700-6000K dynamic white build.
What is the cut unit?
100 mm on a 12 mm PCB.
Request A Quote For Neon Strip DMX SPI Media Ribbon IP67 1516
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
