Product Overview
What This Product Is And Who It Is For

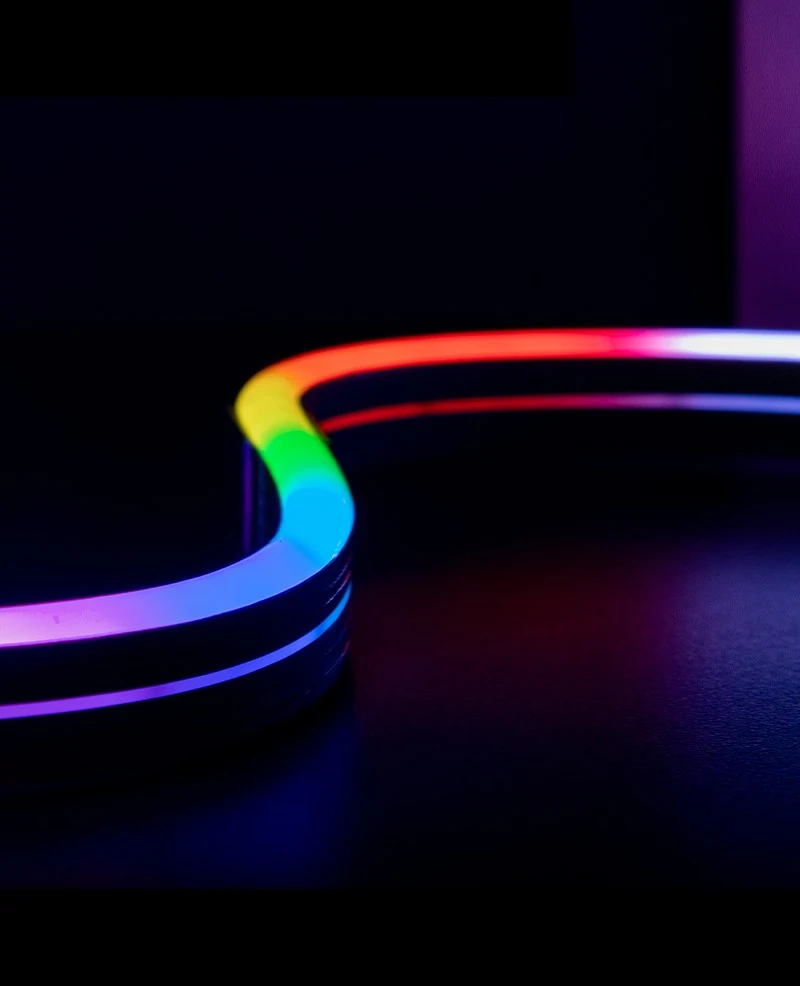

The slimmest neon body in the range, at 6 x 14 mm or 8 x 16 mm. That matters when the detail is a thin architectural line rather than a thick tube, or when the channel it has to sit in was designed around a slimmer profile. It is a side bend body, IP67, available in single colour, CCT tunable, SPI RGB and DMX RGB or RGBW, with CE, UL and RoHS certificates and a 3 or 5 year warranty.
Key Benefits
Why Buyers Choose This Build
6 x 14 mm body gives a thin architectural line that a standard neon tube cannot
Fits slim channels and reveals where a 15 x 15 mm body will not go
Up to 140 LEDs per metre keeps the line continuous despite the small body
Full control range from single colour to DMX RGBW in the slim format
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural and interior lighting designers working with fine detail
- Landscape and facade lighting contractors
- Sign makers building slim illuminated profiles
Problems It Solves
- Architectural details where a thick neon tube looks clumsy
- Slim reveals and channels that a standard neon body will not fit
- Schemes that want a fine line but still need pixel control
Application Scenarios
- Landscape lighting
- Indoor and outdoor decorative lines
- Slim architectural reveals
- Signage and display profiles
Technical Features
- Slim digital neon flex
- Side bend digital neon flex
- Body dimensions 8 x 16 mm and 6 x 14 mm
- Single colour, CCT tunable, SPI RGB and DMX RGB or RGBW
- Warranty 3 years or 5 years optional
- Certificates CE, UL and RoHS
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Body Dimensions
- 8 x 16 mm or 6 x 14 mm
- Bending Direction
- Side bend
- Ingress Protection
- IP67
- Voltage
- 24V constant voltage
- Power
- 8W to 12W per metre
- LED Density
- 60 to 140 per metre
- PCB
- 2 oz copper
- Colour Options
- Single colour, CCT tunable, SPI RGB, DMX RGB and RGBW
- Warranty
- 3 years or 5 years optional
- Certificates
- CE, UL, RoHS
Part Number Table
| Part Number | IP Level | LED Type | CRI | SDCM | CCT | Drive | Voltage | LEDs Per Metre | Efficacy | Power Per Metre | Width | Cut Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FV2410120283508-XXX-FWS0614 | IP67 | 2835 | 80 / 90 | Below 3 | 2700-6500K | Constant voltage | 24V | 120 | 35-40 lm/W | 8W/m | 10 mm | 6 LED / 50 mm |
| LK-FV2410140283508-XXX-FWS0614 | IP67 | 2835 | 80 / 90 | Below 3 | 2700-6500K | Constant voltage | 24V | 140 | 45-50 lm/W | 8W/m | 10 mm | 7 LED / 50 mm |
| LK-FV2410060505008-RGB-FWS0614 | IP67 | 5050 RGB | - | - | RGB | Constant voltage | 24V | 60 | - | 8W/m | 10 mm | 6 LED / 100 mm |
| LK-FV2410060505012-SPI-FWS0614 | IP67 | 5050 RGB SPI | - | - | RGB | Constant voltage | 24V | 60 | - | 12W/m | 10 mm | 6 LED / 100 mm |
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body in slim section
- 2835 and 5050 LED packages
- Flexible FPC with 2 oz copper
Manufacturing Process
- SMT placement
- Control IC placement on SPI and DMX builds
- Reflow soldering
- Slim silicone extrusion
- IP67 verification
- Sequence test
- Reeling
Quality Control
- Incoming LED and IC inspection
- Slim extrusion dimension check
- IP67 immersion verification
- Addressable sequence verification
- Lit inspection
Certifications
- CE
- UL
- RoHS
Customisation Options
- Body dimension
- LED density
- Colour and control protocol
- Cut unit and end caps
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip Side Bending
The same side bend concept in a larger 15 x 15 mm or 10 x 20 mm body
Compared With Neon Strip DMX SPI Media Ribbon IP67 1020
A pixel ribbon with 10 pixels per metre for media facade work
Use Guide
Specifying And Installing It Correctly
- Check the channel depth against the 6 x 14 mm or 8 x 16 mm section before specifying
- Use the 140 LED per metre build where the line is viewed close up
- Support a slim body along its length, as it is easier to distort than a thick section
