Product Overview
What This Product Is And Who It Is For

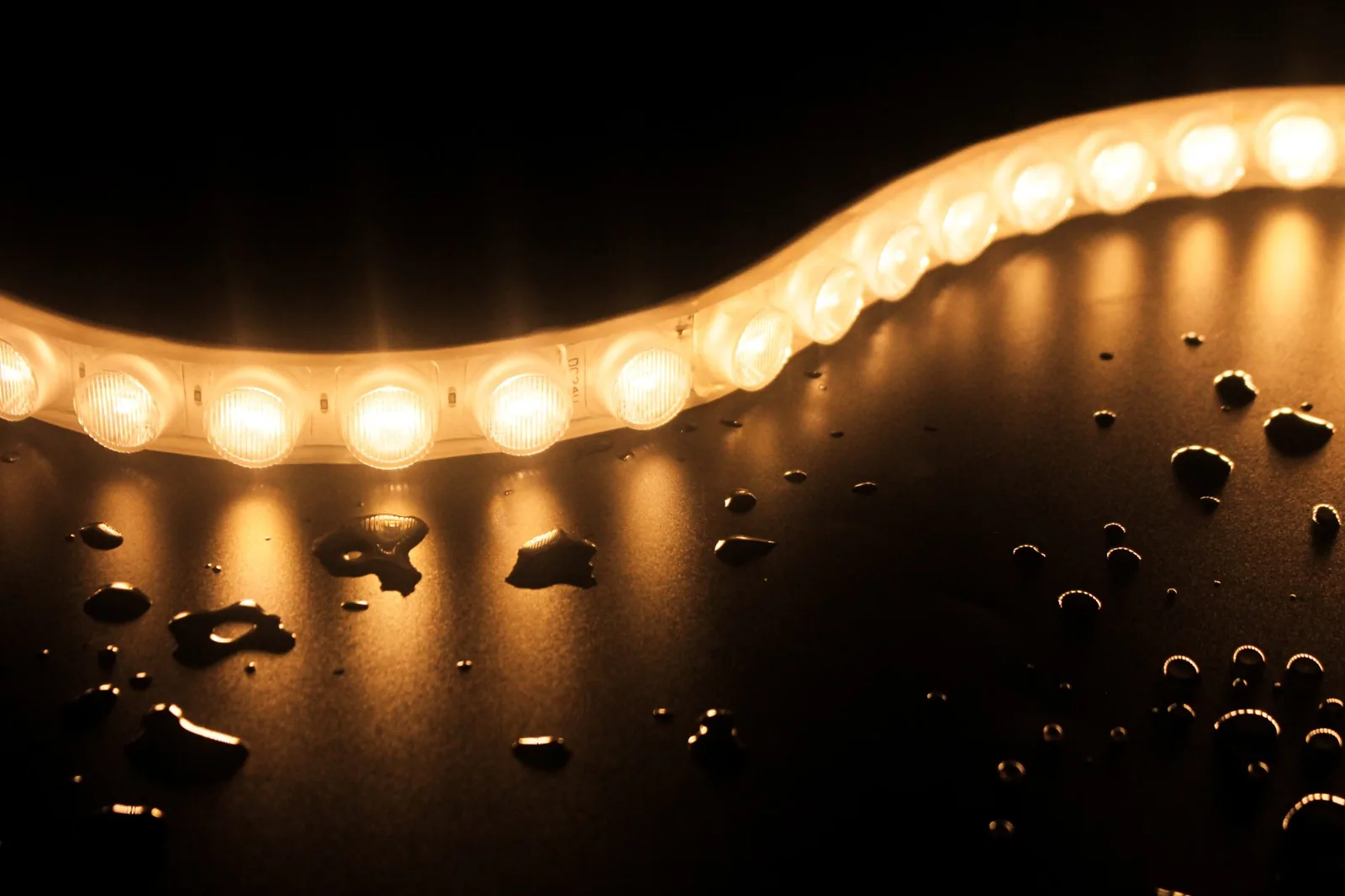

The high efficiency member of the IP67 wall washer family. The 48 LED per metre 2835 build reaches 140 to 150 lm/W and 2800 to 3000 lm/m at 20W per metre, which is where a facade wash gets enough output to compete with ambient light. The lamp bends and can be disassembled, and the waterproof design reaches IP67, so it survives an exposed exterior position.
Key Benefits
Why Buyers Choose This Build
Up to 150 lm/W and 3000 lm/m, enough output for a facade wash against city ambient light
IP67 waterproof design for permanently exposed exterior positions
The lamp can be bent and disassembled, which makes installation and later service practical
Lens angle selections from 15 degrees to 30 x 45 degrees for grazing or washing
Application
Where It Fits And What It Fixes
Who It Is For
- Facade and architectural lighting contractors
- Exterior feature lighting installers
- Specifiers who need a documented lm/m figure for a facade calculation
Problems It Solves
- Facade washes that look washed out because the fixture cannot beat the ambient light level
- Exterior runs where water ingress ends the installation in the first winter
- Installations where a sealed strip cannot be opened or reworked on site
Application Scenarios
- Building facade wash
- Exterior feature walls
- Bridge and structure lighting
- Outdoor decorative architecture
Technical Features
- High luminous efficiency 2835 LED with lens solution
- Lens with different light emitting angle selections
- Wall washing effect optimised
- Flexible, can be bent and disassembled
- Waterproof design reaching IP67
- 20W per metre at 24V
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Ingress Protection
- IP67
- Voltage
- 24V constant voltage
- Power
- 20W per metre
- LED Density
- 30, 42 or 48 per metre
- Efficiency
- 100 to 150 lm/W
- Flux
- 2000 to 3000 lm/m
- CRI
- 80 or 90
- SDCM
- Below 3
- CCT
- 2700K to 6500K
- Lens Angles
- 15, 30, 60, 30 x 45 and 25P20 degrees
Part Number Table
| Product Model | LED Package | CRI | SDCM | CCT | Luminous Angle | Drive | Voltage | LEDs Per Metre | Efficiency | Flux Per Metre | Power Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL-FV2420030283520-8XX-WWWA2205 | 2835 | 80 / 90 | Below 3 | 2700-6500K | 15 / 30 / 60 / 30 x 45 / 25P20 degrees | Constant voltage | 24V | 30 | 100-110 lm/W | 2000-2200 lm/m | 20W/m |
| LK-FV2420042283520-8XX-WWWA2205 | 2835 | 80 / 90 | Below 3 | 2700-6500K | - | Constant voltage | 24V | 42 | 120-130 lm/W | 2400-2600 lm/m | 20W/m |
| LK-FV2420048283520-8XX-WWWA2205 | 2835 | 80 / 90 | Below 3 | 2700-6500K | - | Constant voltage | 24V | 48 | 140-150 lm/W | 2800-3000 lm/m | 20W/m |
| LK-FV2420042303020-8CW-WWWA2205 | 3030CW | 80 / 90 | Below 3 | 2700K + 6500K | - | Constant voltage | 24V | 42 | 120-130 lm/W | 2400-2600 lm/m | 20W/m |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2835 and 3030 LED packages
- Optical lens array
- IP67 waterproof encapsulation
Manufacturing Process
- SMT placement
- Reflow soldering
- Lens fitting
- IP67 encapsulation
- Waterproof verification
- Lit inspection
- Reeling
Quality Control
- Incoming LED binning to SDCM 3
- Lens alignment check
- IP67 immersion verification
- Full reel lit inspection
- Colour consistency sorting
Certifications
- CE
- RoHS
Customisation Options
- LED density and lens angle
- CRI and CCT selection
- Cut length and connector
- Colour build including dual colour and RGB
Comparison
How It Compares With Other Products In The Range
Compared With Wall Washer Strip Light Multi Angle Lens Series
The same IP67 platform positioned around angle choice, including RGB, SPI and DMX builds
Compared With Wall Wash Strip TPU Half Tube Gluing
A 12W per metre half tube build for lighter duty and lower load
Use Guide
Specifying And Installing It Correctly
- Use the 48 LED per metre build where efficiency is the constraint and the 30 LED build where cost is
- Set the mounting offset from the wall to match the chosen lens angle
- Seal the end caps and cut points properly or the IP67 rating stops at the first cut
Related Products
Other Products Worth Comparing
LED Module
Wall Washer Strip Light Multi Angle Lens Series
IP67 wall washer across white, dual colour, RGB, SPI and DMX512 with five beam angles
View Specifications →
Outdoor Lighting
LED Street Light 100W to 200W
Roadway luminaire in three wattage steps with an IP65 sealed housing
View Specifications →
Outdoor Lighting
LED Street Light 100W to 300W
Four wattage steps up to 300W with an IP65 or IP66 sealed outdoor body
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Architectural Facade Lighting
A facade installation is permanent, exposed and seen from a distance.
Read More →
Product Guide
Understanding IP20 IP65 And IP67 For LED Strips
The IP number on a strip datasheet describes the strip as it leaves the factory, not as it will be after it has been cut, joined and installed. This guide explains what each rating means in practice.
Read The Guide →
Installation Guide
Wall Washer Beam Angles And Mounting Distance
A wall washer is only as good as the relationship between its beam angle, its offset from the wall and the height it has to cover. Get that wrong and no amount of output fixes it.
Read The Guide →FAQ
Wall Washer Strip Light High Efficiency Lens Series FAQ
What is the highest output per metre?
2800 to 3000 lm/m on the 48 LED per metre build at 140 to 150 lm/W.
What ingress protection does it reach?
IP67.
Can it be bent on site?
Yes, the lamp can be bent and disassembled.
Does the power change with LED density?
No. All the listed builds draw 20W per metre; density changes the efficiency and the flux.
Request A Quote For Wall Washer Strip Light High Efficiency Lens Series
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
