Product Overview
What This Product Is And Who It Is For

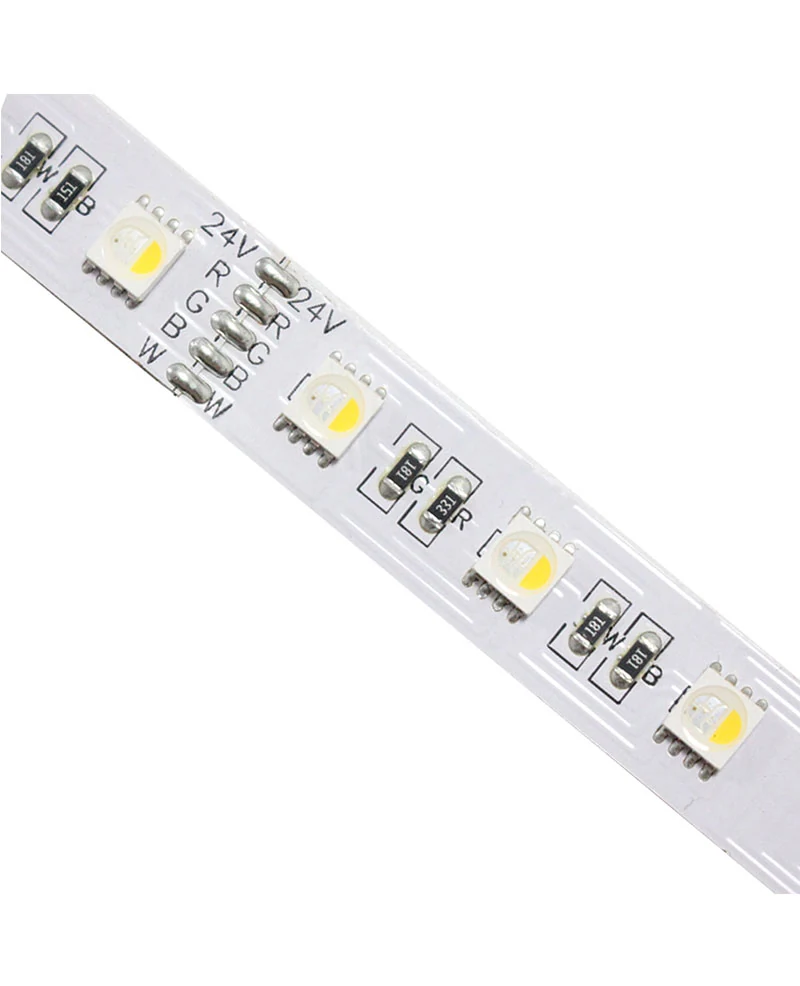

The colour strip of the range. The 5050 package carries three or four dies in one component, which is what makes RGB, RGBW and RGBWW possible on a single strip instead of separate colour runs. Builds span 10 mm and 12 mm widths, 36W to 120W per reel, and an IC built out version for addressable control. IP20 and IP67 are offered on every build.
Key Benefits
Why Buyers Choose This Build
White, RGB, RGBW and RGBWW from one strip family, so a scheme can mix colour and white on one profile
IP20 or IP67 on every build, so indoor and outdoor runs use the same product
A built out IC version for addressable effects without changing strip family
10 mm and 12 mm widths to suit existing profile stock
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural and decorative lighting installers
- Shopfitters and display builders using colour
- OEM brands offering a colour strip line
Problems It Solves
- Colour schemes that need white and colour on the same profile but from one supplier
- Outdoor decorative runs where an indoor only strip has to be replaced
- Projects that later add addressable effects and would otherwise need a different strip
Application Scenarios
- Architectural feature lighting
- Decorative colour schemes
- Outdoor decoration
- Retail display and shelving
Technical Features
- 5050 LED package
- White, RGB, RGBW and RGBWW builds
- Built out IC version available
- 10 mm and 12 mm strip widths
- 36W to 120W per reel
- IP20 and IP67 options
- 24V constant voltage
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- LED Package
- 5050
- Voltage
- 24V
- Reel Length
- 5000 mm
- Strip Width
- 10 mm and 12 mm
- Power
- 36W to 120W per reel
- Colour Options
- White, RGB, RGBW, RGBWW and built out IC RGBWW
- Flux
- 1650 to 4200 lm/m
- Ingress Protection
- IP20 or IP67
Part Number Table
| Part Number | Length (mm/reel) | Power (W/reel) | LEDs (pcs/reel) | Voltage (V) | Current (A) | Flux (lm/m) | Efficiency (lm/W) | CCT | Ingress Protection | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
| LK-FS12030CW5050W | 5000 x 10 mm | 36 | 150 | 24 | 2.4 | 2100 | 80 | 2700K-6500K | IP20 / IP67 | 80 and above |
| LK-FS24060IP205050 | 5000 x 10 mm | 72 | 180 | 24 | 4 | 4200 | 80 | 2700K-6500K | IP20 / IP67 | 80 and above |
| LK-FS24030IP205050RGB | 5000 x 10 mm | 36 | 300 | 24 | 3 | 1650 | 80 | RGB | IP20 / IP67 | - |
| LK-FS24060IP205050RGB | 5000 x 10 mm | 72 | 300 | 24 | 3 | 1650 | 80 | RGB | IP20 / IP67 | - |
| LK-FS24060IP205050RGBW | 5000 x 12 mm | 72 | 300 | 24 | 3 | 1650 | 80 | RGBW | IP20 / IP67 | - |
| LK-FS24060IP205050RGBWW | 5000 x 12 mm | 120 | 180 | 24 | 3 | 4200 | 80 | RGBWW | IP20 / IP67 | - |
| LK-FS24060IP205050RGBWW | 5000 x 12 mm | 120 | 180 | 24 | 3 | 4200 | 80 | Built out IC RGBWW | IP20 / IP67 | - |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier in 10 mm and 12 mm widths
- 5050 multi die LED package
- Silicone or PU coating on IP67 builds
Manufacturing Process
- Solder paste printing
- Reel to reel SMT placement
- Reflow soldering
- IC placement on the addressable build
- Coating for IP67
- Lit inspection
- Reeling
Quality Control
- Incoming LED binning
- Automated optical inspection
- Colour channel lit test
- Addressable sequence check on IC builds
- Waterproof verification on IP67 reels
Certifications
- CE
- RoHS
Customisation Options
- Colour configuration
- Strip width and density
- IP rating and coating
- Cut length and connector
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip DMX SPI Media Ribbon IP67 1516
A fully encapsulated neon body with pixel control, for exposed architectural runs
Compared With LED Strip Light 2216
A single colour high density strip for bright seamless white lines
Use Guide
Specifying And Installing It Correctly
- Pick the 12 mm width for RGBW and RGBWW, as the extra die needs the board space
- Confirm whether the project needs addressable control before choosing the built out IC build
- Use IP67 for any run that is outdoors or can be washed
Related Products
Other Products Worth Comparing
LED Module
2835 Strip Wall Wash Light With 60 Degree Angle
2835 strip with a 60 degree lens so light lands on the wall instead of spilling
View Specifications →
LED Module
LED Strip Light 2216
High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m
View Specifications →
LED Module
LED Strip Light 2110 700LED
700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Architectural Facade Lighting
A facade installation is permanent, exposed and seen from a distance.
Read More →
Product Guide
Understanding IP20 IP65 And IP67 For LED Strips
The IP number on a strip datasheet describes the strip as it leaves the factory, not as it will be after it has been cut, joined and installed. This guide explains what each rating means in practice.
Read The Guide →FAQ
LED Strip Light 5050 FAQ
Which colour configurations are available?
White, RGB, RGBW, RGBWW and a built out IC RGBWW build.
What strip widths are used?
10 mm for white and RGB, 12 mm for RGBW and RGBWW.
Is an outdoor version available?
Yes, IP67 is offered on every build.
Is it addressable?
The built out IC RGBWW build is. The others are constant voltage.
Request A Quote For LED Strip Light 5050
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
