LED Module

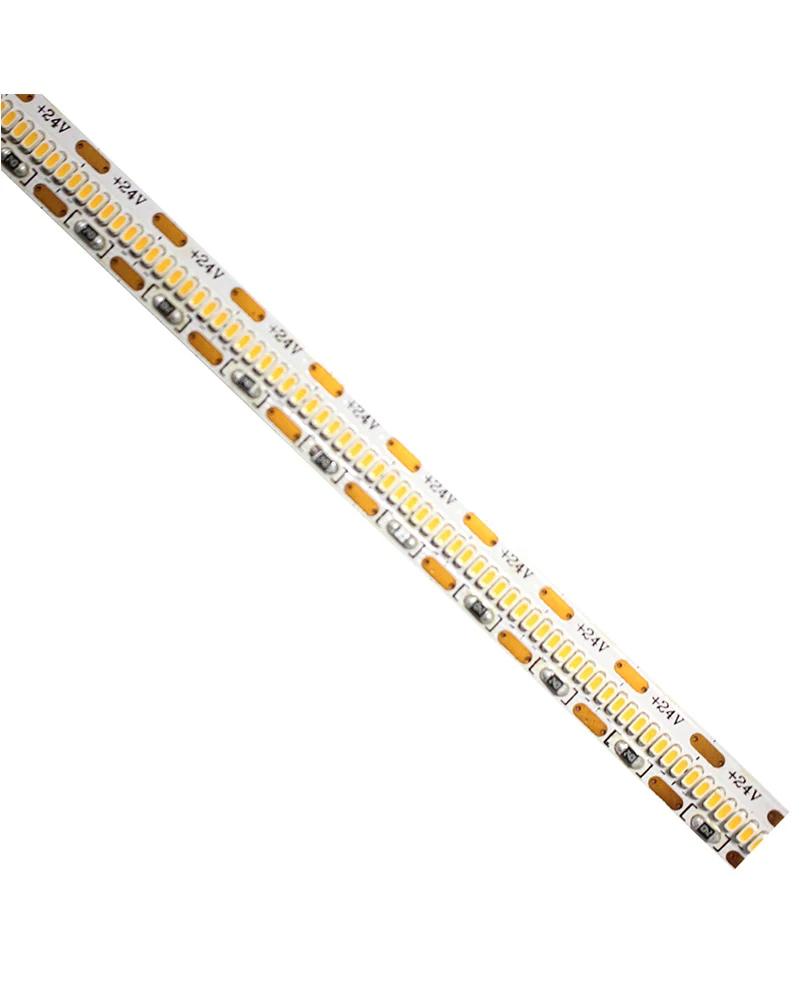

2110 LED Strip Light With 3500 LEDs Per Reel At 90 lm/W
700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
At 700 LEDs per metre the individual emitters stop being visible, which is the whole point of the 2110 package. 3500 emitters on a 5 m reel drawing 96W at 24V, at 90 lm/W and CRI above 90. This is the strip to use behind a shallow diffuser or with no diffuser at all, where a lower density strip would show a row of dots.
Key Benefits
Why Buyers Choose This Build
700 LEDs per metre removes visible dotting even with a shallow or no diffuser
90 lm/W efficiency, high for a strip at this density
CRI above 90 for merchandise and food display
Low current at 0.8 A per reel despite the high LED count
Application
Where It Fits And What It Fixes
Who It Is For
- Shelf and display lighting manufacturers using shallow profiles
- Shopfitters building exposed linear details
- Cabinet and furniture lighting makers
Problems It Solves
- Shallow profiles where there is no room for a deep diffuser to hide dots
- Exposed strip runs where the dot pattern is visible to the customer
- High density strips that draw so much current the driver becomes the problem
Application Scenarios
- Shallow profile linear runs
- Exposed shelf edges
- Furniture and cabinet detailing
- Display cases viewed at close range
Technical Features
- 2110 LED package
- 700 LEDs per metre and 3500 per reel
- 96W per reel at 24V
- Efficiency 90 lm/W
- CRI above 90
- Current 0.8 A per reel
- IP20
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- LED Package
- 2110
- LED Density
- 700 per metre
- LED Count
- 3500 per reel
- Voltage
- 24V
- Power
- 96W per reel
- Current
- 0.8 A
- Flux
- 2400 lm/m
- Efficiency
- 90 lm/W
- CCT
- 2700K to 6500K
- CRI
- Above 90
- Ingress Protection
- IP20
Part Number Table
| Part Number | Length (mm/reel) | Power (W/reel) | LEDs (pcs/reel) | Voltage (V) | Current (A) | Flux (lm/m) | Efficiency (lm/W) | CCT | Ingress Protection | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
| LK-F2408700IP202110 | 5000 | 96 | 3500 | 24 | 0.8 | 2400 | 90 | 2700-6500 | IP20 | >90 |
| LK-F2410700IP202110 | 5000 | 96 | 3500 | 24 | 0.8 | 2400 | 90 | 2700-6500 | IP20 | >90 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2110 small package LED
Manufacturing Process
- Solder paste printing
- Ultra high density SMT placement
- Reflow soldering
- Lit inspection
- Reeling and packing
Quality Control
- Incoming LED binning
- Automated optical inspection at 700 LEDs per metre
- Full reel lit inspection
- Colour consistency sorting
Certifications
- CE
- RoHS
Customisation Options
- LED density and reel length
- CCT and CRI selection
- Strip width
- Cut length and connector
Comparison
How It Compares With Other Products In The Range
Compared With LED Strip Light 2110 300LED
The 300 LED version halves density and power for lower brightness runs
Compared With COB Strip Dual Color
A COB strip gives a continuous phosphor line rather than very dense discrete emitters
Use Guide
Specifying And Installing It Correctly
- Use this density where the strip is visible and a diffuser is shallow or absent
- Check the cut length, as very dense strips have a short minimum cut unit
- Mount into an aluminium profile so 96W per reel has a heat path
Related Products
Other Products Worth Comparing
LED Module
2835 Strip Wall Wash Light With 60 Degree Angle
2835 strip with a 60 degree lens so light lands on the wall instead of spilling
View Specifications →
LED Module
LED Strip Light 2216
High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m
View Specifications →
LED Module
LED Strip Light 5050
5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Supermarket And Retail Display
Retail lighting is seen close up and judged on the merchandise, not on the fixture.
Read More →
Product Guide
LED Strip Density And Cut Length Explained
LED density decides how the strip looks; cut length decides how much of it you waste. Both are set by the package, and both are worth checking before the profile is ordered.
Read The Guide →FAQ
LED Strip Light 2110 700LED FAQ
How many LEDs per metre?
700, which is 3500 per 5 m reel.
What is the efficiency?
90 lm/W at 2400 lm/m.
Why is the current only 0.8 A?
The emitters are driven in long series strings, so the reel draws little current for its LED count.
Is a lower density version available?
Yes, the 2110 300LED build at 60W and 1100 lm/m.
Request A Quote For LED Strip Light 2110 700LED
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
